- Page 2 Use of this document and the subsequent results shall be entirely on the user’s own responsibility. Abetechs GmbH (Grundig Security) reserves the right to change the contents of this document without prior notice. Design and specifications are subject to change without prior notice.
- Page 3 OPEN SOURCE SOFTWARE LICENSE INFORMATION The software components provided with Grundig products may contain copyrighted software that is licensed under various open source software licenses. For detailed information about the...
- Page 4 You may obtain the complete corresponding open source part of a specific product from us for a period of three years after our last shipment of this product by sending an email to: info@grundig- security.com Safety and Installation Instructions...
- Page 5 Improper use or replacement of the battery may result in the hazard of explosion. Do not use any accessories that are not recommended by GRUNDIG. Do not modify the product in any way. If the product starts to smell or smoke comes out of the device, immediately stop using the product and disconnect it from the power supply to prevent fire or electric shocks.
- Page 6 Installation Instructions It is necessary to fix the device firmly if the product is installed on a wall or ceiling. Do not install the product on surfaces or in places that are vibrating. Do not install the product near radiation sources. Do not install the product near heat sources, like radiators or other equipment that produces some heat.
- Page 7 Special Installation Instructions for IP Cameras Make sure that the latest firmware is installed on the IP Device. You may get the latest firmware from techsupport@grundig-security.com.
-
Page 8: Table Of Contents
3.1 Wiring ................15 3.2 Activating the Camera ........... 16 Activation via Web Browser ........16 Activation via Grundig IP-Finder Software ....17 3.3 Modifying the IP Address ..........19 4 Accessing via Web Browser ............21 4.1 Initializing the Memory Card ......... 23... -
Page 9: Appearance Description

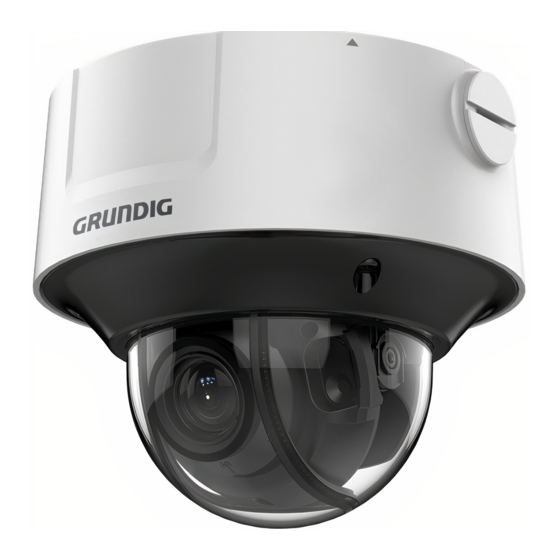

1 Appearance Description The overview of the fix dome camera is shown below. Figure 1-1 Overview of the Camera... - Page 10 The dome camera cables, including power cable, alarm cable and audio cable are shown as below. Figure 1-2 Cable Description Note: Hold RESET button about 10s when the camera is powering on or rebooting to restore the default settings, including the user name, password, IP-address.
-
Page 11: Installation
2 Installation 2.1 Memory Card Installation The camera supports memory card installation. Steps: 1. Loosen the screws using the supplied Allen wrench to remove the cover of the camera. 2. Insert the memory card into the card slot. 3. Tighten the screws to replace the cover. Memory Card Slot Cover... -
Page 12: Camera Mounting
2.2 Camera Mounting Steps: 1. Drill screw holes into the wall/ceiling according to the supplied template. Figure 2-2 Drill Template 2. Feed the cables from above or the side and fix the camera base on the wall / ceiling. - Page 13 fix the camera base 3. Adjust the viewing angle. 3-axis (pan/tilt/rotation) adjusting allows adjustment for optimum camera rotation and placement. Follow the steps below to adjust the view angle. Steps: 1). Loosen the dome cover using the supplied Allen wrench.
- Page 14 2). Adjust the view angle of the camera. The adjusting range of the panning is from 0° to 355°, the tilting is from 0° to 75° and the rotation is from 0° to 355°. 3). Attach the dome cover onto the camera. Figure 2-4 Adjust the View Angle...
- Page 15 4). Fix the safety rope of the camera body to the installation base and replace the cover to the camera. Figure 2-5 fix the safety rope...
-
Page 16: Setting The Ip-Camera Over The Lan
3 Setting the IP-Camera over the LAN Note: You shall acknowledge that the use of the product with Internet access might be under network security risks. For avoidance of any network attacks and information leakage, please strengthen your own protection. If the product does not work properly, contact your dealer or the nearest service center for help. -
Page 17: Activating The Camera
Activation via Web Browser and Activation via Grundig IP-Finder software are supported. We will take activation via Grundig IP-Finder software and Activation via Web Browser as examples to introduce the camera activation. Activation via Web Browser Steps: 1. -
Page 18: Activation Via Grundig Ip-Finder Software
4. Confirm the password. 5. Click OK to save the password and enter the live view interface. Activation via Grundig IP-Finder Software The Grundig IP-Finder software is used for detecting the online device and activating the camera. - Page 19 Get the Grundig IP-Finder software from the official website www.grundig-security.com and install the software according to the prompts. Follow the steps to activate the camera, please refer to the User manual for other two activation methods. Steps: 1. Run the IP-Finder software to search the online devices.
-
Page 20: Modifying The Ip Address
To view and configure the camera via LAN (Local Area Network), you need to connect the network camera in the same subnet with your Use the Grundig IP-Finder software or client software to search and change the IP address of the device. We take modifying the IP Address via Grundig IP-Finder software as an example to introduce the IP address modification. - Page 21 Modify the IP Address 4. Input the admin password and click Update to activate your IP address modification. The batch IP address modification is supported by the Grundig IP- Finder. Please refer to the User Manual of Grundig IP-Finder software for details.
-
Page 22: Accessing Via Web Browser
4 Accessing via Web Browser System Requirement: Operating System: Microsoft Windows XP SP1 and above version CPU: 2.0 GHz or higher RAM: 1G or higher Display: 1024×768 resolution or higher Web Browser: Internet Explorer 8 and above version, Apple Safari 16 and above version, Mozilla Firefox 52.0 and above version and Google Chrome 57.0 and above version Steps:... - Page 23 4. Click Login. Login Interface 5. Install the plug-in before viewing the live video and managing the camera. Please follow the installation prompts to install the plug- Note: You may have to close the web browser to finish the installation of the plug-in.
-
Page 24: Initializing The Memory Card
4.1 Initializing the Memory Card Steps: Check the memory card status by tapping on the Storage Status in the Device Settings interface. If the memory card status displays as Uninitialized, tap to initialize it. The status will then change to Normal. You can then start recording any event triggered video in the camera such as motion detection.
