Rear and side components

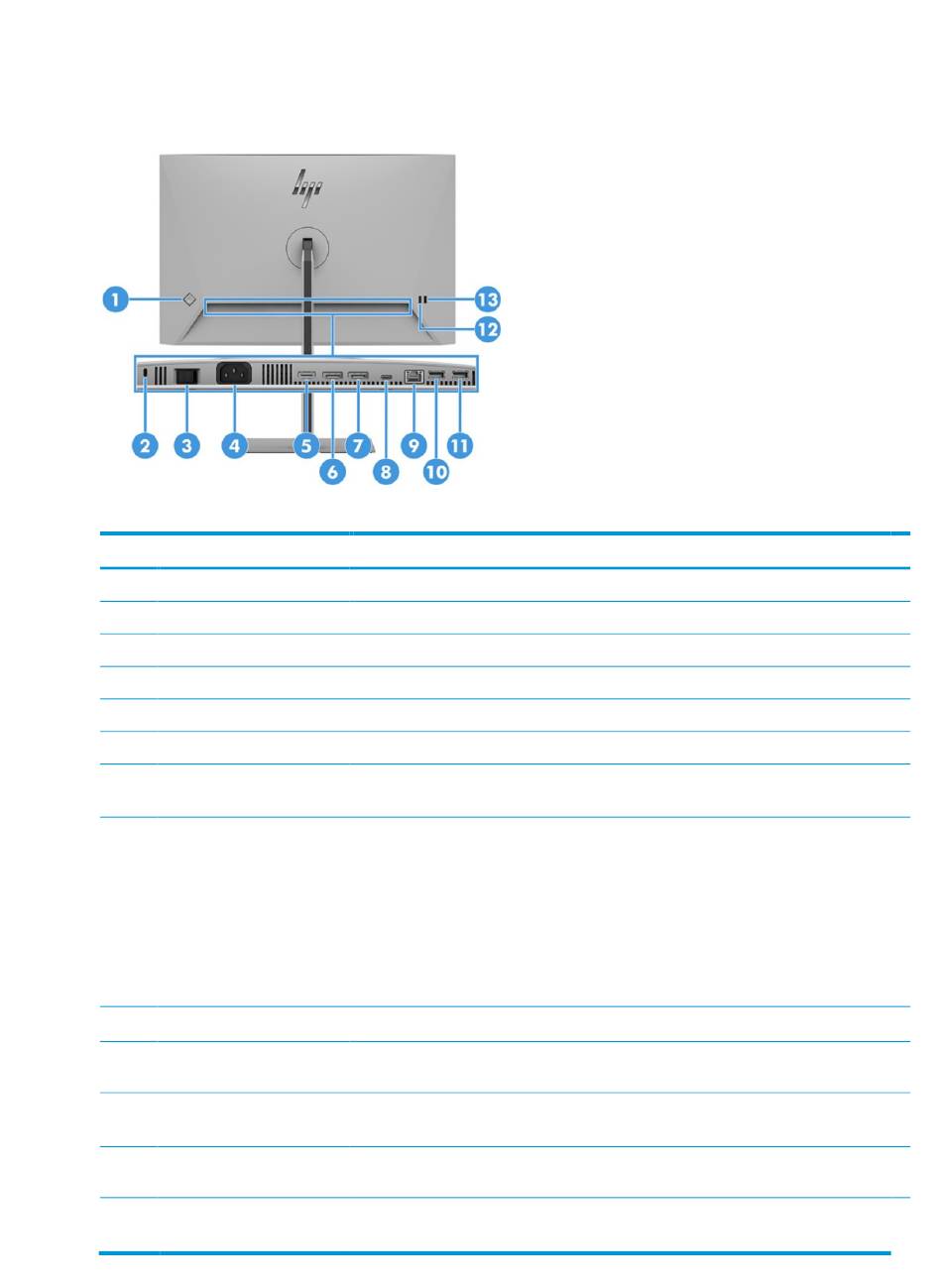

To identify the components on the rear of the monitor, use this illustration and table.
Table 2-1 Rear and side components and their descriptions
Component
(1)
Joypad
(2) Security cable slot
(3) Master power switch
(4) Power connector
(5) HDMI port
(6) DisplayPort connector
(7) DisplayPort connector
OUT
(8) USB Type-C port with
DP Alt Mode 1.4, USB
upstream data, and
maximum power
delivery up to 100 W
(9) RJ-45 (network) jack
(10) USB port
(11) USB port
Battery charging 1.2
(12) USB port
(13) USB port
Battery charging 1.2
6
Description
Opens the OSD settings.
Connects an optional security cable.
Turns on or off all power to the monitor.
Connects your monitor to a power outlet.
Connects the HDMI cable to a source device such as a computer.
Connects the DisplayPort cable to a source device such as a computer.
Connects the DisplayPort cable from the monitor to a secondary
monitor.
Connects the USB Type-C cable to a source device such as a
computer
Charges most USB Type-C devices even when the monitor is in sleep
mode
Note: The monitor must be set to Performance Mode.
This port also enables the USB Type-A ports to perform their
functions.
Connects an RJ-45 Ethernet network cable to the monitor.
Connects a USB cable to a peripheral device, such as a keyboard, mouse,
or USB hard drive.
Connects a USB cable to a peripheral device, such as a keyboard, mouse,
or USB hard drive and supports battery charging 1.2.
Connects a USB cable to a peripheral device, such as a keyboard, mouse,
or USB hard drive.
Connects a USB cable to a peripheral device, such as a keyboard,
mouse, or USB hard drive and supports battery charging 1.2.
