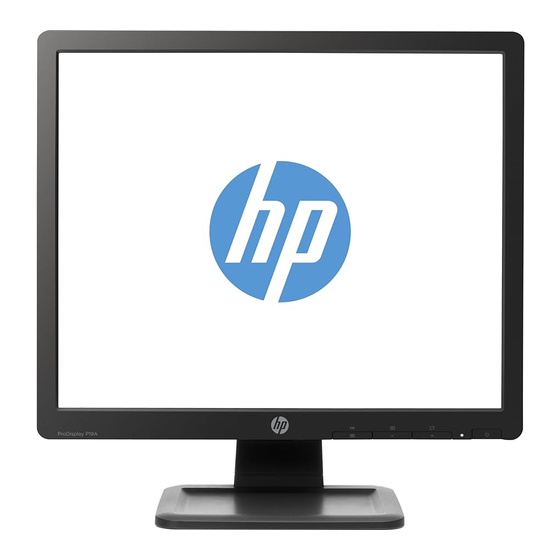

- Page 1 HP ProDisplay P19A LED Backlit Monitor User Guide...
- Page 2 © 2013 Hewlett-Packard Development Company, L.P. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
- Page 3 About This Guide This guide provides information on monitor features, setting up the monitor, and technical specifications. WARNING! Text set off in this manner indicates that failure to follow directions could result in bodily harm or loss of life. CAUTION: Text set off in this manner indicates that failure to follow directions could result in damage to equipment or loss of information.
- Page 4 About This Guide...
-
Page 5: Table Of Contents
Table of contents 1 Product Features ............................1 HP LED Monitor ........................... 1 2 Setting Up the Monitor ........................... 2 Attaching the Stand Base ........................2 Rear Components ..........................3 Connecting the Cables ......................... 4 Front Panel Controls ..........................5 Adjusting the Monitor .......................... -
Page 7: Product Features
Removable stand for flexible monitor panel mounting solutions ● Video signal input to support VGA analog ● Accessory rail on monitor to accept optional mounted devices, such as an HP speaker bar ● Plug-and-play capability if supported by the operating system ●... -
Page 8: Setting Up The Monitor
Setting Up the Monitor To set up the monitor, ensure that the power is turned off to the monitor, computer system, and other attached devices, then follow the instructions below. Attaching the Stand Base Lift the stand base from the monitor box and set it on a flat surface such as a table top. Using both hands, lift the monitor from its box, position the monitor stand over the stand base, and press down firmly to lock it in place. -
Page 9: Rear Components
Rear Components Figure 2-2 Rear Components Component Function AC Power Connector Connects the AC power cord to the monitor. Connects the VGA cable to the monitor. Rear Components... -
Page 10: Connecting The Cables
Connecting the Cables Place the monitor in a convenient, well-ventilated location near the computer. Connect the VGA signal cable. Connect one end of the power cord to the AC power connector on the back of the monitor, and the other end to an electrical wall outlet. Figure 2-3 Connecting the Cables WARNING! -
Page 11: Front Panel Controls
White = Fully powered. Amber = Sleep mode Flashing Amber = Sleep Timer mode Power Turns the monitor on or off. NOTE: To view an OSD menu simulator, visit the HP Customer Self Repair Services Media Library at http://www.hp.com/go/sml. Front Panel Controls... -
Page 12: Adjusting The Monitor
Image retention is a condition that may occur on all LED screens. Monitors with a “burned-in image” are not covered under the HP warranty. * A prolonged period of time is 12 consecutive hours of non-use. -
Page 13: Using The Accessory Rails
The monitor features accessory rails on the rear that can be used to mount optional devices, such as the HP speaker bar, to attach to the monitor. Refer to the documentation included with the optional device for detailed mounting instructions. - Page 14 Remove the three screws from the back of the monitor that connect the monitor panel to the pedestal base (1) and slide the pedestal base from the monitor panel (2). Figure 2-7 Removing the Pedestal Base To attach the monitor to a swing arm (sold separately), insert four 10mm screws through the holes on the swing arm plate and into the mounting holes on the monitor.
-
Page 15: Locating The Rating Labels
Figure 2-9 Locating the Rating Labels Installing a Cable Lock You can secure the monitor to a fixed object with an optional cable lock available from HP (sold separately). Figure 2-10 Installing a Cable Lock... -
Page 16: Finding More Information
If the information provided in the guide or in the HP LCD Monitors Reference Guide does not address your questions, you can contact support. For U.S. support, go to http://www.hp.com/go/contactHP. For worldwide support, go to http://welcome.hp.com/country/us/en/wwcontact_us.html. Here you can: ●... -
Page 17: Technical Specifications
Technical Specifications NOTE: All specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary. Table 4-1 P19A Specifications Maximum Weight (Unpacked) 3.47 kg 7.65 lbs Dimensions (include stand) 41.82 cm 16.46 inches Height 20.64 cm 8.13 inches Depth 41.40 cm... -
Page 18: Entering User Modes
Entering User Modes The video controller signal may occasionally call for a mode that is not preset if you are not using a standard graphics adapter. Chapter 4 Technical Specifications...
