Rear and side components

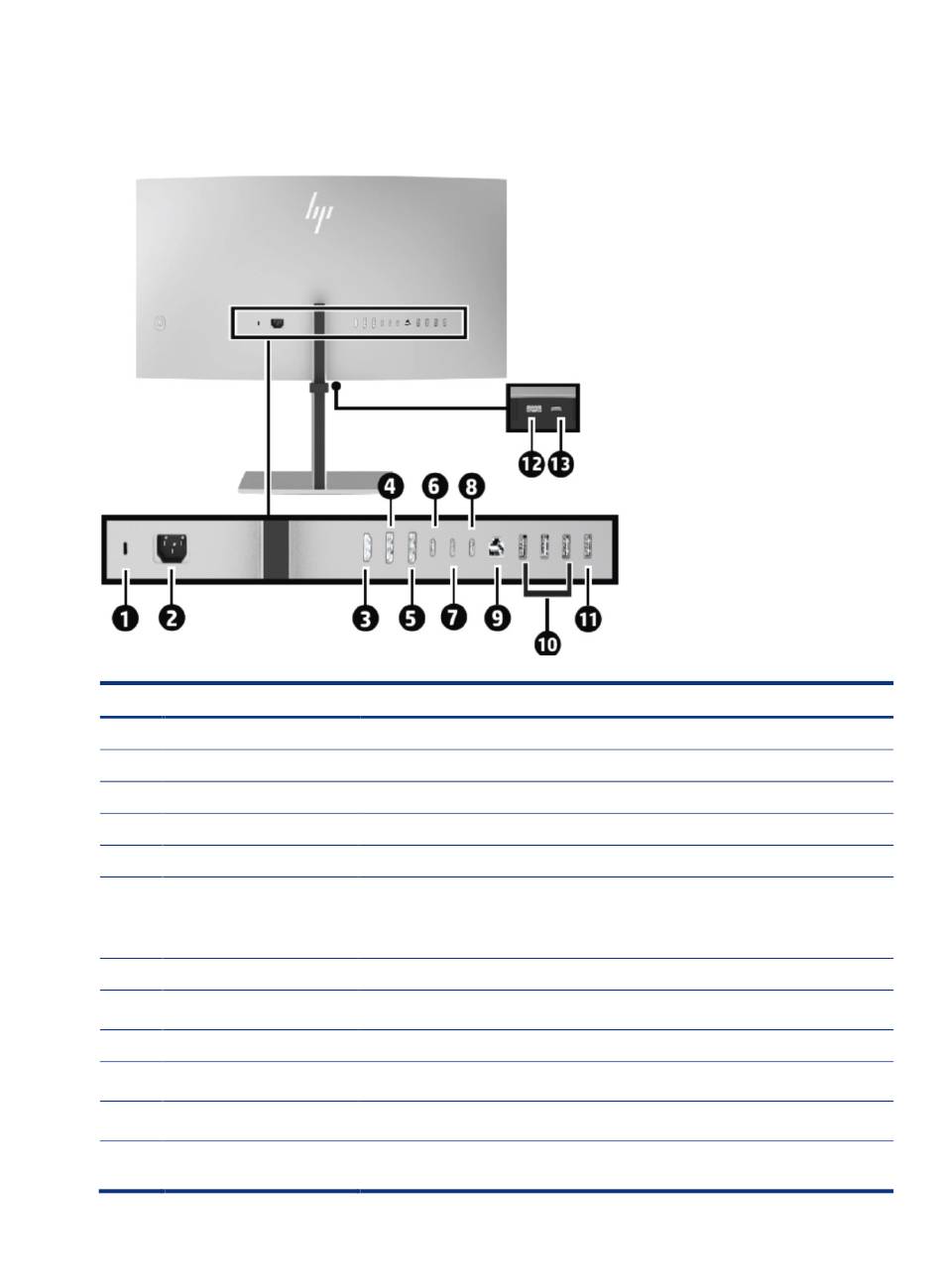

To identify the components on the rear of the monitor, use this illustration and table.
Table 2-2 Rear components and their descriptions
Component
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10,12)
(11)
(13)
6
Security cable slot
Power connector
HDMI port
DisplayPort In connector
DisplayPort Out connector
USB Type-C port with DP Alt
Mode 1.4, USB upstream
data, and maximum power
delivery up to 65 W
TB4 Out connector
TB4 In connector
RJ45 connector
USB Type-A port (4)
(downstream)
USB Type-A port Battery
charging 1.2 (downstream)
USB Type-C port with 15W
charging (downstream)
Description
Connects an optional security cable.
Connects your monitor to a power outlet.
Connects the HDMI cable to a source device such as a computer or game console.
Connects the DisplayPort cable to a source device such as a computer or game console.
Connects the DisplayPort cable from the monitor to a secondary monitor.
Connects the USB C-C cable to a source such as computer for DP Alt mode and
USB data.
Connects a TB4 cable to a TBT4 monitor or TBT4 device and supports PD 5 V @ 3 A.
Connects the TB4 cable from the monitor to a source device such as a computer or game
console and supports up to PD 20 V @ 5 A.
Connects an RJ-45 Ethernet network cable to the monitor.
Connect USB cables to peripheral devices, such as a keyboard, mouse, or USB hard drive,
and provides data transfer.
Connects a USB cable to a peripheral device, such as a keyboard, mouse, or USB hard drive
and supports battery charging 1.2.
Connects the USB Type-C cable to a peripheral device, and charge peripheral devices.
NOTE: This port provides data transfer only and supports battery charging 1.2.
