- Page 1 AUTOOL BT460 Battery System Tester User Manual www.autooltech.com...
- Page 2 企业标准 / Corporate standard: Q/OR 003-2023...
- Page 3 COPYRIGHT INFORMATION Copyright ● All rights reserved by AUTOOL TECH. CO., LTD. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of AUTOOL.
- Page 4 ATTENTION Warning Before using the instrument, please read this manual careful- ly for proper operation. Non- technical person shall not change, disassemble or repair the product, otherwise all losses caused by this shall be bared by the user himself. Please do not scratch, bend, twist or stretch the wires. Do not place the wires in high temperature.
-
Page 5: Table Of Contents
TABLE OF CONTENTS PRODUCT INTRODUCTION ................2 Overview ......................2 Measure range ....................2 Product specifications ..................2 Product Structure ....................3 Structure diagram .................... 3 Operations Instruction ..................4 Battery test ...................... 4 Cranking test ....................5 Charging test ....................5 Load test...................... -
Page 6: Product Introduction

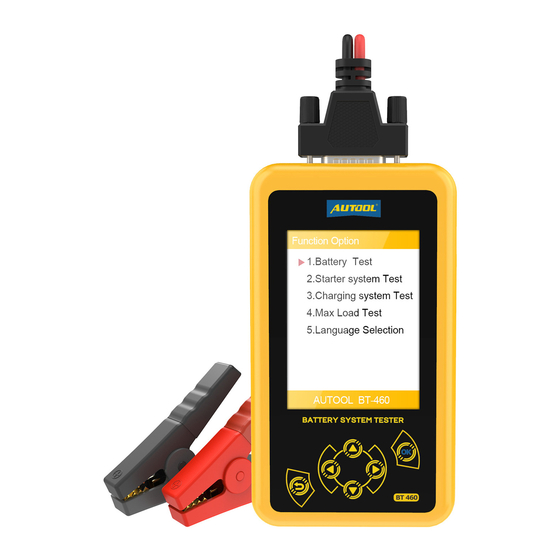

PRODUCT INTRODUCTION Overview BT460 Battery Tester adopts currently the world's most advanced conductance testing technology to easily, quickly and accurately measure the actual cold cranking amps capability of the vehicle starting battery, healthy state of the battery itself, and common... -
Page 7: Product Structure
PRODUCT STRUCTURE Structure diagram COM Connecting line LCD screen Clamps OK button ESC button... -
Page 8: Operations Instruction
OPERATIONS INSTRUCTION Battery test ● Connect the red test clamp with battery positive (+) and the black clamp with negative (-), the tester will power on automati- cally. Battery voltage below 6.0V can’t be tested properly, then press any key to continue. ●... -
Page 9: Cranking Test
minutes, then test it.” For serious battery shortage (For example, the vehicle is on hold for a long time; the battery is not charged in time; the headlight or door is forgotten to be turned off, which cause serious battery shortage, and vehicle can’t start), it may show “Please replace the battery”... -
Page 10: Load Test
NOTE: Do not shut down the engine during the test. All electrical appliance and device should be in OFF. During the test, turning on / off any electrical appliance in the vehicle will affect the accuracy of the test result. The battery voltage will be different because of different engine conditions. -
Page 11: Language
Current 14.1V Minimum 13.5V Minimum when all on 12.8V ● When all appliances are in ON state, normally, charging voltage is more than 12.8V if the power supply from generator is sufficient. If the voltage is less than 12.8V, it may be caused by insufficient output current from generator, reduced power generation, excessive electrical load or leakage. -
Page 12: Maintenance Service
MAINTENANCE SERVICE Our products are made of long-lasting and durable materials, and we insist on perfect production process. Each product leaves the factory after 35 procedures and 12 times of testing and inspec- tion work, which ensures that each product has excellent quality and performance. -
Page 13: Warranty
Disclaimer All information, illustrations, and specifications contained in this manual, AUTOOL resumes the right of modify this manual and the machine itself with no prior notice. The physical appearance and color may differ from what is shown in the manual, please refer to the actual product. -
Page 14: Return & Exchange Service
RETURN & EXCHANGE SERVICE Return & ● If you are an AUTOOL user and are not satisfied with the Exchange AUTOOL products purchased from the online authorized shopping platform and offline authorized dealers, you can return the products within seven days from the date of receipt;...
