- Page 1 AUTOOL BT380 Battery System Tester User Manual www.autooltech.com...
- Page 2 企业标准 / Corporate standard: Q/OR 003-2023...
- Page 3 COPYRIGHT INFORMATION Copyright ● All rights reserved by AUTOOL TECH. CO., LTD. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of AUTOOL.
- Page 4 ATTENTION Warning To prevent personal injury or damage to vehicles and the test tool, read this instruction manual first and observe the follow- ing safety precautions at a minimum whenever working on a vehicle: Non-technical person shall not change, disassemble or repair the product, otherwise all losses caused by this shall be borne by the user himself.
-
Page 5: Table Of Contents
TABLE OF CONTENTS Product Summary ....................2 Product profile ....................2 Product Function....................3 Functional interpretation .................. 3 Technical Parameters..................4 Measure range ....................4 Working Environment Requirement ..............4 Ambient temperature requirements ..............4 Scope of application ..................4 Tester Structure .................... -
Page 6: Product Summary

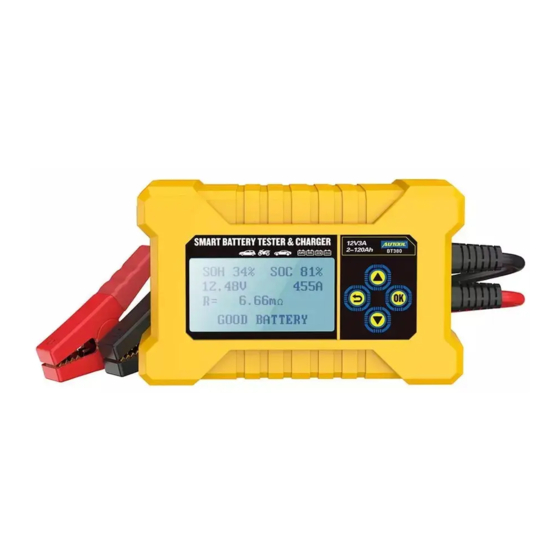

PRODUCT SUMMARY Product BT380 Battery Tester adopts currently the world’s most advanced profile conductance testing technology to easily, quickly and accurately measure the actual cold cranking amps capability of the vehicle starting battery, healthy state of the battery itself, and common... -
Page 7: Product Function
PRODUCT FUNCTION Functional Main functions of BT380 battery tester include: battery charging, interpretation battery test, cranking test, charging test and other additional functions. ● Battery charging is can support 12V lead-acid battery fast charging. ● Battery test is mainly targeted to analyze the battery healthy... -
Page 8: Technical Parameters
TECHNICAL PARAMETERS Measure Cold Cranking Amps Measure Range range Measure Range Measure Standard 40-2400 26A17--245H52 40-2200 40-2200 40-2400 40-2400 3-220AH 40-2400 40-2400 40-2400 WORKING ENVIRONMENT REQUIREMENT Ambient Working Environment Temp: -20°C-50°C. temperature requirements Scope of It is applicable for: application Automotive manufacturers, ●... -
Page 9: Tester Structure
● BT380 mainly consists of battery tester main unit and testing cables. Composition ● BT380 battery tester main unit cover is made of ABS acid- resistant plastic. ● Up / Down key description Select upwards or downwards via white UP and DOWN keys. -
Page 10: Operation
OPERATION Select ● Press UP / DOWN key to select the Language, Include English, language French, German, Spanish,etc. Battery ● After entering the battery charging program, the tester will charging display the tester’s voltage, current, charging power, and charging time. Battery ●... -
Page 11: Battery Test Result
Battery test Battery test result includes 5 types as following: result 1) Good Battery ● The battery is without any problem, please be relaxed to use! NOTE: SOH means State of Health; SOC means State of Charge. 2) Good, Recharge ●... -
Page 12: Cranking Test
4) Bad Cell, Replace ● Battery interior damaged, broken cell or short circuit, replace battery. 5) Charge, Retest ● Unstable battery shall be recharged and retested to avoid error. lf same test result appears after recharge and retest, the battery is regarded as damaged, replace the battery. Cranking ●... -
Page 13: Charging Test
● Normally, cranking voltage value lower than 9.6V is regarded as abnormal and it is OK if it is higher than 9.6V. ● Test result of the tester includes actual cranking voltage and actual cranking time. ● When cranking test is abnormal, battery test result will also be displayed at the same time. - Page 14 ● Tester will do the following tests in a sequence: ● Operate accordingly to increase the engine rotating speed to 2500 turns or above, and keep for 5 seconds. ● Tester starts the charging voltage test after increase rotation detected. ●...
-
Page 15: Maintenance Service
MAINTENANCE SERVICE Our products are made of long-lasting and durable materials, and we insist on perfect production process. Each product leaves the factory after 35 procedures and 12 times of testing and inspec- tion work, which ensures that each product has excellent quality and performance. -
Page 16: Warranty
Disclaimer All information, illustrations, and specifications contained in this manual, AUTOOL resumes the right of modify this manual and the machine itself with no prior notice. The physical appearance and color may differ from what is shown in the manual, please refer to the actual product. -
Page 17: Return & Exchange Service
RETURN & EXCHANGE SERVICE Return & ● If you are an AUTOOL user and are not satisfied with the Exchange AUTOOL products purchased from the online authorized shopping platform and offline authorized dealers, you can return the products within seven days from the date of receipt;...
