AUTOOL BT360
Battery System Tester
User Manual
用户手册
www.autooltech.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BT360 and is the answer not in the manual?

Questions and answers

Сергей
April 16, 2025

Можно ли с помощью этого тестера проверить диодный мост генератора

1 comments:
Mr. Anderson
April 16, 2025

Yes, the Autool BT360 tester can be used to check the diode bridge of a generator. It performs a diode test by measuring the charging current ripple. If the ripple voltage is too high, it indicates that at least one diode is damaged.

This answer is automatically generated

Summary of Contents for Autool BT360

  • Page 1 AUTOOL BT360 Battery System Tester User Manual 用户手册 www.autooltech.com...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Copyright Information ..........2 Copyright.............. 2 Trademark ............2 Product Overview............. 3 Product Features ..........3 Product Parameters..........4 Product Structure............. 5 Structural Diagram..........5 Operation Steps............5 Connect to the Battery......... 5 Quick Test Procedure .......... 6 Standard Test Procedure........
  • Page 3: Copyright Information

    COPYRIGHT INFORMATION Copyright All rights reserved by AUTOOL TECH. CO., LTD. No part of ● this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electron- ic, mechanical, photocopying, recording or otherwise, without the prior written permission of AUTOOL.
  • Page 4: Product Overview

    You may not use any trademark, service mark, domain name, logo, or company name of AUTOOL or any third party without permission from the owner of the applicable trademark, service mark, domain name, logo, or company name. You may contact AUTOOL by visiting AUTOOL at https://www.autooltech.com, or...
  • Page 5: Product Parameters

    German, French, Italian, Spanish, Simplified Chinese, Traditional Chinese, Japanese, Korean, etc. Additional languages can be provided based on user requirements. Product Parameters Measurement Standards and Ranges 20-2000 20-2000 20-2000 20-2000 20-2000 20-2000 20-2000 20-2000 2-300Ah 26A17-N200Z LCD material, LED backlight, Screen Material 2.4-inch black and white display 8-20V (for 12V batteries)
  • Page 6: Product Structure

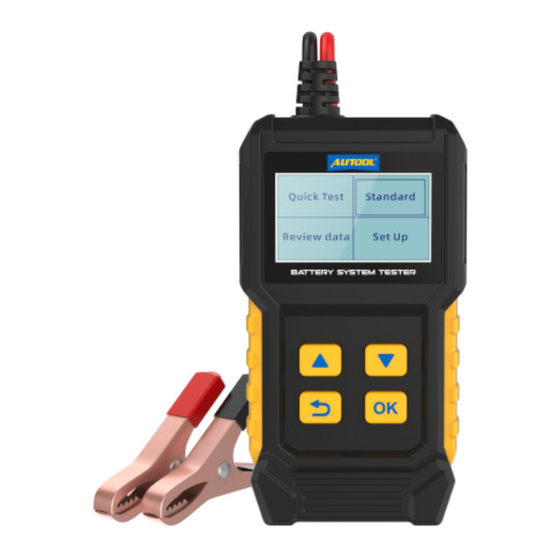

    PRODUCT STRUCTURE Structural Diagram Red and black testing clamps Display screen Direction buttons Confirm button Return button OPERATION STEPS Connect to the Battery ● Attach the red (positive) and black (negative) testing clamps to the battery. ● If connected correctly, the display shows the startup screen. Press “Confirm”...
  • Page 7: Quick Test Procedure

    Quick Test Procedure Select the “Quick Test” function. ● ● Turn off the engine and all vehicle electrical devices. ● Input the battery capacity, and the test results will be displayed. Quick Test Standard Turn OFF Engine and all Automotive electrical Review data Set Up Good performance...
  • Page 8: Cranking Test Procedure

    In-Vechicle Battery Type Standard test Normal battery Cranking test AGM Flat Plate Charging test AGM Spiral Input Standard Good performance 12.90V 359CCA Life 95.5% Impedance 8.54mR Cranking Test Procedure Within the “Standard Test” function, choose the in-vehicle ● test mode. Select “Cranking Test”.
  • Page 9: Charging Test Procedure

    Battery abnormal CUR: 14.3V 14.3V highest: lowest: 9.1V Charging Test Procedure Within the “Standard Test” function, choose the in-vehicle ● test mode. Select “Charging Test”. ● Follow on-screen prompts: start the engine and keep it ● idling, then press “OK” to continue. ●...
  • Page 10: View Data

    Charging test Charging test Turn on the load, increase Turn off the load, the throttle, press OK to increase the accelerator, continue press OK to continue Charging OK Load voltage 14.36V No-load voltage 14.37V Ripple 425mV View Data Users can check the results of the most recent test. ●...
  • Page 11: Language Settings

    Set up Quick Test Standard Sound Languages Review data Set Up Contrast Sound Language Settings Choose the “Set Up” function. ● ● Select “Language”, then use the directional buttons to choose the language, including English, German, French, Italian, Spanish, Simplified Chinese, Traditional Chinese, Japanese, Korean, etc.
  • Page 12: Contrast Settings

    Contrast Settings Choose the “Set Up” function. ● ● Select “Contrast Setting”, and then adjust the contrast. Set up Quick Test Standard Sound Languages Review data Set Up Contrast Contrast Settings 49/63...
  • Page 13: Maintenance Service

    MAINTENANCE SERVICE Our products are made of long-lasting and durable ● materials, and we insist on perfect production process. Each product leaves the factory after 35 procedures and 12 times of testing and inspection work, which ensures that each product has excellent quality and performance. Maintenance To maintain the performance and appearance of the product, it is recommended that the following product care guidelines...
  • Page 14: Warranty

    The repair or replacement of products is determined by the ● actual breakdown situation of product. ● It is guaranteed that AUTOOL will use brand new component, accessory or device in terms of repair or replacement. If the product fails within 90 days after the customer ●...
  • Page 15: Return & Exchange Service

    RETURN & EXCHANGE SERVICE Return & Exchange If you are an AUTOOL user and are not satisfied with the ● , AUTOOL products purchased from the online authorized...
