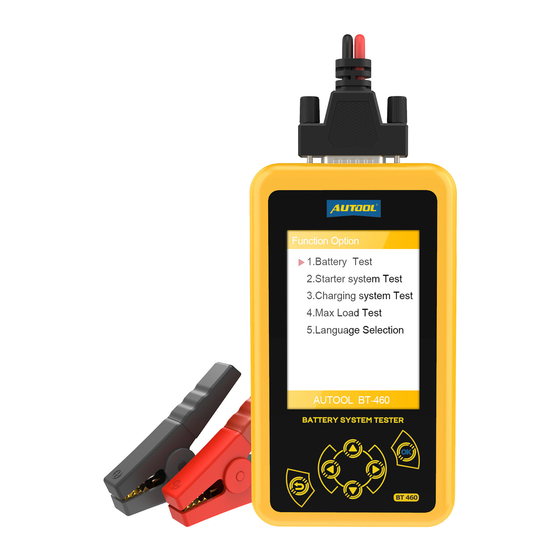

BT460 Auto Battery Tester User Manual
BT460 Battery Tester adopts currently the world's most advanced conductance testing technology to
easily, quickly and accurately measure the actual cold cranking amps capability of the vehicle starting
battery, healthy state of the battery itself, and common fault of the vehicle cranking system and
charging system, which can help maintenance personnel to find the problem quickly and accurately,
thus to achieve quick vehicle repair.

Product Introduction:

1. 1 year warranty, and lifetime maintenance
2. Application: 12V automotive cranking lead acid battery, new cranking lithium battery and
12V/24V car system test
3. Measure Range:
BT 460
30-- 1700
30-- 1000
30-- 1700
30-- 1000
30--1700
26A17--245H52
4-220AH
4. Working Environment Temp.: -20° C-50° C
5. Special test clip: Double conductance Kelvin clamp
6. Housing Material: Acid-resistant ABS plastic
BT 460 车辆蓄电池检测仪使用说明书
Measure Standard
CCA
DIN
EN
IEC
SAE
JIS
GB
------
------
------
-------

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BT460 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Autool BT460

Summary of Contents for Autool BT460

  • Page 1 BT 460 车辆蓄电池检测仪使用说明书 BT460 Auto Battery Tester User Manual BT460 Battery Tester adopts currently the world's most advanced conductance testing technology to easily, quickly and accurately measure the actual cold cranking amps capability of the vehicle starting battery, healthy state of the battery itself, and common fault of the vehicle cranking system and charging system, which can help maintenance personnel to find the problem quickly and accurately, thus to achieve quick vehicle repair.
  • Page 2 BT 460 车辆蓄电池检测仪使用说明书 7. Current Measure Range: 4AH-240AH 8. Voltage Measure Range: 6V—30V I. Battery Test 1. Connect the red test clamp with battery positive and the black one with negative, the tester will power on automatically. Battery voltage below 6.0V can’t be tested properly, then press any key to continue.
  • Page 3 BT 460 车辆蓄电池检测仪使用说明书 18.5mΩ Resistance ------Battery resistance Life -----------Battery remaining life Test result Good ------------Battery state Note: (a) When battery voltage is lower than normal test voltage, the test result can not judge the battery state. It will show “Re -test after charging”. At this time, please charge the battery, then test it.
  • Page 4 BT 460 车辆蓄电池检测仪使用说明书 In the menu, press UP/DOWN key to select charging test. Press ENTER key to charging test. It will show: Start engine, and wait for 15 seconds! Press ENTER key to start charging test! At the same time, start engine. When engine running is stable, press ENTER key to display test state: Charging test Maximum...
  • Page 5 BT 460 车辆蓄电池检测仪使用说明书 assembly has to be replaced. (Some old vehicle are using external regulator, then replace the regulator directly.) Normally, the maximum voltage of regulator is 14.7V. If charging voltage is too high, the battery will be overcharged, which will shorten battery life and cause battery failure .
  • Page 6 BT 460 车辆蓄电池检测仪使用说明书 1.English 2.Portugues 3.Espana 4.French Press UP/DOWN to select the lang uage, then press ENTER key to save. Press ESC to exit. Then, you can proceed other test.
