Icon Process Controls LevelPro ProScan 3 Series Quick Start Manual page 5

LevelPro — ProScan
®
Continuous Radar Level Sensor (80GHz)
Basic Parameters
ICON12XXX
Range(inch) 120.00
0.0
Migration Amount(inch)
0.0
4mA Location(inch)
110.00
20mA Location(inch)
4.00
Blind Area(inch)
10
Damping Time
Device Address 1
9600
Baud Rate
READ SET BACKUP RESTORE
Back to
Setting Menu

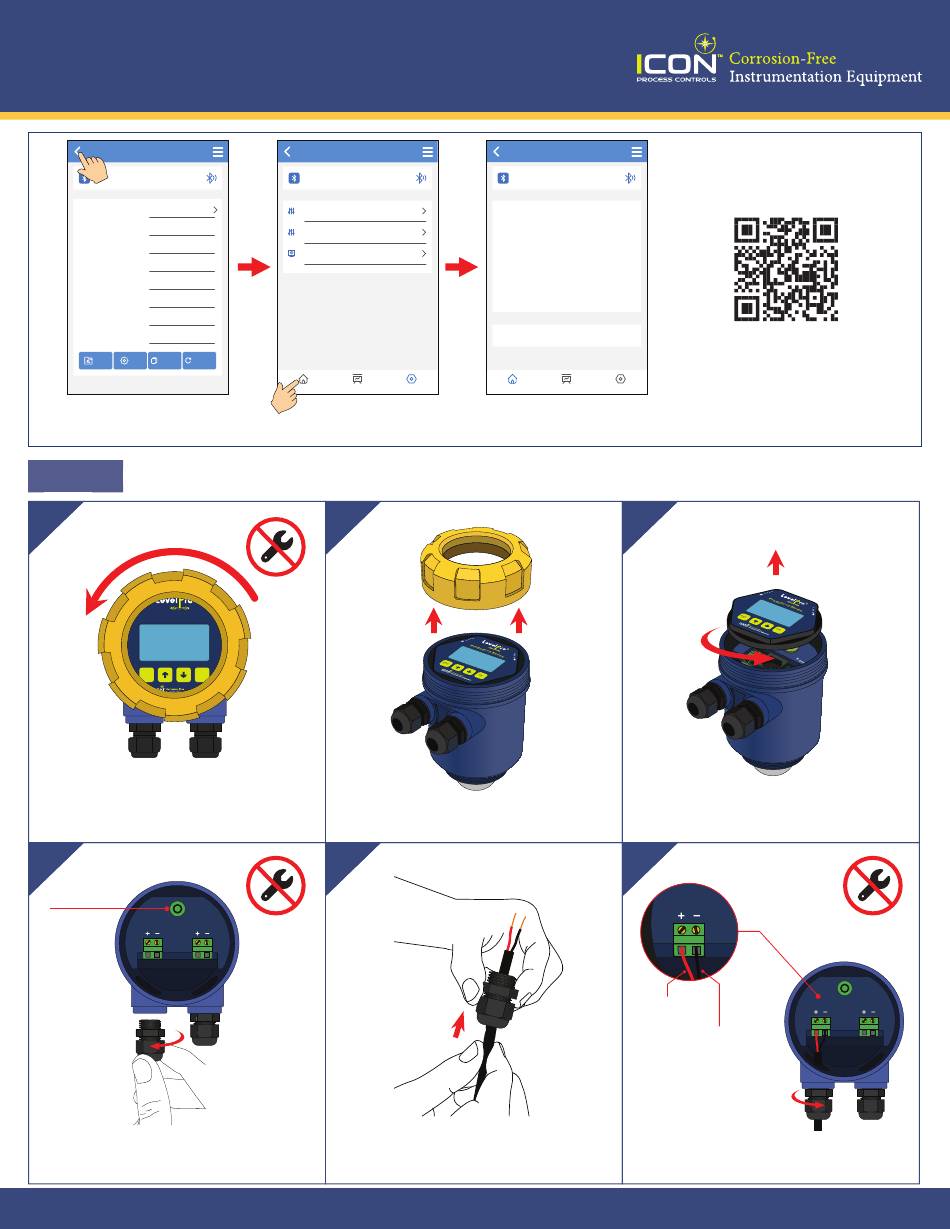

Wiring
01
R R
ProScan ProScan 3 Series 3 Series
® ®
24VDC RS485
10.562m
ESC
ESC
Rotate Lid Anti-clockwise to Open and
Clockwise to Close
04
Built-in
Level
24VDC RS485
Remove Cord Grip
24-0231 © Icon Process Controls Ltd.
®
Set
ICON12XXX
Basic Parameters
Advanced Parameters
System Settings
Home Curve
Click Home Button
to Show Home Screen
02
OK
OK
05
3 Series
Home
ICON12XXX
Level(inch)
Distance(inch)
Current(mA)
Percentage(%)
Running State
Update Time
Set Home Curve
Open Lid
Insert Cable into Cord Grip
35.7873
84.2124
8.771
29.82
0
Bluetooth Settings
2023/11/21 16:29:36
Video Tutorial
Set
03
Rotate Display Anti-clockwise to Open and
Clockwise to Close.
06
24VDC
Positive (+)
Negative (-)
Positive (+) and Negative (-) Terminals are for
connection to a 24 VDC power supply
24VDC RS485
5
