Icon Process Controls LevelPro ProScan 3 Series Quick Start Manual page 2

LevelPro — ProScan
®
Continuous Radar Level Sensor (80GHz)

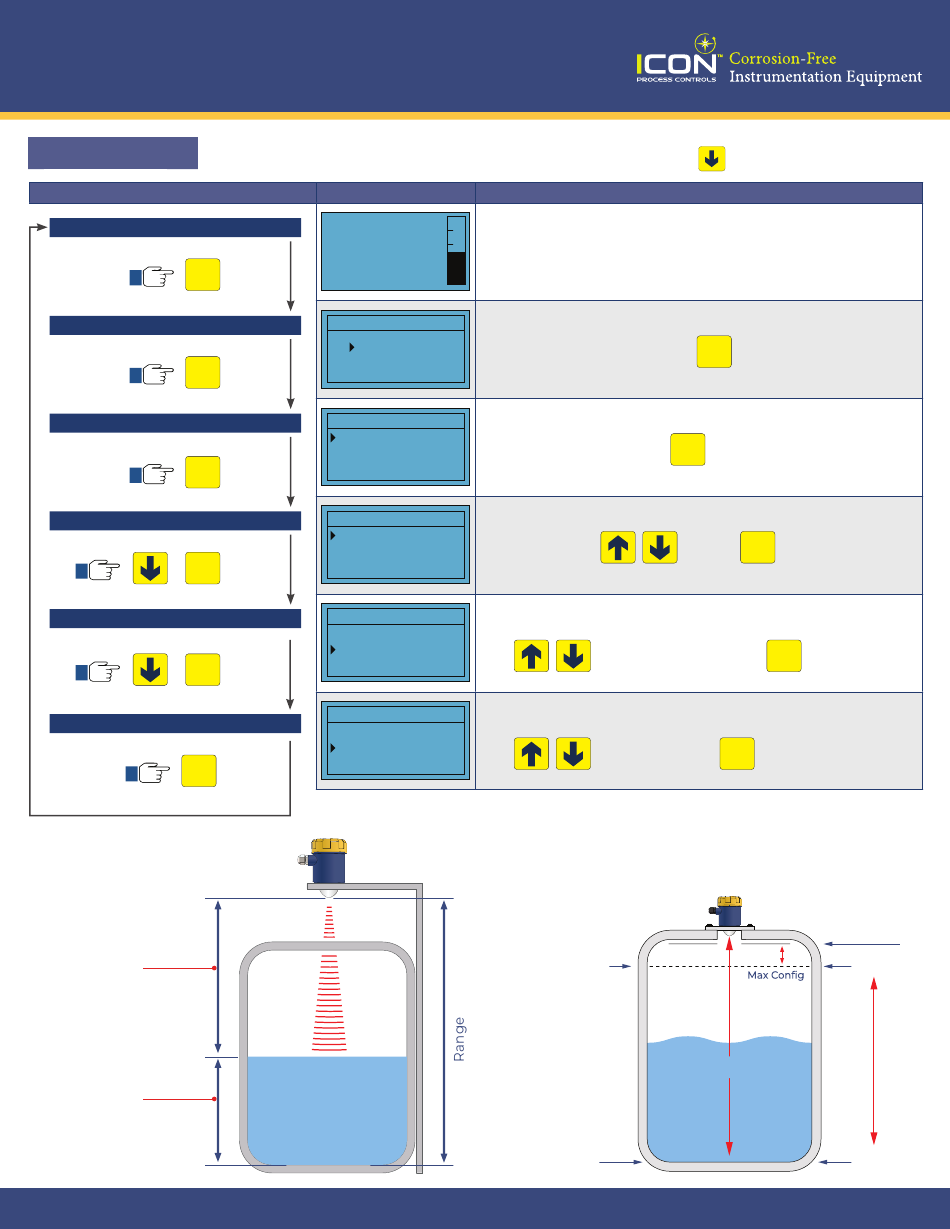

Programming
STEPS
Home Screen
1
OK
Main Menu
2
OK
User Parameters
3
OK
Range Settings
4
OK
4-20mA Settings
5
OK
Measurement Type
6
ESC
Distance
Sensor to Top of Liquid
Level
Height of Liquid
24-0231 © Icon Process Controls Ltd.
3 Series
®
DISPLAY
▶
192.5
Main Menu
▶
User Para.
Factory Para.
User Para.
▶
Basic Setup
Measure Setup
Backup Para.
Basic Setup
▶
Range :
5000
Offset :
10
Pos 4ma:
0
Basic Setup
▶
Pos 4ma:
0
Pos 20ma:
3000
Blind:
100
Basic Setup
▶
Blind:
150
ShowType: Level
Damping Time:
x 3
Home Screen
IN
Select User Parameter
Select Basic Setup
mm
Set Range using
mm
mm
Set 4mA (Low Level) &
mm
mm
Use to change values & Press
mm
Set Measurement Type : Level | Display
mm
Use to change & Press
10
20 mA
4 mA
Use to move to next selection
OPERATION
& Press
OK
& Press
OK
& Press
OK
20mA (High Level) values.
OK
OK
Range
Measurement
Location
100%
0%
2
