3. Inserting the FPC cable:
At a horizontal angle of 90° to the
connector's rear (see
and at a vertical angle of 12° to the
PCB (see Figure 16), slowly insert
the FPC cable into the actuator...
4. ...until cable guiding tabs are
caught between connector rear
and side guides (see
Pull the cable slightly to ensure
guiding tabs are properly engaged.
5. Holding the FPC cable in position,
flap down the actuator to closed
position (see Figure 16).
Deserializer Board FPD-Link III STP to CSI-2 User Guide V1.0.1
Figure 15)
FPC connector
FPC cable

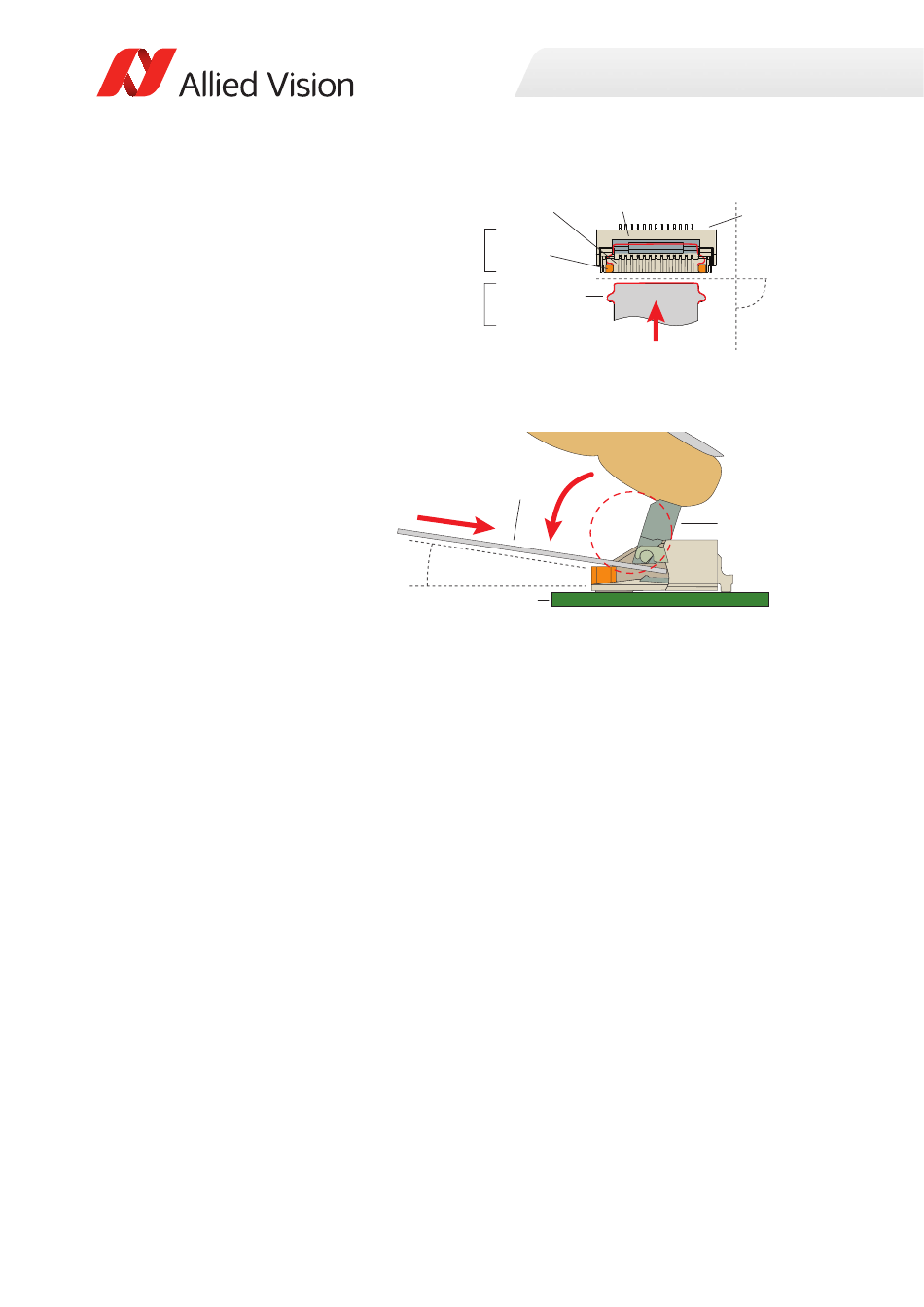

Figure 15: FPC cable and FPC connector
Figure 15).
12°
Figure 16: Engaging the FPC cable in the FPC connector
Setting up deserializer boards
Conductors Actuator
Side guide
Guiding tab
FPC cable
PCB
Connector
rear
90°
Actuator
