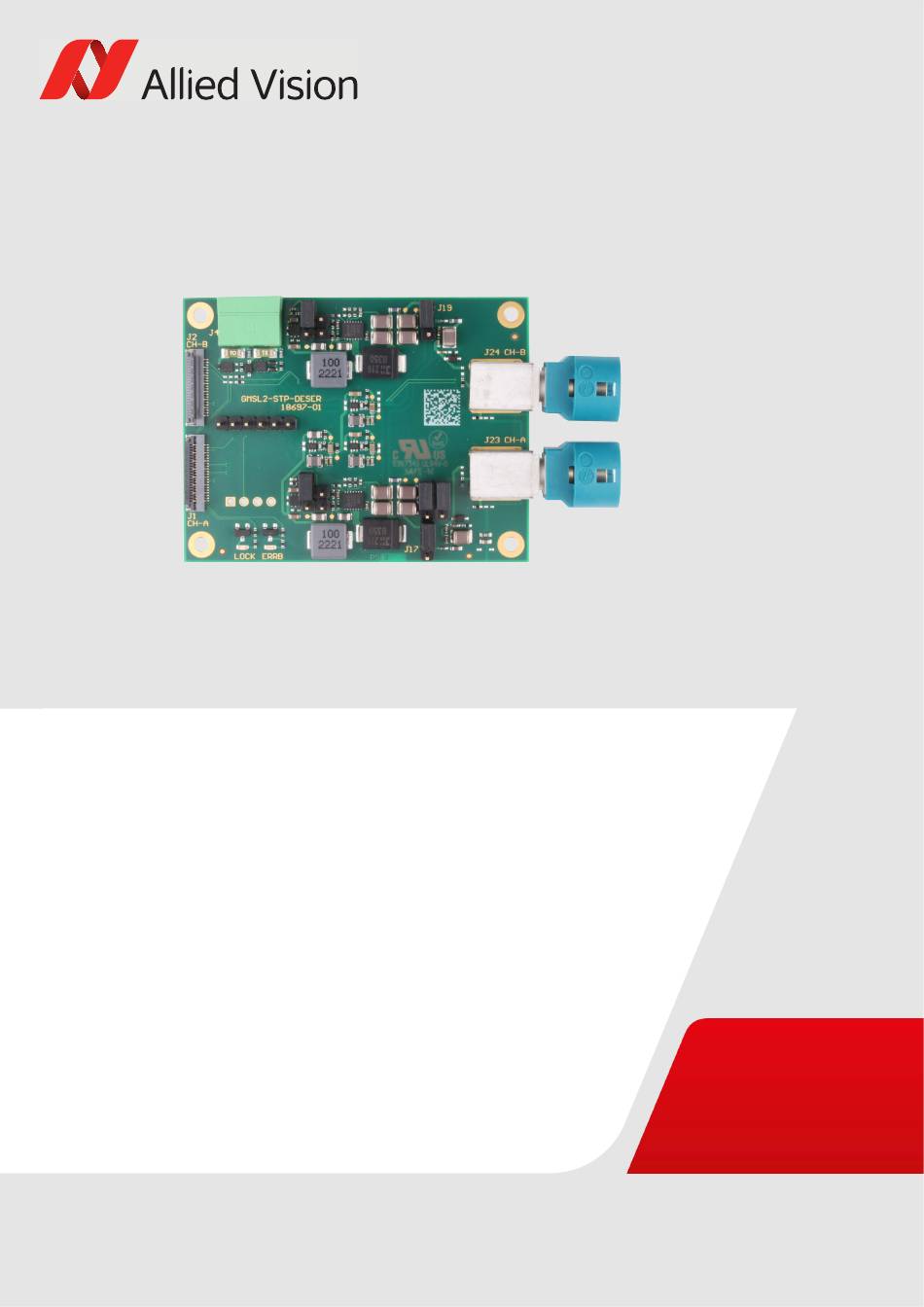

- Page 1 GMSL2 STP C LVIUM AMERAS Deserializer Board GMSL2 STP to CSI-2 User Guide V1.1.1 Allied Vision Technologies GmbH // Taschenweg 2a, 07646 Stadtroda / Germany 2024-Mar-26...
-
Page 2: Read Before Use
The product can have sharp edges. Intended use Intended use of Allied Vision product is the integration into vision systems by professionals. All Allied Vision product is sold in a B2B setting. Deserializer Board GMSL2 STP to CSI-2 User Guide V1.1.1... - Page 3 Fare for skarpe kanter Produktet kan have skarpe kanter. Tilsigtet brug Allied Vision produktets tilsigtede brug er en indbygning i et visionssystem, udført af fagfolk. Alle Allied Vision produkter sælges i B2B. Deserializer Board GMSL2 STP to CSI-2 User Guide V1.1.1...
- Page 4 Schnitte durch scharfe Kanten Das Produkt kann scharfe Kanten haben. Bestimmungsgemäßer Gebrauch Allied Vision Produkte sind bestimmt für die Integration in Bildverarbeitungs- systeme durch Fachpersonal. Alle Allied Vision Produkte werden in einer B2B-Umgebung verkauft. Deserializer Board GMSL2 STP to CSI-2 User Guide V1.1.1...
- Page 5 Riesgo de cortes por bordes afilados El producto puede tener bordes afilados. Uso previsto El uso previsto del producto Allied Vision es la integración en el sistema de visión por parte de profesionales. Todos los productos Allied Vision se venden dentro de una relación B2B.
- Page 6 Käytössä olevan tuotteen saavuttamat lämpötilatasot voivat aiheuttaa palovammoja. HUOMIO Terävien reunojen aiheuttama viiltovaara Tuotteessa voi olla teräviä reunoja. Käyttötarkoitus Allied Vision -tuotteen käyttötarkoitus on integrointi kuvajärjestelmiin ammattilaisten toimesta. Kaikki Allied Vision -tuotteet myydään B2B-ympäristössä. Deserializer Board GMSL2 STP to CSI-2 User Guide V1.1.1...
- Page 7 Utilisation prévue L’utilisation prévue du produit Allied Vision est son intégration dans des systèmes de vision par le soin de professionnels. Tout produit Allied Vision est vendu dans un cadre B2B. Deserializer Board GMSL2 STP to CSI-2 User Guide V1.1.1...
- Page 8 י ר צ ו מ ת ב י ב ס ב ש ו מ י ש ל ם י ר כ מ נ AlliedVision י ר צ ו מ ל כ Deserializer Board GMSL2 STP to CSI-2 User Guide V1.1.1...
- Page 9 Pericolo di tagliarsi sui bordi affilati I bordi del prodotto lente possono essere affilati. Uso previsto Il prodotto Allied Vision è concepito per essere integrato in sistemi di monitoraggio in campo professionale. Tutti i prodotti Allied Vision sono venduti in uno scenario B2B.
- Page 10 Read before use JA - 日本語 安全性 本製品を使用する前に、この安全ガイドをお読みください。警告を必ず 守ってください。必ず21ページのIntended use 25 ページに従って使用し てください。 注意 やけどの危険性 作動中のカメラは、やけどを引き起こす温度まで熱くなる恐れがありま す。 注意 な端部で切り傷の危険性 本製品には鋭利な部分がある場合があります。 用途 Allied Vision製品は、専門家が視覚装置に統合することを意図したもの です。すべてのAllied Vision製品は、企業間取り引き用に販売されてい ます。 Deserializer Board GMSL2 STP to CSI-2 User Guide V1.1.1...
- Page 11 Risico van snijwonden door scherpe randen Het product kan scherpe randen hebben. Beoogd gebruik Het beoogde gebruik van het Allied Vision-product is de integratie in optische systemen door professionals. Alle Allied Vision-producten worden verkocht in de B2B-markt. Deserializer Board GMSL2 STP to CSI-2 User Guide V1.1.1...
- Page 12 Risiko for kutt fra skarpe kanter Produktet kan ha skarpe kanter. Tiltenkt bruk Den tiltenkte bruken av Allied Vision-produktet er integrering i visjonssystemer av profesjonelle. Alle Allied Vision-produkter selges i en forretning til forretning-situasjon. Deserializer Board GMSL2 STP to CSI-2 User Guide V1.1.1...
- Page 13 Risk för skärsår från vassa kanter Produkten kan ha vassa kanter. Avsedd användning Den avsedda användningen av Allied Vision-produkter är integrering i visionssystem av fackmän. Samtliga Allied Vision-produkter säljs i en B2B-miljö. Deserializer Board GMSL2 STP to CSI-2 User Guide V1.1.1...
- Page 14 Read before use ZH - 简体中文版 安全需知 Intended 在使用产品之前，请阅读这些安全说明。请务必遵守相关警告 和 于第 25 页 . 注意事项 烫伤风险 在产品运行过程中，温度可能会上升，导致烧伤的危险。 注意事项 锋利边缘割伤的风险 产品可能有锋利的边缘。 预期用途 Allied Vision 产品的预期用途是由专业人士整合到视觉系统中。所有 Allied Vision 的产品均通过 B2B 渠道销售。 Deserializer Board GMSL2 STP to CSI-2 User Guide V1.1.1...
-
Page 15: This Document At A Glance
This document at a glance Get an overview of documentation for the Deserializer Board GMSL2 STP to CSI-2: Notes ..................16 Shipping contents..............16 What else do you need? ............17 Deserializer Board GMSL2 STP to CSI-2 User Guide V1.1.1... -
Page 16: Notes
Cables are not included MIPI CSI-2 FPC cables to connect to the host and to the deserializer board and HSD STPl cables to connect the deserializer board to Alvium GM2 cameras are not included. Deserializer Board GMSL2 STP to CSI-2 User Guide V1.1.1... -
Page 17: What Else Do You Need
FPC cables, I/O cables, lenses, and www.alliedvision.com/en/products/accessories tripod adapters SerDes Configurator: Please contact www.alliedvision.com/en/about-us/contact-us/ the Allied Vision Support team at... technical-support-repair-/-rma Table 1: Downloads for Deserializer Board GMSL2 STP to CSI-2 Deserializer Board GMSL2 STP to CSI-2 User Guide V1.1.1... -
Page 18: Contact Us
102 Pickering Way - Suite 502 Allied Vision Technologies Asia Pte. Ltd Exton, PA 19341, USA 82 Playfair Rd, #07-01 D'Lithium Toll-free// +1-877-USA-1394 Singapore 368001 T// +1 978 225 2030 T// +65 6634 9027 Deserializer Board GMSL2 STP to CSI-2 User Guide V1.1.1... -
Page 19: Table Of Contents
Instructions for connecting ............. . 39 Deserializer Board GMSL2 STP to CSI-2 User Guide V1.1.1... - Page 20 Connecting power ............... . . 43 Deserializer Board GMSL2 STP to CSI-2 User Guide V1.1.1...
-
Page 21: Document History And Conventions
Document history and conventions This chapter includes: Document history ..............22 Conventions used in this user guide........22 Component naming .............. 23 Deserializer Board GMSL2 STP to CSI-2 User Guide V1.1.1... -
Page 22: Document History
Style Function Emphasis Highlighting important things Web links and references Links to webpages and internal cross references Table 3: Typographical styles Symbols and notes CAUTION Risk of burns Precautions are described Deserializer Board GMSL2 STP to CSI-2 User Guide V1.1.1... -
Page 23: Component Naming
Deserializer Board GMSL2 STP to CSI-2 Example: Embedded board Auvidea JNX30 SoM (system on module) Hirose FH55-22S-0.55SH FPC (flexible printed circuit) FPC connector connector FPC cable MIPI CSI-2 FPC cable Table 4: Component naming Deserializer Board GMSL2 STP to CSI-2 User Guide V1.1.1... -
Page 24: Compliance, Safety, And Intended Use
Compliance, safety, and intended use This chapter includes: Compliance notifications ............25 Intended use ................. 25 Copyright and trademarks ............ 25 Your safety................26 Product safety ............... 26 Deserializer Board GMSL2 STP to CSI-2 User Guide V1.1.1... -
Page 25: Compliance Notifications
We are offering standard products as well as customized solutions. Intended use of Allied Vision product is the integration into Vision systems by professionals. All Allied Vision product is sold in a B2B setting. -
Page 26: Your Safety
Plug and play is not supported. Read specifications carefully. Components can easily be damaged. If you are unfamiliar with GMSL2 connections or with embedded systems, be extremely careful. Follow the instructions in the Alvium FP3/GM2 User Guide. Deserializer Board GMSL2 STP to CSI-2 User Guide V1.1.1... - Page 27 Compliance, safety, and intended use Allied Vision accessories help to avoid damage to the camera and connected components. Compatible accessories We recommend using accessories by Allied Vision, see www.alliedvision.com/en/ products/accessories. Strain relief for all cable connections If HSD STP connectors are exposed to excessive stress, they can break off from devices.
- Page 28 If Alvium GM2 STP cameras are operated with incompatible cables, cameras and connected peripherals may be damaged. • We recommend you to use only STP cables by Allied Vision. • If you want to use third party STP cables, observe...
- Page 29 G5 cameras. But the 10-pin TFM connector on Alvium GM2 STP cameras must not be used as power input. • Use the 10-pin TFM connector only as power output and for I/O control. Deserializer Board GMSL2 STP to CSI-2 User Guide V1.1.1...
- Page 30 • You may mount the camera electrically isolated. • Read the Avoiding Ground Loops in Vision Systems application note. More information See the Avoiding Ground Loops in Vision Systems application note at www.alliedvision.com/en/support/technical-documentation/ alvium-csi-2-documentation. Deserializer Board GMSL2 STP to CSI-2 User Guide V1.1.1...
-
Page 31: Specifications
Specifications This chapter includes: Specifications overview............32 PCB and PCBA number............33 Technical drawing..............33 Electronic schematics ............34 STP connector pin assignment..........36 Deserializer Board GMSL2 STP to CSI-2 User Guide V1.1.1... -
Page 32: Specifications Overview
If enclosed in a housing, ensure that the component temperature of U8 does not exceed 105 °C. Figure 5 on page 33. Table 5: Deserializer Board GMSL2 STP to CSI-2 specifications overview Specifications of the deserializer chip This deserializer board incorporates the GMSL2 deserializer chip Analog Devices MAX96716AGTM/VY+T. -
Page 33: Pcb And Pcba Number
Figure 4: PCB number on deserializer boards Technical drawing 10.5 10.5 2.6 (4x) 15.9 10.5 STP Plug Z Max. 105 °C Figure 5: Deserializer Board GMSL2 STP to CSI-2 dimensions and PCB layout Deserializer Board GMSL2 STP to CSI-2 User Guide V1.1.1... -
Page 34: Electronic Schematics
100 Ohm 100 Ohm B7-CSI2-TXDA0_N B7-CSI2-TXDB0_N 100 Ohm B7-CSI2-TXDA0_P 100 Ohm B7-CSI2-TXDB0_P 100 Ohm 100 Ohm CON FFC22 CON FFC22 Figure 6: Deserializer Board GMSL2 STP to CSI-2 electronic schematics, part 1 Deserializer Board GMSL2 STP to CSI-2 User Guide V1.1.1... - Page 35 200k V_FB = 0.6V +/- 2% 100n TLV62568ADRL Vout: 0.6V - Vin 100k Vin : 2.5V-5.5V Iout : 1A Figure 7: Deserializer Board GMSL2 STP to CSI-2 electronic schematics, part 2 Deserializer Board GMSL2 STP to CSI-2 User Guide V1.1.1...
-
Page 36: Stp Connector Pin Assignment
If Alvium GM2 STP cameras are operated with incompatible cables, cameras and connected peripherals can be damaged. • We recommend you to use only STP cables and deserializers by Allied Vision. • If you want to use third party accessories, observe... -
Page 37: Setting Up Deserializer Boards
This chapter includes basic instructions on cable connectors: HSD STP cable-side connectors..........38 Connecting FPC cables ............40 Followed by instructions for: Mounting deserializer boards..........42 Connecting components to each other........ 42 Connecting power..............43 Deserializer Board GMSL2 STP to CSI-2 User Guide V1.1.1... -
Page 38: Connecting Hsd Stp Cables
If Alvium GM2 STP cameras are operated with incompatible cables, cameras and connected peripherals can be damaged. • We recommend you to use only STP cables by Allied Vision. • If you want to use third party STP cables, observe... -
Page 39: Instructions For Connecting
You may slightly rotate and tilt the cable-side connector against the device to reduce friction. The camera is disconnected. Figure 11: Pressing down the latch (c) of the HSD STP connector Deserializer Board GMSL2 STP to CSI-2 User Guide V1.1.1... -
Page 40: Connecting Fpc Cables
Figure 14: FPC cable and data flow direction 2. Ensuring proper cable orientation between devices to be connected, take the FPC cable with conductors facing the FPC connector conductors (see Figure 15 on page 41). Deserializer Board GMSL2 STP to CSI-2 User Guide V1.1.1... - Page 41 Actuator 12° 5. Holding the FPC cable in position, flap down the actuator to closed Figure 16: Engaging the FPC cable in the FPC connector position (see Figure 16). Deserializer Board GMSL2 STP to CSI-2 User Guide V1.1.1...
-
Page 42: Mounting Deserializer Boards
For connecting cameras to deserializer boards, follow the instructions in Connecting HSD STP cables on page 38. For connecting deserializer boards to the host, follow the instructions in Connecting FPC cables on page 40. Deserializer Board GMSL2 STP to CSI-2 User Guide V1.1.1... -
Page 43: Connecting Power
Figure 17: Connections and jumper settings for power supply 3. Connect the power supplies to the mains power. 4. Power and boot the embedded system. Your vision application is ready for first operation. Deserializer Board GMSL2 STP to CSI-2 User Guide V1.1.1...
