Pin assignment on STP cables
If Alvium FP3 STP cameras are operated with incompatible cables, cameras and
connected peripherals can be damaged.
• We recommend you to use only STP cables by Allied Vision.
• If you want to use third party STP cables, observe
Additional information
For technical data and more instructions on the HSD STP connector Code Z (water
blue), see the manufacturer data sheet at www.rosenberger.com.
FPC connectors
Small-sized Hirose FH55-22S-0.55SH FPC connectors enable compact board design.
Therefore, they are sensitive to mechanical stress. Especially if you are
inexperienced with these, be very cautious. If FPC connectors are broken, the
complete device must be replaced. Follow the instructions in
cables
• Avoid stress to FPC connectors.
• Allow only the FPC cable to touch conductors.

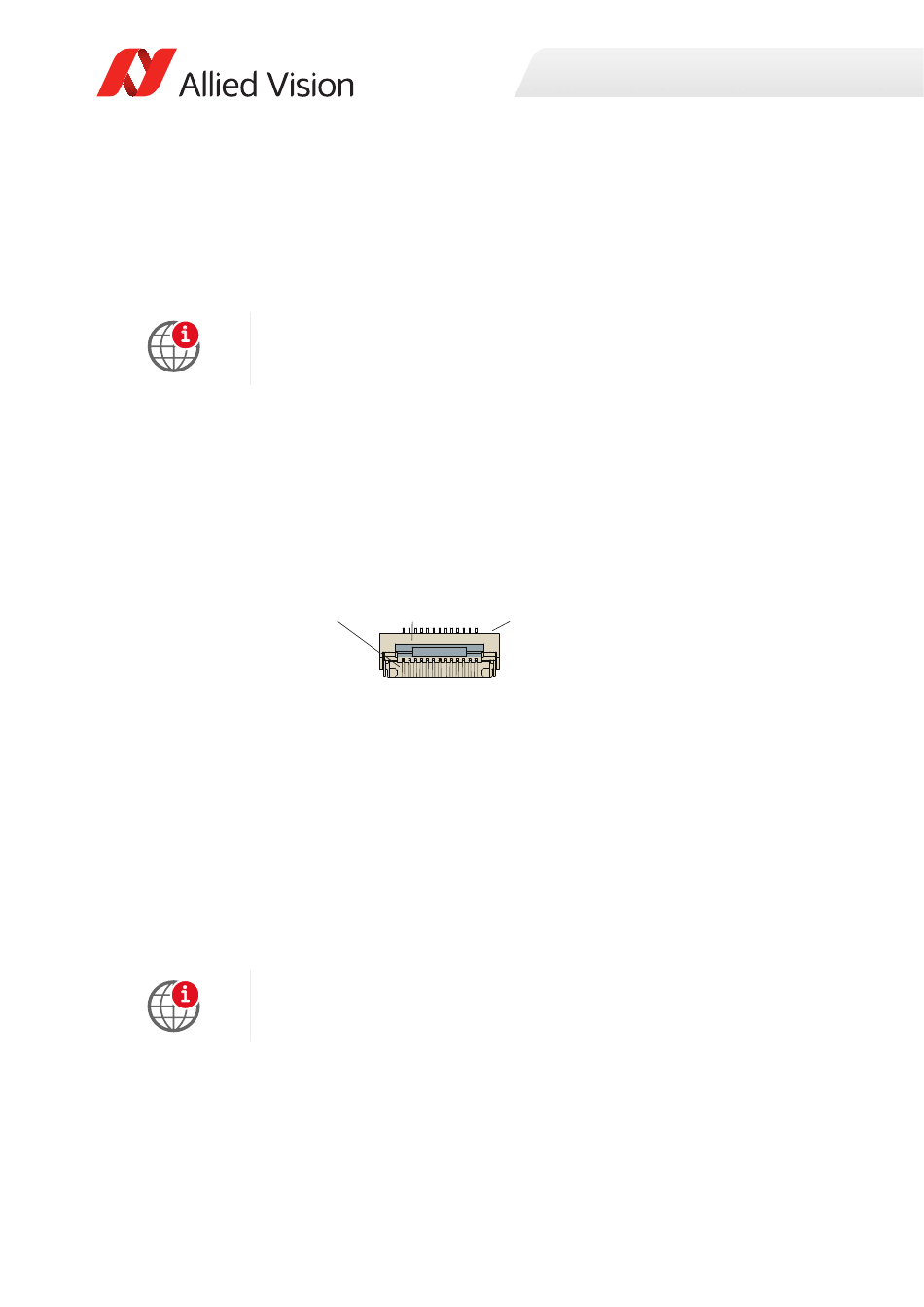

Figure 3: Hirose FH55-22S-0.5SH FPC connector
Mating and unmating cycles
FPC connectors are designed for one-time installation, with the opportunity for
corrections. Therefore, these connectors are specified for maximum 20 mating
and unmating cycles.
Handling the actuator
• Move the actuator only as described in the instructions.
• Carefully flip the actuator at the middle with your finger nail as described in
• Follow the instructions in
Additional information
For technical data and more instructions on the Hirose connectors, see
www.hirose.com.
Deserializer Board FPD-Link III STP to CSI-2 User Guide V1.0.1
assignment on page 35 for Alvium FP3 STP cameras.
on page 39 carefully.
Conductors Actuator Connector rear
the instructions.
Compliance, safety, and intended use
STP connector pin
Connecting FPC cables on page 39.
Connecting FPC
