Summary of Contents for Manhattan Comfort 27900

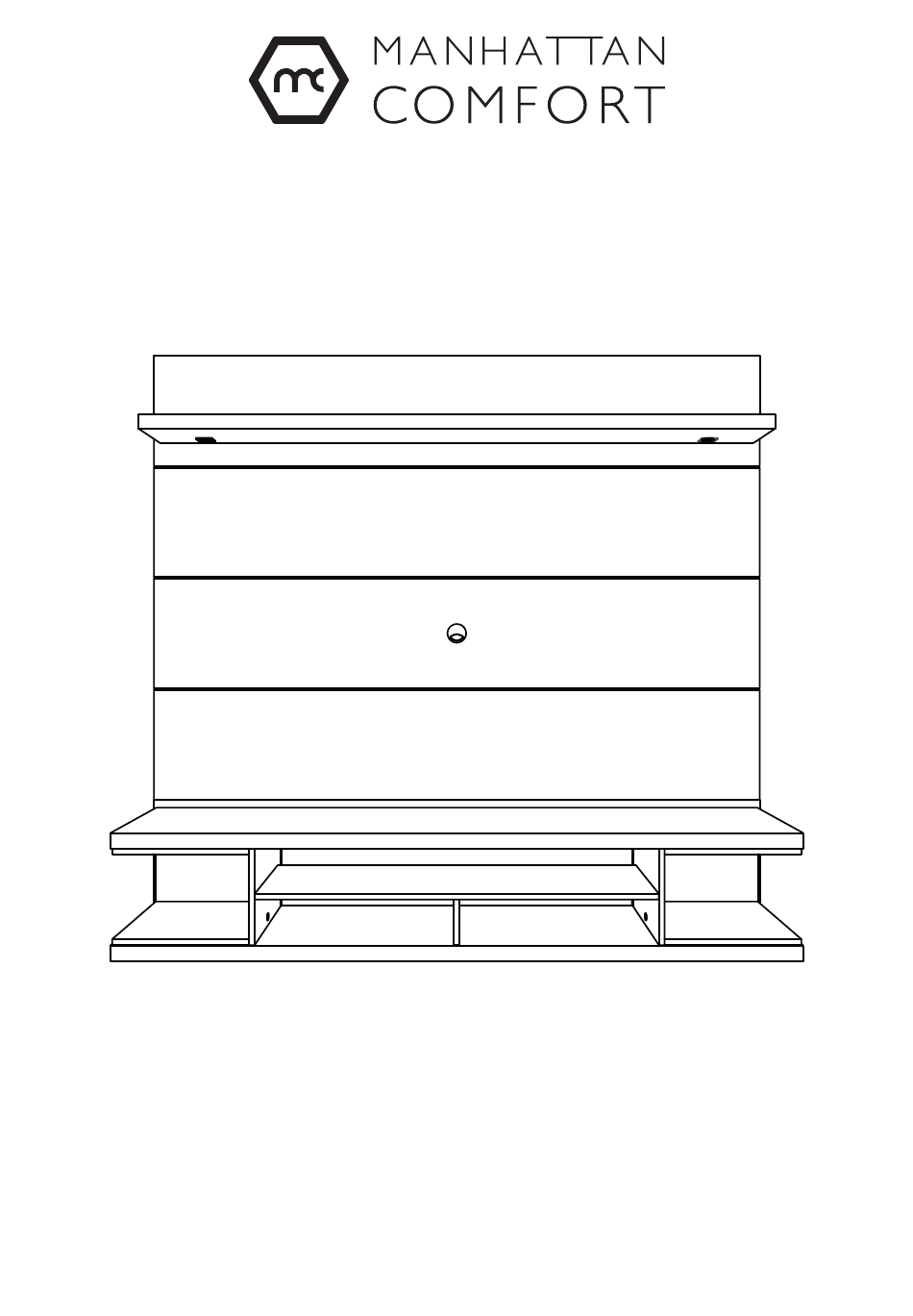

- Page 1 ASSEMBLY INSTRUCTIONS COD:27900 REV. 00...
-
Page 2: Important Remarks
IMPORTANT REMARKS Never climb or lean on the furniture. Use the packaging to cover the Indentify the parts by observing the You may suffer serious accidents. assembly area and separate number printed on their edges. all parts. CARE INSTRUCTIONS HANDLING Wipe clean using a damp cloth and a mild cleaner. - Page 3 HARDWARE Identify and separate the hardware used in the assembly. There's a label on each package identifying the parts and where to use them. STICKER-10x 1668-4x 1668-33x 9070-6x 4157-14x KIT LED-1x WIRE CHANNEL-2x 0348-2x 2088-14x 0494-12x 0599-12x 0160-28x 3557-18x 3706-30x 3527-16x SUPORT - 1x 9333-8x...
- Page 4 DESCRIPTION CÓD:27900 W:71.26 inches H:67.24 inches D: 15.47 inches L:1810mm A:1708 P:393 mm PART QUANTITY DESCRIPTION TOP PANEL TOP PANEL CENTRAL PANEL 11Lb BACK PANEL TOP SHELF BACKSIDE BATTEN BACK PANEL BASE TOP BOARD NICHE TOP PANEL 66Lb NICHE BACK PANEL...
- Page 5 STICKER 0329 0494 0599 3706...
- Page 6 1668 9070 4157 KIT LED 0160 3557 3706 3527 9333 M M M M MM Use the PVA glue before screwing.
- Page 7 0160 3557 3706 9069 9070 4157 0348 2088 M M M M M M Use the PVA glue before screwing. Measurement to drill the wall. Wall 71.26 15.51 35.28 Panel 15.51 35.28 15.51 35.28 Ø5/16 INCHES 22.99 25.20 Tv Stand Floor...
- Page 8 STICKER 3527 4505 7702 WIRE CHANNEL CLICK SAFETY SCREW ATTENTION Pass the cables through the wire channel before screwing (P) ATTENTION Pass the cables through the back before Panel. CLICK...
