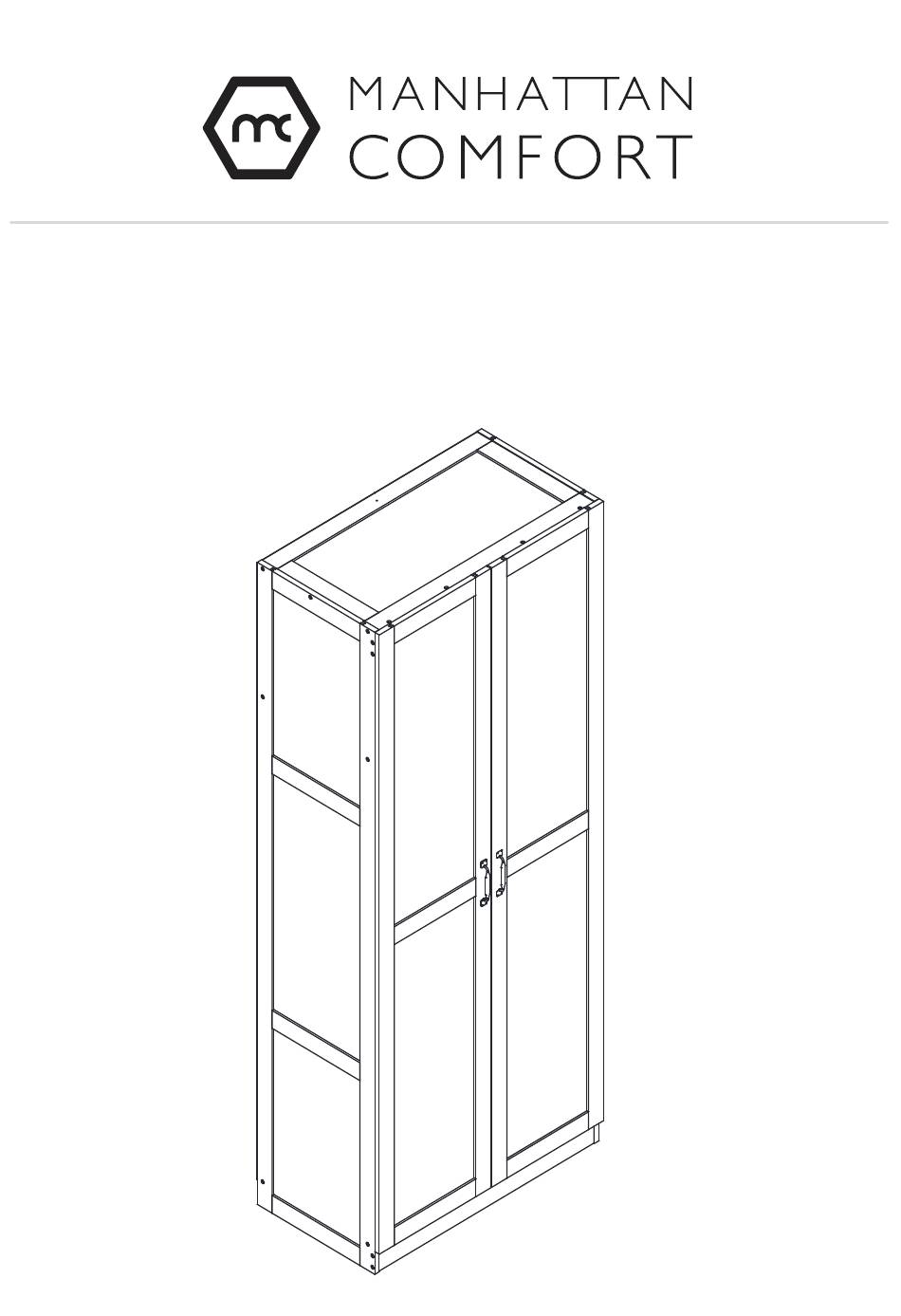

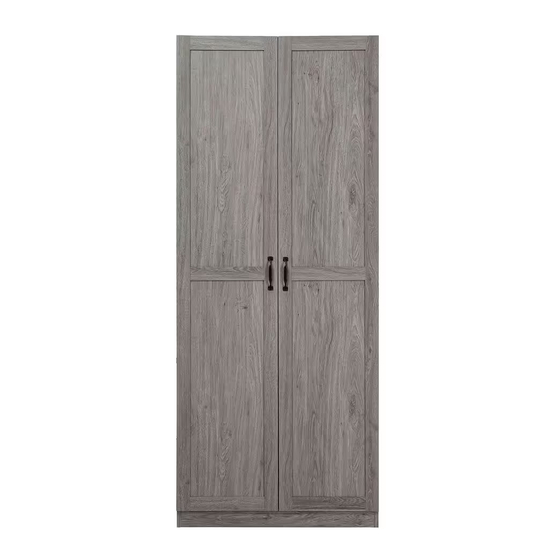

- Page 1 Assembly Guide 2GLF V.10102022...
-
Page 2: For Best Results
STOP! STOP! Before beginning the assembly process, ensure all boxes and parts have been delivered. FOR BEST RESULTS: Do not throw away packaging materials until assembly is complete. Assemble item on a soft surface, such as cardboard or carpet, to protect finish. Proper assembly requires two people. -
Page 3: Included In This Package
Included in this package: A. TOP (1) B. SHELF (1) C. BOTTOM (1) D. LEFT END (1) E. RIGHT END (1) F. UPRIGHT (1) G. BACK (1) H. ADJUSTABLE SHELF (4) J. MOLDING (1) K. SKIRT (1) O. LEFT DOOR (1) P. -
Page 4: Hardware Identification
Hardware Identifi cation Page 4 2GLF... -
Page 5: Warranty Policy
WARRANTY POLICY All Manhattan Comfort furniture products are warranted, to the original purchaser at the time of purchase and for a period of 30 days thereafter. Our warranty is limited to new products purchased in factory sealed cartons. This war ranty is valid in the United States of America and Canada. - Page 6 Step 1 Fasten the MOLDING (J) to the TOP (A) and the SKIRT (K) to the BOTTOM (C). ◆ Use six FLAT HEAD SCREWS (5). Page 6 2GLF...
- Page 7 Step 2 ◆ Fasten the UPRIGHT (F) to the SHELF (B) and the BOTTOM (C) . Use four FLAT HEAD SCREWS (5). Page 7 2GLF...
- Page 8 Step 3 Fasten the RIGHT END (E) to the SHELF (B), BOTTOM (C) and the TOP (A). ◆ Use eleven FLAT HEAD SCREWS (5). Page 8 2GLF...
- Page 9 Step 4 Fasten the LEFT END (D) to the TOP (A), SHELF (B) and the BOTTOM (C). ◆ Use eleven FLAT HEAD SCREWS (5). Page 9 2GLF...
- Page 10 Step 5 Make equal margins along all four edges of the BACK (G). Push on opposite ◆ corners of your unit if needed to make it "square". Using your hammer, fasten the BACK (G) to your unit using the NAILS (7). ◆...
- Page 11 Step 6 Fasten the HINGES (2) to the DOORS (O and P). Use twelve FLAT HEAD SCREWS (8). ◆ Fasten the PULLS (1) to the DOORS (O and P). Use four MACHINE SCREWS (6). Page 11 2GLF...
- Page 12 Step 7 Carefully stand your unit upright. ◆ Faten the DOORS (O and P) to the ENDS (D and E). Use the FLAT HEAD SCREWS (8) in the HINGES. ◆ You should start each SCREW a few turns before completely tightening any of them. ◆...
- Page 13 Step 8 Insert the METAL PINS (3) into the hole location of your choice in the ENDS (D and E) and UPRIGHT (F). ◆ Set The ADJUSTABLE SHELVES (H) onto the METAL PINS. Page 13 2GLF...
- Page 14 Step 9 Open the FURNITURE TIPPING RESTRAINT KIT and fasten the SAFETY STRAP to the TOP (A). Use the SHORT SCREW through the hole in the strap and into the top surface of the TOP (1). ◆ Place your unit in its final location. NOTE: The following instructions show your unit being fastened to a wall stud.
- Page 15 Step 10 1st- With your pencil, strike a mark through the center of the hole in the SAFETY STRAP. 2nd- Drill a 3/8" hole on the mark. 3rd- While you squeeze the wings together, gently tap the WALL ANCHOR from the FURNITURE ◆...
- Page 16 Step 11 No Load 35 lbs 25 lbs 25 lbs 25 lbs 25 lbs 30 lbs 30 lbs Page 16 2GLF...
