Logosol B1651 User Manual
Hide thumbs
Also See for B1651:
- User manual (8 pages) ,
- User manual (115 pages) ,
- User manual (84 pages)
Advertisement
Quick Links
USER MANUAL
ORIGINAL USER MANUAL.
Art. nr: 0458-395-0860
REV: 2
4.6 / 8 / 12 KW
This manual describes installation of the electric motor
for the Logosol band sawmill.
Please see the user manual for your band sawmill
for information on assembly, settings and safety instructions.
EN
EN
Advertisement
Related Manuals for Logosol B1651
Summary of Contents for Logosol B1651

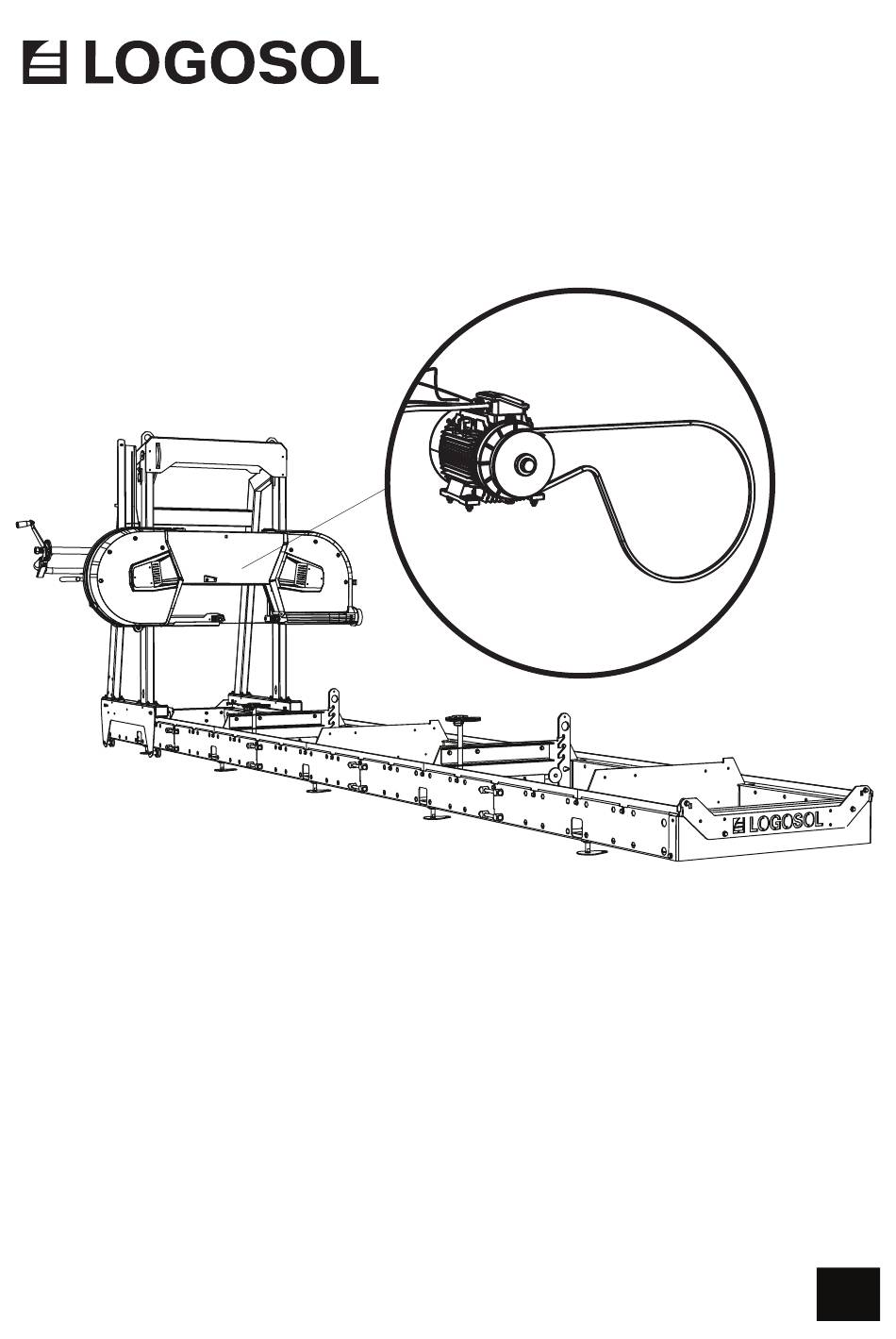

- Page 1 Art. nr: 0458-395-0860 REV: 2 4.6 / 8 / 12 KW This manual describes installation of the electric motor for the Logosol band sawmill. Please see the user manual for your band sawmill for information on assembly, settings and safety instructions.
- Page 2 4,6 / 8 / 12KW Read through all the set-up instructions before starting to set up, then follow the instructions step by step as you work. After assembly, follow the instructions under Setup sequence in the sawmill manual to complete setup before starting the machine.
- Page 3 The electric motor comes with the hinge switch connected. Assembly consists of installing the motor on the motor shelf, as well as mounting the pulley and drive belt. The illustration shows the hole pattern for installing the 4.6 / 8 kW electric motor. Follow the assembly instructions, then run through the setup sequence for the machine when assembly is complete.
- Page 4 M6x30 M6x25 10mm 12mm 2 x – M6x25 2 x – M6x30 1 x – 03-01997 10mm 1 x – 03-02080 12mm 2 x – 03-02182 4,6 / 8KW 12KW...
- Page 5 1 x – 9020-011-0091 4 x – M6x12 4 x – M8 2 x – M8x60 2 x – M8 2 x – M8 2 x – M6x10...
- Page 6 4 x – M8x120 4 x – M8 4 x – M6x16 2 x – M5x16 4 x – M6...
- Page 7 – M5x50 – M5 – M5x16...
- Page 8 – M6x50 – M5x50 – M6 – M5...
- Page 10 TURN ON/OFF THE SWITCH BOX Turn the dead man’s switch to (1) to turn on the power supply to the machine. START THE MOTOR...
-
Page 11: Setup Sequence
Well done! Now you have finished installing the motor, go back to the manual for your band sawmill and carry on with the setup sequence, starting at the point as indicated in the instructions below. SETUP SEQUENCE Read through all the set-up instructions before starting to set up, then follow the instructions step by step as you work. - Page 12 Arkivvägen 6, SE-871 53 Härnösand, Sweden +46 611-182 85 | info@logosol.com | www.logosol.com...
