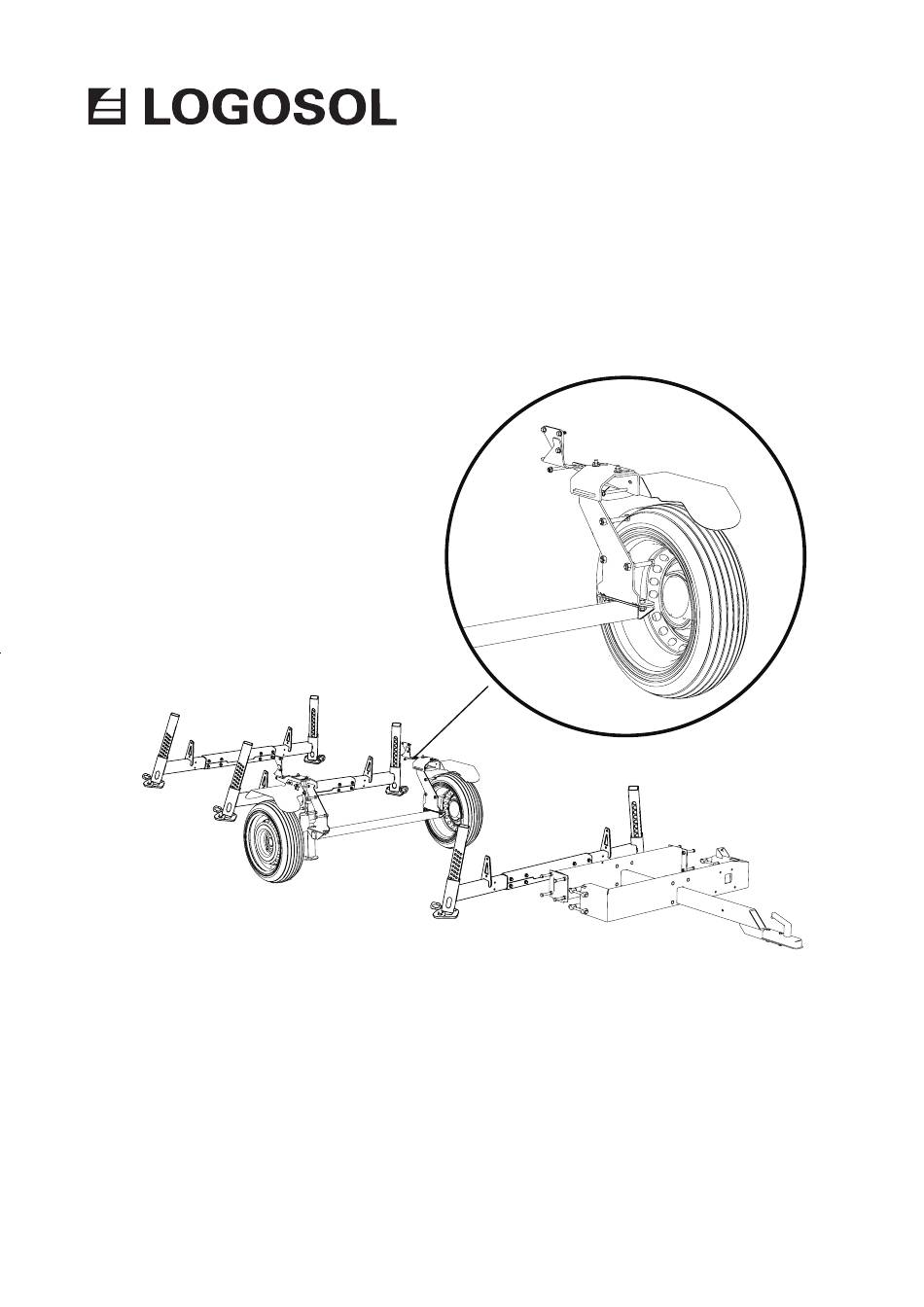

- Page 1 USER MANUAL Ref. No. 0458-395-0681 Rev. 4 TRAILER KIT G2:1 B751 PRO/ B1001...
- Page 2 We are very pleased that you have demonstrated your confidence in us by purchasing this product, and we will do our utmost to meet your expectations. Logosol has been manufacturing sawmills since 1989. In that time we have supplied approximately 50,000 machines to satisfied customers the world over.
- Page 3 TABLE OF CONTENTS Safety instructions Components Assembly Functions...
- Page 4 • Only add extra equipment to the sawmill that is made by Logosol or that is specifically approved by Logosol for the purpose. Other equipment can cause accidents and should not be used. Logosol will not...
- Page 5 SAFETY INSTRUCTIONS THE WORKSITE MOVING THE BAND SAWMILL WARNING! Never operate a band sawmill with WARNING! Risk of crush injuries. a petrol-powered engine in enclosed or poorly ventilated areas. This can result in death due to Keep people and pets outside the 5 m danger area suffocation or carbon monoxide poisoning.
- Page 6 COMPONENTS Below the components are described to assist in identifying them during assembly. Trailer coupler Drawbar Drawbar beam Cross beam Support leg beam Support leg Wheel axle Rail frame reinforcement Fender Sawhead lock Lock bracket Lower mount Top mount Joint pin...
- Page 7 TRAILER KIT 02-00368 02-00392 B1001 B751 Pro 02-00416 Check that all components 02-00366 B1001 are included in the shipment. 02-00417 B751 Pro V, 03-02347 H, 03-02349 V, 03-02384 H, 03-02382 04-00237 B1001 04-00236 B751 Pro 04-00326 V, 02-00381 03-02342 H, 02-00380 03-02344 03-02312 8020-001-0075...
- Page 8 M8 x12 M8 x20 M8 x25 M8 x110 M10 x65 M12 x25 22 x M12 x90 NV18 M12 x140 30 x M12 NV18 04-00226 22 x 10 x Cylindrisk bult 12x80 Hårnålssprint 01-00508 03-02649 03-02648 03-02459 03-02488 M6 x35 01-00570...
- Page 9 TRAILER KIT BOLTS & NUTS Definition of fasteners. Shoulder bolt Allen bolt Phillips bolt Partial thread Allen bolt Hex bolt Slotted bolt Set screw Partial thread hex bolt Hex nut Flange bolt Flange nut Partial thread flange bolt Flat washer Carriage bolt ADDITIONAL SYMBOLS DIMENSIONS/LENGTH...
- Page 10 01-00508 Start the assembly by fitting the new anti- tip plate conversion kit. Secure the new anti-tip profiles with the bolts that hold the rails. Note that the assembly should begin and end with the ’end pieces’. Be careful not to loosen the screws too much as the nuts may fall out.
- Page 11 TRAILER KIT 01-00614 Raise the rails in a safe and effective way, until the rail tubes are 400 mm above the ground. This is the minimum clearance required to fit the support legs. 400 mm 400 mm Recommended positions of the support legs on the rail frame.
- Page 12 01-00614 8 x – M10x70 8 x – M10 The inner row of holes is to be used on B751 Pro. M12x100 NV 18...
- Page 13 TRAILER KIT 01-00614 ADJUSTING THE LEVELNESS OF THE RAIL FRAME To ensure a good sawing result, it is important that the rails are completely level with each other. Place a spirit level on a cross bunk and adjust the support legs until the rails are on a level.
- Page 14 20 mm 22 x M12 x 90 22 x M8 x 12...
- Page 15 TRAILER KIT Remove the bed end plate and the end piece at the end of the rail frame tubes. Note that the drawbar beams of the trailer kit should be fitted at the start of the rail frame seen from the sawing direction. Fit the cross beam with bolts in the first hole pattern seen from the rail frame end.
- Page 16 Fit the outer drawbar beam to the rail frame end. Make sure the joints are level with each other and then alternately tighten the interior and exterior nuts until the rail frame tubes match each other. When a good fit is reached, you tighten the bolt joints on both the inner and the outer drawbar beam.
- Page 17 TRAILER KIT M 10 x 65 M 10...
- Page 18 Fit the wheel axle mounts to the rail frame. Note their lateral position on the rail frame. The wheel axle mounts should be fitted right under the fourth rail joint (the drawbar beam joint is included) seen from the sawing direction. Sawing direction Fit the wheel axle to the wheel axle mounts.
- Page 19 TRAILER KIT Good job! Now it is time to install the sawhead locking mechanism. M8 x 110 Fit the sawhead lock to the bogie tube. Repeat this step on the other bogie tube. Fit the lower sawhead lock mounts to the bottom plates of both the sawhead bogie legs.
- Page 20 Fit the top mounts to the sawhead bogie legs. Note that the mount on the exhaust side of the sawhead has to be fitted with a spacer between it and the bogie leg. M8 x 25 M8 x 20...
- Page 21 TRAILER KIT FUNCTIONS LOCKING THE SAWHEAD Secure the sawhead with the lock bracket before transport. FENDERS Fit the fenders to the attachment plates before transporting the sawmill.
- Page 22 FUNCTIONS THE POSITIONS OF THE DRAWBAR The trailer drawbar can be set to two positions. It can be pulled out for transport, and pushed back for a better access around the sawmill.
- Page 24 Fiskaregatan 2, 871 33 Härnösand, SWEDEN +46 611 182 85 | info@logosol.com | www.logosol.com...
