1. DESCRIPTION
PCT-1600 plus
is a pressure controller to be used in cooling plants requiring control in suction and
exhaust stages. With 16 internal outputs, it enables controlling two compressor banks for the suction
stage and one fan bank for the exhaust stage. The number of outputs for each stage can be freely
configured among all 16 controller outputs.
Besides high and low pressure alarms for each pressure switch,
additional inputs for temperature reading. Such inputs can be used for controlling temperature in suction
and exhaust lines and switching alarms for low and high temperature. Every pressure switch is provided
with alarm interlock in the controller, in addition to a fully programmable reset system. The 16th output of
the controller can be configured to operate either as exhaust control stage or as alarm output to drive
external events.
PCT-1600 plus
Besides monitoring alarms internally,
detecting external alarms, selecting day/night time setpoints, and metering output stage consumption.
Thanks to its large versatility, it is able to manage load switching in linear, rotation or per capacity modes.
By means of a RS-485 serial port, it communicates with SITRAD software, making the configuration
easy and quick.
2. APPLICATION
To be applied in cooling process control, used in compressor bank(s) (suction) and in the fan bank
(exhaust).
3. TECHNICAL SPECIFICATIONS
- Power:
80~260Vac (50/60Hz)
- Control pressure:
0 to 100 psi / 0 to 6.9 bar (using SB49-100Atransducer)
0 to 500 psi / 0 to 34.4 bar (using SB49-500Atransducer)
- Pressure resolution:
1 psi / 0.1 bar
- Control temperature:
-50 to 150 °C / -58 to 302 °F
- Temperature resolution:
0.1°C between -10 and 100°C, and 1°C for the rest of the range
1°F between -58 and 302°F
- Maximum output current:
5(3)A/ 250Vac 1/8HP
- Dimensions:
160x77x90mm (WxHxD)
- Controller's operating temperature:
0 to 50°C
- Pressure transducer operating temperature:
- Temperature transducer operating temperature:
- Operating humidity:
10 to 90% RH (no condensation)
- Control outputs:
OUTPUTS 1 to 15 Control outputs for suction and exhaust pressure switches (programmable)
OUTPUT 16 Control output for exhaust pressure switch or alarm output (programmable)
- Digital inputs:
DIG INPUT 1 to 3 Dry contact digital input, normally closed
DIG INPUT 4 to 6 Normally closed, dry contact digital input, or digital pulse detection
(5 Vdc, leading edge, minimum time in high/low level: 1 mS)
4.3.1 Parameter table
Fun
Suction pressure switch 1 hysteresis
Suction pressure switch 1 minimum setpoint
Suction pressure switch 1 maximum setpoint
Suction pressure switch 1 low pressure alarm
Suction pressure switch 1 high pressure alarm
Suction pressure switch 1 operating mode
Number of suction 1 compressors
Limit of time in hours for the maintenance alarm of suction pressure switch 1 to go on
Suction pressure switch 1 low temperature alarm
Hysteresis for deactivating suction pressure switch 1 low temperature alarm
Suction pressure switch 1 output mode upon error in sensor 1
Suction pressure switch 2 hysteresis
Suction pressure switch 2 minimum setpoint
Suction pressure switch 2 maximum setpoint
Suction pressure switch 2 low pressure alarm
Suction pressure switch 2 high pressure alarm
Suction pressure switch 2 operating mode
Number of suction 2 compressors
Limit of time in hours for the maintenance alarm of suction pressure switch 2 to go on
Suction pressure switch 2 low temperature alarm
Hysteresis for deactivating suction pressure switch 2 low temperature alarm
Suction pressure switch 2 output mode upon error in sensor 2
Exhaust pressure switch hysteresis
PCT-1600 plus
DIGITAL PRESSURE CONTROLLER
FOR COOLING PLANTS
Ver.01
PCT-1600 plus
has six digital inputs that can be used for
®
-40 to 125°C
-50 to 150°C
Description
4. CONFIGURATIONS
Warning:
Before proceeding to setpoint and setup parameter adjustments, select which
pressure measurement units you want to work with, because changing the parameters makes
the instrument return to its original factory defaults.
has three
4.1 Control pressure adjustment
To adjust the pressure operating setpoint, press and hold
will appear on the display indicating the setpoint adjustment mode for the suction pressure switch 1.
After adjusting the control pressure, confirm it by pressing
operate with two suction stages, the message
adjustment mode.Adjust it and confirm pressing
the control pressure of the exhaust pressure switch is to be adjusted.
If the digital input 1 is configured to operate day/night time setpoint selector, the process for adjusting
the control pressure is as follows: press and hold the
appear on the display indicating the daytime setpoint adjustment mode for the suction pressure switch
1. After adjusting the control pressure, confirm it by pressing
operate with two suction stages, the message
2 adjustment mode. Adjust it and confirm pressing
control pressure of the exhaust pressure switch is to be adjusted; adjust and confirm. Immediately after
that, the controller will show the messages
setpoints; proceed in the same way for adjusting each one.
4.2 For accessing the function menu
Simultaneously press
When
appears, press
confirm, press
adjust them. To leave the menu and return to normal operating mode, press
Appears.
4.3 Functions
Access code entry
Advanced setup functions
Capacities of the control outputs
Control outputs maintenance mode
will appear indicating the suction setpoint 2
.At last, the message
key for two seconds. The message
will appear indicating the daytime suction setpoint
. Then the message
,
, and
and
for two seconds, until the message
(short time) and insert the code (123) using the keys
. Using
and
keys, access the other functions and proceed in the same way to
for two seconds. The message
. Then, if the controller is configured to
will be displayed when
will
. Then, if the controller is configured to
when the daytime
for adjusting the respective nighttime
appears, and then release.
and
. To
(long time) until

Advertisement

loading
Need help?

Need help?

Do you have a question about the PCT-1600 plus and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Full Gauge Controls PCT-1600 plus

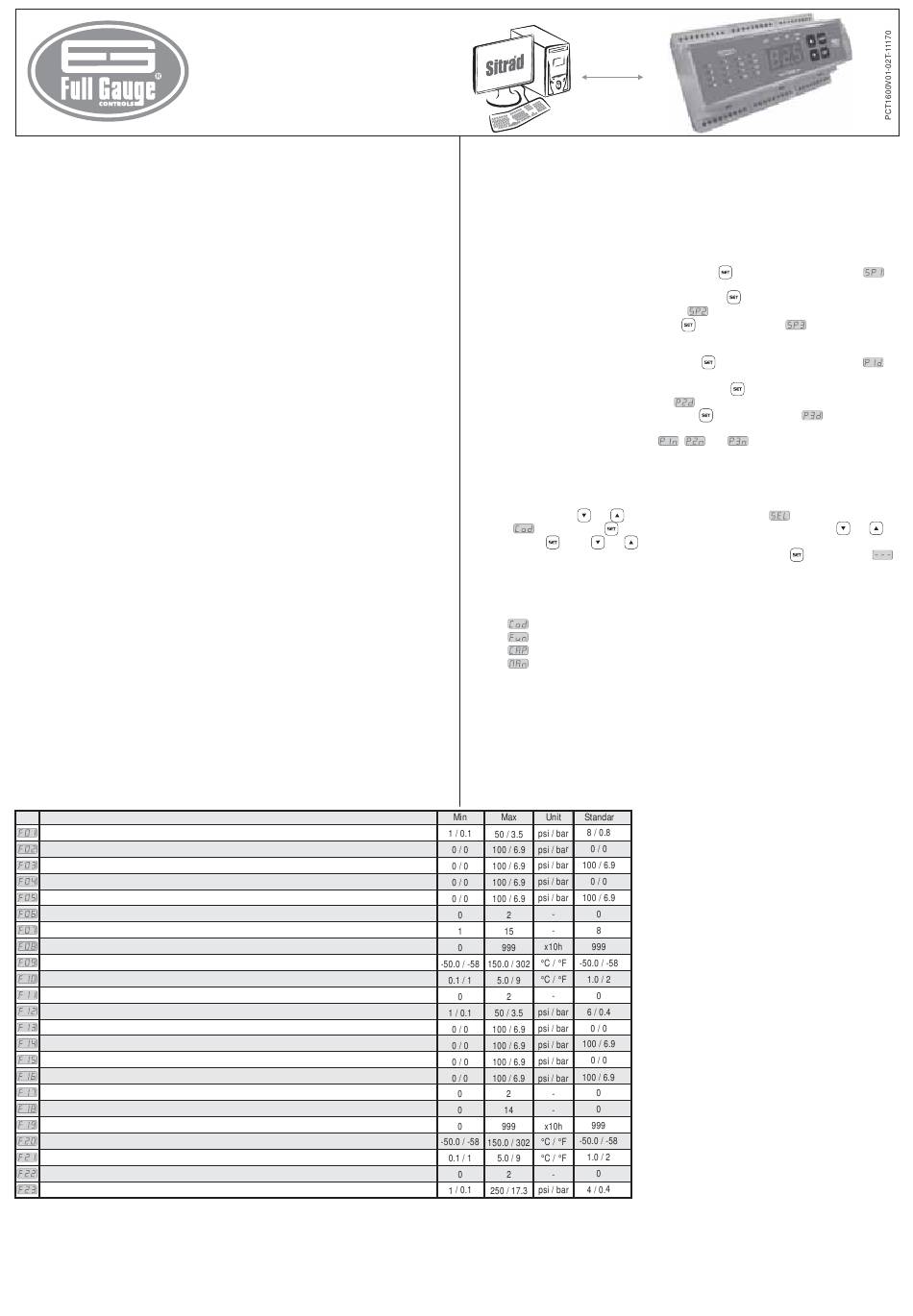

  • Page 1 PCT-1600 plus DIGITAL PRESSURE CONTROLLER FOR COOLING PLANTS Ver.01 4. CONFIGURATIONS 1. DESCRIPTION PCT-1600 plus is a pressure controller to be used in cooling plants requiring control in suction and Warning: Before proceeding to setpoint and setup parameter adjustments, select which exhaust stages.
