Summary of Contents for Spudnik 4220

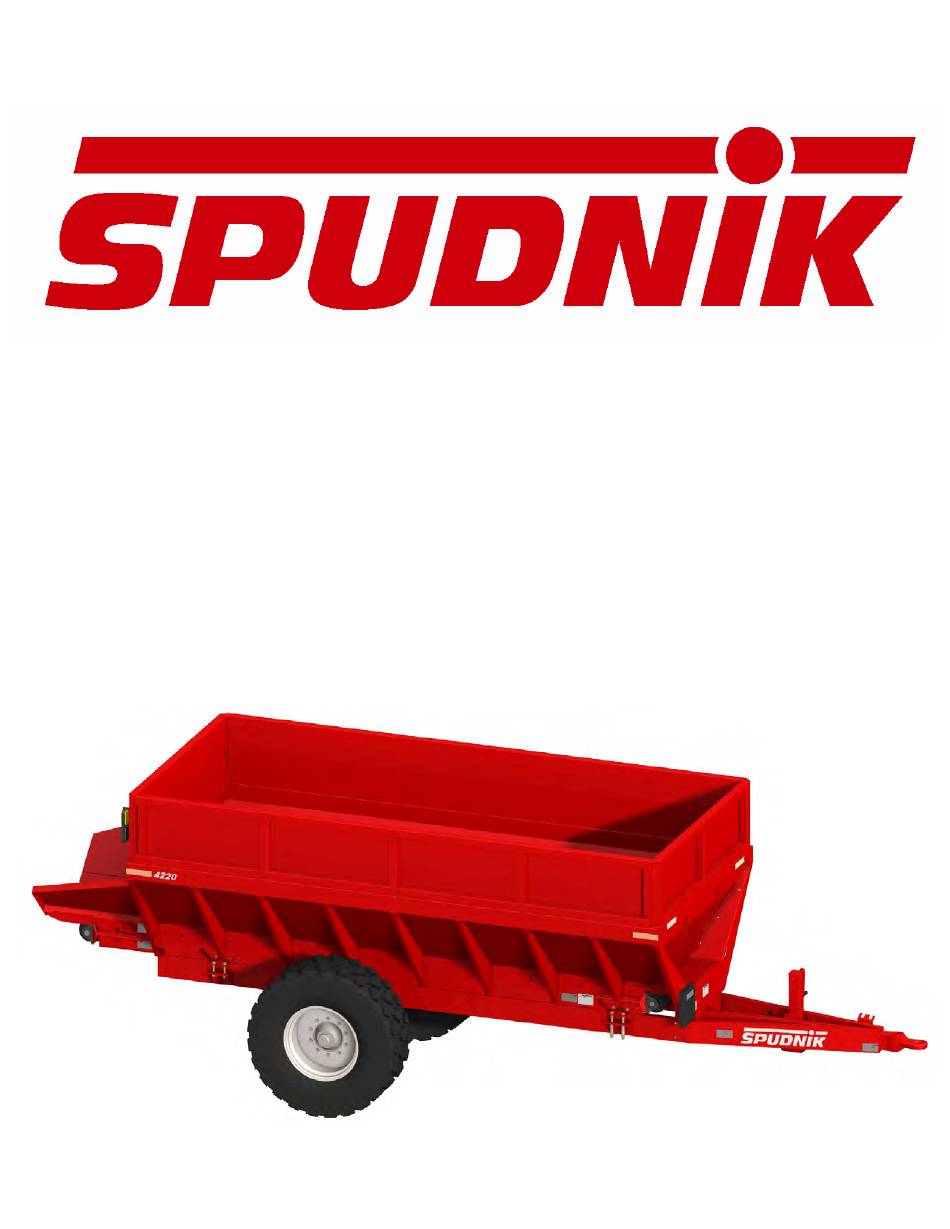

- Page 1 OPERATOR’S & PARTS MANUAL MODEL 42 0 Bulk...
- Page 2 Operator's manual MODEL 4220 Mission Statement Our mission is to consistently provide high quality, reliable, safe, and well-designed products and services to meet and exceed the needs of our customers. Service Centers Phone: (208) 785-0480 E-Mail: spudnik@spudnik.com Web Site: www.spudnik.com...
-
Page 3: Table Of Contents
Operator's manual MODEL 4220 Table Of Contents Description Page # Introduction ……………………………………………………………………………... Foreword to the operation manual ...………………………………………………...… Warranty …...…………………………………………………………………………… General …..……………………………………………………………………………… Product Characteristics …..…….……………………………………………………… Dangers, operation errors and exemption from liability ………………………….. Safety ……………...………………………………………………………………….. General safety and accident prevention regulations ………………………………... -
Page 4: Introduction
We strive to put the best quality and workmanship into each of our machines, and hope as you use you’re MODEL 4220 Bulk Tailer, that you will find this to be true. This owner’s/operator’s manual has been prepared to aid you in the safe operation and service of your Bulk Trailer. -
Page 5: Foreword To The Operation Manual
Operator's manual MODEL 4220 Foreword to the Operating Manual This operating manual is intended to familiarize the user with the 4220 Bulk Trailer and its desig- nated use. This operating manual contains important information on how to operate the machine safely, properly and efficiently. -
Page 6: Warranty
The selling dealer has no authority to make any representation or promise on behalf of Spudnik, or to modify the terms or limi- tations of this warranty in any way. -
Page 7: General
Particular attention should be paid to the section entitled “Safety”. And instructions which are not understood must be clarified before initial operation of the machine. In such cases, please consult your SPUDNIK agent or contact us directly. -
Page 8: Product Characteristics
Operator's manual MODEL 4220 Product Characteristics Manufacturer’s address SPUDNIK EQUIPMENT COMPANY LLC 584 W 100 N PO Box 1045 Blackfoot, ID 83221 Phone: (208) 785-0480 Fax: (208) 785-1497 www.spudnik.com E-mail: spudnik@spudnik.com Advice concerning inquiries and orders Please quote the type designation and the machine number when ordering accessories and spare parts. -
Page 9: Dangers, Operation Errors And Exemption From Liability
The results produced by the machine must be constantly monitored and checked. 4. SPUDNIK shall not be liable for any damage to agricultural produce and other items which occurs as a result of operating and adjustment errors or others incorrect usage. -
Page 10: Safety
The use of spare parts, accessories and auxiliary equipment not supplied and/or not approved by SPUDNIK can have det- rimental effect on the construction of the SPUDNIK machine or on its functions and hence impair the active and/or passive driven and/or operational safety (accident prevention). -
Page 11: General Safety And Accident Prevention Regulations
10. Stay clear of the turning and pivoting areas of the machine! 11. The primary responsibility for safe operation of the Spudnik machine lies with the owner/operator. 12. OSHA (Occupational Safety and Health Administration) requires that all operators be trained at the time of initial assignment, and annually thereafter by the employer, in the safe operation of the machine. -
Page 12: Bulk Trailer Setup
Operator's manual MODEL 4220 Bulk Trailer Setup Machine Operation – The model 4220 Bulk Trailer has been designed to transport farm produce to storage and to market, in the most efficient manner to maintain integrity and structure of the product. -
Page 13: Belt Replacement Procedure
Operator's manual MODEL 4220 Belt Replacement Procedure 1. Disconnect power, and/or disengage PTO power. 2. From discharge end of the Bulk Trailer, thread belt forward over the carry back rollers and around the front roller so belt is on topside of the conveyor rollers. This can be accomplished by using a fifty- foot rope and a pair of modified “Vice Grips”... -
Page 14: Lubrication And Maintenance
Operator's manual MODEL 4220 Lubrication and Maintenance The hydraulic system used to power auxiliary functions uses Dexron III ATF (automatic transmission fluid) for prime mover. ATF in hydraulic system should be drained and changed when it becomes dirty and/or contami- nated. -
Page 15: Warning Symbols And Other Instruction Notices On The Machine
Operator's manual MODEL 4220 Warning symbols and other instruction notices on the machine SIGNAL WORDS: DANGER, WARNING, and CAUTION are signal words with messages: DANGER: An immediate and specific hazard, which WILL result in server injury or death if proper precautions are not taken. - Page 16 Operator's manual MODEL 4220 Warning symbols and other instruction notices on the machine (300169) DANGER MOVING ROLLERS Will cause severe injury or death. Do not clean moving rollers. Shut off tractor before cleaning or working on rollers. (300097) WARNING HIGH PRESSURE OIL Can cause serious injury or death.
- Page 17 Disconnect power before servicing. Keep hands, feet, clothing away from power driven parts. Do not run maching until all shields are in place. Read operator’s manual before servicing. (300466) NOTICE Any modification to equipment without written approval from Spudnik may void warranty. (see owner’s manual) Page 16...
-
Page 18: Machine Parts Breakdown
Operator's manual MODEL 4220 Machine Parts Breakdown Description Page # Stickers and Safety Lables …..……...………………………….....……... 18 - 19 Frame …..……………….......…………….....……..… Mounts ………………………...............…………… Front Wall .…………………......……….........………… Front Roller - Single Belt Drive ….……........……………………… Front Roller - Double Belt Drive …......……………………….…..…….. Axle ….……………………………………………...........…….. 25 - 26 Rear Wall …........……………………………………….………... - Page 19 Operator's manual MODEL 4220 STICKERS AND SAFETY LABELS Item # DESCRIPTION PART #: Item # DESCRIPTION PART #: CASE, OPERATORS MANUAL 981360 MANUAL OWNER'S/OPERATOR'S MDL 4220(2014) 290213 LABEL,DANGER MOVING ROLLERS 300169 NOTICE: M ODIFICATION MAY VOID WARRANTY 300466 LABEL,OPERATOR INSTRUCTIONS ENCLOSED 300131 SERIAL,NUMBER,PLATE 2"x3"...
-
Page 20: Stickers And Safety Lables
Operator's manual MODEL 4220 STICKERS AND SAFETY LABELS Item # DESCRIPTION PART #: Item # DESCRIPTION PART #: CASE, OPERATORS MANUAL 981360 MANUAL OWNER'S/OPERATOR'S MDL 4220(2014) 290213 LABEL,DANGER MOVING ROLLERS 300169 NOTICE: M ODIFICATION MAY VOID WARRANTY 300466 LABEL,OPERATOR INSTRUCTIONS ENCLOSED 300131 SERIAL,NUMBER,PLATE 2"x3"... -
Page 21: Frame
Operator's manual MODEL 4220 FRAME Item # DESCRIPTION PART #: FRAME,MAIN,BOLTABLE,4220 9084-008 FRAME,TONGUE,BOLTABLE,4220 9084-009 GROMMET,EPDM, 3" ID, 1/4" WOG, 4" OD 982305 HANDLE,REVOLVING,3.82"LG,.05"x0.79" 982220 HITCH, PINTLE 30K 981263 JACK,BULK TRAILER,4220-2014 198453 JACK,HANDLE 196005 Page 20... -
Page 22: Mounts
Operator's manual MODEL 4220 MOUNTS Item # DESCRIPTION PART #: BOLT, HEX, HD, 3/4" x 9" 502416 BOLT,HEX,HD,3/4"-10UNC x 5" GR 5 501156 FRAME GUIDE,A,BOLTABLE BULK BED, 2011 174758 FRAME GUIDE,B,BOLTABLE BULK BED, 2011 174757 NUT,LOCK,HEX,3/4"-10UNC NYLON INSERT 501711 SPRING,COMPRESSION,4-3/4" L BBED MOUNT 981381 WASHER, 3/4"... -
Page 23: Front Wall
Operator's manual MODEL 4220 FRONT WALL Item # DESCRIPTION PART #: CASE, OPERATORS MANUAL 981360 MANUAL OWNER'S/OPERATOR'S MDL 4220(2014) 290213 SHEILD,FRONT ROLLER,4220 176299 WALL,FRONT,BULK TRLR,MDL 4220-2014 198449 Page 22... -
Page 24: Front Roller - Single Belt Drive
Operator's manual MODEL 4220 FRONT ROLLER - SINGLE BELT DRIVE Item # DESCRIPTION PART #: BOLT,TU,1"-5UNCx16" BULK BED/EVEN FLOW 171175 BRNG,PB,1-3/4" BORE VPS-128 231083 RLR,LGD,7-3/8"ODx29-1/2",GRV5/8",36" 781582 TU,BRACKET,ACME,FLAT,1-3/4"BEARING 2012 197340 Page 23... -
Page 25: Front Roller - Double Belt Drive
Operator's manual MODEL 4220 FRONT ROLLER - DOUBLE BELT DRIVE Item # DESCRIPTION PART #: ARM,TORQUEGEAR BOX, BULKBED, W/SHLD BRKT 196384 BOLT,TU,1"-5UNCx16" BULK BED/EVEN FLOW 171175 BRNG,PB,1-3/4" BORE VPS-128 231083 COUPLING,BULK,BED,1-3/4" x 4-1/2" 181221 GRBX,PLNTRY,1-3/4" SHAFT BBED DRV AUBURN 571371... -
Page 26: Axle
Operator's manual MODEL 4220 AXLE Item # DESCRIPTION PART #: AXLE,10 HH,BULK TRAILER,4220-2014 9084-005 HUB,10 HOLE,HARV AXLE 951175 TIRE AND RIM,17.5R-25,REM-2 95.55.0012 Page 25... - Page 27 Operator's manual MODEL 4220 AXLE Item # DESCRIPTION PART #: BRNG,WHEEL,10 HOLE INNER HM218-248 231108 BRNG,WHEEL,10 HOLE OUTER HM212049 231109 CAP,DUST 10 HOLE BOLT-ON 951216 COLLAR,SHAFT,SET,SCREW,2-1/16" 502738 HUB,ONLY,10 HOLE W/STUDS,RACES& LUG NUTS 951217 NUT,LUG,3/4"-16UNF WITH FLANGE 951222 NUT,SLOTTED,HEX,2"-12UNF x 1-1/8" THICK...
-
Page 28: Rear Wall
Operator's manual MODEL 4220 REAR WALL Item # DESCRIPTION PART #: DOOR FRAME,REAR,BULK TRLR,MDL 4220-2014 198447 DOOR,REAR,BULK TRLR,BOLTED,4220-2014 198448 GROMMET,EPDM, 3" ID, 1/4" WOG, 4" OD 982305 JACK,RATCHET HEAVY DUTY #SL1541GT 951284 MOUNT,RATCHET JACK,DOOR LIFT,4220-2014 198450 REAR WALL,SIDE PIECE,LH,MDL 4220... -
Page 29: Straight Discharge
Operator's manual MODEL 4220 STRAIGHT DISCHARGE Item # DESCRIPTION PART #: Item # DESCRIPTION PART #: ARM,TORQUEGEAR BOX, BULKBED, W/SHLD BRKT 196384 O-RING,#2-152 N70, HYD MTR/GRBX 601762 BELT,ASSY,30"x36’,R5,FLAT BELT,HVY 262406 RLR,LGD,7-3/8"ODx29-1/2",GRV5/8",37-3/4" 781559 BOLT,TU,1"-5UNCx16" BULK BED/EVEN FLOW 171175 SCREW,CAP,SCKT,HD,5/8"-11 x 1-1/2"... -
Page 30: Pipe Rollers
Operator's manual MODEL 4220 PIPE ROLLERS Item # DESCRIPTION PART #: RBO,30-1/2" 3"x29"PIPE 1" SHAFT DT 5/8" 181737 RP,30-1/2 3"x 22-1/4"PIPE 1"SHAFT DT5/8" 181738 RP,30-1/2" 3"x 25-1/4"PIPE 1"SHAFT DT5/8" 132685 SECTION A-A Page 29... -
Page 31: 24" Side Board Extensions
Operator's manual MODEL 4220 24" SIDE BOARD EXTENSIONS Item # DESCRIPTION PART #: SIDE,EXTENSION,24",FRONT 9084-051 SIDE,EXTENSION,24",REAR 9084-052 SIDE,EXTENSION,24",SIDE 9084-050 Page 30... -
Page 32: Light
Operator's manual MODEL 4220 LIGHTS Item # DESCRIPTION PART #: LGHT,SIGNAL,STOP,AG-LED-L4 402992 LGHT,SIGNAL,STOP,AG-LED-R4 402991 SHEET,LIGHT BRACKET,A 9084-215 SHEET,LIGHT BRACKET,B 9084-216 Page 31... -
Page 33: Complete Assembly
Operator's manual MODEL 4220 COMPLETE ASSEMBLY Page 32... -
Page 34: Schematics
Operator's manual MODEL 4220 Page 33... - Page 35 Operator's manual MODEL 4220 Page 34...
- Page 41 ...
