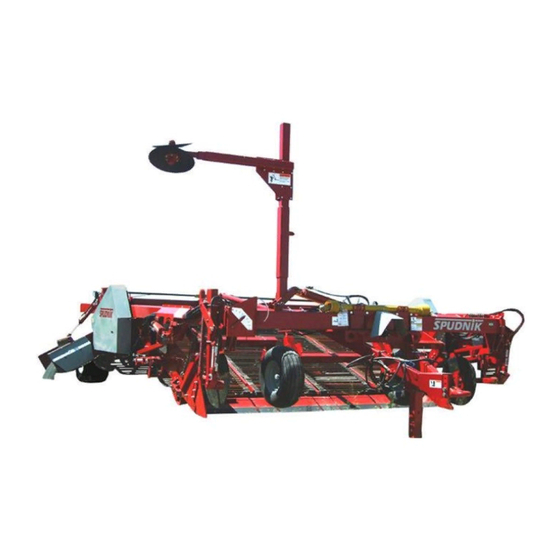

4-row windrower
Hide thumbs

Advertisement

Quick Links

OWNER'S / OPERATOR'S MANUAL
PART # 290027
MODEL 5140
4-ROW WINDROWER

Advertisement

loading
Need help?

Need help?

Do you have a question about the 5140 and is the answer not in the manual?

Questions and answers

Related Manuals for Spudnik 5140

Summary of Contents for Spudnik 5140

  • Page 1 OWNER’S / OPERATOR’S MANUAL PART # 290027 MODEL 5140 4-ROW WINDROWER...
  • Page 2 Service Centers Phone: (208)785-0480-Fax: (208)785-1497 E-Mail: spudnik@spudnik.com Web Site : www.spudnik.com BLACKFOOT PASCO GRAFTON 584 West 100 North 5802 North Industrial Way 1410 12th St. West P.O. Box 1045 Pasco, Wa. 99301 Grafton, Nd. 58237 Blackfoot, ID 83221 Phone (509) 543-7166...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS PAGE Introduction …………………………………………………………………………. Warranty …………………………………………………………………………….. Safety ……………………………………………………………………………….. Safety Practices ……………………………………………………………………. Safety Labels ……………………………………………………………………….. Lubrication and Maintenance ..………………………………………………….. Tractor power take-off and draw bar requirements …………………………….. Machine parts breakdown Table Of Contents ………………………………………………………………….. 13 Electrical Schematics ……………………………………………………………… 4/18/2002...

  • Page 4: Introduction

    We strive to put the best quality and workmanship into each of our machines, and hope as you use your MODEL #5140, 4-ROW WINDROWER, that you will find this to be true. This owner’s / operator’s manual has been prepared to aid you in safe operation and service of your Windrower.
  • Page 5 3- All warranty must be completed within one year of purchase unless an agreement is made with Spudnik Equipment Company LCC to do otherwise, prior to the end of the year. 4- No warranty payments will be made without a REQUEST FOR WARRANTY PAYMENT signed by the customer, and all faulty parts are returned to Spudnik Equipment Company LLC.

  • Page 6: Safety

    SAFETY You are responsible for the safe operation and maintenance of your SPUDNIK Windrower. All operators and anyone doing work or maintenance on Windrower must be trained in the operation, maintenance procedures and related SAFETY information contained in this manual. All operators and maintenance personnel must receive this training at least annually to be in compliance with OSHA regulation 1928.57.
  • Page 7 SAFETY SAFETY ALERT SYMBOL THE SAFETY ALERT SYMBOL MEANS: ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED! The SAFETY ALERT SYMBOL identifies important safety information on the safety LABELS and in this manual. When you see this symbol be alert to the possibility of personal injury or death.

  • Page 8: Safety Practices

    SAFETY PRACTICES GENERAL SAFETY PRACTICES The primary responsibility for safe operation of the Spudnik Windrower lies with the owner/operator. OSHA (Occupational Safety and Health Administration) requires that all operators be trained at the time of initial assignment, and annually thereafter by the employer, in the safe operation of the Windrower.
  • Page 9 SAFETY PRACTICES Remove or safely block all loads that are supported by hydraulic cylinders before loosening any hydraulic line, fitting, or hose. Wear proper eye and hand protection and use wood or cardboard as a backstop when looking for hydraulic leaks. A high-pressure hydraulic leak can ignite if exposed to an open flame or spark.
  • Page 10 SAFETY PRACTICES OPERATING SAFETY PRACTICES Do not allow riders on Windrower during field operation . Be careful when operating Windrower on uneven terrain, hillsides, or near ditches to avoid the potential of overturning the Windrower. Use only recommended tractor sizes with proper weight and equipment for operating the Windrower.

  • Page 11: Safety Labels

    SAFETY LABELS Keep safety labels clean and legible at all times. Replace safety labels that are missing or have become illegible. When replacing a part that displays a safety label, make sure that the new part also displays the safety label. Safety labels are available from your dealer parts dept.

  • Page 12: Lubrication And Maintenance

    LUBRICATION AND MAINTENANCE All wheel bearings and wheel hubs should be greased and packed at least once a year. Check wheel lug nuts daily. Check tire pressure daily (for 19.5L-16.1 12 PLY tire - 36 P.S.I.) (for 11L-15 12 PLY gauge wheel - 52 P.S.I.) Oil in gearboxes must be checked every hundred hours of operation.

  • Page 13: Tractor Power Take-Off And Drawbar Requirements

    TRACTOR POWER TAKE-OFF AND DRAWBAR REQUIREMENTS The windrower has been engineered to meet the ASAE Standard S203.12 for TYPE 3 Tractors. Refer to the illustration below for specific measurements. Tractor Power Take-off and Drawbar Dimensions Associated with Drawbar and Power Take-off* Nominal Diameter 1-3/4 in ( 45 mm) Standard Operating Speed - r/min.

  • Page 14: Machine Parts Breakdown

    MACHINE PARTS BREAKDOWN TABLE OF CONTENTS SECTION PAGE BELTED CHAIN OPTIONS 23-26 COULTER HUB ASSEMBLY & BLADE OPTION W-26 COULTER SIDE HYDRAULIC CYLINDER ASSEMBLY COULTER WIDE ASSEMBLY W-27-A 58 COULTER NARROW ASSEMBLY W-27-B 59 COULTER THIRD ASSEMBLY (OPTION) W-30 COULTER THIRD HYDRAULIC CYLINDER ASSEMBLY (OPTION) DIGGER NOSE BLADE ASSEMBLY DOG TONGUE-BHL DIGGER NOSE BLADE ASSEMBLY ROCK POINT DIGGER NOSE ROLLER AND WEAR PLATE ASSEMBLIES...

  • Page 15: Table Of Contents

    MACHINE PARTS BREAKDOWN TABLE OF CONTENTS SECTION PAGE REAR CROSS DISCHARGE HYDRAULIC CYLINDER ASSEMBLY REAR CROSS HYDRAULIC DRIVE ASSEMBLY SAFETY LABELS SL-1-3 15-17 SAFETY LABEL PLACEMENTS SL-4-6 18-20 SECONDARY CHAIN DRIVE SHAFT ASSEMBLY W-18 SECONDARY CHAIN ROLLER SIDE ASSEMBLIES W-19 SHAKER HYDRAULIC CYLINDER ASSEMBLY SHAKER HYDRAULIC ROLLER DRIVE ASSEMBLY (OPTION) SHAKER HYDRAULIC RUBBER ROLLER ASSEMBLY (OPTION)
  • Page 17 SL-1 SAFETY LABELS ITEM # PART # DESCRIPTION 300087 LABEL,WARNING,EXPOSED,DRIVE,CAN CAUSE 300086 LABEL,CAUTION,MOVING,DRIVES,CAN CAUSE 300089 LABEL,CAUTION,LOW,SPEED,TIRE,CAN,CAUSE 4/18/2002...
  • Page 19 SL-2 SAFETY LABELS ITEM # PART # DESCRIPTION 300091 LABEL,DANGER,ROTATING,DRIVELINES,(VERT) 300094 LABEL,WARNING,MOVING,MACHINERY,CAN,CAUSE 300092 LABEL,DANGER,ROTATING,DRIVELINES,(HORZ) 290043 MANUAL,ADMA SAFTY #56-15123 4/18/2002...
  • Page 21 SL-3 SAFETY LABELS ITEM # PART # DESCRIPTION 300096 LABEL,WARNING,HEAVY,TONGUE, WEIGHT,CAN 300097 LABEL,WARINING,HIGH,PRESSURE,OIL,CAN 300095 LABEL,WARNING,MOVING,COULTER,CAN,CAUSE 4/18/2002...
  • Page 23 SL-4 SAFETY LABEL PLACEMENTS ITEM # PART # DESCRIPTION 300097 LABEL,WARINING,HIGH,PRESSURE,OIL,CAN 300089 LABEL,CAUTION,LOW,SPEED,TIRE,CAN,CAUSE 300094 LABEL,WARNING,MOVING,MACHINERY,CAN,CAUSE 300092 LABEL,DANGER,ROTATING,DRIVELINES,(HORZ) 300091 LABEL,DANGER,ROTATING,DRIVELINES,(VERT) 300096 LABEL,WARNING,HEAVY,TONGUE, WEIGHT,CAN 4/18/2002...
  • Page 25 SL-5 SAFETY LABEL PLACEMENTS ITEM # PART # DESCRIPTION 300094 LABEL,WARNING,MOVING,MACHINERY,CAN,CAUSE 300095 LABEL,WARNING,MOVING,COULTER,CAN,CAUSE 300097 LABEL,WARINING,HIGH,PRESSURE,OIL,CAN 300086 LABEL,CAUTION,MOVING,DRIVES,CAN CAUSE 300087 LABEL,WARNING,EXPOSED,DRIVE,CAN CAUSE 4/18/2002...
  • Page 27 SL-6 SAFETY LABEL PLACEMENTS ITEM # PART # DESCRIPTION 300094 LABEL,WARNING,MOVING,MACHINERY,CAN,CAUSE 300086 LABEL,CAUTION,MOVING,DRIVES,CAN CAUSE 300087 LABEL,WARNING,EXPOSED,DRIVE,CAN CAUSE 300097 LABEL,WARINING,HIGH,PRESSURE,OIL,CAN 4/18/2002...
  • Page 28 SH-1 SHIELD ASSEMBLIES Fit’s behind shield on each side of machine...
  • Page 29 SH-1 SHIELD ASSEMBLIES ITEM # PART # DESCRIPTION 841134 SHLD,PTO,DRIVE 841135 SHLD,RH,PRIMARY/SECONDARY,DRIVE,5140 841137 SHLD,LETDOWN,DRIVE,5140 841138 SHLD,SECONDARY,DRIVE,(DISCHARGE SIDE) 841136 SHLD,LH,PRIMARY/SECONDARY,DRIVE,5140 841139 SHLD,DRIVE,SECONDARY/VINE CHAIN 5140 841150 SHLD,PRIMARY/SECONDARY,DRIVE,INSIDE 5140 4/18/2002...
  • Page 30 SH-2 HYDRAULIC CONTROL & LET DOWN SHIELD ASSEMBLIES...
  • Page 31 402366 ENCL,12W x 10H x 6D A-12106CHQRFG 402365 BACKPLATE,12W x 10H ELEC ENCL A-12P10 841141 SHLD,COVER,LET,DOWN, SENSOR STANDARD LET DOWN RH/LH 841137 SHLD,LETDOWN,DRIVE,5140 171485 LATCH,REAR CROSS STNDRD DISCHARGE 5100 EXTENDED LET DOWN RH/LH 841148 SHLD,EXTENDED,LETDOWN,DRIVE 5140 841147 SHLD,EXTENDED,LETDOWN,AJD,END,DRIVE 5140 4/18/2002...
  • Page 32 BELTED CHAIN OPTIONS PRIMARY CHAIN WIDE NOSE (2-CHAIN), # 351449 - ASSY,BLTD,CHN,69 x 13MM x 42MM,2D1SROD 16’-6” (QTY, 2) # 351450 - ASSY,BLTD,CHN,69 x 13MM x 45MM,2D1SROD 16’-6” (QTY, 2) # 351451 - ASSY,BLTD,CHN,69 x 13MM x 50MM,2D1SROD 16’-6” (QTY, 2) # 351452 - ASSY,BLTD,CHN,69 x 13MM x 56MM,2D1SROD 16’-6”...
  • Page 33 BELTED CHAIN OPTIONS # 351364 - ASSY,BLTD,CHN,30 x 12MM x 56MM,2D1S 16’-6” (QTY, 2) # 351363 - ASSY,BLTD,CHN,33 x 12MM x 56MM,2D1S 16’-6” (QTY, 2) # 351429 - ASSY,BLTD,CHN,30 x 12MM x 42MM,STR ROD 16’-6” (QTY, 2) # 351433 - ASSY,BLTD,CHN,33 x 12MM x 42MM,STR ROD 16’-6” (QTY, 2) # 351430 - ASSY,BLTD,CHN,30 x 12MM x 45MM,STR ROD 16’-6”...
  • Page 34 BELTED CHAIN OPTIONS # 351424 - ASSY,BLTD,CHN,69 x 11MM x 45MM,5D2PGAIR 12’-5” (QTY, 1) # 351423 - ASSY,BLTD,CHN,69 x 11MM x 45MM,5D2PGAIR 11’-4” (QTY, 1) # 351426 - ASSY,BLTD,CHN,69 x 11MM x 50MM,5D2PGAIR 12’-5” (QTY, 1) # 351425 - ASSY,BLTD,CHN,69 x 11MM x 50MM,5D2PGAIR 11’-4” (QTY, 1) # 351428 - ASSY,BLTD,CHN,69 x 11MM x 56MM,5D2PGAIR 12’-5”...
  • Page 35 BELTED CHAIN OPTIONS REAR CROSS (EXTENDED), # 351349 - ASSY,BLTD,CHN,36 x 11MM x 42MM, STR CUSH 42’-4” (QTY, 1) # 351359 - ASSY,BLTD,CHN,36 x 11MM x 45MM, STR CUSH 42’-4” (QTY, 1) # 351453 - ASSY,BLTD,CHN,36 x 11MM x 50MM, STR CUSH 42’-4” (QTY, 1) # 351454 - ASSY,BLTD,CHN,36 x 11MM x 56MM, STR CUSH 42’-4”...
  • Page 36 DIGGER NOSE BLADE ASSEMBLY SAND POINT, WIDE RIGHT SIDE LEFT SIDE...
  • Page 37 DIGGER NOSE BLADE ASSEMBLY SAND POINT, WIDE ITEM # PART # DESCRIPTION 1 210005 MOUNT,BAR,SAND,POINT,WIDE DIGGER NOSE 210009 BLADE,SAND,POINT,CENTER,WIDE DIGGER NOSE 210008 BLADE,SAND,POINT,RH,WIDE DIGGER NOSE 210010 BLADE,SAND,POINT,SOLID,QUARTER COVER 210011 BLADE,SAND,POINT,SPLIT,CENTER COVER 210007 BLADE,SAND,POINT,LH,WIDE DIGGER NOSE 4/18/2002...
  • Page 38 DIGGER NOSE BLADE ASSEMBLY SAND POINT, NARROW RIGHT SIDE LEFT SIDE...
  • Page 39 DIGGER NOSE BLADE ASSEMBLY SAND POINT, NARROW ITEM # PART # DESCRIPTION 210004 MOUNT,BAR,SAND,POINT,NARROW DIGGER NOSE 210023 BLADE,SAND,POINT,RH,NRRW,OUTER 5140/5640 210011 BLADE,SAND,POINT,SPLIT CENTER COVER 210010 BLADE,SAND,POINT,SOLID QUARTER COVER 210024 BLADE,SAND,POINT,RH,NRRW INNER 5140/5640 210006 BLADE,SAND,POINT,LH,NRRW OUTER 5140/5640 210014 BLADE,DOG,TONGUE-LWD,WIDE DIGGER NOSE 4/18/2002...
  • Page 40 DIGGER NOSE BLADE ASSEMBLY DOG TONGUE-BHL RIGHT SIDE LEFT SIDE...
  • Page 41 DIGGER NOSE BLADE ASSEMBLY DOG TONGUE-BHL ITEM # PART # DESCRIPTION 210021 BLADE,DOG,TONGUE-BHL,RH NARROW DIGGER NOSE 210020 BLADE,DOG,TONGUE-BHL,LH NARROW DIGGER NOSE 210023 BLADE,DOG,TONGUE-BHL,RH WIDE DIGGER NOSE 210022 BLADE,DOG,TONGUE-BHL,LH WIDE DIGGER NOSE 4/18/2002...
  • Page 42 DIGGER NOSE BLADE ASSEMBLY ROCK POINT RIGHT SIDE LEFT SIDE...
  • Page 43 DIGGER NOSE BLADE ASSEMBLY ROCK POINT ITEM # PART # DESCRIPTION 210026 BLADE,ROCK,POINT,RH,NARROW DIGGER NOSE 210028 BLADE,ROCK,POINT,LH,NARROW DIGGER NOSE 210027 BLADE,ROCK,POINT,RH,WIDE DIGGER NOSE 210029 BLADE,ROCK,POINT,LH,WIDE DIGGER NOSE 4/18/2002...
  • Page 44 DIGGER NOSE BLADE ASSEMBLY CLOD & HALF CLOD BLADE LEFT HAND RIGHT HAND NOTE: FOR 4 CHAIN CLOD BLADE ASSEMBLY ONLY...
  • Page 45 DIGGER NOSE BLADE ASSEMBLY CLOD & HALF CLOD ITEM # PART # DESCRIPTION CLOD BLADE WIDE NOSE 210066 BLADE,CLOD,WIDE R.H. 36"/38" 5140/5640 210067 BLADE,CLOD,WIDE L.H. 36"/38" 5140/5640 NARROW NOSE 210068 BLADE,CLOD,NARROW R.H. 5140/5640 210069 BLADE,CLOD,NARROW L.H. 5140/5640 171722 ARM,NOSE,RLR,DOUBLE,PRIM,4CHN CLOD BLD 1...
  • Page 46 DIGGER NOSE ROLLER AND WEAR PLATE ASSEMBLIES FRONT VIEW RIGHT SIDE LEFT SIDE NOTE: #8 #8 is used with 2 chains in digger nose. #8-A is used when 4 chains are used in digger nose NOTE: #7 Nose rollers may require a spacer or spacers to make the proper fit of chain to digger nose.
  • Page 47 DIGGER NOSE ROLLER AND WEAR PLATE ASSEMBLIES ITEM # PART # DESCRIPTION 171353 NOSE,LIFT,CHAIN,HOOK PLATE 1/2” x 4” x 6.92” 181586 BUSHING,.64” BORE x .56” LONG x 1”OD NOSE LIFT 351330 CHN,LINK,3/8”,GR80,ALLOY 530660 (36”) (32 LINKS) 351329 LINK,COUPLING,3/8” ALLOY,CHAIN,G-10-8 171352 NOSE,LIFT,PLATE 1/2”...
  • Page 48 2-CHAIN DIGGER NOSE ROLLER ASSEMBLY 3&4 1&2 3&4 1&2...
  • Page 49 DIGGER NOSE ROLLER ASSEMBLIES ITEM # PART # DESCRIPTION 351313 RLR,BLTD,CHN,5/8" x 5"TIECORD AGPARTS#821T 351310 STANDOFF,RLR,BLTD,CHN,5/8" x 3-5/8" #410 351314 RLR,BLTD,CHN,5/8" x 4"TIECORD AGPARTS#813T 351309 STANDOFF,RLR,BLTD,CHN,5/8" x 1-1/4" #750 351316 RLR,BLTD,CHN,5/8" x 3-1/2" RUBBER TEROG 4/18/2002...
  • Page 50 2-CHAIN DIGGER NOSE CARRY BACK SHAFT ASSEMBLY NOTE: NOT USE AFTER 2000...
  • Page 51 2-CHAIN DIGGER NOSE CARRY BACK SHAFT ASSEMBLY (1999) ITEM # PART # DESCRIPTION 231117 HOUSING,BRNG,4HOLE,85MM,FLANGETTE PLATED 231114 BRNG,INSERT,1-3/4",ECC,LOCK/SPHR TRI PLY 821412 SHFT,SK,1-3/4” x 68-1/2” (4) 3/8” KEY 502331 COLLAR,SHAFT,SET,SCREW,1-3/4” 951202 WHL,6” x 2.5” x 1-3/4” BORE 3/8” KEYWAY 4/18/2002...
  • Page 52 4-CHAIN DIGGER NOSE ROLLER ASSEMBLY 1&2 3&4 1&2 3&4 3&4 3&4 1&2...
  • Page 53 4-CHAIN DIGGER NOSE ROLLER ASSEMBLY ITEM # PART # DESCRIPTION 351313 RLR,BLTD,CHN,5/8" x 5"TIECORD AGPARTS#821T 351310 STANDOFF,RLR,BLTD,CHN,5/8" x 3-5/8" #410 351314 RLR,BLTD,CHN,5/8" x 4"TIECORD AGPARTS#813T 351309 STANDOFF,RLR,BLTD,CHN,5/8" x 1-1/4" #750 171230 QUARTER,BOARD,FILLER,DIGGER NOSE 351316 RLR,BLTD,CHN,5/8" x 3-1/2" RUBBER TEROG 4/18/2002...
  • Page 54 EURO NOSE BLADE ASSEMBLY RIGHT HAND LEFT HAND...
  • Page 55 EURO NOSE BLADE ASSEMBLY ITEM # PART # DESCRIPTION 131572 FRAME,MOUNT RH EURO NOSE BLADE 36/38" 131575 FRAME,MOUNT LH EURO NOSE BLADE 32/34" 131571 FRAME,MOUNT LH EURO NOSE BLADE 36/38" 131576 FRAME,MOUNT RH EURO NOSE BLADE 32/34" 210080 BLADE,RH OUTER EURO NOSE 210072 BLADE,EURO NOSE 210078...
  • Page 56 EURO NOSE 2-CHAIN ASSEMBLY 1&7 1&7 2&8 4&9 Left Side 5&9 1&7 2&8 Quarter Board 1&7 4&9 Center Board...
  • Page 57 EURO NOSE 2-CHAIN ROLER ASSEMBLY ITEM # PART # DESCRIPTION 351313 RLR,BLTD,CHN,5/8"x5" RUBBER 821R 351314 RLR,BLTD,CHN,5/8"x4" RUBBER #813R 351316 RLR,BLTD,CHN,5/8"x3-1/2" RUBBER TEROG 351315 RLR,BLTD,CHN,5/8"x3-15/16"STEEL TEROG 351702 RLR,BLTD,CHN,5/8"x3-9/32" STEEL TEROG E00139 WEAR,PLATE SIDE LOWER EURO NOSE SS 351310 STANDOFF,RLR,BLTD,CHN,5/8"x3-5/8" #410 351309 STANDOFF,RLR,BLTD,CHN,5/8"x1-1/4"...
  • Page 58 EURO NOSE4-CHAIN ROLLER ASSEMBLY 1&6 1&6 2&7 4&8 Left Side 4&8 1&6 2&7 Quarter Board 1&6 4&8 Center Board...
  • Page 59 EURO NOSE 4-CHAIN ROLER ASSEMBLY ITEM # PART # DESCRIPTION 351313 RLR,BLTD,CHN,5/8"x5" RUBBER 821R 351314 RLR,BLTD,CHN,5/8"x4" RUBBER #813R 351316 RLR,BLTD,CHN,5/8"x3-1/2" RUBBER TEROG 351315 RLR,BLTD,CHN,5/8"x3-15/16"STEEL TEROG E00139 WEAR,PLATE SIDE LOWER EURO NOSE SS 351310 STANDOFF,RLR,BLTD,CHN,5/8"x3-5/8" #410 351309 STANDOFF,RLR,BLTD,CHN,5/8"x1-1/4" #750 REFER TO SECTION E-2 PAGE 36 ITEM # 9 171757 FILLER,POINT EURO 171758...
  • Page 60 DIGGER NOSE BELTED CHAIN DRIVE ASSEMBLY 4&5 4&5...
  • Page 61 DIGGER NOSE BELTED CHAIN DRIVE ASSEMBLY ITEM # PART # DESCRIPTION 1-42-10 321574 SPRCKT,CAST,10T 42MM 2" BORE 1/2" KEYWAY 1-45-10 321568 SPRCKT,CAST,10T 45MM 2" BORE W/1/2" KEYWAY 1-50-8 321577 SPRCKT,CAST,8T 50MM 2" BORE 1/2" KEYWAY 1-56-8 321585 SPRCKT,CAST,8T 56MM 2" BORE 1/2" KEYWAY NOTE: QTY for a 4 (four) chain digger is 8 (eight), QTY for a 2 (two) chain is 6 (six).
  • Page 63 W-10 DIGGER NOSE MECHANICAL SHAKER ASSEMBLY ITEM # PART # DESCRIPTION 171232 SHAKER,WELDMENT,MECHANICAL,UNIVERSAL 321588 SHAKER,TRI,UNIVERSAL 5/8" BORE W/2BRNG 601382 CYLNDR,TIE,ROD,2" x 8" ASAE 20-1/4" 601460 PIN,CLEVIS,1" x 3-1/2"TIE,ROD,CYLNDR W/HP 601333 CPLG,HYD,90DEG,2501-6-4 (6MJ-4MP) 601034 HOSE,ASSEM,3/8" x 108"(9 FT) 6FJS-6FJS 3000PSI 2 601035 HOSE,ASSEM,3/8"...
  • Page 65 W-11 DIGGER NOSE HYDRAULIC RUBBER ROLLER SHAKER ASSEMBLY (OPTION) ITEM # PART # DESCRIPTION COMPLETE ASSEMBLIES 131407 ASSY,HYDRAULIC,SHAKER,WIDE 5140/5640 131408 ASSY,HYDRAULIC,SHAKER,NARROW 5140/5640 171234 SHAKER,WELDMENT,HYDRAULIC,WIDE NOSE 171233 SHAKER,WELDMENT,HYDRAULIC,NARROW NOSE 901132 ROD,ALL,THREAD,1/2” PLATED x 10 FT (9-1/2” LG) 571163 YOKE,END,ADJUSTABLE,1/2”-13UNC x 1/2” PIN 821474 SHFT,QT,1-3/4”...
  • Page 67 W-12 PTO, DRIVE LINE, MAIN GEARBOX & TOW HITCH ASSEMBLIES ITEM # PART # DESCRIPTION 571164 PTO,SIZE,6,1-3/4” x 20,SPLINE,TWIST LOCK 571165 PTO,SIZE,6,1-3/8” x 21,SPLINE,TWIST LOCK 571187 YOKE,TRACTOR,SIZE 6,1-3/4” x 20 SPLINE TO8 571173 YOKE,TRACTOR,SIZE 6,1-3/8” x 21 SPLINE TO8 571156 YOKE,U-JOINT,1-3/8”...
  • Page 69 W-12 PTO, DRIVE LINE, MAIN GEARBOX & TOW HITCH ASSEMBLIES ITEM # PART # DESCRIPTION 501713 NUT,LOCK,HEX,1”-8 UNC NYLON INSERT 951212 JACK,HITCH,WELDMENT 5600 16-A 571184 PIN,KEEPER,JACK HANDLE 5/16” x 2” 171455 PIN,CYLNDR, THIRD COULTER 5100/5600 501220 HAIRPIN,COTTER,3/16” x 3-3/4” 171274 HANGER,HOSE,WINDROWER,HITCH WITH 171343...
  • Page 71 W-13 PRIMARY CHAIN, SECONDARY CHAIN, AND VINE CHAIN DRIVE ASSEMBLIES ITEM # PART # DESCRIPTION 881184 SLIPCLUTCH,ASSY,80P48T x 2" BORE 8 BOLT (REFER TO SECTION W-17, PAGE #47) 351815 ASSY,#80R RLR CHN x89" PRIM 5100 351367 LINK,CHN,RLR,MASTER,80 PITCH *HEAVY DUTY 881166 SPRCKT,H80BS13 x 1-3/8"...
  • Page 72 W-14 SPROCKETS AND BEARING FOR PRIMARY CHAIN, SECONDARY CHAIN, AND VINE CHAIN DRIVE ASSEMBLIES 4 BEHIND SLIP CLUTCH 4 BACK SPROCKET ITEM # 9 FRONT SPROCKET BEHIND SLIP CLUTCH...
  • Page 73 W-14 SPROCKET AND CHAIN FOR PRIMARY CHAIN, SECONDARY CHAIN, AND VINE CHAIN DRIVE ASSEMBLIES ITEM # PART # DESCRIPTION 231121 BRNG,PB,1-3/8",ECC LOCK "R"SEAL RAK WIDE 881166 SPRCKT,H80BS13 x 1-3/8" BORE 5/16" KEYWAY 881168 SPRCKT,H80BS14 x 1-3/8" BORE 5/16" KEYWAY 881173 SPRCKT,H80BS16 x 2"...
  • Page 74 W-15 SPROCKETS AND BEARINGS, ON DISCHARGE SIDE OF WINDROWER, FOR PRIMARY CHAIN, SECONDARY CHAIN, AND VINE CHAIN DRIVE ASSEMBLIES 3 BACK SPROCKET 2 BEARING 4 FRONT SPROCKET BEHIND SLIP CLUTCH BEHIND BEHIND SLIP CLUTCH SLIP CLUTCH...
  • Page 75 W-15 SPROCKET AND CHAIN, ON DISCHARGE SIDE OF WINDROWER, FOR PRIMARY CHAIN, SECONDARY CHAIN, AND VINE CHAIN DRIVE ASSEMBLIES ITEM # PART # DESCRIPTION 881173 SPRCKT,H80BS16 x 2" BORE 1/2" KEYWAY 231121 BRNG,PB,1-3/8",ECC LOCK "R" SEAL RAK WIDE 881166 SPRCKT,H80BS13 x 1-3/8" BORE 5/16" KEYWAY 881168 SPRCKT,H80BS14 x 1-3/8"...
  • Page 76 W-16 SECONDARY CHAIN DRIVE MOUNTING BRACKETS ASSEMBLIES 3&4...
  • Page 77 W-16 SECONDARY CHAIN DRIVE MOUNTING BRACKETS ASSEMBLIES ITEM # PART # DESCRIPTION 171253 MOUNT,PLATE,BEARING,SECONDARY CHAIN DRIVE 231120 BRNG,4BOLT,FLNG,TCJ 2",ECC LOCK TRI PLY 351812 ASSY,#80R RLR CHN x129" 5600/5100 351367 LINK,CHN,RLR,MASTER,80 PITCH *HEAVY DUTY 881185 SPRCKT,H80BS23 x 2" BORE 1/2" KEYWAY 231115 BRNG,INSERT,2”,ECC,LOCK/SPHR TRI PLY SEAL 171371...
  • Page 78 W-17 VINE CHAIN IDLER MOUNT & 80P48T SLIPCLUTCH ASSEMBLY ITEM #7...
  • Page 79 W-17 VINE CHAIN IDLER MOUNT & 80P48T SLIPCLUTCH ASSEMBLY ITEM # PART # DESCRIPTION 881140 IDLER,80,PITCH,5/8" BORE 12 TOOTH #704 171237 MOUNT,PLATE,IDLER,VINE CHAIN DRIVE 171239 SPACER,IDLER,VINE CHAIN DRIVE 171236 MOUNT,CHANNEL,IDLER,VINE CHAIN DRIVE 171235 MOUNT,BAR,IDLER,VINE CHAIN DRIVE 171238 MOUNT,TUBE,IDLER,VINE CHAIN DRIVE 881184 SLIPCLUTCH,ASSY,80P48T x 2”...
  • Page 80 W-18 SECONDARY CHAIN DRIVE SHAFT ASSEMBLY RIGHT QUARTER BOARD DRIVE RIGHT SIDE DRIVE RIGHT CENTER DRIVE LEFT CENTER DRIVE LEFT SIDE DRIVE LEFT QUARTER BOARD DRIVE...
  • Page 81 W-18 SECONDARY CHAIN DRIVE SHAFT ASSEMBLY ITEM # PART # DESCRIPTION 1-42-12 321573 SPRCKT,CAST,12T 42MM 2"BORE 1/2" KEYWAY 1-45-12 321576 SPRCKT,CAST,12T 45MM 2"BORE 1/2" KEYWAY 1-50-10 321570 SPRCKT,CAST,10T 50MM 2"BORE 1/2" KEYWAY 1-56-10 321584 SPRCKT,CAST,10T 56MM 2"BORE 1/2" KEYWAY NOTE: For belted chain options refer to section W-0, Pages #24,25. 821400 SHFT,QK,2"...
  • Page 82 W-19 SECONDARY CHAIN ROLLER SIDES ASSEMBLIES LEFT SIDE 5&6 2&7 3&11 RIGHT SIDE 5&6 3&11 2&8...
  • Page 83 W-19 SECONDARY CHAIN ROLLER SIDES ASSEMBLIES ITEM # PART # DESCRIPTION 171357 CHEATER,BOARD,RH,12” x 69-3/8” 5140 351306 RLR,BLTD,CHN,5/8” x 5” FLNG SMOOTH TEROG 351311 RLR,BLTD,CHN,5/8” x 5” FLNG AGPARTS#200 351316 RLR,BLTD,CHN,5/8" x 3-1/2" RUBBER TEROG 351309 STANDOFF,RLR,BLTD,CHN,5/8" x 1-1/4" #750 351314 RLR,BLTD,CHN,5/8"...
  • Page 84 W-20 SECONDARY CHAIN ROLLER ASSEMBLIES, CENTER & QUARTER BOARDS 4&5 LEFT SIDE 4&5 1&2 9&10 4&5 RIGHT SIDE 1&3 4&5 9&10 QUARTER BOARD LEFT QUARTER BOARD RIGHT 4&5 4&5...
  • Page 85 W-20 SECONDARY CHAIN ROLLER ASSEMBLIES, CENTER & QUARTER BOARDS ITEM # PART # DESCRIPTION 351306 RLR,BLTD,CHN,5/8” x 5” FLNG SMOOTH TEROG 351307 SCRAPER,LH,BLTD,CHN,RLR 3-1/2” STR BLADE 351308 SCRAPER,RH,BLTD,CHN,RLR 3-1/2” STR BLADE 351309 STANDOFF,RLR,BLTD,CHN,5/8" x 1-1/4" #750 351314 RLR,BLTD,CHN,5/8" x 4"TIECORD AGPARTS#813T 351316 RLR,BLTD,CHN,5/8"...
  • Page 86 W-21 VINE CHAIN SHAFT ASSEMBLY CENTER BRING...
  • Page 87 W-21 VINE CHAIN SHAFT ASSEMBLY ITEM # PART # DESCRIPTION 231120 BRNG,4BOLT,FLNG,TCJ 2",ECC LOCK TRI PLY 171254 SHIM,BEARING,SEC,DRV,1/4” x 6-3/8” SQ 5100 821401 SHFT,QK,2” x 155” (6.625-12.5-6-7) 1/2” KEY 321566 SPRCKT,STEEL,10T 180MM PITCH 2" BORE 321565 SPRCKT,STEEL,12T 150MM PITCH 2" BORE NOTE: For belted chain options refer to section W-0, Page #26.
  • Page 88 W-22 REAR CROSS LETDOWN ASSEMBLY (STANDARD) 3&4 3&4...
  • Page 89 W-22 REAR CROSS LETDOWN ASSEMBLY (STANDARD) ITEM # PART # DESCRIPTION 171250 LETDOWN,STANDARD,DISCHARGE,REAR CROSS,BARE 261007 BELT,FLAT,36" 1/32" x 1/32" 150# (30” LONG) 351826 ASSY,#60 RLR CHN x63-3/4" R-CROSS 5100 351010 LINK,CHN,RLR,MASTER,60 PITCH 881197 SPRCKT,H60BS20 x 1-3/8" BORE 5/16" KEYWAY 231121 BRNG,PB,1-3/8”,ECC LOCK “R”...
  • Page 90 W-23 REAR CROSS LETDOWN ASSEMBLY (EXTENDED) 3&4 3&4 3&4 8&9...
  • Page 91 351309 STANDOFF,RLR,BLTDCHN,5/8” x 1-1/4” #750 351314 RLR,BLTD,CHN,5/8”x 4” TIECORD AGPARTS#813T 981464 UHMW,1/8" x 12" x 60" EXTD DIS. 5100 171336 LETDOWN,EXT,DSCHRG,LH,ADJ,END 5140 BARE 171337 LETDOWN,EXT,DSCHRG,RH,ADJ,END 5140 BARE 351005 CHN,RLR,60 PITCH (130” LONG) 351010 LINK,CHN,RLR,MASTER,60 PITCH NOTE: All other items are the same as those on the standard letdown, refer to section W-22, Pages #49&50.
  • Page 92 W-24 REAR CROSS & BOLT ON END ASSEMBLY 4&5 4&4 4&5 DISCHARGE 4&5 4&5 4&5 BOLT ON END 6&12 6&12...
  • Page 93 W-24 REAR CROSS & BOLT ON END ASSEMBLY ITEM # PART # DESCRIPTION 981305 STRIP,UHMW,LH,REAR CROSS 5140 981304 STRIP,UHMW,RH,REAR CROSS 5140 351638 RLR,BLTD,CHN,5/8” x 8” FLNG 351309 STANDOFF,RLR,BLTD,CHN,5/8” x 1-1/4” #750 351314 RLR,BLTD,CHN,5/8”x 4” TIECORD AGPARTS#813T 351311 RLR,BLTD,CHN,5/8” x 5” FLNG AGPARTS#200 351316 RLR,BLTD,CHN,5/8”...
  • Page 94 W-25 STEERABLE AXLE ASSEMBLY 3&4 6&7 ITEM#13 13-A 13-D 13-C 13-B 13-B ITEM #17 F,G&H D&J F,G&H C&D...
  • Page 95 TIRE,19L x 16.1 IMPLEMENT RIB 171256 TOW,BAR,STEERING 501355 BOLT,HEX,HD,1”-8 UNC x 7” GR 5 501713 NUT,LOCK,HEX,1”-8 UNC NYLON INSERT 171355 AXLE,TELESCOPING,3” x 5” x47” 5140 WIND 171255 MOUNT,PLT,SPINDLE,BLOCK,STEERING,WIND 502403 CAP,SCREW,HD,1"-8UNC x 11" *GR 8* BLACK 501910 WASHER,FLAT,1” USS ZINC PLT 951290...
  • Page 96 W-25 STEERABLE AXLE ASSEMBLY 3&4 6&7 ITEM#13 13-A 13-D 13-C 13-B 13-B ITEM #17 F,G&H D&J F,G&H C&D...
  • Page 97 W-25 STEERABLE AXLE ASSEMBLY ITEM # PART # DESCRIPTION 951199 NUT,SLOTTED,HEX,1-1/4”-12NF JAM 502327 WASHER,AXLE,1.18” ID x 1.50 x .180” THICK 171261 TIEROD,ASSEMBLY,STEERING,WINDROWER 17-A 171431 TIEROD,ADJ,LH,STEERING,WINDROWER 17-B 502316 NUT,ACME,1-1/8”-5,LH,THREAD HEAVY HEX CS 17-C 171341 TIEROD,ADJ,END,LH,SLIDE,TUBE,STRNG 5100 17-D 171338 SPACER,TIEROD,ADJUSTMENT,.640” ID x 2-1/2” L 17-E 171339 STIFFENER,BAR,TIEROD,STRNG,1/4”...
  • Page 98 W-26 COULTER HUB ASSEMBLY & BLADE OPTIONS ITEM #1 J&K...
  • Page 99 W-26 COULTER HUB ASSEMBLY & BLADE OPTIONS ITEM # PART # DESCRIPTION 171615 ASSEMBLY,COULTER,HUB/SPINDLE 5100/5600 571079 CAP,DUST,WHL,DRV,GRBX FOR #710 (3.255") 501085 BOLT,HEX,HD,1/2"-13UNC x 1" GR 5 502292 PIN,ROLL,1/4" x 1" 502237 WASHER,LOCK,STAR,1/2" INTERNAL/EXTERNAL 951187 WASHER,LOCK,PIN,.546” ID x 2.38” OD. x 1/4” THICK 951186 SHIM,KIT,2”...
  • Page 100 W-27-A WIDE COULTER ASSEMBLYS ITEM#2 ITEM #1 9&10 9&10 7&8 7&8 11THRU20 11THRU20 18 19 ITEM #27...
  • Page 101 W-27-A WIDE COULTER ASSEMBLYS ITEM # PART # DESCRIPTION 171613 COULTER,ASSY,LH,WIDE W/O SPDL 5100/5600 171263 ARM,SIDE,COULTER,LH 171262 ARM,SWING,COULTER LEFT HAND WIDE BARE 171614 COULTER,ASSY,LH,WIDE W/O SPDL 5100/5600 171264 ARM,SIDE,COULTER,RH WIDE BARE 171248 ARM,SWING,COULTER,RH WIDE BARE NOTE:ALL OTHER PARTS ARE THE SAME QTY REFLECTS BOLTH RIGHT AND LEFT SIDES 171265 ROD,SPRING,TENSION,COULTER...
  • Page 102 W-27-B NARROW COULTER ASSEMBLYS ITEM#1 ITEM#2 7&8 9&10 7&8 9&10 11TRU20 11TRU20 18 19 ITEM #27...
  • Page 103 W-27-B NARROW COULTER ASSEMBLY ITEM # PART # DESCRIPTION 171861 COULTER,ASSY,LH TRLNG W/O SPNDL NRRW 171766 ARM,SIDE,COULTER LH BARE NRRW NOSE 171768 ARM,SWING,COULTER LH BARE NRRW NOSE 171860 COULTER,ASSY,RH TRLNG W/O SPNDL NRRW 171765 ARM,SIDE,COULTER RH BARE NRRW NOSE 171767 ARM,SWING,COUTER RH BARE NRRW NOSE NOTE:FOR ITEMS 3 TRU 27 REFER BACK TO PAGE 56...
  • Page 104 W-28 STEERING CONTROL GAGE ASSEMBLY...
  • Page 105 W-28 STEERING CONTROL GAGE ASSEMBLY ITEM # PART # DESCRIPTION 601635 CABLE,84",INDICATOR,PLAIN END NO HANDLE 171281 MOUNT,CABLE,STEERING,INDICATOR,WHEEL 601695 CLEVIS,CABLE,END,FELSTED 49003-02 171282 MOUNT,CABLE,STEERING,INDICATOR,FRAME, REAR 171283 ARM,STEERING,INDICATOR,ROD 171280 ROD,STEERING,INDICATOR 1/2” x 280” 171279 INDICATOR,ARM,STEERING 300098 LABEL,STEERING,INDICATOR (RIGHT OR LEFT) 171278 INDICATOR,BOX,RH,DEPTH/STEERING,BARE 171344 INDICATOR,BOX,LH,DEPTH/STEERING,BARE 4/18/2002...
  • Page 106 W-29 DIGGER NOSE DEPTH GAGE ASSEMBLY...
  • Page 107 W-29 DIGGER NOSE DEPTH GAGE ASSEMBLY ITEM # PART # DESCRIPTION 601695 CLEVIS,CABLE,END,FELSTED 49003-02 601635 CABLE,84",INDICATOR,PLAIN END NO HANDLE 171276 HOSE,GUIDE/SENSOR,MOUNT 171345 DEPTH,INDICATOR,CABLE BRACKET 171277 INDICATOR,ARM,DEPTH 171278 INDICATOR,BOX,RH,DEPTH/STEERING,BARE 171344 INDICATOR,BOX,LH,DEPTH/STEERING,BARE 171277 INDICATOR,ARM,STEERING 300099 LABEL,DEPTH,INDICATOR (1 THRU 10) 171644 BRACKET,NOSE,INDICATOR 5600 4/18/2002...
  • Page 108 W-30 THIRD COULTER ASSEMBLY (OPTION)
  • Page 109 MOUNT,BRACKET,3 ,COULTER,BACK 171266 ROD,SPRING,TENSION,THIRD COULTER 981266 SPRING,12" x 2",COMPRESSION .313"DIA WIRE 501713 NUT,LOCK,HEX,1"-8UNC NYLON INSERT 171829 ARM,LIFT,3 ,CLTR, 5140 171792 ARM,LIFT,3 ,CLTR,EXD 5140 171828 PLATE,GUIDE,THIRD,COULTER 5100 601386 CYLNDR,TIE,ROD,3” x 18” SAE 28-1/4” 171439 BRACKET,3 ,COULTER,MOVE 3/8” x 3” x 31-1/2”...
  • Page 110 W-31 GAGE WHEEL ASSEMBLY (OPTION)
  • Page 111 W-31 GAGE WHEEL ASSEMBLY (OPTION) ITEM # PART # DESCRIPTION 171307 FRAME,GAGE,WHEEL,NARROW DIGGER NOSE 171269 FRAME,GAGE,WHEEL,WIDE DIGGER NOSE 951194 HANDLE,”T” GAGE,WHEEL 951193 JACK,ASSEMBLY,GAGE,WHEEL 951083 TIRE,11L15 12 PLY TUBLESS 951147 RIM,15" x 8" 6 HOLE 5.5" BC 201048 AXLE,6,HOLE,2-1/4” x 12-3/4” GAGE WHEEL 951038 HUB,ONLY,6 HOLE 951040...
  • Page 112 W-32 SNAPPER ROLLER ASSEMBLY (OPTION) 3,4,5,6&7 11-A 11-B 11-C 11-B 11-B 11-C ITEM #10 10-A 10-C 10-B 10-B...
  • Page 113 W-32 SNAPPER ROLLER ASSEMBLY (OPTION) ITEM # PART # DESCRIPTION 171457 FRAME,SNAPPER,ROLLER 5140 171461 ARM,SNAPPER,ROLLER 5140 171476 ADJUSTOR,SNAPPER,ROLLER,CHAIN 5100/5600 501906 WASHER,FLAT,1/2” USS ZINC PLT 501812 NUT,HEX,1/2”-13UNC 981242 SPRING,ELIM,2-3/4”L x 1.250”D .175 8 COIL 501284 NUT,LOCK,HEX,3/8”-16UNC NYLON INSERT 171477 AXLE,SNAPPER,ROLLER,LH 5100/5600...
  • Page 114 W-33 SUPPORT WHEEL ASSEMBLY (OFFSET TOW HITCH ONLY) ITEM #1 1-F,G&H 1-F,G&H...
  • Page 115 HINGE,SUPPORT,WHEEL,COMPLETE 5640 181604 PIN,SUPPORT,WHEEL,HINGE 1” x 12” LONG 501910 WASHER,FLAT,1” USS ZINC PLT 501220 HAIRPIN,COTTER,3/16” x 3-3/4” 171811 MOUNT,SUPPORT,WHEEL,HINGE,INNER 5140 601583 CYLNDR,TIE,ROD,3” x 8” ASAE 20-1/4” 951177 TIRE,19L x 16.1” IMPLEMENT RIB 951207 HUB,ONLY,8 HOLE,1-3/4” BORE CRZY WHL 951198 NUT,LUG,WHEEL,5/8”-18UNF (8 HOLE HUB) 951197 STUB,BOLT,5/8”-18UNF (8 HOLE HUB)P151407...
  • Page 116 HYDRAULIC MANIFOLD DIAGRAM...
  • Page 117 HYDRAULIC MANIFOLD DIAGRAM Diagram Shows 3 & Manual Shaker Option Cylinder Qty. 7A-B, 3rd Coulter 3 x 18 2 (OPTION) 6A-B, Shaker 2 x 8 2 (OPTION) 5A-B, Discharge 2 x 10 4A-B, Steering 3 x 8 3A-B, Left Coulter 2 x 8 2A-B, Right Coulter 2 x 8...
  • Page 118 HYDRAULIC MANIFOLD ASSEMBLY...
  • Page 119 HYDRAULIC CONTROL ASSEMBLY ITEM # PART # DESCRIPTION 601651 VALVE,SOLENOID,12VDC 4WAY DIRECTIONAL 5,6OR7 601620 COVER,PLATE FOR D03 HYD MANIFOLD ADO3CPP 601639 MANIFOLD,2,STATION,4"x4"x5-1/2"NO VALVES (IF NEEDED) 601648 PLUG,P.O.,CHECK,VALVE,FOR CP450-1 601647 CARTRIDGE,P.O.,CHECK,VALVE CP450 10,12 OR 14 601640 MANIFOLD,ASSEMBLY,6,STATION,WITH VALVES 601649 CARTRIDGE,PRESSURE,REDUCING,VALVE CP230 601331 CPLG,HYD,45DEG,6802-6-6 (6MJ-6MB) 731123...
  • Page 120 SHAKER HYDRAULIC CYLINDER ASSEMBLY RIGHT SIDE LEFT SIDE...
  • Page 121 SHAKER HYDRAULIC CYLINDER ASSEMBLY ITEM # PART # DESCRIPTION 601737 HOSE,ASSEM,3/8"x6” (0’-6”) 6FTS-6FJS 6M3K 601322 CPLG,HYD,TEE,2603-6-6-6 (6MJ-6MJ-6MJ) 601027 HOSE,ASSEM,3/8"x84"(7FT) 6FJS-6FJS 6M3K 601035 HOSE,ASSEM,3/8" x 120”(10 FT) 6FJS-6FJS 3000PSI 601034 HOSE,ASSEM,3/8" x 108”(9 FT) 6FJS-6FJS 3000PSI 601382 CYLNDR,TIE,ROD,2" x 8" ASAE 20-1/4" 601475 CPLG,HYD,90DEG,2501-6-8 (6MJ-8MP) 601460...
  • Page 122 DIGGER NOSE HYDRAULIC CYLINDER ASSEMBLY RIGHT SIDE LEFT SIDE...
  • Page 123 DIGGER NOSE HYDRAULIC CYLINDER ASSEMBLY ITEM # PART # DESCRIPTION 601831 HOSE,ASSEM,3/8"x396"(33FT)6FJS-6FJS 6M3K 601793 CYLNDR,TIE,ROD,3-1/4"x8"x20-1/4" REPHSNG 601353 HOSE,ASSEM,3/8"x 66"(5’-6”) 8MP-6MBS 3000PSI 601736 HOSE,ASSEM,3/8"x 90”(7’-6”) 6FJS-6FJS 3000PSI 601034 HOSE,ASSEM,3/8" x 108”(9 FT) 6FJS-6FJS 3000PSI 601035 HOSE,ASSEM,3/8" x 120”(10 FT) 6FJS-6FJS 3000PSI 601792 CYLNDR,TIE,ROD,3"x8"x20-1/4"...
  • Page 124 SIDE COULTER HYDRAULIC CYLINDER ASSEMBLY RIGHT SIDE LEFT SIDE...
  • Page 125 SIDE COULTER HYDRAULIC CYLINDER ASSEMBLY ITEM # PART # DESCRIPTION 601497 HOSE,ASSEM,3/8"x 144”(12 FT) 6FJS-6FJS 3000PSI 601608 HOSE,ASSEM,3/8"x 132”(11 FT) 6FJS-6FJS 3000PSI 601475 CPLG,HYD,90DEG,2501-6-8 (6MJ-8MP) 601382 CYLNDR,TIE,ROD,2" x 8" ASAE 20-1/4" 4/18/2002...
  • Page 126 REAR CROSS HYDRAULIC DRIVE ASSEMBLY FLOW FLOW RIGHT SIDE DISCHARGE...
  • Page 127 REAR CROSS HYDRAULIC DRIVE ASSEMBLY ITEM # PART # DESCRIPTION 191314 MNT,MTR,HYDRAULIC,DRIVE,LETDOWN,WIND 601656 MTR,HYD,10,CU,IN,MG,1”DIA SHORT WOODRUFF 601637 CPLG,HYD,90DEG,6801-8-10 (8MJ-10MB) 601638 CPLG,HYD,90DEG,6801-LL-8-10*8MJ-10MBLONG 601675 HOSE,ASSEM,1/2"x 26" (2’-2”) 8FJS-8FJS 8M3K 601443 CPLG,HYD,90DEG,6801-8-8 (8MJ-8MB) 601758 VALVE,SOLENOID,12VDC 2WAY N.O. 601707 HOSE,ASSEM,1/2"x276"(23FT)8FJS-8FJS 8M3K 601378 VALVE,CHECK,1/2",#CV 4P 05A 601893 CPLG,HYD,STR,6004-08-10 (8MJ-10MORB) 601659...
  • Page 128 STEERING HYDRAULIC CYLINDER ASSEMBLY RIGHT SIDE RIGHT SIDE LEFT SIDE PLUMBED THIS WAY PLUMBED THIS WAY PLUMBED THIS WAY WHEN LEFT HAND WHEN LEFT HAND WHEN RIGHT HAND DISCHARGE DISCHARGE DISCHARGE...
  • Page 129 STEERING HYDRAULIC CYLINDER ASSEMBLY ITEM # PART # DESCRIPTION 601583 CYLNDR,TIE,ROD,3"x 8" ASAE 20-1/4" 601475 CPLG,HYD,90DEG,2501-6-8 (6MJ-8MP) 601477 CPLG,HYD,STR,6400-6-8 (6MJ-8MB) 601706 HOSE,ASSEM,3/8"x 348”(29 FT) 6FJS-6FJS 3000PSI 601705 HOSE,ASSEM,3/8"x 336”(28 FT) 6FJS-6FJS 3000PSI 601032 HOSE,ASSEM,3/8"x 72”(6 FT) 6FJS-6FJS 3000PSI 601027 HOSE,ASSEM,3/8"x 84”(7 FT) 6FJS-6FJS 3000PSI 4/18/2002...
  • Page 130 REAR CROSS DISCHARGE HYDRAULIC CYLINDER ASSEMBLY LEFT SIDE PLUMBED THIS WAY WHEN LEFT HAND DISCHARGE RIGHT SIDE RIGHT SIDE PLUMBED THIS WAY PLUMBED THIS WAY WHEN RIGHT HAND WHEN RIGHT HAND DISCHARGE DISCHARGE...
  • Page 131 CROSS OVER DISCHARGE CYLINDER ASSEMBLY ITEM # PART # DESCRIPTION 601027 HOSE,ASSEM,3/8" x 84”(7 FT) 6FJS-6FJS 3000PSI 601704 HOSE,ASSEM,3/8" x 228”(19 FT) 6FJS-6FJS 3000PSI 601202 CYLNDR,TIE,ROD,2" x 10" SAE 20-1/4" 601577 CPLG,HYD,45DEG,6802-6-8 (6MJ-8MB) 601475 CPLG,HYD,90DEG,2501-6-8 (6MJ-8MP) 601036 HOSE,ASSEM,3/8" x 240”(20 FT) 6FJS-6FJS 3000PSI 601736 HOSE,ASSEM,3/8"...
  • Page 132 THIRD COULTER HYDRAULIC CYLINDER ASSEMBLY (OPTION)
  • Page 133 THIRD COULTER CYLINDER ASSEMBLY (OPTION) ITEM # PART # DESCRIPTION 601735 HOSE,ASSEM,3/8" x 42”(3’-6”) 6FJS-6FJS 3000PSI 601028 HOSE,ASSEM,3/8" x 24”(2 FT) 6FJS-6FJS 3000PSI 601386 CYLNDR,TIE,ROD,3" x 18" SAE 28-1/4" 601338 CPLG,HYD,STR,6400-6-6 (6MJ-6MB) 601504 VALVE,LINE,THROTTLE,ADJUSTABLE SETTING 601380 CPLG,HYD,90DEG,6806-6-4 (6MB-4MP) 601256 CPLG,HYD,STR,6405-8-4 (8MB-4FP) 601577 CPLG,HYD,45DEG,6802-6-8 (6MJ-8MB) 4/18/2002...
  • Page 134 HYDRAULIC ROLLER SHAKER DRIVE ASSEMBLY (OPTION) FLOW FLOW LEFT SIDE RIGHT SIDE FLOW...
  • Page 135 HYDRAULIC ROLLER SHAKER DRIVE ASSEMBLY (OPTION) ITEM # PART # DESCRIPTION 601748 HOSE,ASSEM,1/2” x 240”(20 FT) 8FJS-8FJS 8M3K 601761 HOSE,ASSEM,1/2” x 396”(33 FT) 8FJS-8FJS 8M3K 601749 CPLG,HYD,STR,6400-8-10 (8MJ-10MB) 601655 MTR,HYD,3,CU,IN,MG,1”DIA SHORT WOODRUFF 171456 ARM,TROQUE,HYD DRV 3/8” x 19-3/4” 181593 COUPLING,1-3/4” x 1” x 3-3/4” 1/4” & 3/8” KEY 601659 CPLG,HYD,STR,2403-8-8 (8MJ-8MJ) 601738...
  • Page 136 H-10 HYDRAULIC ROLLER SHAKER ON/OFF ASSEMBLY (OPTION) FLOW FLOW FLOW LEFT SIDE RIGHT SIDE...
  • Page 137 H-10 HYDRAULIC ROLLER SHAKER DRIVE ASSEMBLY WITH NO/OFF SWITCH ITEM # PART # DESCRIPTION 601707 HOSE,ASSEM,1/2” x 276” (23 FT) 8FJS-8FJS) 8M3K 3000PSI 601761 HOSE,ASSEM,1/2” x 396” (33 FT) 8FJS-8FJS 8M3K 3000PSI 601700 HOSE,ASSEM,1/2"x48"(4FT) 8FJS-8FJS 8M3K 601748 HOSE,ASSEM,1/2"x240"(20FT)8FJS-8FJS 8M3K 601655 MTR,HYD,3,CU,IN,MG,1”...
  • Page 138 EW-1 ELECTRICAL CONTROL BOX ASSEMBLY 2 OR 3 SEE NOTE 2: SEE NOTE 1: NOTE 1: When the hydraulic roller shaker option is ordered, this Item #2 well be replaced by Item #3. Another Item #3 well be placed at “SEE NOTE 1:“ when the 3rd coulter option is ordered.
  • Page 139 E.W.-1 ELECTRICAL CONTROL BOX ASSEMBLY ITEM # PART # DESCRIPTION 411059 CONTROL,PANEL,TRACTOR,BASE,UNIT HARV/WIN 402367 ENCL,B-LINE 1065-4XFOSC 402416 SWTCH,JOYSTICK,4 POS,SPRING,HWIM-2222 3 OR4 (SEE NOTE 1) 402415 SWTCH,JOYSTICK,2 POS,SPRING HWIM-2020 0 OR2 (SEE NOTE 1) 601642 CONTROLLER,SPEED,CONTROL,24P01 - - - - - - LABEL,CONTROL BOX 402371 SWTCH,PUSH,BTTM,MOMENTARY AB6Q-M2P-B...
  • Page 140 EW-2 ELECTRICAL BOX ASSEMBLY REFER TO SECTION H-1 HYDRAULIC MANIFOLD ASSEMBLY...
  • Page 141 E.W.-2 ELECTRICAL BOX ASSEMBLY ITEM # PART # DESCRIPTION 411060 PANEL,CONTROL,MACHINE,BASE,UNIT HARV/WIN 402366 ENCL,12W x 10H x 6D A-12106CHQRFG WITH 402365 BACKPLATE,12W x 10H ELEC ENCL A-12P10 401675 STRN,RLF,1/2” .375-.500 PURPLE CG-3750S 12,13 OR 14 401087 CORD,16-3 SO 6 OR 8 (4 FT) 401087 CORD,16-3 SO...
  • Page 142 ELECTRICAL SCHEMATIC 4/18/2002...
  • Page 143 NOTES:...
