Assembly
1

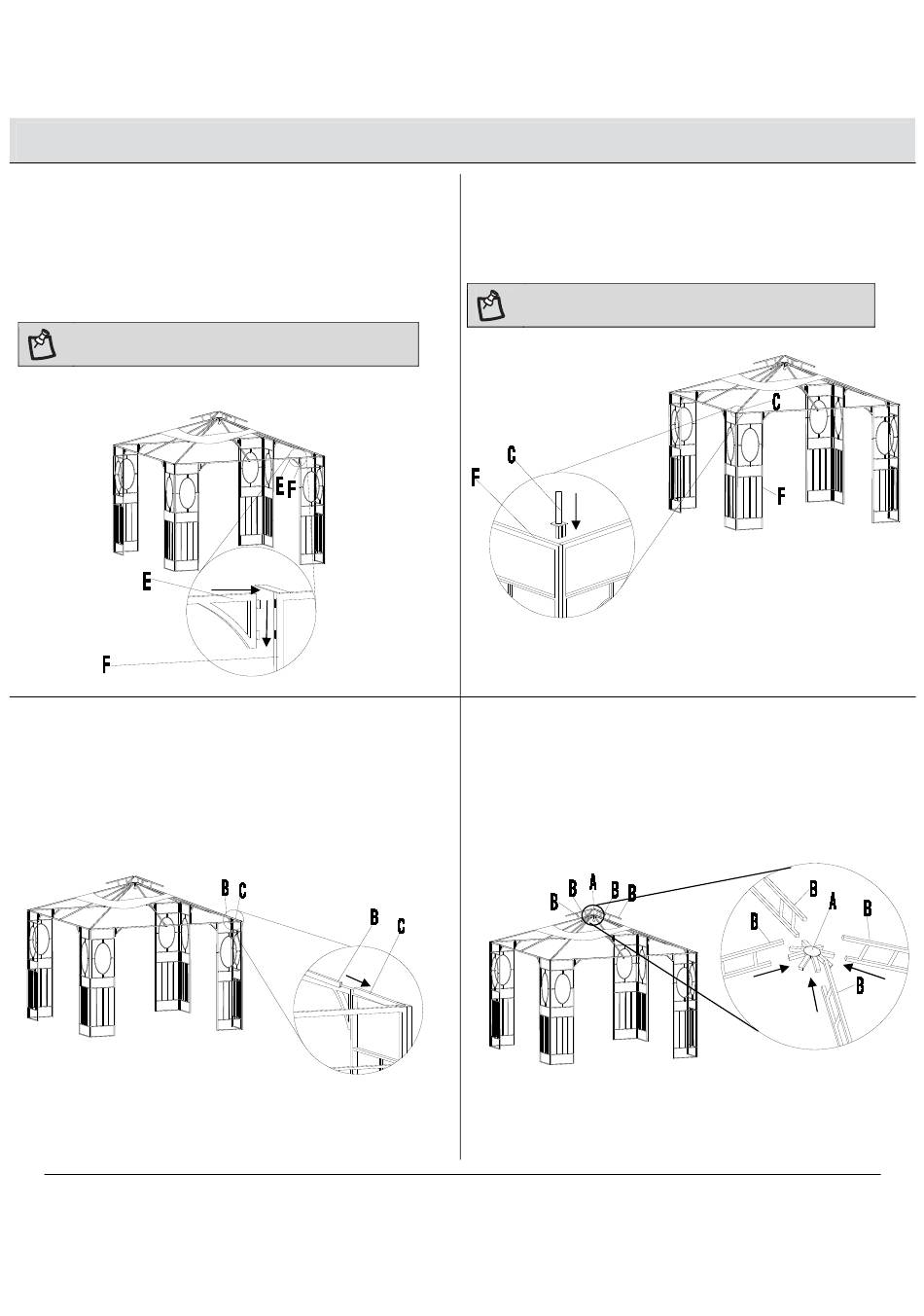

Assembling the beams
□
Unfold the beam 2 (F) and insert the beam 1 (E) to the corner of
the screen. Then secure them by using the top buckle.
NOTE: To avoid destroying the finish, please handle it with
care.
3
Attaching the top beams
□
Insert the top beams (B) into the beam connectors (C).
2
Attaching the beam connectors
□
Insert the beam connectors (C) into the beam 2 (F).
NOTE: To avoid destroying the finish, please handle it with
care
Attaching the top beams to the
4
connector
□
Insert the top end of the top beams (B) into the connect tube of
the top connector (A).
5
Please contact 1-855-HD-HAMPTON for further assistance.
