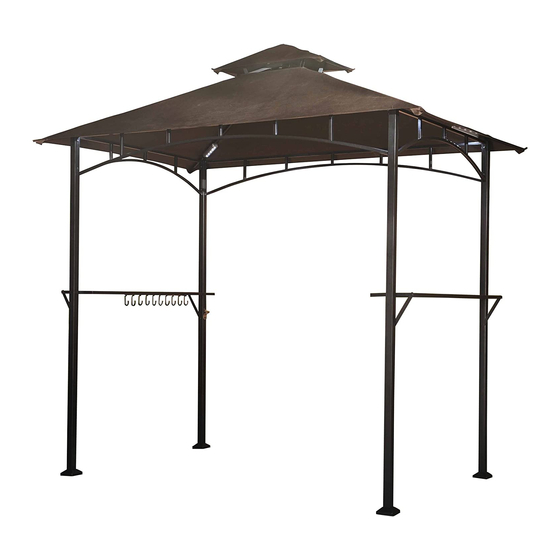

Sunjoy L-GG001PST-F 8'X 5' Soft Top Grill Gazebo
with 4pcs LED
Owner's Manual
IMPORTANT
Thank you very much for choosing Sunjoy Group.
Please take time to read these instructions thoroughly and follow each step carefully for safe and easy
operation. Keep this manual for future reference.
We would like to hear from you with any comments or suggestions. You can call us toll-free at
1-866-578-6569
from 8:00 a.m. EST to 8:00 p.m. PST. You can also send the email to
amazon@sunjoygroup.com
or visit
www.sunjoyonline.com
to get tech. assistance or to place your
replacement part order form.
Advertisement
Table of Contents
Related Manuals for Sunjoy L-GG001PST-F
Summary of Contents for Sunjoy L-GG001PST-F
- Page 1 Sunjoy L-GG001PST-F 8’X 5’ Soft Top Grill Gazebo with 4pcs LED Owner’s Manual IMPORTANT Thank you very much for choosing Sunjoy Group. Please take time to read these instructions thoroughly and follow each step carefully for safe and easy operation. Keep this manual for future reference.
- Page 2 Cautions: 1. Keep all children and pets away from assembly area. Children and pets should be supervised when they are in the area of gazebo construction. 2. When installing and assembling your gazebo, it is recommended that two or more adults are involved. 3.
- Page 3 Parts List Post (1) Post (2) Post (3) Big Beam Big Connector Small Beam Long Screen Short Screen Glass Panel Glass Panel Hook Rack Big Canopy Small Canopy Hook LED Light Hardware Pack 1 16 PCS M6x15 Hex Bolt M6 Washer 16 PCS M6 Wrench...
- Page 4 Fig.1: Lock Big and Short Screen (E&F) onto Post (A1, A2&A3) with Bolt (AA) and Washer (BB). Fig.2: Attach the Big Beam (B) to the Big Connector (C), attach the Hook (H) to the Big Connector (C). Fig.3: Insert the connector of the Big Beam (B) into the intubation tube of Post (A1, A2, A3), then put the Big Canopy (J) on big top, do not fully spread.
- Page 5 Hardware Pack 2 7 PCS M6x15 Hex Bolt M6Washer 7 PCS Φ6X230MM Floor Nail 8 PCS Fig.7: Extend the Big Canopy (J) onto the big top by fixing the canopy at four corners of top. Fig.7-1: Attach Hook Rack (H) to Glass Panel (G2) by Bolt (AA) and Washer (BB). Fig.8: Insert link part of Glass Panel (G1&G2) into “U”...
- Page 6 Care & Maintenance: Our steel components for garden accessories and furniture are treated with rust inhibiting paint that protects it from rusting. However, due to the nature of steel, surface oxidation (rusting) will occur once these protective coatings are scratched. This is not a defect and thus not covered by the warranty. To minimize this condition, we recommend care when assembling &...
