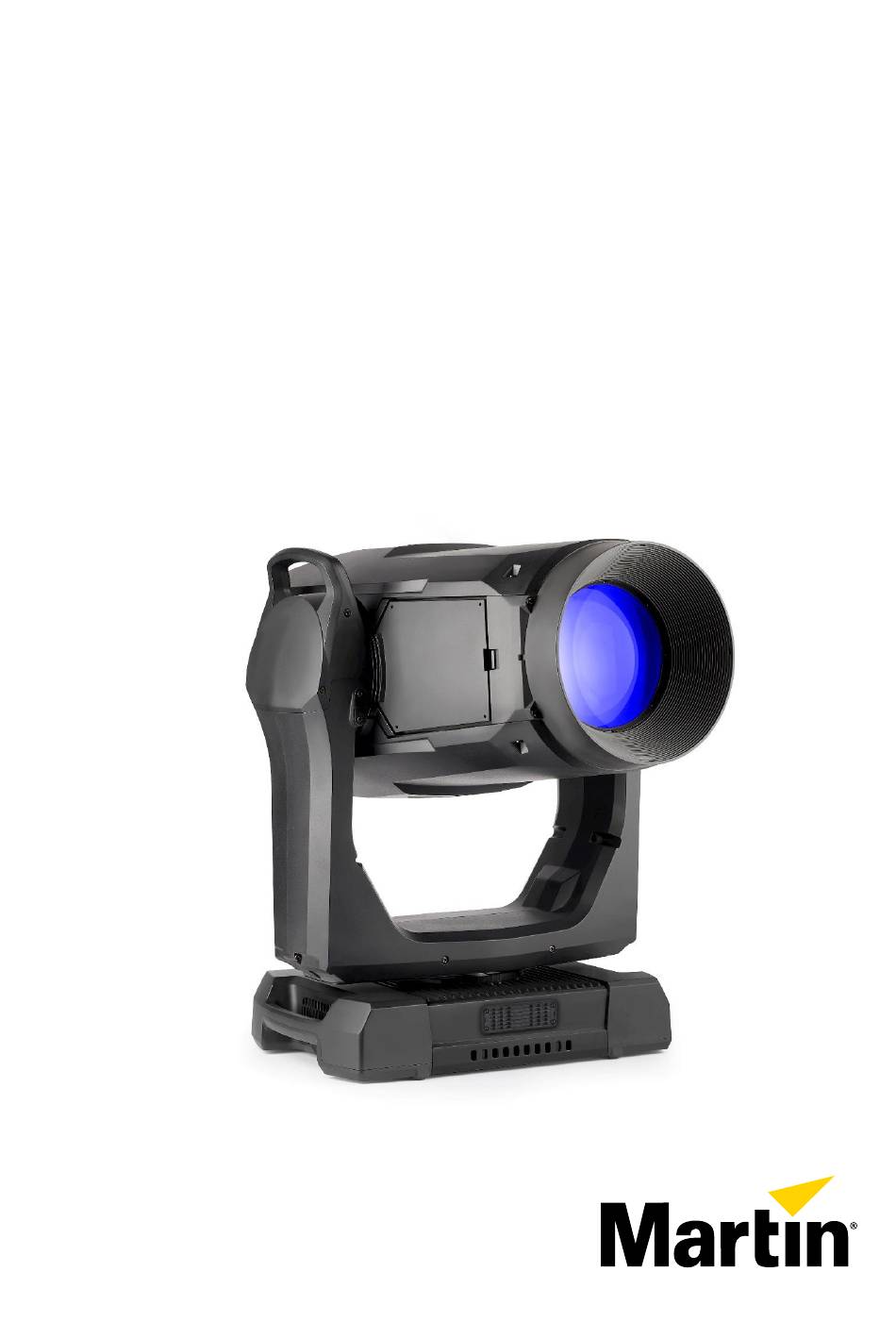

- Page 1 MAC Viper XIP Safety and Installation Manual...
-
Page 2: Dimensions
Martin is a registered trademark of HARMAN PROFESSIONAL DENMARK ApS registered in the United States and/or other countries. -
Page 3: Table Of Contents
Connecting to power ..................16 Data connections ...................... 16 Service and maintenance ..................17 Service mode ....................17 Cleaning ......................17 Cleaning air filters ..................18 Battery replacement ..................19 Lubrication ..................... 20 ® Martin MAC Viper Safety and Installation Manual Rev. A... -
Page 4: Safety Information
Safety and Installation manual or in the fixture’s User Manual must be referred to an authorized Martin service technician. The MAC Viper XIP is for professional use as a stage light only. It is not for household or general lighting applications. Respect all locally applicable laws, codes and regulations when installing, powering, operating or servicing the fixture. - Page 5 The latest versions of this Safety and Installation Manual and the fixture’s User Manual are available for download from the MAC Viper XIP area of the Martin website at www.martin.com. Before you install, operate or service the fixture, check the Martin website and make sure that you have the latest user documentation for the fixture.
- Page 6 5 A when operating within this mains power voltage range. • Do not connect more than three (3) MAC Viper XIP fixtures in total to each other in an interconnected chain when supplying the fixture with mains power from 200 V to 240 V.
- Page 7 Do not attempt to bypass thermostatic switches or fuses. ® Martin MAC Viper Safety and Installation Manual Rev. A...
- Page 8 Do not try to suspend the fixture from only one rigging clamp. Do not use safety cables as the primary means of support. ® Martin MAC Viper XIP Safety and Installation Manual Rev. A...
- Page 9 Do not modify the fixture in any way not described in the fixture’s user documentation. Install only parts and accessories that are supplied by or approved by Martin for the fixture. Refer any service operation not described in this manual to Martin Service or an authorized Martin service partner.
-
Page 10: Introduction
MAC Viper XIP area of the Martin website at www.martin.com. If you have any difficulty locating this document, please contact your Martin supplier for assistance. -
Page 11: Cold Starting
I – Cover for CR123A lithium battery and USB C – DMX data IN (5-pin locking male XLR) port (port can be used with accessory D – DMX data OUT/THRU (5-pin locking female options) XLR) ® Martin MAC Viper Safety and Installation Manual Rev. A... -
Page 12: Physical Installation
Martin in sets of 12 (P/N 50400765). Air filter replacement takes no more than a few seconds. Avoiding damage from other light sources Do not point the light output from other lighting fixtures at the MAC Viper XIP, as powerful light can damage the display. Standing the fixture on a flat surface The fixture can be placed on a hard, fixed, flat horizontal surface provided that there is no risk that it may cause an obstruction or be knocked over. -
Page 13: Mounting The Fixture On A Truss
Do not use one of the fixture’s carrying handles as the attachment point for the safety cable. ® Martin MAC Viper Safety and Installation Manual Rev. A... - Page 14 4. Make sure that the safety cable will hold the fixture if a primary attachment fails. Quarter-turn receptacles in base ® Martin MAC Viper XIP Safety and Installation Manual Rev. A...
-
Page 15: Ac Mains Power
AC mains power input. The cable must meet the requirements listed under “Protection from electric shock” on page 5. Martin can supply suitable input cables with connectors 1.5 m (4.9 ft.) or 5 m (16.4 ft.) long, as well as loose input connectors (see the Martin website at www.martin.com). -
Page 16: Connecting To Power
Data connections See the MAC Viper XIP User Manual available for download from www.martin.com for full details of connecting the fixture to control data. Use shielded twisted-pair Ethernet cable of type S/UTP, SF/UTP, S/STP or SF/STP only for the data link. -
Page 17: Service And Maintenance
The user may also upload firmware (fixture software) to the fixture via the DMX data input port, Ethernet port or USB port using firmware and instructions from Martin. Finally, the user may install custom gobos and optional accessories for the fixture as directed in the fixture’s User Manual (available for download from the Martin website at www.martin.com). -
Page 18: Cleaning Air Filters
When using the fixture in dusty conditions we recommend the use of head air filters with paper elements. These are available as accessories in sets of 12 from Martin suppliers by ordering P/N 50400765. -
Page 19: Battery Replacement
The MAC Viper XIP has a non-rechargeable 3-volt lithium battery that provides power to the control panel and display when the fixture is not connected to AC mains power. If the battery runs flat, you must replace it. -
Page 20: Lubrication
If not, contact your Martin supplier for a replacement. Install the cover (or module), fastening it in position with its two screws. Check that it is closed securely before reapplying power. 8. Dispose of the used battery responsibly: send to an authorized waste recycling and disposal center. - Page 21 CAN ICES-003 (B) / NMB-003 (B); CAN ICES-005 (B) / NMB-005 (B) EU Declaration of Conformity An EU Declaration of Conformity covering this product is available for download from the MAC Viper XIP product area of the Martin website at www.martin.com.
