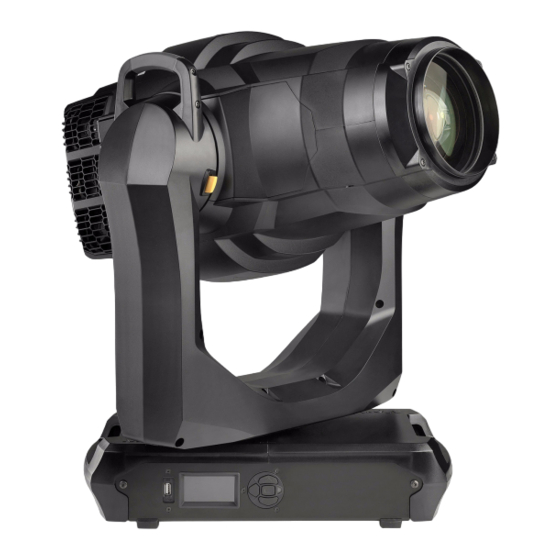

- Page 1 MAC Encore™ Performance CLD and WRM Safety and Installation Manual...
- Page 2 ©2017 HARMAN Professional Denmark ApS. All rights reserved. Martin® is a trademark of HARMAN Professional Denmark ApS registered in the United States and other countries. Features, specifications and appearance are subject to change without notice.
-
Page 3: Table Of Contents
Contents Safety Information ..............4 Introduction . -
Page 4: Safety Information
If you have questions about how to operate the fixture safely, please contact your Martin® supplier or call the Martin® 24-hour service hotline on +45 8740 0000, or in the USA on 1-888-tech-180. - Page 5 • Refer any service operation not described in this manual or in the MAC Encore™ Performance User Guide to Martin® Service or an authorized Martin® Service partner. • The light source contained in this fixture may only be replaced by Martin® Service or an authorized Martin® Service partner.
- Page 6 • If the safety cable attachment point becomes deformed, do not suspend the fixture. Have the fixture repaired by an authorized Martin® service partner. • Check that all external covers and rigging hardware are securely fastened.
-
Page 7: Introduction
Two packaging options are available in the cardboard box – the fixture can be supplied in either: • expanded polystyrene that is not intended for re-use, or • a SIP (Superior Impact Protection) insert that is designed to be installed in the 2-unit Martin® MAC Encore™ Performance flightcase or custom-made flightcases. -
Page 8: Packing
Figure 1: Tilt lock A rugged two-unit flightcase (see Figure 2) is available from Martin® for the MAC Encore™. The flightcase accepts two durable molded SIP (Superior Impact Protection) foam inserts that are supplied in cardboard boxes with fixtures if you select the SIP option at time of ordering. -
Page 9: Physical Installation
Physical installation Warning! The MAC Encore™ Performance has a powerful pan motor. The torque reaction when the head is panned suddenly can cause the base to move if the fixture is standing unsecured on a surface. Do not apply power to the MAC Encore™ Performance unless the base is securely fastened to a surface or to rigging hardware. - Page 10 Locking quarter- rigging clamp rigging clamp attachment turn fasteners Figure 5: Martin® rigging hardware 3. See Figure 4 on page 9. Align the first clamp and bracket with 2 mounting points in the base, and engage both the clamp bracket’s quarter-turn fasteners in corresponding sockets in the base.
-
Page 11: Ac Power
AC power Warning! Read '“Safety Information” on page 4 before connecting the fixture to AC mains power. For protection from electric shock, the fixture must be electrically connected to ground (earth). The AC mains power distribution circuit must be equipped with a fuse or circuit breaker and ground-fault (earth-fault) protection. -
Page 12: Dmx Data Link
• To split the data link into branches, use one of the splitter-amplifiers available from Martin® (see under “Accessories” in the product specifications given at the end of this document.) •... -
Page 13: Service And Maintenance
Please contact your Martin® supplier for details. It is Martin® policy to apply the strictest possible calibration procedures and use the best quality materials available to ensure optimum performance and the longest possible component lifetimes. However, optical components are subject to wear and tear over the life of the product, resulting in gradual changes in color over many thousands of hours of use. - Page 14 3. You can let the head cover hang on its safety wire, but for easiest access push the cover’s safety wire retaining clip B in towards the head chassis, slide the clip until you can remove it, then remove the head cover completely from the fixture.
-
Page 15: Access To The Multi-Module
Access to the multi-module The multi-module contains the rotating gobo, color and animation wheels as well as the CMY flags. Access to these is easiest if you remove the module from the head. To remove the multi-module: 1. Remove the top head cover, position the head with the front glass angled downwards and the top side facing upwards, and apply the tilt lock (see “Access to the head”... -
Page 16: Cleaning
If one or more of these factors is present, inspect fixtures within their first few hours of operation to see whether cleaning is necessary. Check again at frequent intervals. This procedure will allow you to assess cleaning requirements in your particular situation. If in doubt, consult your Martin® dealer about a suitable maintenance schedule. -
Page 17: Lubrication
Lubrication The MAC Encore™ Performance does not require lubrication under normal circumstances. Moving parts can be checked and a long-lasting teflon-based grease reapplied by a Martin® service partner if necessary. Replacing optical components Optical components have fragile coatings and are exposed to very high temperatures. Use only genuine Martin®... - Page 18 Gobo orientation The orientations shown in Figure 13 are correct in most cases, but consult your Martin® dealer or gobo supplier if you are in any doubt about the orientation of a specific gobo type. Coated Glass Gobos The heavy matted aluminum coated borosilicate gobos in the MAC Encore™ Performance are factory-installed with the more reflective sides facing towards the light source.
- Page 19 Replacing rotating gobos Important! A gobo can fall out of its holder if its spring is inserted the wrong way round. Do not lubricate gobo bearings: excess grease can cause loss of step. Correct gobo orientation is critical. Read the guidelines in Figure 13 carefully before installing a gobo.
- Page 20 5. See Figure 15. Rotate the goboholder until its magnet (arrowed) lines up with a reference point that you choose on the module chassis. Remove and insert any gobos you replace one by one, with the goboholder magnets lined up with your reference point, and avoid rotating the gobo wheel while a gobo is removed.
- Page 21 10. See Figure 18. Rotate the gobo in its holder if necessary to line up the alignment marks (arrowed) in the gobo and goboholder. 11. Insert the spring with the narrow end against the gobo, as shown in Figure 17. To identify the narrow end, press the spring flat: the narrow end is on the inside.
- Page 22 The MAC Encore™ Performance has six dichroic color filters. See the MAC Encore™ Performance User Guide available for download from www.martin.com for filter names and part numbers. Use only genuine Martin™ color filters. Handle and store filters with care. Wear cotton gloves while handling them and keep them perfectly clean.
-
Page 23: Using The Fixture
Using the fixture Before using the fixture, download and read the latest version of the MAC Encore™ Performance User Guide from the MAC Encore™ Performance Product Support page on the Martin® website at www.martin.com. The User Guide contains details of: •... -
Page 24: Troubleshooting
Check that power is switched on and cables are No power to fixture. plugged in. Contact Martin® Service or authorized service partner. Do not remove base or yoke covers, One or more of the fixtures is attempt to replace a fuse or carry out any repairs or completely dead. -
Page 25: Specifications
Specifications Physical Length ..............452 mm (17.8 in.) Width (across yoke) . -
Page 26: Photometric Data
Photometric Data CLD variant ≥ Light engine luminous output..........39 400 lumens ≥... - Page 27 Related Items Martin® M-PC 2U incl. Martin® M-DMX USB-DMX Interface ......P/N 90737070 Martin® M-PC Pro-64 / LJ-4 Controller Kit incl. Martin® M-DMX USB-DMX Interface ..P/N 90737060 Martin®...
- Page 28 This product contains a lithium battery. Ensure that it is disposed of correctly and responsibly by an authorized recycling or waste disposal center at the end of its life. Where applicable, Martin® participates in schemes whose aim is to ensure that local recycling and/or waste disposal centers accept batteries from Martin® products.
