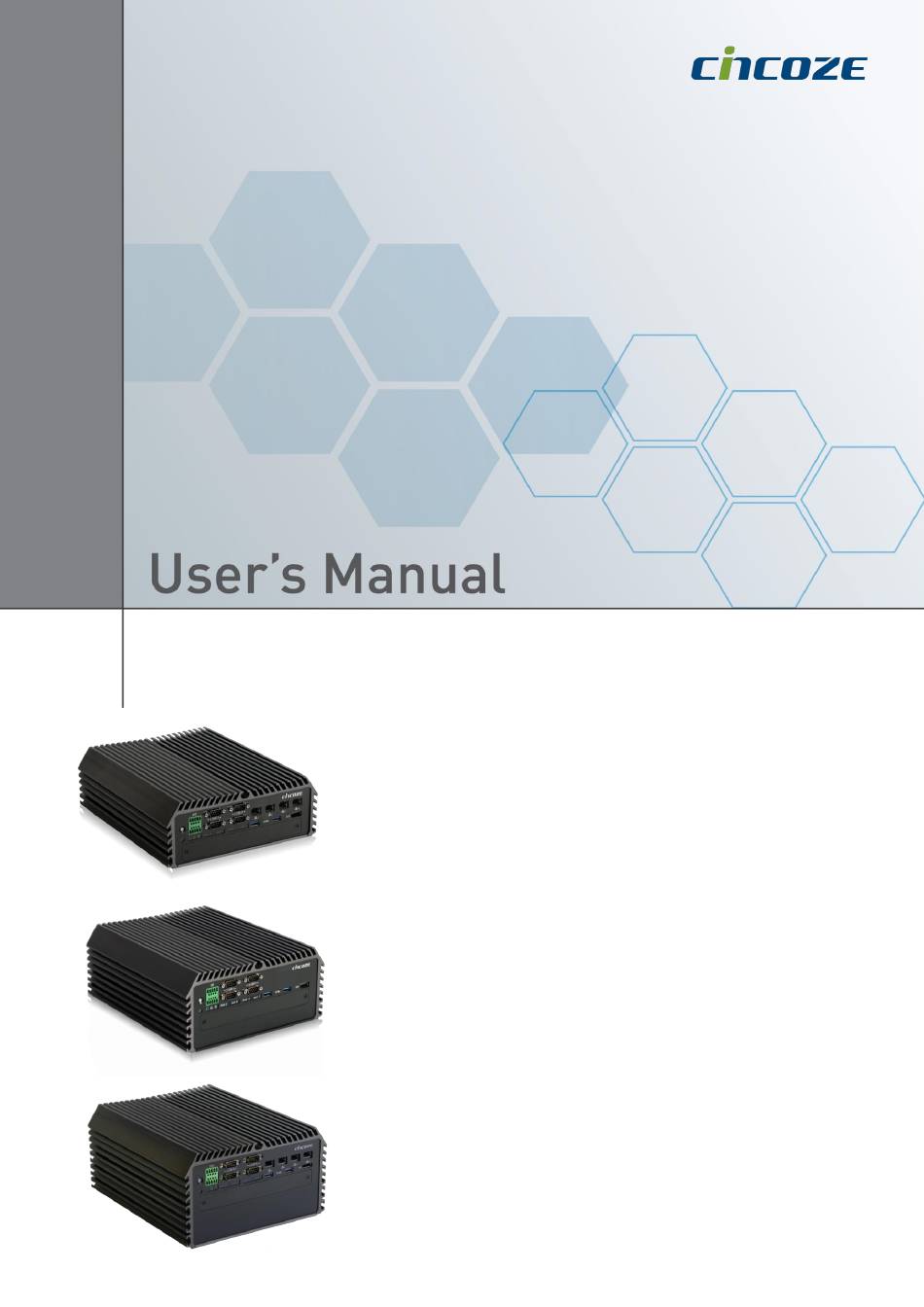

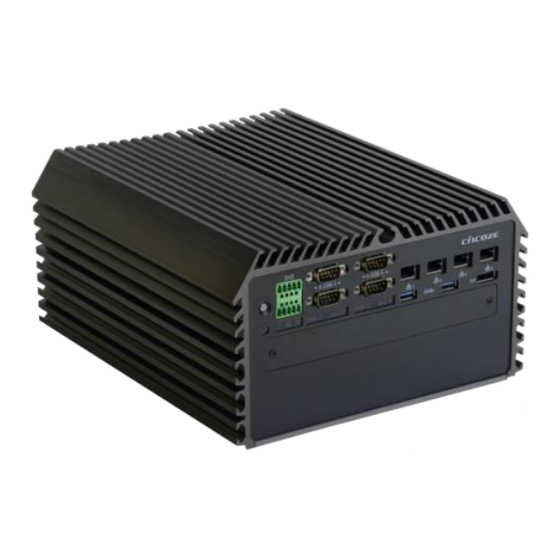

  • Page 1 Fanless Computing Solution Superior Performance Fanless Computer DS-1000(L/P) Superior Performance Fanless Computer DS-1001(L/P) Superior Performance Fanless Computer DS-1002(L/P) CN-TB-QP22-44_V1.0...

  • Page 2: Table Of Contents

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Contents Prefaces Revision …………………………………………………..……………….……….. Copyright Notice …………………………………………………………………… 05 Acknowledgement …..………………………………………………....05 Disclaimer ………………………………………………………………………….. Declaration of Conformity ………………………………………………………… 05 Product Warranty Statement …………………………………………………….. Technical Support and Assistance ………………………………………………. Conventions Used in this Manual ………………………………………………..
  • Page 3 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer 3.7 Installing a SATA Hard Drive on Top Side ……………………………. 69 3.8 Installing a Half Size Mini PCIe Card on Bottom Side …..…….…..70 3.9 Installing a Full Size Mini PCIe Card on Bottom Side …..………..72 3.10 Installing SODIMM ………….……………………..….……………..
  • Page 4 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 5 Product Application 5.1 Digital I/O (DIO) application..….…………….…….…..….…………... 119 5.1.1 Digital I/O Programming Guide………………………………..120 5.2 Digital I/O (DIO) Hardware Specification…………………………….. 125 CN-TB-QP22-44_V1.0...

  • Page 5: Revision

    2019/11/21 Copyright Notice © 2014 by Cincoze Co., Ltd. All rights are reserved. No parts of this manual may be copied, modified, or reproduced in any form or by any means for commercial use without the prior written permission of Cincoze Co., Ltd.

  • Page 6: Product Warranty Statement

    (such as a fuse, battery, etc.), are not warranted. Before sending your product in, you will need to fill in Cincoze RMA Request Form and obtain a RMA number from us. Our staff is available at any time to provide you with the most friendly and immediate service.

  • Page 7: Technical Support And Assistance

    | User’s Manual Superior Performance Fanless Computer Prefaces Technical Support and Assistance 1. Visit the Cincoze website at www.cincoze.com/support.php where you can find the latest information about the product. 2. Contact your distributor or our technical support team or sales representative for technical support if you need additional assistance.

  • Page 8: Safety Precaution

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Prefaces Safety Precautions Before installing and using this device, please note the following precautions: 1. Read these safety instructions carefully. 2. Keep this User’s Manual for future reference. 3.

  • Page 9: Package Content

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Prefaces Package Contents Before installation, please ensure all the items listed in the following table are included in the package. Q’ty Item Description DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Embedded System Utility DVD Driver DIO Terminal Block Connector (Female) Power Terminal Block Connector (Female)

  • Page 10: Ordering Information

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Prefaces Ordering Information Model No. Product Description 4th Gen. Intel® Core™ i3/i5/i7 Superior Performance Fanless Computer Integrate Q87 Chipset DS-1000 4th Gen. Intel® Core™ i3/i5/i7 Superior Performance Fanless Computer Integrate Q87 Chipset DS-1000L and 6x LAN 4th Gen.

  • Page 11: Optional Accessory

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Prefaces Optional Accessory Model No. Description Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug 5.0mm GS120A24-CIN Pitch, GS120A24-P1M Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm GS220A24-CIN Pitch, GS220A24-R7B US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C...

  • Page 12: Chapter 1 Product Introductions

    Chapter 1 Product Introductions...

  • Page 13: Overview

    DS-1000 series a functional system meets versatile requirements and different usages. In addition, DS-1000 series is a ruggedized and safety system features completely cable-less designed, special heat dissipation, anti-vibration, build in voltage protection, reliable DC power input, reverse power protection, and industrial components selection.

  • Page 14: Hardware Specification

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 1: Product Introductions 1.2 Hardware Specification Processor System Storage • Support 4th Generation Intel® Core™ i3/i5/i7 LGA 1150 • 2x 2.5” SATA HDD Bay (1x External Removable, 1x Processor, with AMI 128Mbit SPI BIOS Internal) •...

  • Page 15: System I/O

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 1: Product Introductions 1.3 System I/O 1.3.1 DS-1000 Front Panel COM Port ATX power on/off switch COM 3 ~ COM 6 supports RS232/422/485 serial Press to power-on or power-off the system device Ethernet LED AT/ATX Mode Select Switch...
  • Page 16 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 1: Product Introductions Rear Panel Antenna Hole DC IN Terminal Block Used to connect an antenna for optional Mini-PCIe Used to plug a DC power input with terminal block WiFi module External Fan Terminal Block COM Port...

  • Page 17: Ds-1000(L/P)

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 1: Product Introductions 1.3.2 DS-1000(L/P) Front Panel USB 3.0 Port ATX power on/off switch Used to connect USB 3.0/2.0/1.1 device Press to power-on or power-off the system AT/ATX Mode Select Switch USB 2.0 Port Used to select AT or ATX power mode...
  • Page 18 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 1: Product Introductions Rear Panel Antenna Hole DC IN Terminal Block Used to connect an antenna for optional Mini-PCIe Used to plug a DC power input with terminal block WiFi module External Fan Terminal Block COM Port...

  • Page 19: Ds-1001

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 1: Product Introductions 1.3.3 DS-1001 Front Panel COM Port ATX power on/off switch COM 3 ~ COM 6 supports RS232/422/485 serial Press to power-on or power-off the system device AT/ATX Mode Select Switch USB 3.0 Port...
  • Page 20 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 1: Product Introductions Rear Panel Antenna Hole DC IN Terminal Block Used to connect an antenna for optional Mini-PCIe Used to plug a DC power input with terminal block WiFi module External Fan Terminal Block COM Port...

  • Page 21: Ds-1001(L/P)

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 1: Product Introductions 1.3.4 DS-1001(L/P) Front Panel USB 3.0 Port ATX power on/off switch Used to connect USB 3.0/2.0/1.1 device Press to power-on or power-off the system AT/ATX Mode Select Switch USB 2.0 Port Used to select AT or ATX power mode...
  • Page 22 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 1: Product Introductions Rear Panel Antenna Hole DC IN Terminal Block Used to connect an antenna for optional Mini-PCIe Used to plug a DC power input with terminal block WiFi module External Fan Terminal Block COM Port...

  • Page 23: Ds-1002

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 1: Product Introductions 1.3.5 DS-1002 Front Panel COM Port ATX power on/off switch COM 3 ~ COM 6 supports RS232/422/485 serial Press to power-on or power-off the system device AT/ATX Mode Select Switch USB 3.0 Port...
  • Page 24 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 1: Product Introductions Rear Panel Antenna Hole DC IN Terminal Block Used to connect an antenna for optional Mini-PCIe Used to plug a DC power input with terminal block WiFi module External Fan Terminal Block COM Port...

  • Page 25: Ds-1002(L/P)

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 1: Product Introductions 1.3.4 DS-1002(L/P) Front Panel USB 3.0 Port ATX power on/off switch Used to connect USB 3.0/2.0/1.1 device Press to power-on or power-off the system AT/ATX Mode Select Switch USB 2.0 Port Used to select AT or ATX power mode...
  • Page 26 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 1: Product Introductions Rear Panel Antenna Hole DC IN Terminal Block Used to connect an antenna for optional Mini-PCIe Used to plug a DC power input with terminal block WiFi module External Fan Terminal Block COM Port...

  • Page 27: Mechanical Dimension

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 1: Product Introductions 1.4 Mechanical Dimensions 1.4.1 DS-1000 Unit: mm CN-TB-QP22-44_V1.0...

  • Page 28: Ds-1000(L/P)

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 1: Product Introductions 1.4.2 DS-1000(L/P) Unit: mm CN-TB-QP22-44_V1.0...

  • Page 29: Ds-1001

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 1: Product Introductions 1.4.3 DS-1001 Unit: mm CN-TB-QP22-44_V1.0...

  • Page 30: Ds-1001(L/P)

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 1: Product Introductions 1.4.4 DS-1001(L/P) Unit: mm CN-TB-QP22-44_V1.0...

  • Page 31: Ds-1002

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 1: Product Introductions 1.4.5 DS-1002 Unit: mm CN-TB-QP22-44_V1.0...

  • Page 32: Ds-1002(L/P)

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 1: Product Introductions 1.4.6 DS-1002(L/P) Unit: mm CN-TB-QP22-44_V1.0...

  • Page 33: Chapter 2 Jumpers And Connectors

    Chapter 2 Jumpers and Connectors...

  • Page 34: Jumper Setting

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 2: Jumpers and Connectors 2.1 Jumpers Settings When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.

  • Page 35: Bottom View

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 2: Jumpers and Connectors 2.2.2 Bottom View 2.2.3 Daughter board view CN-TB-QP22-44_V1.0...

  • Page 36: List Of Switch / Jumper / Connector

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 2: Jumpers and Connectors 2.3 Connector / Jumper / Switch Definition List of Connector / Jumper / Switch Connector Location Definition 12V_24V_1 12V / 24V Car Battery Switch AT_ATX1 AT / ATX Power Mode Switch AUDIO1...

  • Page 37: Switch Definition

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 2: Jumpers and Connectors 2.4 Switches Definitions 12V_24V_1: 12V / 24V Car Battery Switch Definition 24V Car Battery Input (Default) 12V Car Battery Input AT_ATX1: AT / ATX Power Mode Switch Definition 1-2 (Left) AT Power Mode...

  • Page 38: Jumper Definition

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 2: Jumpers and Connectors PWR_SW1: Power Switch Switch Definition Power Button 2.5 Jumpers Definitions COM12_SEL1: COM1 / COM2 with Power Select Connector Type: 2X5 10-pin Header, 2.54mm pitch COM1 COM2 Definition...

  • Page 39: Connector Definition

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 2: Jumpers and Connectors COM56_SEL1: COM5 / COM6 with Power Select Connector Type: 2X5 10-pin Header, 2.54mm pitch COM5 COM6 Definition Definition 1-3 On 2-4 On 3-5 On +12V 4-6 On...
  • Page 40 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 2: Jumpers and Connectors COM1_2_1: RS232 / RS422 / RS485 Connector Connector Type: 9-pin D-Sub COM1 RS422 / 485 Full RS485 Half RS232 Definition Duplex Definition Duplex Definition DCD1 TX1-...
  • Page 41 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 2: Jumpers and Connectors COM3_4_1: RS232 / RS422 / RS485 Connector Connector Type: 9-pin D-Sub COM3 RS422 / 485 Full RS485 Half RS232 Definition Duplex Definition Duplex Definition DCD3 TX3-...
  • Page 42 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 2: Jumpers and Connectors COM5_6_1: RS232 / RS422 / RS485 Connector Connector Type: 9-pin D-Sub COM5 RS422 / 485 Full RS485 Half RS232 Definition Duplex Definition Duplex Definition DCD5 TX5-...
  • Page 43 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 2: Jumpers and Connectors DC_IN1: DC Power Input Connector (+9~48V) Connector Type: Terminal Block 1X3 3-pin, 5.0mm pitch Definition +9~48VIN Ignition (IGN) DIO1: Digital Input / Output Connector Connector Type: Terminal Block 2X5 10-pin, 3.5mm pitch Definition Definition...
  • Page 44 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 2: Jumpers and Connectors DP1: DisplayPort Connector Definition Definition DPC_LANE0_P DPC_LANE3_N DPC_LANE0_N DPC_LANE1_P DPC_AUX_P DPC_LANE1_N DPC_LANE2_P DPC_AUX_N DPC_HPD DPC_LANE2_N DPC_LANE3_P DPC_PWR CN-TB-QP22-44_V1.0...
  • Page 45 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 2: Jumpers and Connectors DP2: DisplayPort Connector Definition Definition DPD_LANE0_P DPD_LANE3_N DPD_LANE0_N DPD_LANE1_P DPD_AUX_P DPD_LANE1_N DPD_LANE2_P DPD_AUX_N DPD_HPD DPD_LANE2_N DPD_LANE3_P DPD_PWR DVI_I1: DVI-I Connector Definition Definition DVI_TX2- DVI Hot Plug Detect DVI_TX2+...
  • Page 46 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 2: Jumpers and Connectors CN2: PS/2 and USB2.0 Ports Connector Type: 6-pin Mini-DIN and dual USB 2.0 ports Definition Definition Definition USB2_D10- USB2_D11- MS_DATA USB2_D11 USB2_D10+ KB_DATA MS_CLK KB_CLK...
  • Page 47 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 2: Jumpers and Connectors CN4: LAN1 and USB2.0 Ports Connector Type: RJ45 port with LEDs and dual USB2.0 ports Definition Definition LAN2_MDI0P USB2_D2- LAN2_MDI0N USB2_D2+ LAN2_MDI1P LAN2_MDI2P LAN2_MDI2N USB2_D3-...
  • Page 48 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 2: Jumpers and Connectors CN14: mSATA Socket Definition Definition Definition WAKE# +3.3V +3.3V USB2_D6+ +3.3V MINIPCIE RST# SATA_RXP5 +3.3V +1.5V +3.3V CLKREQ# SATA_RXN5 +1.5V CLKN SMB_CLK +1.5V CLKP SATA_TXN5...
  • Page 49 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 2: Jumpers and Connectors FAN2: External PWM Fan Connector Connector Type: Terminal Block 1X4 4-pin, 3.5mm pitch Definition +12V SENSE Control LED1: System LED Connector Connector Type: 2X10 20-pin box header, 2.0mm pitch Definition Definition +3.3VSB...
  • Page 50 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 2: Jumpers and Connectors MINIPCIE1: Mini PCI-Express Socket Definition Definition Definition WAKE# +3.3V +3.3V USB2_D7+ +3.3V MINIPCIE RST# MINIPCIE_RXN7 +3.3V +1.5V +3.3V CLKREQ# MINIPCIE_RXP7 UIM_PWR CLINK_CLK UIM_DATA +1.5V MINIPCIE_CLKN...
  • Page 51 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 2: Jumpers and Connectors PCIE1: PCI-Express X16 Socket Connector Type: PCI-Express X16 Slot Definition Definition Definition Definition PCIE_PRSNT1 +12V PEG_TXN6 +12V PEG_RXP6 +12V +12V PEG_RXN6 +12V PEG_TXP7 SMB_CLK PEG_TXN7...
  • Page 52 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 2: Jumpers and Connectors PCIE2: PCI-Express X1 Socket Connector Type: PCI-Express X1 Slot Definition Definition CPUFAN_ CONTROL +12V +12V +12V +12V +12V SMB_CLK SMB_DATA +3.3V +3.3V +3.3V +3.3VSB PCIE_RESET#...
  • Page 53 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 2: Jumpers and Connectors SATA1: SATA with Power Connector Definition Definition TX1+ TX1- RX1- RX1+ +3.3V +3.3V +12V +3.3V +12V +12V SATA2: SATA with Power Connector Definition Definition TX0+...
  • Page 54 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 2: Jumpers and Connectors SATA3: SATA Connector Definition Definition RX2- TX2+ RX2+ TX2- SIM1: SIM Card Socket Definition Definition UIM_PWR UIM_VPP UIM_RESET UIM_DATA UIM_CLK SW2: System Power Off Timing Setting Pin 1 Pin 2 Pin 3...
  • Page 55 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 2: Jumpers and Connectors USB11_12_1: USB2.0 Ports Connector Type: 2X5 10-pin box header, 2.54mm pitch Definition Definition USB2_D0- USB2_D1- USB2_D0+ USB2_D1+ Cable Shield Cable Shield USB3_1: USB 3.0 Port Definition Definition USB3_RX4+...

  • Page 56: Chapter 3 System Setup

    Chapter 3 System Setup...

  • Page 57: Removing The Chassis Bottom Cover

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 3: System Setup 3.1 Removing the Chassis Bottom Cover In order to prevent electric shock or system damage, before removing the chassis cover, must turn off power and disconnect the unit from power source.

  • Page 58: Removing The Chassis

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 3: System Setup 3.2 Removing the Chassis 1. Unscrew the 2 screws in back panel as marked on photo and place them aside for later use. 2.
  • Page 59 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 3: System Setup 3. Lift up the body of unit vertically by holding the front and rear panel. 4. Turn over the body of the unit and place it gently. CN-TB-QP22-44_V1.0...

  • Page 60: Installing The Cpu

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 3: System Setup 3.3 Installing the CPU 1. Locate the CPU socket. 2. Press the metal lever and away from the socket to release it. Pull back the lever to expose the protective cover and socket.
  • Page 61 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 3: System Setup 3. Remove the protective cover. 4. Align the notches on CPU with the alignment post on socket. CN-TB-QP22-44_V1.0...
  • Page 62 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 3: System Setup 5. The notches of socket provide the space for fingers while lowering the CPU, hold the CPU by the edges toward the notches and insert the CPU gently. 6.

  • Page 63: Installing A Half Size Mini Pcie Card On Top Side

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 3: System Setup 7. Align mounting holes of heat sink with the nut studs and fasten the heat sink with provided 4 screws. 3.4 Installing a Half Size Mini PCIe Card on Top Side 1.
  • Page 64 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 3: System Setup 2. Use provided two screws on bracket to fasten the module and bracket together. 3. Tilt the Mini PCIe module at 45 degree angle and insert it to the slot until the gold-pated connector of module contacted firmly with the slot.

  • Page 65: Installing A Full Size Mini Pcie Card On Top Side

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 3: System Setup 4. Press down the module and use previous two screws to fix the module. 3.5 Installing a Full Size Mini PCIe Card on Top Side 1.
  • Page 66 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 3: System Setup 2. Tilt the Mini PCIe module at 45 degree angle and insert it to the slot until the gold-pated connector of module contacted firmly with the slot. 45°...

  • Page 67: Installing Antenna

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 3: System Setup 3.6 Installing Antenna Please installing a Mini PCIe Wireless Lan Card on top side before you put on washer and fasten the nut with antenna jack. 1.
  • Page 68 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 3: System Setup 4. Assemble the antenna and antenna jack together. 5. Attach the RF connector at another end of cable onto the module. CN-TB-QP22-44_V1.0...

  • Page 69: Installing A Sata Hard Drive On Top Side

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 3: System Setup 3.7 Installing a SATA Hard Drive on Top Side 1. Loosen the 3 screws on HDD bracket and remove the bracket. 2. Make the PCB side of the HDD face up, place the HDD bracket on it. Ensure the direction of bracket is correct and use 4 provided screws to assemble HDD and HDD bracket together.

  • Page 70: Installing A Half Size Mini Pcie Card On Bottom Side

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 3: System Setup 3. Turn over the HDD bracket. Connect the HDD bracket to the SATA connector and fasten the 3 screws . 3.8 Installing Half Size Mini PCIe Cards at the Bottom 1.
  • Page 71 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 3: System Setup 2. Use provided two screws on bracket to fasten the module and bracket together. 3. Tilt the Mini PCIe module at 45 degree angle and insert it to the slot until the gold-pated connector of module contacted firmly with the slot.

  • Page 72: Installing A Full Size Mini Pcie Card On Bottom Side

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 3: System Setup 4. Press down the module and use previous two screws to fix the module. 3.9 Installing Full Size Mini PCIe Cards at the Bottom 1.
  • Page 73 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 3: System Setup 2. Tilt the Mini PCIe or mSATA module at 45 degree angle and insert it to the slot until the gold-pated connector of module contacted firmly with the slot. 45°...

  • Page 74: Installing Sodimm

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 3: System Setup 3.10 Installing SO-DIMM 1. Locate the SO-DIMM sockets at the bottom side. Unscrews the 3 screws and remove the cover. 2. Locate two SO-DIMM sockets at the bottom. CN-TB-QP22-44_V1.0...
  • Page 75 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 3: System Setup 3. Tilt the SO-DIMM module at a 45 degree angle and insert it to SO-DIMM socket until the gold-pated connector of module contacted firmly with the socket. 45°...

  • Page 76: Installing The Pci/Pcie Cards On Expansion Module

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 3: System Setup 5. Put the cover back and fix the cover with screws. 3.11 Installing the PCI/PCIe Cards on Expansion Module (DS-1001 and DS-1002 Only) 1.
  • Page 77 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 3: System Setup 2. Loosen the screws on PCI bracket and remove the bracket. 3. Loosen the two screws on fixators of card retainers and remove them. CN-TB-QP22-44_V1.0...
  • Page 78 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 3: System Setup 4. Please check the following photo for placing expansion module. Insert the PCI or PCIe cards to the slots and fasten the screw on PCI bracket. 5.

  • Page 79: Installing The Fan For Expansion Module

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 3: System Setup 6. Place the expansion module back to chassis by inserting the golden plate to PCIe clot. Fasten the screws afterwards. 3.12 Installing the Fan for Expansion Module (DS-1002 Only) 1.

  • Page 80: Installing The Chassis

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 3: System Setup 2. Assemble the fan and bracket together by fasten the 4 screws. 3.13 Installing the Chassis 1. Make sure the notch on chassis and the front panel of body are at the same side. CN-TB-QP22-44_V1.0...
  • Page 81 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 3: System Setup 2. Lift up the body of unit. Make sure that both front and rear panels are in the chassis groves and assemble the body on to chassis firmly. 3.

  • Page 82: Installing The Chassis Bottom Cover

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 3: System Setup 3.14 Installing the Chassis Bottom Cover 1. Be sure to align the grooves with front and ear panels. Put the cover back on and fasten the screws to fix the cover.
  • Page 83 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 3: System Setup 2. Locate the removable HDD bay and loosen the screw. 3. Move the rotating arm out and pull the HDD bracket out. CN-TB-QP22-44_V1.0...
  • Page 84 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 3: System Setup 4. Make the PCB side of the HDD face up, place the HDD bracket on it. Ensure the direction of bracket is correct and use 4 provided screws to assemble HDD and HDD bracket together.

  • Page 85: Installing A Sim Card

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 3: System Setup 6. Place the rotating arm back and fasten the screw. 3.16 Installing a SIM Card 1. SIM card slot is on top of HDD bay. CN-TB-QP22-44_V1.0...

  • Page 86: Installing A Cfast Card

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 3: System Setup 2. Insert the SIM card according to the icon instruction aside. 3.17 Installing a CFast Card 1. Locate the CFast card slot. CN-TB-QP22-44_V1.0...

  • Page 87: Installing A Cmos Battery

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 3: System Setup 2. Insert the CFast Card. 3.18 Installing the CMOS Battery 1. Locate the removable CMOS Battery and loosen the screw. CN-TB-QP22-44_V1.0...
  • Page 88 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 3: System Setup 2. Pull out the CMOS battery bracket. 3. Insert the CMOS battery in the battery slot. CN-TB-QP22-44_V1.0...

  • Page 89: Fasten The Cover

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 3: System Setup 4. Insert the battery bracket firmly and fasten the screw. 3.19 Fasten the Cover 1. Fasten the cover by using the two screws. CN-TB-QP22-44_V1.0...

  • Page 90: Wall Mount Brackets

    Chapter 3: System Setup 3.20 Wall Mount Brackets DS-1000 series offers wall mount that customers can install system on the wall in convenient and economical ways. 1. The mounting holes are at the bottom of system. Use provided 8 screws to fasten the bracket with each side of system together.
  • Page 91 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 3: System Setup 2. Fasten the screws through the bracket mounting hole to mount system on the wall. CN-TB-QP22-44_V1.0...

  • Page 92: Chapter 4 Bios Setup

    Chapter 4 BIOS Setup...

  • Page 93: Bios Introduction

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 4: BIOS Setup 4.1 BIOS Introduction The BIOS (Basic Input/Output System) is a program located on a Flash Memory on the motherboard. When you start the computer, the BIOS program will gain control. The BIOS first operates an auto-diagnostic test called POST (power on self test) for all the necessary hardware, it detects the entire hardware device and configures the parameters of the hardware synchronization.

  • Page 94: Main Setup

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 4: BIOS Setup 4.2 Main Setup Press <Del> to enter BIOS CMOS Setup Utility, the Main Menu (as shown below) will appears on the screen. Use arrow keys to move among the items and press <Enter> to accept or enter a sub-menu.

  • Page 95: Advanced Setup

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 4: BIOS Setup 4.3 Advanced Setup This section allows you to configure and improve your system and allows you to set up some system features according to your preference. 4.3.1 PCI Subsystem Settings CN-TB-QP22-44_V1.0...
  • Page 96 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 4: BIOS Setup ■ PCI Common Settings ❑ PCI Latency Timer Value to be programed into PCI Latency Timer Register. ❑ VGA Palette Snoop Enable or disable VGA palette registers snooping. ❑...
  • Page 97 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 4: BIOS Setup ■ PCI Express Device Register Settings ❑ Relaxed Ordering Enable or disable PCI Express Device Relaxed Ordering. ❑ Extended Tag Enable or disable Extended Tag. ❑...

  • Page 98: Acpi Settings

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 4: BIOS Setup 4.3.2 ACPI Settings ■ Enable ACPI Auto Configuration Enable or disable BIOS ACPI auto configuration. ■ Enable Hibernation Enable or disable system ability to hibernate (OS/S4 Sleep State). This option may be not effective with some OS.

  • Page 99: Cpu Configuration

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 4: BIOS Setup 4.3.3 CPU Configuration 4.3.4 SATA Configuration ■ SATA Controller(s) Enable or disable Serial ATA controller. ■ SATA Mode Selection This item allows users to select mode of SATA controller. ■...
  • Page 100 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 4: BIOS Setup ■ RAID0 Enable or disable RAID 0. ■ RAID1 Enable or disable RAID 1. ■ RAID10 Enable or disable RAID 10. ■ RAID5 Enable or disable RAID 5.
  • Page 101 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 4: BIOS Setup ■ Serial ATA Port 1 ■ Serial ATA Port 4 ❑ Port 1 ❑Port 4 Enable or disable SATA Port 1. Enable or disable SATA Port 4. ❑...

  • Page 102: Amt Configuration

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 4: BIOS Setup 4.3.5 AMT Configuration Intel Active Management Technology (AMT) is hardware-based technology for remotely managing and securing PCs out-of-band. ■ Intel AMT This item allows users to enable or disable Intel AMT BIOS extension. ■...

  • Page 103: Usb Configuration

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 4: BIOS Setup 4.3.6 USB Configuration ■ Legacy USB support Enabled: To enable legacy USB support. Disabled: To keep USB devices available only for EFI specification, Auto: To disable legacy support if no USB devices are connected.

  • Page 104: Embedded Controller Configuration

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 4: BIOS Setup 4.3.7 Embedded Controller Configuration ■ DDR3 Control This item allows users to select DDR3 or DDR3L mode. ■ PCIE1/MSATA1 Switch (CN13) This item allows users to select Mini-PCIE or MSATA interface. ■...

  • Page 105: Serial Port Configuration

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 4: BIOS Setup 4.3.8 Serial Port Configuration Set Parameters of Serial Ports. User can Enable/Disable the serial port and Select an optimal settings for the Super IO Device. ■...
  • Page 106 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 4: BIOS Setup ■ Serial Port 2 Configuration ❑ Serial Port This item will allow users to enable or disable serial port. ❑ Change Settings This setting is used to change the address & IRQ settings of the specified serial port.
  • Page 107 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 4: BIOS Setup ■ Serial Port 4 Configuration ❑ Serial Port This item will allow users to enable or disable serial port. ❑ Change Settings This setting is used to change the address & IRQ settings of the specified serial port.
  • Page 108 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 4: BIOS Setup ■ Serial Port 6 Configuration ❑ Serial Port This item will allow users to enable or disable serial port. ❑ Change Settings This setting is used to change the address & IRQ settings of the specified serial port. ❑...

  • Page 109: Pc Health Status

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 4: BIOS Setup 4.3.9 PC Health Status These items display the current status of all monitored hardware devices/components such as voltages, temperatures and all fans’ speeds. ■...

  • Page 110: Chipset

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 4: BIOS Setup 4.4 Chipset This section allows you to configure and improve your system and allows you to set up some system features according to your preference. 4.4.1 PCH-IO Configuration This section allows you to configure the chipset.
  • Page 111 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 4: BIOS Setup ■ PCI Express Configuration ❑ PCI Express Clock Gating This item allows users to enable or disable the PCI Express Clock Gating. ❑DMI Link ASPM Support This item allows users to enable or disable ASPM.
  • Page 112 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 4: BIOS Setup ■ USB Configuration ❑ USB Precondition This item allows user to enable or disable USB Precondition. ❑ XHCI Mode Select Smart auto, Auto, Enabled, Disable and Manual Mode of operation of XHCI controller.

  • Page 113: System Agent (Sa) Configuration

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 4: BIOS Setup ■ DeepSx Power Policies Enable or disable deep sleep mode. ■ Restore AC Power Loss This setting specifies whether your system will reboot after a power failure or interrupt occurs. Available settings are: Power Off: Leaves the computer in the power off state.
  • Page 114 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 4: BIOS Setup ■ Graphic Configuration ❑ Graphics Turbo IMON Current Graphics turbo IMON current values supported (14-31). ❑ Primary Display "Auto or IGFX or PEG or PCIE or SG” optimal to Primary Display. ❑...
  • Page 115 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 4: BIOS Setup ❑ LCD Control ◆ Primary IGFX Boot Display Select the Video Device that will be activated during POST. This has no effect if external graphics present.

  • Page 116: Boot

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 4: BIOS Setup 4.5 Boot This section allows you to configure the boot settings. 4.5.1 Setup Prompt Timeout Use this item to set number of seconds to wait for setup activation key. 4.5.2 Bootup NumLock State Select the Power-on state for Numlock.

  • Page 117: Security

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 4: BIOS Setup 4.6 Security This section allows you to configure and improve your system and allows you to set up some system features according to your preference. 4.6.1 Administrator Password Administrator Password controls access to the BIOS Setup utility.

  • Page 118: Save & Exit

    DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 4: BIOS Setup 4.7 Save & Exit 4.7.1 Save Changes and Exit This item allows user to exit system setup after saving changes. 4.7.2 Discard Changes and Exit This item allows user to exit system setup without saving any changes.
  • Page 119 Chapter 5 Product Application...
  • Page 120 This section describes DIO application of the product. The content and application development are better understood and implemented by well experienced professionals or developers. 5.1.1 Digital I/O Programming Guide 5.1.1.1 Pins for Digital I/O for Cincoze DE series product Item Standard GPIO74 (Pin107)
  • Page 121 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 5: Product application 5.1.1.3 Relative Registers To program the F81866A configuration registers, see the following configuration procedures. CN-TB-QP22-44_V1.0...
  • Page 122 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 5: Product application 5.1.1.4 Sample Code in C Language 5.1.1.4.1 Control of GP74 to GP77 (DI1 ~ DI4) #define AddrPort 0x4E #define DataPort 0x4F <Enter the Extended Function Mode> WriteByte(AddrPort, 0x87) WriteByte(AddrPort, 0x87) // Must write twice to enter Extended mode...
  • Page 123 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 5: Product application 5.1.1.4.2 Control of GP80 to GP83 (DO1 ~ DO4) #define AddrPort 0x4E #define DataPort 0x4F <Enter the Extended Function Mode> WriteByte(AddrPort, 0x87) WriteByte(AddrPort, 0x87) // Must write twice to enter Extended mode <Select Logic Device>...
  • Page 124 // Select configuration register 61h (Low Byte address) WriteByte(DataPort, ( 0x00)) <Leave the Extended Function Mode> WriteByte(AddrPort, 0xAA) Cincoze DIO Port base address is 0x0A00h 5.1.1.6 DATA Bit Table (DI/O) 7 6 5 4 3 2 1 0 7 6 5 4 3 2 1 0...
  • Page 125 DS-1000(L/P) / DS-1001(L/P) / DS-1002(L/P) Series | User’s Manual Superior Performance Fanless Computer Chapter 5: Product application 5.1.1.7 DIO I/O Port Address Pin Definition Data Bits 0xA03 0xA02 I/O Port address 5.2 Digital I/O (DIO) Hardware Specification • XCOM+ / 2XCOM+ : Isolated power in V+ •...
  • Page 126 © 2014 Cincoze Co., Ltd. All rights reserved. The Cincoze logo is a registered trademark of Cincoze Co., Ltd. All other logos appearing in this catalog are the intellectual property of the respective company, product, or organization associated with the logo.

This manual is also suitable for:

Ds-1001 seriesDs-1002 seriesDs-1000pDs-1001-pDs-1001-eDs-1001l-p ... Show all

Table of Contents
