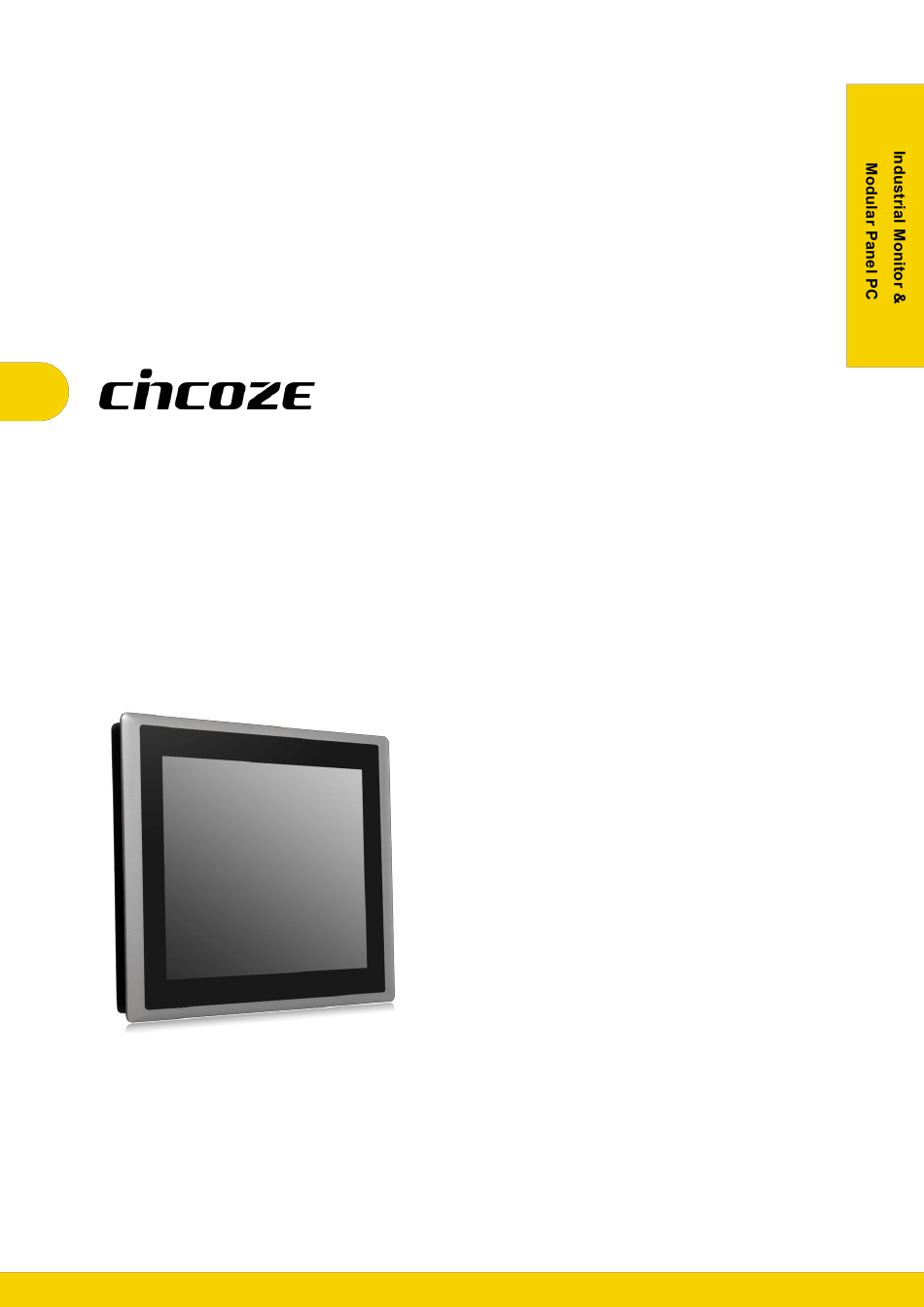

CV-100/P1100 Series
User Manual
Version: V1.55
Industrial Panel PC
Power Efficient Series

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CV-100/P1100 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Cincoze CV-100/P1100 Series

Summary of Contents for Cincoze CV-100/P1100 Series

  • Page 1 CV-100/P1100 Series User Manual Industrial Panel PC Power Efficient Series Version: V1.55...

  • Page 2: Table Of Contents

    Contents Preface ..........................5 Revision ..........................5 Copyright Notice ......................5 Acknowledgement ......................5 Disclaimer ........................5 Declaration of Conformity ....................6 Product Warranty Statement ..................6 Technical Support and Assistance ..................7 Conventions Used in this Manual ...................8 Safety Precautions ......................8 Package Contents ......................10 Ordering Information ..................... 10 Chapter 1 Product Introductions ..................
  • Page 3 2.3 Definition of Switches ..................... 65 2.4 Definition of Connectors ..................67 Chapter 3 System Setup ...................... 71 3.1 Removing the Top Cover ..................72 3.2 Installing SO-DIMM Memory ................... 73 3.3 Installing Mini-PCIe Cards ..................74 3.4 Installing Antennas ....................75 3.5 Installing CPU Thermal Pad ...................
  • Page 4 6.2 Installing a CFM-IGN Module ................117 6.3 Installing a CFM-PoE Module ................119 P1100 Series | User Manual CV-100/...

  • Page 5: Preface

    2022/10/21 Copyright Notice © 2018 by Cincoze Co., Ltd. All rights are reserved. No parts of this manual may be copied, modified, or reproduced in any form or by any means for commercial use without the prior written permission of Cincoze Co., Ltd. All information and specification provided in this manual are for reference only and remain subject to change without prior notice.

  • Page 6: Declaration Of Conformity

    Product Warranty Statement Warranty Cincoze products are warranted by Cincoze Co., Ltd. to be free from defect in materials and workmanship for 2 years from the date of purchase by the original purchaser. During the warranty period, we shall, at our option, either repair or replace any product that proves to be defective under normal operation.

  • Page 7: Technical Support And Assistance

    Limitation of Liability Cincoze’ liability arising out of the manufacture, sale, or supplying of the product and its use, whether based on warranty, contract, negligence, product liability, or otherwise, shall not exceed the original selling price of the product. The remedies provided herein are the customer’s sole and exclusive remedies.

  • Page 8: Conventions Used In This Manual

    Conventions Used in this Manual Safety Precautions Before installing and using this device, please note the following precautions. Read these safety instructions carefully. Keep this User’s Manual for future reference. Disconnected this equipment from any AC outlet before cleaning. For plug-in equipment, the power outlet socket must be located near the equipment and must be easily accessible.
  • Page 9 13. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel. If one of the following situations arises, get the equipment checked by service personnel: ⚫ The power cord or plug is damaged. ⚫...

  • Page 10: Package Contents

    Package Contents Before installation, please ensure all the items listed in the following table are included in the package. Item Description Q’ty Panel PC Utility DVD Driver Screw Pack Panel Mounting Kit Power Terminal Block Connector Remote Power On/Off Terminal Block Connector DIO Terminal Block Connector Thermal Pad (for CPU Thermal Block) Note: Notify your sales representative if any of the above items are missing or damaged.
  • Page 11 10.4" TFT-LCD XGA 4:3 Modular Touch Panel PC CV-110HR/P1101-N42 with Intel® Pentium® N4200 Quad Core Processor and Resistive 5-wire Touch 10.4" TFT-LCD SVGA 4:3 Modular Touch Panel PC CV-110C/P1101-E50 with Intel® Atom® E3950 Quad Core Processor and P-Cap. Touch 10.4" TFT-LCD SVGA 4:3 Modular Touch Panel PC CV-110R/P1101-E50 with Intel®...
  • Page 12 17" TFT-LCD SXGA 5:4 Modular Touch Panel PC CV-117C/P1101-E50 with Intel® Atom® E3950 Quad Core Processor and P-Cap. Touch 17" TFT-LCD SXGA 5:4 Modular Touch Panel PC CV-117R/P1101-E50 with Intel® Atom® E3950 Quad Core Processor and Resistive 5-wire Touch 17" TFT-LCD SXGA 5:4 Modular Touch Panel PC CV-117C/P1101-N42 with Intel®...
  • Page 13 21.5" TFT-LCD Full HD 16:9 Modular Touch Panel PC CV-W121R/P1101-E50 with Intel® Atom® E3950 Quad Core Processor and Resistive 5-wire Touch 21.5" TFT-LCD Full HD 16:9 Modular Touch Panel PC CV-W121C/P1101-N42 with Intel® Pentium® N4200 Quad Core Processor and P-Cap. Touch 21.5"...
  • Page 14 24" TFT-LCD Full HD 16:9 Modular Panel PC with Intel® Atom™ E3950 Quad Core Processor and CV-W124G/P1101-E50 without Touch 24" TFT-LCD Full HD 16:9 Modular Panel PC with Intel® Pentium™ N4200 Quad Core Processor and CV-W124G/P1101-N42 without Touch P1100 Series | User Manual CV-100/...

  • Page 15: Chapter 1 Product Introductions

    Chapter 1 Product Introductions P1100 Series | User Manual CV-100/...

  • Page 16: Overview

    Pentium® processor and supports triple independent displays (via VGA and DisplayPort outputs). CV-100/P1100 Series features extensive connectivity including 2x GbE, 4x USB 3.0, 4x COM, and 8x isolated DIO. It also offers 2x full size Mini-PCIe socket and 1x SIM socket for a variety of wireless data connections.

  • Page 17: Product Pictures

    1.3 Product pictures 1.4 Key Features ⚫ 8.4” ~ 24” TFT LCD with Resistive 5-wire Touch, Projected Capacitive Touch or Glass Only (Available on Selected Models) ® ® ⚫ Onboard Intel® Atom / Pentium Processor ⚫ Triple Independent Displays (via VGA and DisplayPort outputs) ⚫...

  • Page 18: Hardware Specification

    1.5 Hardware Specification 1.5.1 CV-108/P1100 The table on this page refers to the specifications of CV-108 alone Model Name CV-108R CV-108C Display • 8.4" (4:3) LCD Size • 800 x 600 Max. Resolution • 400 Brightness( cd/m2) • 600 : 1 Contract Ratio •...
  • Page 19 Model Name P1101 System Processor • Onboard Intel® Atom® x7-E3950 Quad Core Processor, up to 2.00 GHz • Onboard Intel® Pentium® N4200 Quad Core Processor, up to 2.50 GHz Memory • 1x DDR3L 1333/1600/1866 MHz 204-Pin SO-DIMM Socket • Support up to 8 GB (un-buffered and non-ECC) Graphics Graphics Engine •...
  • Page 20 Model Name P1101 Other Function • Support 0.2sec Instant Reboot • Software Programmable Supports 256 Levels System Reset Watchdog Timer • AMP 2W + 2W Internal Speaker • LCD On/Off, Brightness Up, Brightness Down OSD Function Power • Support AT, ATX Mode AT/ATX Power •...
  • Page 21 Dimension CV-108/P1101 Unit: mm P1100 Series | User Manual CV-100/...

  • Page 22: Cv-110/P1100

    1.5.2 CV-110/P1100 The table on this page refers to the specifications of CV-110 alone Model Name CV-110R CV-110C Display • 10.4" (4:3) LCD Size • 800 x 600 Max. Resolution • 400 Brightness( cd/m2) • 700 : 1 Contract Ratio •...
  • Page 23 Model Name P1101 System Processor • Onboard Intel® Atom® x7-E3950 Quad Core Processor, up to 2.00 GHz • Onboard Intel® Pentium® N4200 Quad Core Processor, up to 2.50 GHz Memory • 1x DDR3L 1333/1600/1866 MHz 204-Pin SO-DIMM Socket • Support up to 8 GB (un-buffered and non-ECC) Graphics Graphics Engine •...
  • Page 24 Model Name P1101 Other Function • Support 0.2sec Instant Reboot • Software Programmable Supports 256 Levels System Reset Watchdog Timer • AMP 2W + 2W Internal Speaker • LCD On/Off, Brightness Up, Brightness Down OSD Function Power • Support AT, ATX Mode AT/ATX Power •...
  • Page 25 Dimension CV-110/P1101 Unit: mm P1100 Series | User Manual CV-100/...

  • Page 26: Cv-110H/P1100

    1.5.3 CV-110H/P1100 The table on this page refers to the specifications of CV-110H alone Model Name CV-110HR CV-110HC Display • 10.4" (4:3) LCD Size • Max. Resolution 1024 x 768 • 400 Brightness( cd/m2) • Contract Ratio 1400 : 1 •...
  • Page 27 Model Name P1101 System Processor • Onboard Intel® Atom® x7-E3950 Quad Core Processor, up to 2.00 GHz • Onboard Intel® Pentium® N4200 Quad Core Processor, up to 2.50 GHz Memory • 1x DDR3L 1333/1600/1866 MHz 204-Pin SO-DIMM Socket • Support up to 8 GB (un-buffered and non-ECC) Graphics Graphics Engine •...
  • Page 28 Model Name P1101 Other Function • Support 0.2sec Instant Reboot • Software Programmable Supports 256 Levels System Reset Watchdog Timer • AMP 2W + 2W Internal Speaker • LCD On/Off, Brightness Up, Brightness Down OSD Function Power • Support AT, ATX Mode AT/ATX Power •...
  • Page 29 Dimension CV-110H/P1101 Unit: mm P1100 Series | User Manual CV-100/...

  • Page 30: Cv-112H/P1100

    1.5.3 CV-112H/P1100 The table on this page refers to the specifications of CV-112H alone Model Name CV-112HR CV-112HC Display • 12.1" (4:3) LCD Size • Max. Resolution 1024 x 768 • 500 Brightness( cd/m2) • Contract Ratio 700 : 1 •...
  • Page 31 Model Name P1101 System Processor • Onboard Intel® Atom® x7-E3950 Quad Core Processor, up to 2.00 GHz • Onboard Intel® Pentium® N4200 Quad Core Processor, up to 2.50 GHz Memory • 1x DDR3L 1333/1600/1866 MHz 204-Pin SO-DIMM Socket • Support up to 8 GB (un-buffered and non-ECC) Graphics Graphics Engine •...
  • Page 32 Model Name P1101 Other Function • Support 0.2sec Instant Reboot • Software Programmable Supports 256 Levels System Reset Watchdog Timer • AMP 2W + 2W Internal Speaker • LCD On/Off, Brightness Up, Brightness Down OSD Function Power • Support AT, ATX Mode AT/ATX Power •...
  • Page 33 Dimension CV-112H/P1101 Unit: mm P1100 Series | User Manual CV-100/...

  • Page 34: Cv-115/P1100

    1.5.4 CV-115/P1100 The table on this page refers to the specifications of CV-115 alone Model Name CV-115R CV-115C Display • 15" (4:3) LCD Size • Max. Resolution 1024 x 768 • 350 Brightness( cd/m2) • Contract Ratio 800 : 1 •...
  • Page 35 Model Name P1101 System Processor • Onboard Intel® Atom® x7-E3950 Quad Core Processor, up to 2.00 GHz • Onboard Intel® Pentium® N4200 Quad Core Processor, up to 2.50 GHz Memory • 1x DDR3L 1333/1600/1866 MHz 204-Pin SO-DIMM Socket • Support up to 8 GB (un-buffered and non-ECC) Graphics Graphics Engine •...
  • Page 36 Model Name P1101 Other Function • Support 0.2sec Instant Reboot • Software Programmable Supports 256 Levels System Reset Watchdog Timer • AMP 2W + 2W Internal Speaker • LCD On/Off, Brightness Up, Brightness Down OSD Function Power • Support AT, ATX Mode AT/ATX Power •...
  • Page 37 Dimension CV-115/P1101 Unit: mm P1100 Series | User Manual CV-100/...

  • Page 38: Cv-W115/P1100

    1.5.5 CV-W115/P1100 The table on this page refers to the specifications of CV-W115 alone Model Name CV-W115R CV-W115C Display • 15.6" (16:9) LCD Size • Max. Resolution 1366 x 768(WXGA) • 400 Brightness( cd/m2) • Contract Ratio 500 : 1 •...
  • Page 39 Model Name P1101 System Processor • Onboard Intel® Atom® x7-E3950 Quad Core Processor, up to 2.00 GHz • Onboard Intel® Pentium® N4200 Quad Core Processor, up to 2.50 GHz Memory • 1x DDR3L 1333/1600/1866 MHz 204-Pin SO-DIMM Socket • Support up to 8 GB (un-buffered and non-ECC) Graphics Graphics Engine •...
  • Page 40 Model Name P1101 Other Function • Support 0.2sec Instant Reboot • Software Programmable Supports 256 Levels System Reset Watchdog Timer • AMP 2W + 2W Internal Speaker • LCD On/Off, Brightness Up, Brightness Down OSD Function Power • Support AT, ATX Mode AT/ATX Power •...
  • Page 41 Dimension CV-W115/P1101 Unit: mm P1100 Series | User Manual CV-100/...

  • Page 42: Cv-117/P1100

    1.5.6 CV-117/P1100 The table on this page refers to the specifications of CV-117 alone Model Name CV-117R CV-117C CV-117G Display • 17" (5:4) LCD Size • Max. Resolution 1280 x 1024 • 350 Brightness( cd/m2) • Contract Ratio 800 : 1 •...
  • Page 43 Model Name P1101 System Processor • Onboard Intel® Atom® x7-E3950 Quad Core Processor, up to 2.00 GHz • Onboard Intel® Pentium® N4200 Quad Core Processor, up to 2.50 GHz Memory • 1x DDR3L 1333/1600/1866 MHz 204-Pin SO-DIMM Socket • Support up to 8 GB (un-buffered and non-ECC) Graphics Graphics Engine •...
  • Page 44 Model Name P1101 Other Function • Support 0.2sec Instant Reboot • Software Programmable Supports 256 Levels System Reset Watchdog Timer • AMP 2W + 2W Internal Speaker • LCD On/Off, Brightness Up, Brightness Down OSD Function Power • Support AT, ATX Mode AT/ATX Power •...
  • Page 45 Dimension CV-117/P1101 Unit: mm P1100 Series | User Manual CV-100/...

  • Page 46: Cv-119/P1100

    1.5.7 CV-119/P1100 The table on this page refers to the specifications of CV-119 alone Model Name CV-119R CV-119C CV-119G Display • 19" (5:4) LCD Size • Max. Resolution 1280 x 1024 • 350 Brightness( cd/m2) • Contract Ratio 1000 : 1 •...
  • Page 47 Model Name P1101 System Processor • Onboard Intel® Atom® x7-E3950 Quad Core Processor, up to 2.00 GHz • Onboard Intel® Pentium® N4200 Quad Core Processor, up to 2.50 GHz Memory • 1x DDR3L 1333/1600/1866 MHz 204-Pin SO-DIMM Socket • Support up to 8 GB (un-buffered and non-ECC) Graphics Graphics Engine •...
  • Page 48 Model Name P1101 Other Function • Support 0.2sec Instant Reboot • Software Programmable Supports 256 Levels System Reset Watchdog Timer • AMP 2W + 2W Internal Speaker • LCD On/Off, Brightness Up, Brightness Down OSD Function Power • Support AT, ATX Mode AT/ATX Power •...
  • Page 49 Dimension CV-119/P1101 Unit: mm P1100 Series | User Manual CV-100/...

  • Page 50: Cv-W121/P1100

    1.5.8 CV-W121/P1100 The table on this page refers to the specifications of CV-W121 alone Model Name CV-W121R CV-W121C CV-W121G Display • 21.5" (16:9) LCD Size • Max. Resolution 1920 x 1080 • 350 Brightness( cd/m2) • Contract Ratio 5000 : 1 •...
  • Page 51 Model Name P1101 System Processor • Onboard Intel® Atom® x7-E3950 Quad Core Processor, up to 2.00 GHz • Onboard Intel® Pentium® N4200 Quad Core Processor, up to 2.50 GHz Memory • 1x DDR3L 1333/1600/1866 MHz 204-Pin SO-DIMM Socket • Support up to 8 GB (un-buffered and non-ECC) Graphics Graphics Engine •...
  • Page 52 Model Name P1101 Other Function • Support 0.2sec Instant Reboot • Software Programmable Supports 256 Levels System Reset Watchdog Timer • AMP 2W + 2W Internal Speaker • LCD On/Off, Brightness Up, Brightness Down OSD Function Power • Support AT, ATX Mode AT/ATX Power •...
  • Page 53 Dimension CV-W121/P1101 Unit: mm P1100 Series | User Manual CV-100/...

  • Page 54: Cv-W124/P1100

    1.5.9 CV-W124/P1100 The table on this page refers to the specifications of CV-W124 alone Model Name CV-W124R CV-W124C CV-W124G Display • 24" (16:9) LCD Size • Max. Resolution 1920 x 1080 • 350 Brightness( cd/m2) • Contract Ratio 5000 : 1 •...
  • Page 55 Model Name P1101 System Processor • Onboard Intel® Atom® x7-E3950 Quad Core Processor, up to 2.00 GHz • Onboard Intel® Pentium® N4200 Quad Core Processor, up to 2.50 GHz Memory • 1x DDR3L 1333/1600/1866 MHz 204-Pin SO-DIMM Socket • Support up to 8 GB (un-buffered and non-ECC) Graphics Graphics Engine •...
  • Page 56 Model Name P1101 Other Function • Support 0.2sec Instant Reboot • Software Programmable Supports 256 Levels System Reset Watchdog Timer • AMP 2W + 2W Internal Speaker • LCD On/Off, Brightness Up, Brightness Down OSD Function Power • Support AT, ATX Mode AT/ATX Power •...
  • Page 57 Dimension CV-W124/P1101 Unit: mm P1100 Series | User Manual CV-100/...

  • Page 58: System I/O

    1.6 System I/O 1.6.1 Front Power On/Off Switch SIM Card Slot Press to power-on or power-off the system Used to inserts a SIM card Antenna Hole IGN Switch Used to install an antenna jack Used to set up IGN function Power LED 12 /24V Switch Indicates the power status of the system...

  • Page 59: Side (Right)

    1.6.3 Side (Right) Reset Button Decrease Brightness Used to reset the system Press to decrease brightness of the screen Temperature LED LCD On/Off Indicates the temperature of the system Press to turn-on or turn-off the display Antenna Hole USB 3.0 port Used to install an antenna jack Used to connect USB 3.0/2.0/1.1 device Increase Brightness...

  • Page 60: Top

    1.6.5 Top VESA Mounting Hole These are mounting holes for VESA mount (75x75mm and 100x100mm) P1100 Series | User Manual CV-100/...

  • Page 61: Chapter 2 Switches & Connectors

    Chapter 2 Switches & Connectors P1100 Series | User Manual CV-100/...

  • Page 62: Location Of Switches And Connectors

    2.1 Location of Switches and Connectors 2.1.1 Top View P1100 Series | User Manual CV-100/...

  • Page 63: Bottom View

    2.1.2 Bottom View P1100 Series | User Manual CV-100/...

  • Page 64: Switches And Connectors Definition

    2.2 Switches and Connectors Definition List of Switches & Connectors Location Definition AT_ATX AT / ATX Power Mode Switch CLR_CMOS Clear CMOS Switch RESET1 Reset Button BL_UP1 Backlight Increase Button BL_UP2 Backlight Decrease Button BL_PWR1 Backlight Power On / Off Button USB3_1 / USB3_2 / USB 3.0 Ports USB3_3...

  • Page 65: Definition Of Switches

    2.3 Definition of Switches AT_ATX: AT / ATX Power Mode Switch Switch Definition 1-2 (Left) AT Power Mode 2-3 (Right) ATX Power Mode (Default) CLR_CMOS: Clear CMOS Switch Switch Definition 1-2 (Left) Normal Status (Default) 2-3 (Right) Clear CMOS BL_PWR1: Backlight Power on / off Switch Definition Push...
  • Page 66 SW1: Super CAP SW / COM3~4 with Power Select Location Function DIP1 DIP2 Enabled ON (Default) Super Disabled Location Function DIP3 DIP4 0V (RI) ON (Default) ON (Default) COM3 Location Function DIP5 DIP6 0V (RI) ON (Default) ON (Default) COM4 SW2: COM1~2 with Power Select Location Function...

  • Page 67: Definition Of Connectors

    2.4 Definition of Connectors MINIPCIE1 : Mini PCI-Express Socket (Support SIM Card to Link feature) Pin Definition Definition Pin Definition WAKE# 37 RESERVED 3.3V 3.3V 38 USB_D+ 39 RESERVED PERST# 40 GND PERN0 (USB3RN0) / 41 3.3V SATARP0 1.5V 3.3V 42 NA PERP0 (USB3RP0) / CLKREQ#...
  • Page 68 MINIPCIE2 : Mini PCI-Express Socket (Support mSATA feature) Pin Definition Definition Pin Definition WAKE# 37 GND 3.3V 3.3V 38 USB_D+ 39 3.3V PERST# 40 GND PERN0 / SATARP0 41 3.3V 1.5V +3.3VAUX 42 NA CLKREQ# PERP0 / SATARN0 43 GND 44 NA 45 NA 10 NA...
  • Page 69 PWR_SW2: Remote Power On/Off Connector Definition PWR_SW Do not apply power to this connector! This port is used to connect a SWITCH! DC_IN1: DC Power Input Connector (+9~48V) Connector Type: Terminal Block 1x3 3-pin, 5.0mm pitch Definition +9~48V IN Ignition (IGN) Please disconnect the power source before mounting the DC power cables or connecting the DC power connector to system.
  • Page 70 COM1_1 / COM2_1 / COM3_1 / COM4_1: RS232 / RS422 / RS485 Connector Connector Type: 9-pin D-Sub RS422 / 485 RS485 RS232 Full Duplex Half Duplex Definition Definition Definition DATA - DATA + POWER1/ POWER2: Power Connector Connector Type: 1x4 4-pin Wafer, 2.0mm pitch Pin 1 Definition +12V...

  • Page 71: Chapter 3 System Setup

    Chapter 3 System Setup P1100 Series | User Manual CV-100/...

  • Page 72: Removing The Top Cover

    3.1 Removing the Top Cover 1. Loosen the 8 screws of front and rear panel, then place them aside. 2. Remove the cover from the chassis. Place the top cover gently. P1100 Series | User Manual CV-100/...

  • Page 73: Installing So-Dimm Memory

    3.2 Installing SO-DIMM Memory 1. Locate the SO-DIMM sockets. 2. Tilt the SO-DIMM module at a 45-degree angle and insert it to SO-DIMM socket until the gold-pated connector of module contacted firmly with the socket. 45° 3. Press the modules down until it’s fixed firmly by the two locking latches on each side. P1100 Series | User Manual CV-100/...

  • Page 74: Installing Mini-Pcie Cards

    3.3 Installing Mini-PCIe Cards (Applicable for full or half size card) Locate the Mini PCIe slot. Insert the Mini-PCIe card at a 45-degree angle and insert it to the slot until the gold-pated connector of module contacted firmly with the slot. 45°...

  • Page 75: Installing Antennas

    If you have a Half-size Mini-PCIe card, make sure use extender to make it Full-size as shown below. 3.4 Installing Antennas 1. Remove the antenna hole covers at front panel. 2. Have antenna jack penetrate through the hole. P1100 Series | User Manual CV-100/...
  • Page 76 3. Put on washer and fasten the nut with antenna jack. 4. Assemble the antenna and antenna jack together. 5. Attach the RF connector at another end of cable onto the module. P1100 Series | User Manual CV-100/...

  • Page 77: Installing Cpu Thermal Pad

    3.5 Installing CPU Thermal Pad 1. Place the thermal pad on the CPU heatsink. thermal pad Before assembling the system’s chassis cover, please make sure the protective film on the Thermal Pad has been removed! P1100 Series | User Manual CV-100/...

  • Page 78: Assembling The System

    3.6 Assembling the System 1. Put on the cover. 2. Fasten the 8 screws to fix the cover. P1100 Series | User Manual CV-100/...

  • Page 79: Installing A Sata Hard Drive

    3.7 Installing a SATA Hard Drive 1. Loosen 2 screws on front panel to remove cover plate. 2. Turn over the unit to have the bottom side face up and loosen 1 screw. 3. Pull out the HDD bracket. P1100 Series | User Manual CV-100/...
  • Page 80 4. Make the bottom side of the HDD face up, place the HDD bracket on it. Ensure the direction of bracket is correct and use 4 provided screws to assemble HDD and HDD bracket together. 5. Align the HDD bracket with the entrance of HDD bay. And insert the HDD bracket until the connector of HDD contact the SATA connector firmly.

  • Page 81: Installing A Sim Card

    3.8 Installing a SIM Card 1. Loosen 2 screws on front panel to remove cover plate. 2. SIM card slot is at the front panel of the system. 3. Insert the SIM card. P1100 Series | User Manual CV-100/...

  • Page 82: Connecting With Cv Display Module

    3.9 Connecting with CV Display Module 1. Locate the module connector slot. 2. Turn over the unit to have the bottom side face up, loosen the 2 screws of the module connector bracket. The photos show the male connector (on display module) and female connector (on PC module) P1100 Series | User Manual CV-100/...
  • Page 83 3. Connect the module. 4. Fasten the 6 screws to fix the PC module on the display module. P1100 Series | User Manual CV-100/...

  • Page 84: Vesa Mount Bracket

    3.10 VESA Mount Bracket The following picture indicates VESA mounting hole pattern on P1100 series, which is compliant with VESA mounting standard. 1. The following picture uses a panel PC (P1100 series +CV display module) as a demonstration. To attach the panel PC to a VESA stand, please fasten eight screws as indicated to fix it on the stand.

  • Page 85: Panel Mount

    3.11 Panel Mount 1. Accessories provided by Cincoze are as follows. P1100 Series | User Manual CV-100/...
  • Page 86 2. All mounting kits displayed are to be inserted into holes. 3. Installation preparation and steps. P1100 Series | User Manual CV-100/...
  • Page 87 P1100 Series | User Manual CV-100/...
  • Page 88 4. Apply all mount kits to the rest of holes. And you have completed the panel mount installation, as shown below. P1100 Series | User Manual CV-100/...

  • Page 89: Chapter 4 Bios Setup

    Chapter 4 BIOS Setup P1100 Series | User Manual CV-100/...

  • Page 90: Bios Introduction

    4.1 BIOS Introduction The BIOS (Basic Input/ Output System) is a program located on a Flash Memory on the motherboard. When you start the computer, the BIOS program will gain control. The BIOS first operates an auto-diagnostic test called POST (power on self-test) for all the necessary hardware, it detects the entire hardware device and configures the parameters of the hardware synchronization.

  • Page 91: Main Setup

    4.2 Main Setup Press <Del> to enter BIOS CMOS Setup Utility, the Main Menu (as shown below) will appears on the screen. Use arrow keys to move among the items and press <Enter> to accept or enter a sub-menu. 4.2.1 System Date Set the date.

  • Page 92: Advanced Setup

    4.3 Advanced Setup This section allows you to configure and improve your system and allows you to set up some system features according to your preference. 4.3.1 ACPI Settings ■ Enable ACPI Auto Configuration [Disabled] Enables or disables BIOS Advanced Configuration Power Interface® (ACPI) auto configuration.

  • Page 93: F81866 Super Io Configuration

    ■ ACPI Sleep State [S3 (Suspend to RAM)] Allows users to select the highest Advanced Configuration Power Interface® (ACPI) sleep state that system will enter when suspend button is pressed. [Suspend Disabled]: Disables entering suspend state. [S3 (suspend to RAM)]: Enables suspend to RAM state. ■...

  • Page 94: Hardware Monitor

    ❑ Serial Port [Enabled] Enables or disables serial port. ❑ Change Settings [Auto] Allows you to change the IO Address & IRQ settings of the specified serial port. ❑ Onboard Serial Port 1~6 Mode [RS232] Allows you to select Serial Port Mode. Configuration options: [RS232] [RS422/RS485 Full Duplex] [RS485 Half Duplex] ■...

  • Page 95: S5 Rtc Wake Settings

    4.3.4 S5 RTC Wake Settings ■ Wake system from S5 [Disabled] Enables or disables wake system from S5 (soft-off state). [Disabled]: Disables wake system from S5. [Fixed Time]: Sets a fixed time (HH:MM:SS) to wake system from S5. [Dynamic Time]: Sets an increase minute(s) from current time to wake system from S5. 4.3.5 Serial Port Console Redirection ■...

  • Page 96: Cpu Configuration

    4.3.6 CPU Configuration ■ Socket 0 CPU Information This section provides information on your CPU, frequency, and cache memory. ■ Active Processor Cores [Enabled] Number of cores to enable in each processor package. ■ Intel Virtualization Technology [Enabled] Enables or disables Intel Virtualization Technology. Virtualization enhanced by Intel Virtualization Technology will allow a platform to run multiple operating systems and applications in independent partitions.

  • Page 97: Csm Configuration

    ■ Network Stack [Disabled] Enables or disables UEFI Network Stack. 4.3.8 CSM Configuration This option controls legacy/UEFI ROMs priority. ■ CSM Support [Disabled] Enables or disables compatibility support module. ■ Boot option filter [UEFI and Legacy] Allows you to select which type of operating system to boot. [UEFI and Legacy]: Allows booting from operating systems that support legacy option ROM or UEFI option ROM.

  • Page 98: Usb Configuration

    [Legacy]: Enables legacy option ROM only. ■ Other PCI devices [Do not launch] Allows users to determine option ROM execution policy for devise other than network, storage, or video. 4.3.9 USB Configuration ■ Legacy USB Support [Enabled] This item allows you to enable or disable legacy USB support. When set to [Auto], legacy USB support will be disabled automatically if no USB devices are connected.

  • Page 99: Chipset Setup

    4.4 Chipset Setup This section allows you to configure chipset related settings according to user’s preference. 4.4.1 North Bridge This section provides information on the installed memory size and memory/onboard graphics-related configuration options. P1100 Series | User Manual CV-100/...

  • Page 100: South Bridge

    4.4.2 South Bridge ■ OS Selection [Windows] Allows you to configure Operating System version to install. Configuration options: [Windows] [Intel Linux] ■ Mini PCIE2/mSATA Switch [Mini PCIE] Allows you to change Mini PCIE2 as [Mini PCIE] or [mSATA]. ■ Amplifier Function [Enabled] Enables or disables Amplifier Function.

  • Page 101: South Cluster Configuration

    4.4.3 South Cluster Configuration ■ PCI Express Configuration PCI Express Root Port 5 (MiniPcie2) ❑ PCI Express Root Port 5 (MiniPcie2) [Enabled] Enables or disables PCI Express Root Port. ❑ PCIe Speed [Auto] Allows you to select PCI Express port speed. Configuration options: [Auto] [Gen1] [Gen2].
  • Page 102 ❑ PCIe Speed [Auto] Allows you to select PCI Express port speed. Configuration options: [Auto] [Gen1] [Gen2]. ■ SATA Devices SATA Port 0 ❑ Port 0 [Enabled] Enables or disables SATA Port 0. SATA Port 1 Port 1 [Enabled] ❑ Enables or disables SATA Port 1.
  • Page 103 ❑ Restore AC Power Loss [Last state] Allows you to specify which power state system will enter when power is resumed after a power failure (G3 state). [Always on]: Enters to power on state. [Always off]: Enters to power off state. [Last state]: Enters to the last power state before a power failure sables.

  • Page 104: Security Setup

    4.5 Security Setup This section allows users to configure BIOS security settings. 4.5.1 Administrator Password Administrator Password controls access to the BIOS Setup utility. 4.5.2 User Password User Password controls access to the system at boot and to the BIOS Setup utility. P1100 Series | User Manual CV-100/...

  • Page 105: Boot Setup

    4.6 Boot Setup This section allows you to configure Boot settings. ■ Bootup NumLock State Allows you to set NumLock key to [On] or [Off] state when system boots up. ■ Quiet Boot Allows you to enable or disable Quiet Boot function. ■...

  • Page 106: Save & Exit

    4.7 Save & Exit ■ Save Changes and Reset This item allows you to reset the system after saving changes. ■ Discard Changes and Reset This item allows you to reset system setup without saving any changes. ■ Restore Defaults This item allows you to restore/ load default values for all the setup options.

  • Page 107: Chapter 5 Product Application

    Chapter 5 Product Application P1100 Series | User Manual CV-100/...

  • Page 108: Digital I/O (Dio) Application

    This section describes DIO application of the product. The content and application development are better understood and implemented by well experienced professionals or developers. 5.1.1 Digital I/O Programming Guide 5.1.1.1 Pins for Digital I/O of Cincoze P1101 series product Item Standard GPIO74 (Pin107)
  • Page 109 5.1.1.3 Relative Registers To program the F81866A configuration registers, see the following configuration procedures. P1100 Series | User Manual CV-100/...
  • Page 110 5.1.1.4 Sample Code in C Language 5.1.1.4.1 Control of GP74 to GP77 (DI1 ~ DI4) #define AddrPort 0x4E #define DataPort 0x4F <Enter the Extended Function Mode> WriteByte(AddrPort, 0x87) WriteByte(AddrPort, 0x87) // Must write twice to enter Extended mode <Select Logic Device> WriteByte(AddrPort, 0x07) WriteByte(dataPort, 0x06) // Select logic device 06h...
  • Page 111 5.1.1.4.2 Control of GP80 to GP83 (DO1 ~ DO4) #define AddrPort 0x4E #define DataPort 0x4F <Enter the Extended Function Mode> WriteByte(AddrPort, 0x87) WriteByte(AddrPort, 0x87) // Must write twice to enter Extended mode <Select Logic Device> WriteByte(AddrPort, 0x07) WriteByte(DataPort, 0x06) // Select logic device 06h <Output Mode Selection>...
  • Page 112 5.1.1.5 Change base address - DIO base address (Cincoze default 0xA00) <Enter the Extended Function Mode> WriteByte(AddrPort, 0x87) WriteByte(AddrPort, 0x87) // Must write twice to enter Extended mode <Select Logic Device> WriteByte(AddrPort, 0x07) WriteByte(dataPort, 0x06) // Select logic device 06h...
  • Page 113 5.1.1.6 DATA Bit Table (DIO) 7 6 5 4 3 2 1 0 7 6 5 4 3 2 1 0 = DI1 = DO1 0 0 0 1 - - - - value - - - - 0 0 0 1 value 7 6 5 4 3 2 1 0 7 6 5 4 3 2 1 0...

  • Page 114: Digital I/O (Dio) Hardware Specification

    5.2 Digital I/O (DIO) Hardware Specification XCOM+: Isolated power in V+ ⚫ XCOM-: Isolated power in V- ⚫ Isolated power in DC voltage: 9~30V ⚫ 4x Digital Input (Source Type) ⚫ Input Signal Voltage Level ⚫ Signal Logic 0: XCOM+ = 9V, Signal Low <...
  • Page 115 P1100 Series | User Manual CV-100/...

  • Page 116: Chapter 6 Optional Modules And Accessories

    Chapter 6 Optional Modules and Accessories Pin Definitions and Settings P1100 Series | User Manual CV-100/...

  • Page 117: Location Of The Connectors And Switches

    6.1 Location of the Connectors and Switches Model No. Description CFM Module with Power Ignition Sensing Control Function, CFM-IGN101 12V/24V Selectable CFM-PoE02 CFM Module with PoE Control Function, Individual Port 25.5W 6.2 Installing a CFM-IGN Module 1. Locate the IGN connector on system motherboard as indicated. 2.
  • Page 118 3. Loosen 2 screws on front panel to remove cover plate. 4. IGN function switch is at the front panel of the system. SW2: IGN Function Switch Set shutdown delay timer when ACC is turned off Pin 1 Pin 2 Pin 3 Pin 4 Definition...
  • Page 119 6.3 Installing a CFM-PoE Module 1. Locate the PoE connector on system motherboard as indicated. 2. Insert the female connector of CFM-PoE module to the male connector on system motherboard. 3. Turn over the heatsink and paste the thermal pad onto the marked by red squares. Before putting on the thermal block (in the next step), please make sure the protective film on the Thermal Pad has been removed! P1100 Series | User Manual...
  • Page 120 4. Paste the heatsink onto the CFM-PoE module carefully and fasten 2 screws to fix it. 5. Paste the thermal pads onto the heatsink and coil carefully. Before assembling the system’s chassis cover, please make sure the protective films on the Thermal Pads have been removed! 6.
  • Page 121 © 2020 Cincoze Co., Ltd. All rights reserved. The Cincoze logo is a registered trademark of Cincoze Co., Ltd. All other logos appearing in this catalog are the intellectual property of the respective company, product, or organization associated with the logo.
