INSTALLATION MANUAL

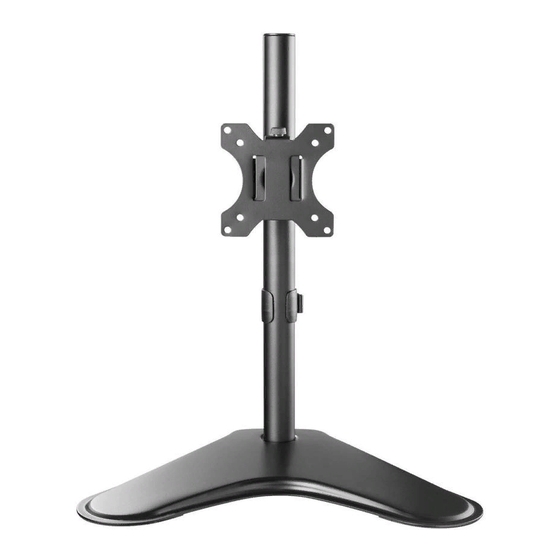

Single Monitor Desk Stand
MF001/MF001-W
Supplied Parts List
Pole Weighted Base
A (x1) B (x1)
1
Install the Pole A to the Weighted Base B using Bolts J and tighten with Allen Key 3mm I . A B
J
B
I
www.walielectric.com
support@walielectric.com
1-844-SATTLER (18447288537)
Monitor Arm VESA Plate
C (x1) D (x1)
J I
A
WARNING
！
If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a
qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may
cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
Do not exceed weight capacity. We cannot be liable for damage or injury caused by improper mounting, incorrect
assembly or inappropriate use.
TIPOVER WARNING
！
SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:
● NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR STAND.
● USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL.
USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIP OVER.
SMALL PARTS- NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
Nut M4x12 Bolt M4x30 Bolt
E (x1) F (x4) G (x4)
2
Put the Wire Clip K and Monitor Arm C through the Pole A , adjust the preferred height and tighten using Allen Key 5mm I .
M4~M6 Spacer Allen Key
H (x4) I (x1)
K C A
C
K
A
M5x14 Bolt Wire Clip
J (x3) K (x2)
I
I
