Wali MF002-W Installation Manual

INSTALLATION MANUAL

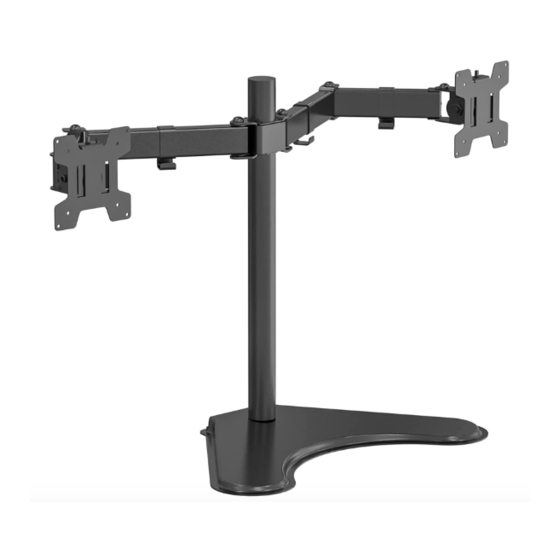

Dual Monitor Desk Mount
MF002-W

Supplied Parts List

Pole Weighted Base
a (x1) b (x1)
Spring Washer
Grommet Base Plate
l (x1)
m (x1)
2

Option A : Weighted Base Installation

1a. Install the Pole a to the weighted Base b using 3pcs M5x14 Bolts e , and tighten
a b
with the Allen key 3mm o .
a
e
o
www.walielectric.com
support@walielectric.com
1-844-SATTLER (18447288537)
75x75\100x100
Swivel Arm VESA Plate
c (x1) d (x2)
Wire Clip Wire Clip
n1 (x1) n2 (x4)
1b. Optionally, you can drill a 10mm diameter hole in your desk and secure using the
e
Support Plate j , M10 Washer k , Spring Washer
provided Wrench p . p
b

WARNING

！
If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a
qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may
cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
Do not exceed weight capacity. We cannot be liable for damage or injury caused by improper mounting, incorrect
assembly or inappropriate use.

TIPOVER WARNING

！
SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:
● NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR STAND.
RATED
● USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL.
(10kg/22lbs)x2
USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIP OVER.
SMALL PARTS- NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
M5x14 Bolt
e (x3)
Allen Key
o (x1)
and M10 Bolt i . Fasten M10 Bolt with i
k l
j
k
l
i
p
Nut M10 Bolt
h (x2) i (x1)
Wrench M4x12 Bolt
p (x1) q (x8)

Option B : Grommet Base Installation

I. Place Pole a onto Grommet Base Plate m . Connect them from the bottom using M5x14 Bolt a
and tighten with Allen Key 3mm
ø 10mm
(ø 3/8 ")
o
M10 Washer
Support Plate
k (x1)
j (x1)
M4x30 Bolt M4 Spacer
r (x8) s (x8)
m
o .
a
m
e
e
