Wali MF002LM Installation Manual

INSTALLATION MANUAL

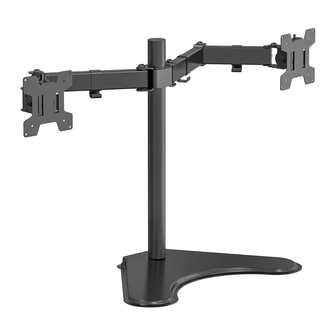

Dual Monitor Desk Mount
MF002LM
Supplied Parts List
VESA Plate
A (x2) B (x1)
V-Shape Base Pole
C (x1) D (x1)
1
Press Pole Cover E into the top of Pole D .
D
Tool Holder
Arm
F (x1)
Allen Key 4mm
Pole Cover
J (x1)
E (x1)
2
Install the Pole D
Allen Key 4 mm J
E
I
J
WARNING
！
www.walielectric.com
If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a
qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may
support@walielectric.com
cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
Do not exceed weight capacity. We cannot be liable for damage or injury caused by improper mounting, incorrect
assembly or inappropriate use.
1-844-SATTLER (18447288537)
TIPOVER WARNING
！
SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:
● NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR STAND.
RATED
● USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL.
(8kg/17.6lbs)x2
USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIP OVER.
75x75\100x100
SMALL PARTS- NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
Nut M3x7 Bolt M6x13 Bolt
G (x2) H (x2)
Allen Key 6mm Allen Key 5mm
K (x1) L (x1)
to the V-Shape Base C using M6x13 Bolts I and tighten with
.
D
C
M4x12 Bolt M4x16 Bolt
M-A (x8) M-B (x8)
I (x3)
3
Put the Tool Holder F and Arm B
Allen Key 6mm K .
K
M5x12 Bolt M5x16 Bolt D5 Washer Spacer
M-C (x8) M-D (x8) M-E (x8) M-F (x8)
through the Pole D , adjust the preferred height and tighten using
B
F
D
