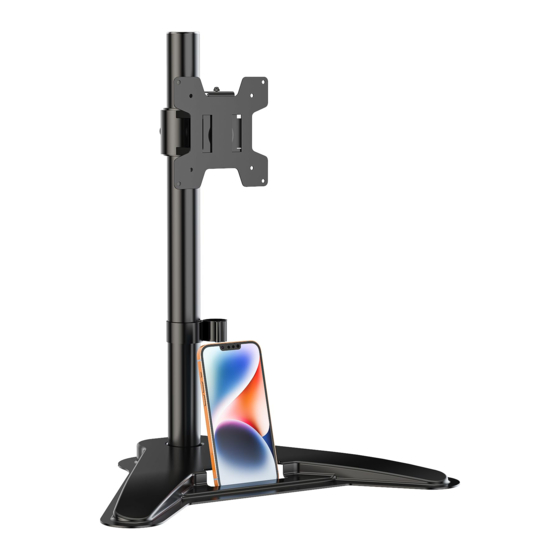

- Page 1 Single Monitor Desk Stand MF001-P 32’’ 10kg 75x75/100x100 (22lbs) RATED support@walielectric.com...
- Page 3 Supplied Parts List VESA Plate Monitor Arm Weighted Base Pole A (x1) B (x1) C (x1) D (x1) Bolt Allen Key 3mm Allen Key 5mm E (x3) F (x1) G (x1) H (x1) Allen Key 6mm Wire Clip M4x12 Bolt M4x16 Bolt I (x1) J (x1)
- Page 4 Step 1 Install the Pole to the Weighted Base using Bolts and tighten with Allen Key 3mm...
- Page 5 Step 2 Monitor Put the Wire Clip J and Arm B through the Pole D , adjust the preferred height and tighten using Allen Key 6mm I .
- Page 6 Step 3 Step 3.1 Step 3.2 Select TV Screws Select Spacers ( if needed ) Step 3.3a Step 3.3b Flat Back Monitor Curved Back Monitor Select M4x16 Bolt or M5x16 Bolt Select M4x12 Bolt or M5x12 Bolt according to your TV/Monitor, connect VESA Plate according to your TV/Monitor, connect VESA Plate together with D5 Washer into the mounting...
- Page 7 Step 4 Monitor Put the assembled TV/Monitor onto the Arm B and ensure stability, tighten the VESA Plate A using Nut f .
- Page 8 Step 5 Tighten or loosen tilt joint using Allen Key 5mm Step 6 Guide the cable through the Wire Clip...
- Page 9 Step 7 Store the Allen Keys in the Wire Clip Step 8 Manually swivel, tilt or rotate the angle for the best operating environment.
