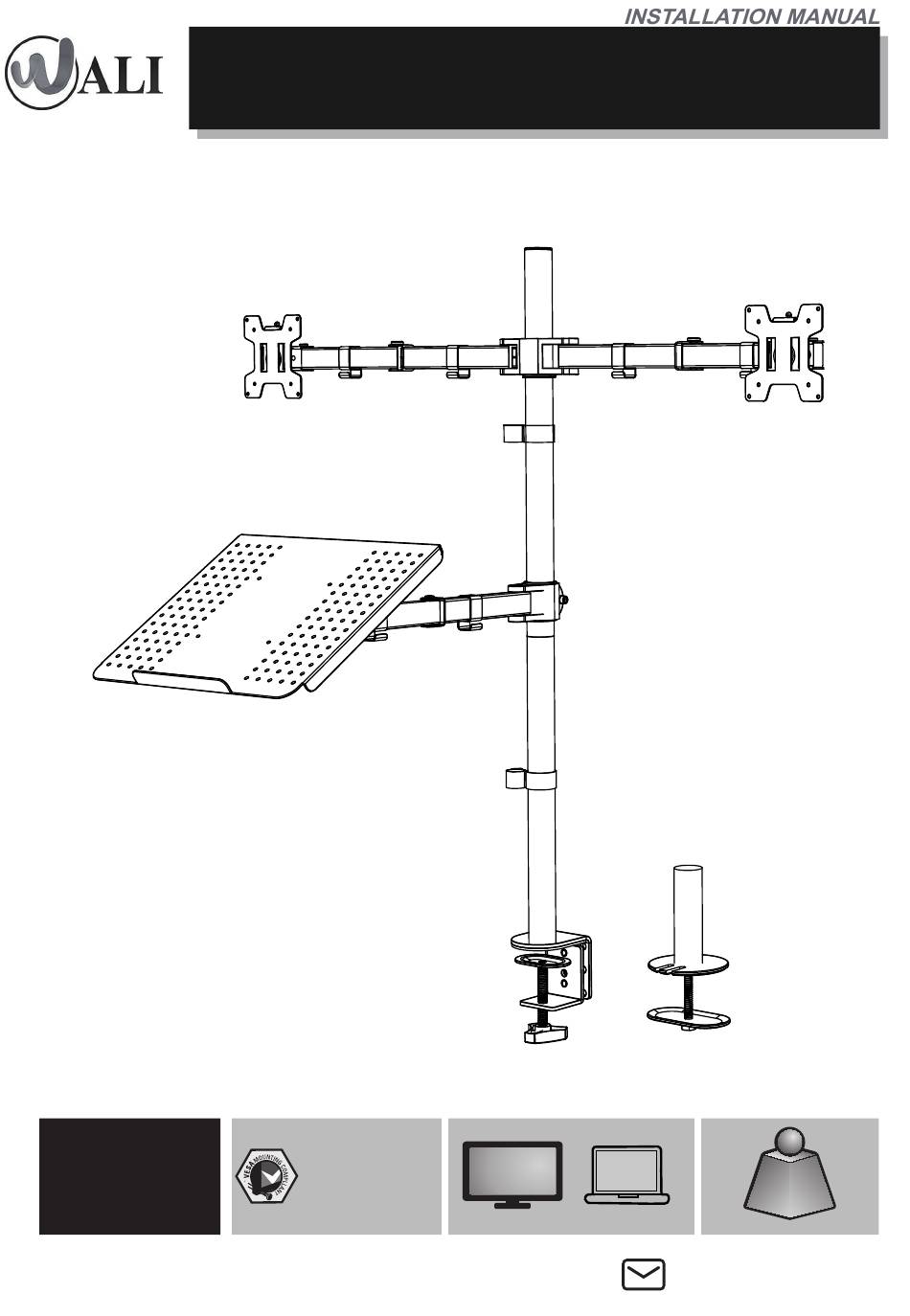

- Page 1 Dual Desk Mount with Laptop Tray M002XLLP 17’’ 27’’ 10kg 75x75/100x100 (22lbs) RATED support@walielectric.com...
- Page 3 Supplied Parts List Lower Pole Upper Pole C-Clamp C-Clamp Brace Swivel Arm a1 (x1) a2 (x1) b (x1) c (x1) d1 (x1) Swivel Arm VESA Plate M5x14 Bolt M8x12 Bolt d2 (x1) e (x3) f (x3) g (x2) h (x3) M10 Bolt Support Plate M10 Washer...
-
Page 4: Pre-Assembly
Step 1 Pre-Assembly Loosen the screw on the Lower Pole a1 with Allen key 2mm o . Connect Lower Pole a1 to Upper Pole a2 and tighten the screw with Allen key 2mm o to fix the two poles. - Page 5 Step 2 Option A : Clamp Installation 1. Connect Pole a and C-Clamp Brace c from the bottom using M5x14 Bolt f and tighten with Allen Key 3mm o . 2. Select the preferred height according to your desk thickness. Connect C-Clamp b to C-Clamp Brace c using M8x12 Bolt g and tighten with Allen Key 5mm o .
- Page 6 Option B : Grommet Base Installation 1. Place Pole a onto Grommet Base Plate m . Connect them from the bottom using M5x14 Bolt and tighten with Allen Key 3mm...
- Page 7 2a. Existing Grommet Hole Installation If the existing grommet hole comes with a plastic protector, remove it to ensure a flat surface before installing the desk mount. Position the Pole a on the mounting surface and secure using the Support Plate j , M10 Washer k , Spring Washer l , and M10 Bolt i .
- Page 8 Step 3 Put the Wire Clip n1 and Swivel Arm d through the Pole a , adjust the preferred height and tighten using Allen Key 6mm o . Attach the Wire Clips n1 to the Swivel Arm d and d2 . Step 4 A: Laptop Tray Installation Using M4 X 10 Bolt u and M4 Nut v to attach the VESA Plate e to the laptop tray t and tighten with a...
- Page 9 B: Monitor Mount Installation Select bolts and spacers (if needed) according to your TV/Monitor. Attach the VESA Plate to the Monitor and tighten with a screwdriver. (Screwdriver not included) Step 4.1 Step 4.2 Select Monitor Screws Select Spacers ( if needed ) Only one screw size fits your Monitor M4x30 M4x12...
- Page 10 Step 5 Put the assembled TV/Monitor onto the Swivel Arm d and tighten the VESA Plate e with Nut h for stability. If one monitor is lower, remove the Nut h and turn the bolt counter-clockwise using Allen key 3mm o to raise the monitor. Tighten the VESA Plate e with Nut h for stability after the adjustment.
- Page 11 Step 6 Guide the cable through the Wire Clips ( n1, n2 ) and store the Allen Keys o in the Wire Clip n1 . Adjust the tilt angle using Allen Key 5mm n . Manually swivel, tilt, and rotate the monitor for the best viewing angle. 90°...
- Page 12 We support the technology that brings your home to life. We offer high quality products, professional customer service, and extensive technical support. If you have any questions,please contact us. support@walielectric.com 1-844-SATTLER (18447288537)
