Altronix TROVE PLUS T2HW7LXK1 Installation Manual page 4

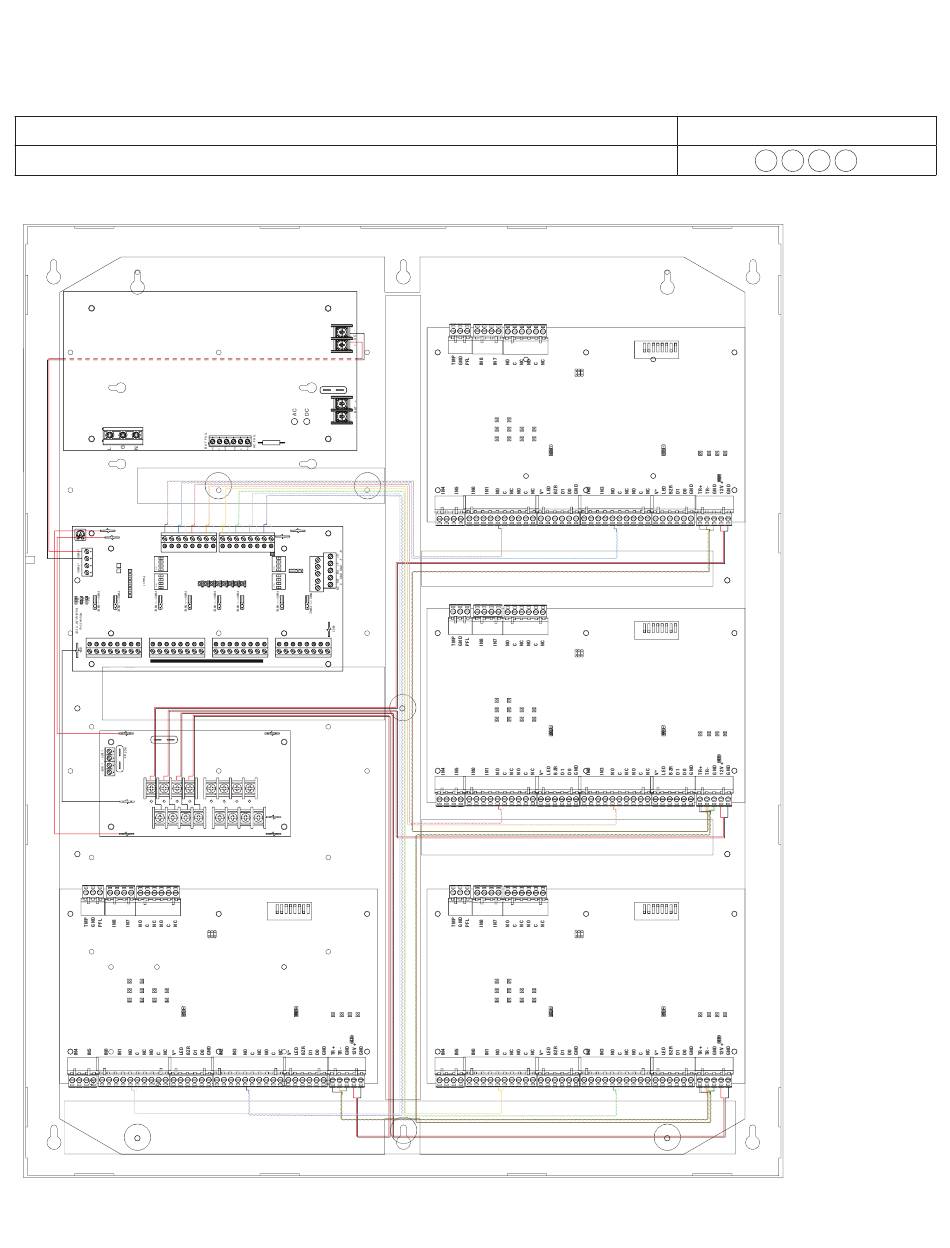

1. Position access controller module over corresponding spacers and depress onto snap on spacers (Fig. 3, pg. 4).
2. Mount backplane to enclosure with hardware.
Access Controller Position Chart for the Following Models:
Honeywell Access Controller
PW7K1R2 / PRO42R2
Fig. 3
AL1024ULXB2
PWR1+ + INP1 - + INP2 - + INP3 -
PWR2+
1
2
ACMS8
3
ACMS8CB 4
1
2
3
4
Power 2
INP Logic
NO <-- > NC
ACMS8(CB) with VR6 mounted below
RISK OF FIRE REPLACE FUSES WITH SAME TYPE AND RATING
Output 1 p Output 2 p Output 3 p Output 4 p
NO C NC COM NO C NC COM
NO C NC COM NO C NC COM
PWR1+ IN1 Fuse
P
OUT1 OUT2 OUT3 OUT4
COM(-)
N
PWR2+ 1 2 3
Common Power Outputs (NEG)
RELAY4 RELAY5
RELAY0 RELAY1 READER0
- 4 -
T2HW7LXK3(D) Configuration:
AC DELAY
+ INP4 - + INP5 - + INP6 - + INP7 - + INP8 -
PWR1+
PWR2+
FACP
FACP
1
2
3
4
EOL JMP
1
2
3
4
FACP
EN <-- > DIS
FACP
Output 5 p Output 6 p Output 7 p Output 8 p
NO C NC COM NO C NC COM NO C NC COM NO C NC COM
PWR1+
PDS8(CB)
P
OUT5 OUT6 OUT7 OUT8
N
COM(-)
4 5 6 7 8 PWR2+
(D) PW7K1R2
PRO42R2
RELAY2 RELAY3 READER1
RELAY4 RELAY5
(A) PW7K1R2
PRO42R2
RELAY0 RELAY1 READER0 RELAY2 RELAY3 READER1
RELAY4 RELAY5
(B) PW7K1R2
PRO42R2
RELAY0 RELAY1 READER0 RELAY2 RELAY3 READER1
RELAY4 RELAY5
(C) PW7K1R2
PRO42R2
RELAY0 RELAY1 READER0 RELAY2 RELAY3 READER1
Pem Mounting
A B C D
T2HW7LXK Kit Series Installation Guide
