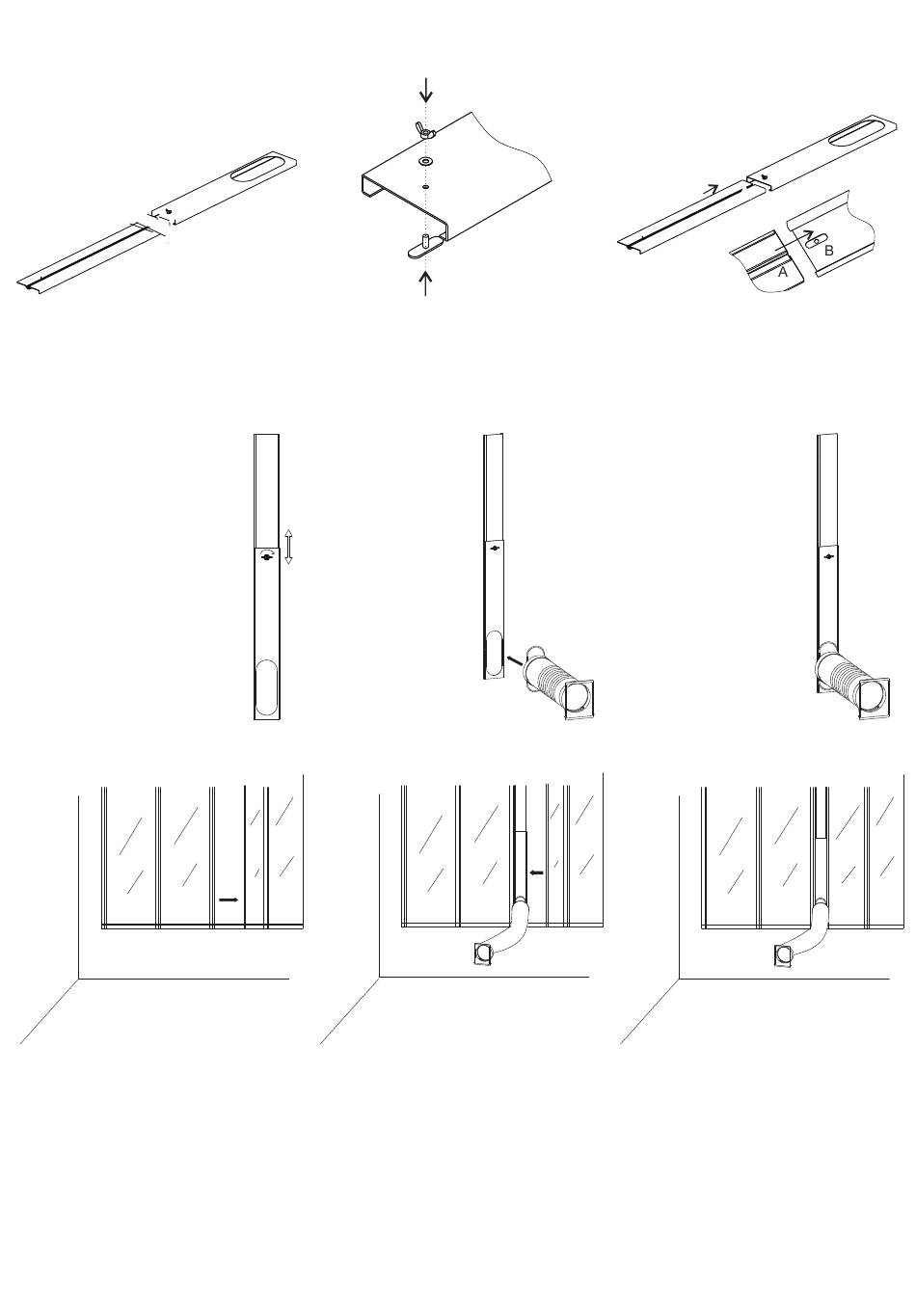

Install Window Kit
A
Fig. 1
1. Separate both boards A board,
and B board
4. Assembly finished,
you can adjust
A board up or
down,according to
height of the window.
Screw it unit it is tight.
Fig. 6
7. Open the window where need
install exhaust air duct, window
kit and their accessories.
B
2. Screw the wing nut through
the B board. Leave 2/3 mm of
free space.
5. Install
exhaust air
A
duct & its
accessories
into window
kit according
to arrowhead
direction.
B
Fig. 3
8. Install exhaust air duct,
window kit and their
accessories onto window,
then close the window
according to arrowhead
direction in Fig7 drawing to
press window kit tightly.
B
Fig. 4
Fig. 7
21
A
Fig. 2
3. Insert A board into B board
according to arrowhead
direction.
6. Assembly
finished.
Fig. 8
9. Install exhaust air duct, window
kit and their accessories onto
window according to Fig8
drawing illustrated.
B
Fig. 5
