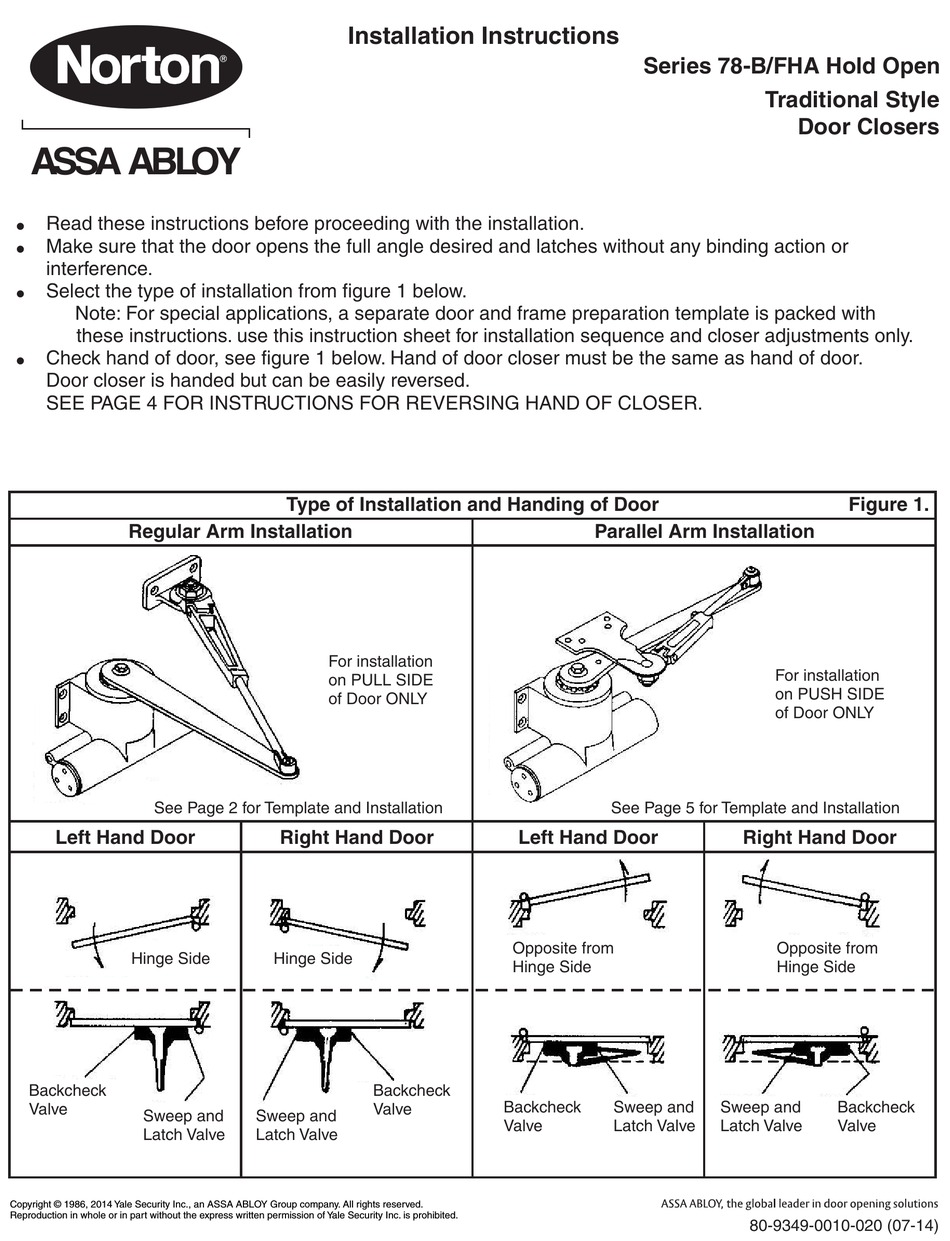

Assa Abloy 78PRA-8L Installation Instructions Manual

ASSA ABLOY
Read these instructions before proceeding with the installation.

Make sure that the door opens the full angle desired and latches without any binding action or

interference.
Select the type of installation from figure 1 below.

Note: For special applications, a separate door and frame preparation template is packed with
these instructions. use this instruction sheet for installation sequence and closer adjustments only.
Check hand of door, see figure 1 below. Hand of door closer must be the same as hand of door.

Door closer is handed but can be easily reversed.
SEE PAGE 4 FOR INSTRUCTIONS FOR REVERSING HAND OF CLOSER.
Regular Arm Installation
See Page 2 for Template and Installation
Left Hand Door
Hinge Side
Backcheck
Valve
Sweep and
Latch Valve
Copyright © 1986, 2014 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
Installation Instructions
Type of Installation and Handing of Door
For installation
on PULL SIDE
of Door ONLY
Right Hand Door
Hinge Side
Backcheck
Valve
Sweep and
Latch Valve
Series 78-B/FHA Hold Open
Parallel Arm Installation
See Page 5 for Template and Installation
Left Hand Door
Opposite from
Hinge Side
Backcheck Sweep and
Valve Latch Valve
1
ASSA ABLOY
Traditional Style
Door Closers
Figure 1.
For installation
on PUSH SIDE
of Door ONLY
Right Hand Door
Opposite from
Hinge Side
Sweep and Backcheck
Latch Valve Valve
80-9349-0010-020 (07-14)
