Assa Abloy 7220 Installation Instructions Manual

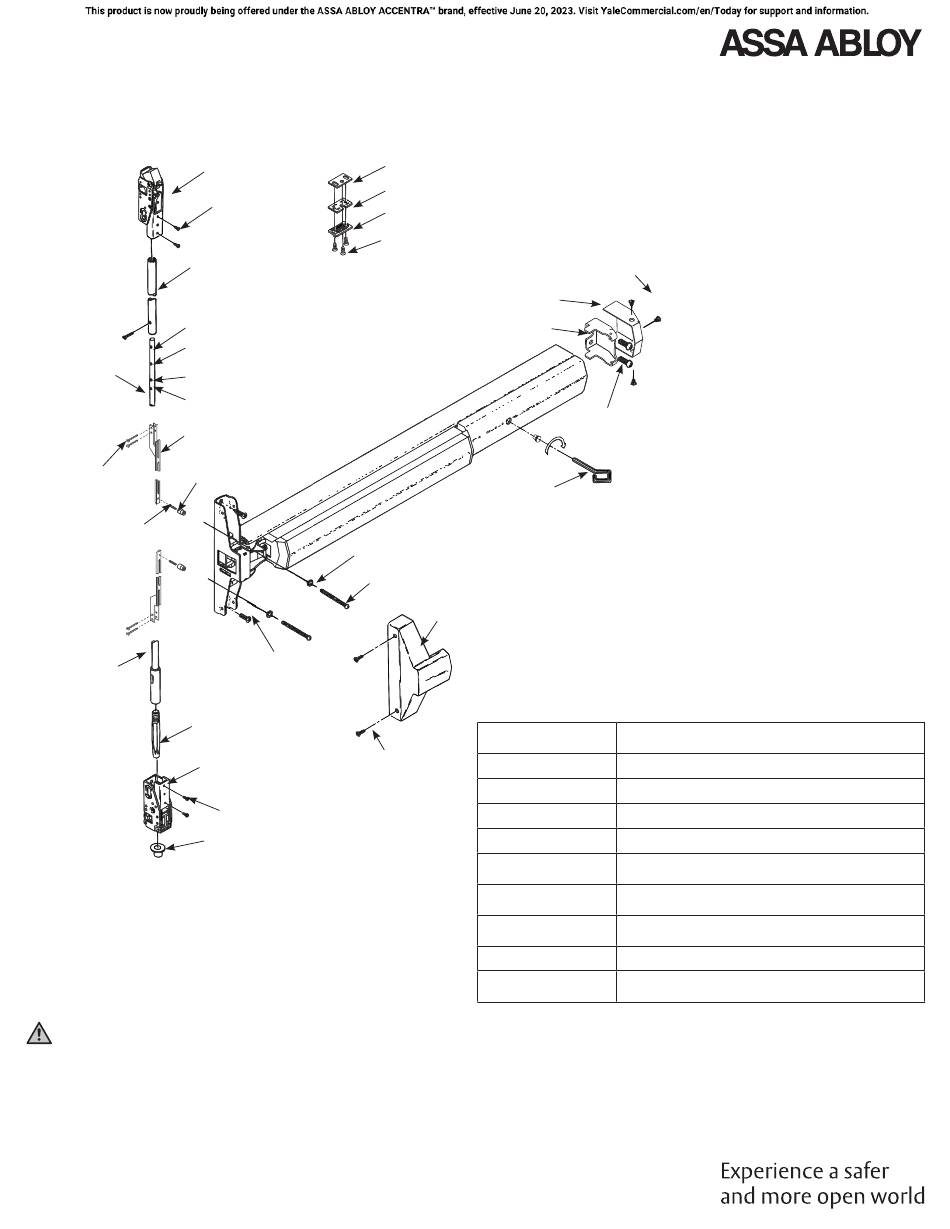

7220 Concealed Vertical Rod
Exit Device
Installation Instructions
Top Latch
Top Tube
8' (2.44m) Opening
7'6" (2.29m) Opening
Top Rod
7'2" (2.18m) Opening
7' (2.13m) Opening
(2) Arm & Bracket
Assembly
(2) Yoke Pin
(5) Cotter Pin
(2) Set Screw #8-32
Bottom Rod
Assembly
Deadbolt
Bottom Bolt Case
All dimensions are in inches (mm) unless otherwise noted.
WARNING
Attention Installer: Any retrofi t or other fi eld modifi cation to a fi re rated opening can potentially impact the fi re rating of the
opening, and Assa Abloy makes no representations or warranties concerning what such impact may be in any specifi c situation.
When retrofi tting any portion of an existing fi re-rated opening, or specifying and installing a new fi re-rated opening, please
consult with a code specialist or local code offi cial (Authority Having Jurisdiction) to ensure compliance with all applicable codes
and ratings.
1-800-438-1951 • www.assaabloy.com
Copyright © 1999, 2013, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
(2) 10-24 x
1/2" PRHMS
(3) 10-24 x 3/4" PFHMS
(2) E-Rings
(2) #8-32 UNC-2A X 2" PHSMS
(Assembly Aid)
(2) 1/4-20 X 1"
PRHMS
(Special Head)
(2) 8-32 x 5/16"
PFHUMS
(2) 10-24 x 1/2" PRHMS
790 Strike
Shim (2 supplied)
Strike Plate
791 Strike
End Cap
End Clamp
Dogging Key
Cover
ABBREVIATION
PPH"AB"SMS
PRHMS
PHSMS
PFHUMS
PFHMS
PRH"AB"SMS
PTH"AB"SMS PHILLIPS
PPHMS
PFH"AB"SMS
(3) 8-32 x 5/16"
PFHUMS
(2) 1/4-20 x 1"
PPHMS
Dogging
Feature to hold bolts retracted and
touchpad depressed, for push-pull
door operation.
To Dog Device
1. Insert dogging key.
2. Hold touchbar depressed.
3. Turn key 1/4 turn clockwise.
FASTENER DESCRIPTION
PHILLIPS PAN HEAD TYPE "AB" SHEET METAL SCREW
PHILLIPS ROUND HEAD MACHINE SCREW
PHILLIPS HEAD SHEET METAL SCREW
PHILLIPS FLAT HEAD UNDER CUT MACHINE SCREW
PHILLIPS FLAT HEAD MACHINE SCREW
PHILLIPS ROUND HEAD TYPE "AB" SHEET METAL SCREW
PHILLIPS TRUSS HEAD TYPE "AB" SHEET METAL SCREW
PHILLIPS PAN HEAD MACHINE SCREW
PHILLIPS FLAT HEAD TYPE "AB" SHEET METAL SCREW
80-9472-0020-000 10/23
