7580 Series Door Closer
Non Hold Open
Regular, Top Jamb and Parallel Arm
Installation Instructions
WARNING
This product can expose you to lead which is known to the state of
California to cause cancer and birth defects or other reproductive
harm. For more information go to www.P65warnings.ca.gov.
Note:
Left Hand Door - LH
Right Hand Reverse - RHR
Right Hand Door - RH
Left Hand Reverse - LHR
Right Hand Door - RH
Left Hand Reverse - LHR
Copyright © 2007, 2014, 2022, ASSA ABLOY Accessories and Door Controls Group, Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Accessories and Door Controls Group, Inc. is prohibited.
80-9377-1203-020 Rev 3 03/22
The closing force for series 7500 door closer is adjustable from a size 1 to a size 6, as outlined
in ANSI Standard A156.4. When this series of door closer is installed and adjusted to conform to
ADA reduced opening force requirements (5 lbs max.) for interior doors, it may not have adequate
closing force to reliably close and latch the door. Power adjustments charted on pages 3,4 and 5
are recommended where possible, to ensure proper door control.
Closer mounts on hinge (pull) side of door.
Closer mounts on frame face on opposite to hinge (push) side of door.
Closer mounts on opposite to hinge (push) side of door.
Multi Size 1-6
7580
J7580
P7580

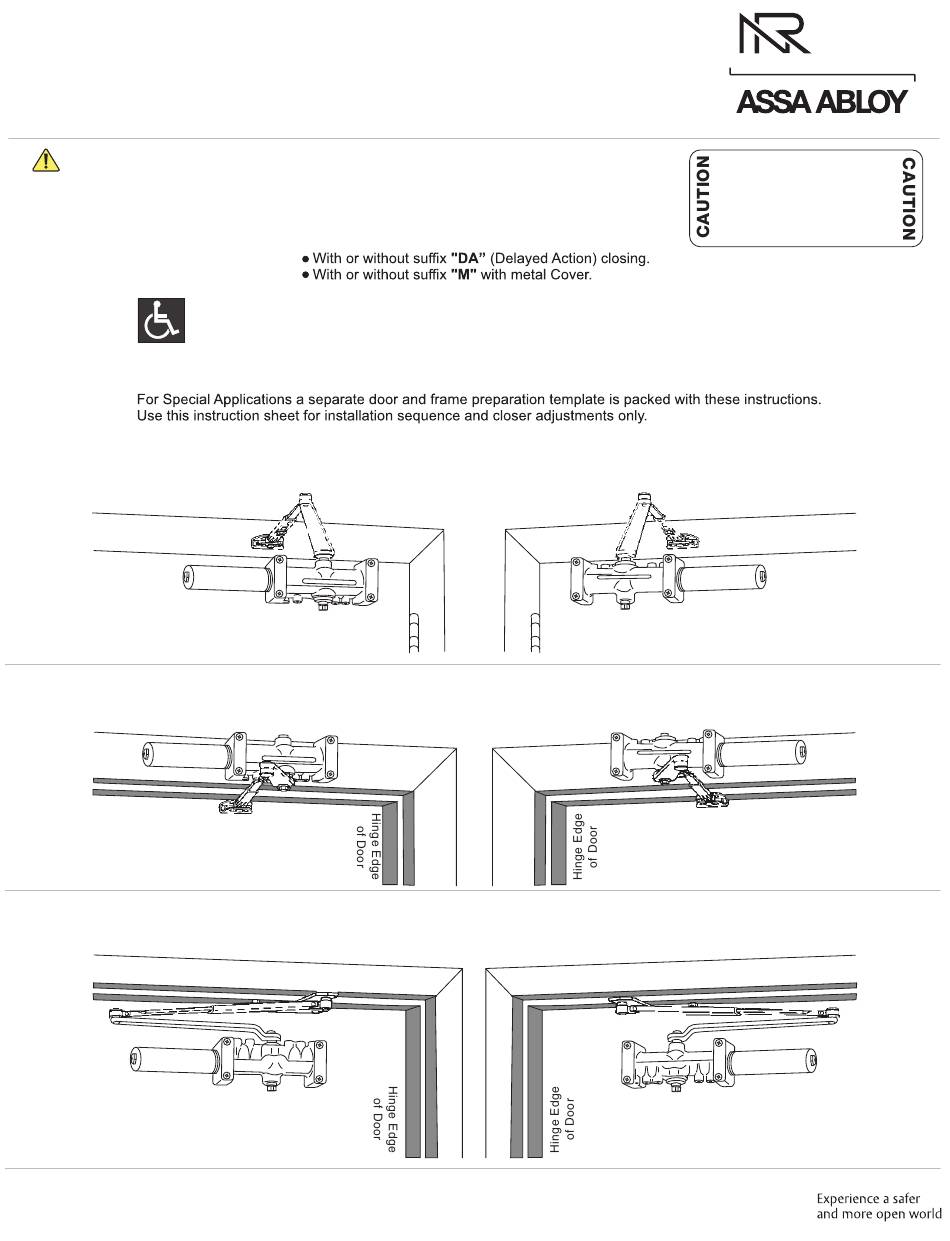

Regular Arm Installation
See Page 3.
Closer cover not shown
Top Jamb Installation
See Page 4.
Closer cover not shown
Parallel Arm Installation
See Page 5.
Closer cover not shown
NORTON
RIXSON
An incorrectly installed or improperly
adjusted door closer can cause
property damage or personal injury.
These instructions should be
followed to avoid the possibility of
misapplication or misadjustment.
Right Hand Door - RH
Left Hand Reverse - LHR
Left Hand Door - LH
Right Hand Reverse - RHR
Left Hand Door - LH
Right Hand Reverse - RHR
