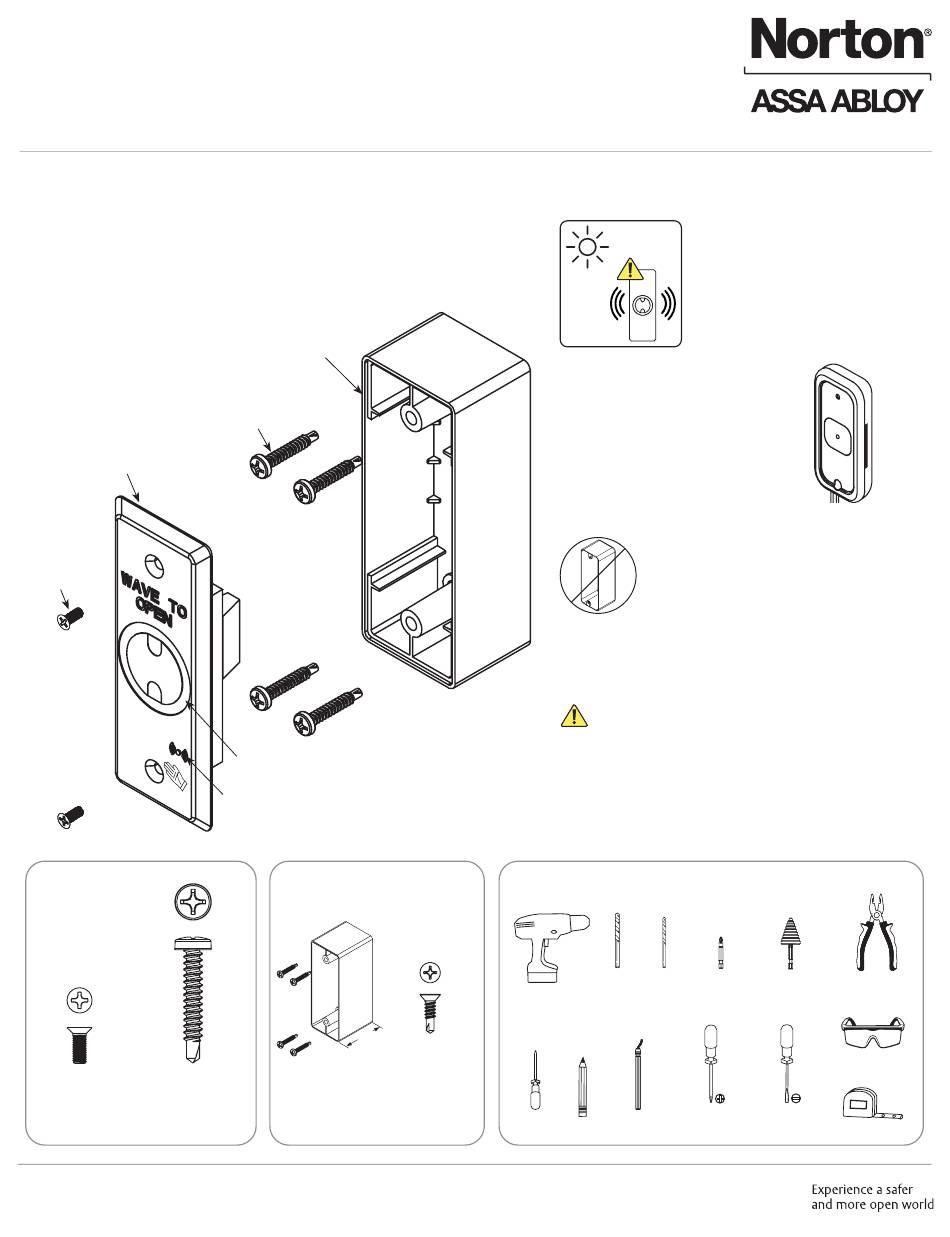

Assa Abloy Norton 704 Installation Instructions

Model 704 Wave to Open Switch
1-3/4" Wide Jamb Mounting
Installation Instructions
Specifications:
Input Voltage: 12V to24VDC
SPDT Contact Rating: 2A @30VAC/VDC
Sensor Detection Range: Up to 4" (101mm)
Operating Temperature: -13° F to 131°F (-25°C to 55°C)
Current Draw: 50mA @12VDC, 65mA @24VDC
(Conduit supplied by others)
Wave to Open
Switch
M3 Screws
Supplied Fasteners
2x 4x
M3 x 8.3mm #8
Philips Flat Head Phillips Round Head
Machine Screw Metal Drilling Screw
Copyright © 2020, ASSA ABLOY Accessories and Door Controls Group, Inc. All rights reserved. Reproduction in whole or
in part without the express written permission of ASSA ABLOY Accessories and Door Controls Group, Inc. is prohibited.
80-9370-0002-020 Rev 3 11/20
Conduit Housing
#8 Screws
LED
Manual Override
Button
Supplied By Others
2-1/4"
(57)
Min.
Plastic Housing
and Screws
when using RF
transmitter
Approved 2020-12-01
Norton Radio Frequency Transmitter
(P/N 548) is sold separately.
This product can expose you to lead which is known to
the state of California to cause cancer and birth defects
or other reproductive harm. For more information go to
www.P65warnings.ca.gov.
Tools Needed
Drill
2x
#6
Philips Flat Head
Drilling Screw
when not using
Center
conduit housing
Punch
Bright light like direct sunlight can
interfere with the Wave To Open signal.
Metal enclosures can reduce signal strength
and cause an intermittent or reduced signal
reception when using a radio frequency
L
T A
M E transmitter. To ensure proper function, do not
use metal conduit housing.
WARNING
1/8" 1/ 16 "
Phillips
Bit Bit Drive Bit
Deburring Phillips Head
Pencil Tool Screwdriver
Step Wire Stripper/
Bit Cutter
Safety Glasses
Flat Head
Tape Measure
Screwdriver
