Series PR1900 Non-Hold Open
Series PR1910 Hold Open
Parallel Rigid Arm
With 293S, 293L, 890, or 891 Soffit Plate Accessories
No. 1988 Drop Plate Optional
!
Read these instructions before proceeding with the installation.
!
Make sure that the door opens the full angle desired and latches without any binding action or
interference.
!
For special applications, a separate preparation template is packed with these instructions. Use this
instruction sheet for installation sequence and closer adjustment only.
!

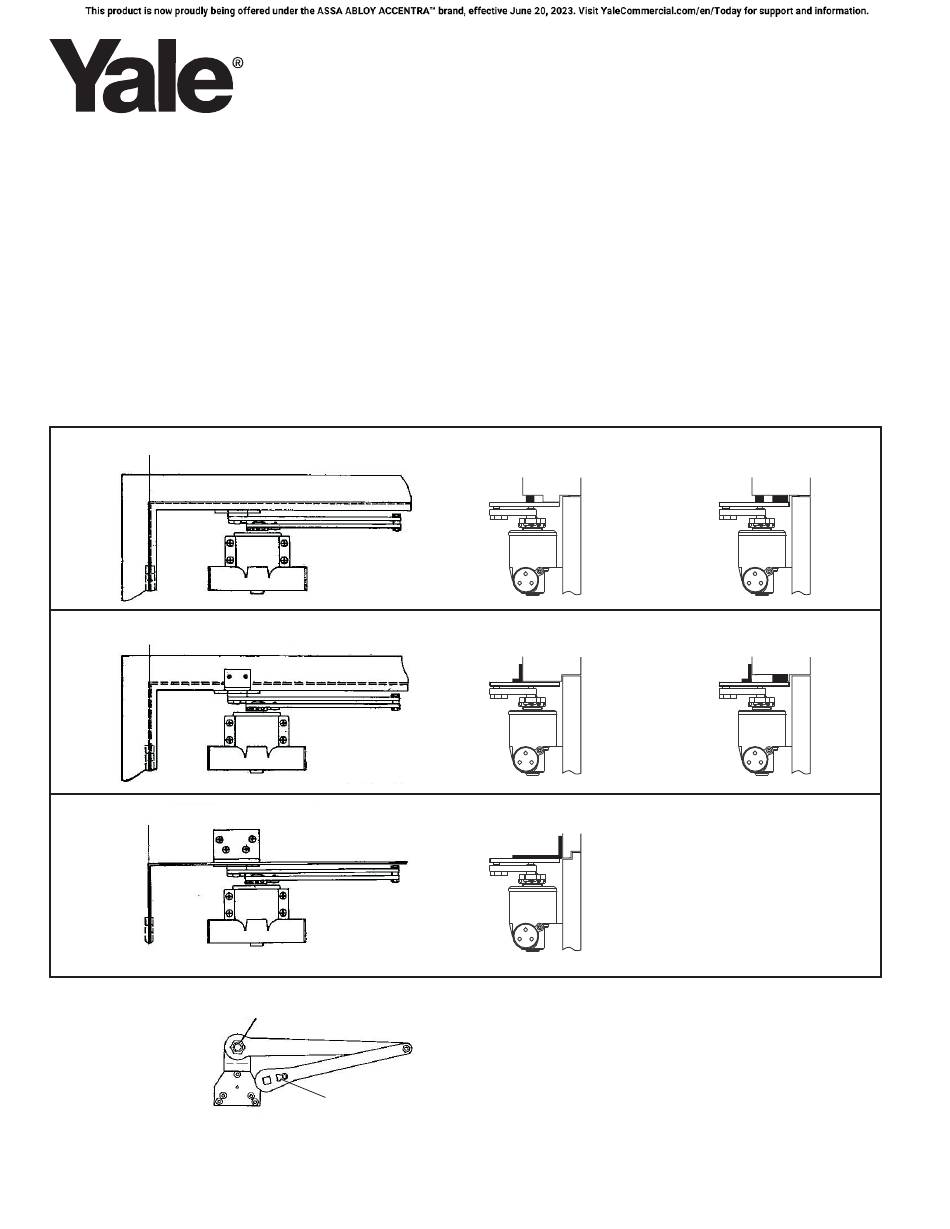

Select the type of installation from the following illustrations:
Standard Frame Mount
Narrow Frame Mount
Flush Frame Mount
Hold Open Arm
Installation Instructions
80-9319-0060-010 (06-09)
- See Page 3
- See Page 4
- See Page 5
Hold Open Adjustment Nut
Arm Dog
With 293S Block
or
With 890 Bracket
or
With 293L Bracket
Traditional Style
Door Closers
293S and 891 Blocks
890 Bracket and 891 Block
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Yale PR1900 Series
Summary of Contents for Yale PR1900 Series
- Page 1 Installation Instructions Traditional Style 80-9319-0060-010 (06-09) Door Closers Series PR1900 Non-Hold Open Series PR1910 Hold Open Parallel Rigid Arm With 293S, 293L, 890, or 891 Soffit Plate Accessories No. 1988 Drop Plate Optional Read these instructions before proceeding with the installation. Make sure that the door opens the full angle desired and latches without any binding action or interference.
- Page 2 Check hand of door. Hand of door closer must be the same as hand of door. Door closer is handed but can be easily reversed. SEE BELOW FOR INSTRUCTIONS FOR REVERSING HAND OF CLOSER. Hold open arms are handed and cannot be reversed. Hand of Door Figure 1.
- Page 3 Standard Frame Template Frame Preparation Standard Mount 293 Soffit Plate 5/8 Ref. (16) Blade Stop Mount 293 Soffit Plate 293S Block 891 Block No. 1988 Drop Plate Door Preparation Mounting Holes Only Left Hand Door Shown Same dimensions apply for Right Hand Door measured from centerline of pivot point.
- Page 4 Narrow Frame Template Narrow Frame Mount 2 to 2-3/4 (51 to 70) 890 Bracket 293 Soffit Plate Blade Stop Mount Note: For Blade Stop Mounting only. 2 to 2-3/4 5/8 Ref. Prepare 2 holes for 890 (51 to 70) bracket after installing (16) 891 block.
- Page 5 Flush Frame Template 293L Bracket 293 Soffit Plate No. 1988 Drop Plate Mounting Holes Only Left Hand Door Shown Same dimensions apply for Right Hand Door measured from centerline of pivot point. Dimensions are in inches (mm). Do not scale drawing Preparation for Fasteners Installation Sequence 1.
- Page 6 Yale ® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company. Tel: (800)-438-1951 • Fax: (800)-338-0965 Copyright © 1980, 2009, Yale Security Inc., an ASSA ABLOY Group company. All rights reserved. www.yalecommercial.com Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
