The world's favourite lock
™

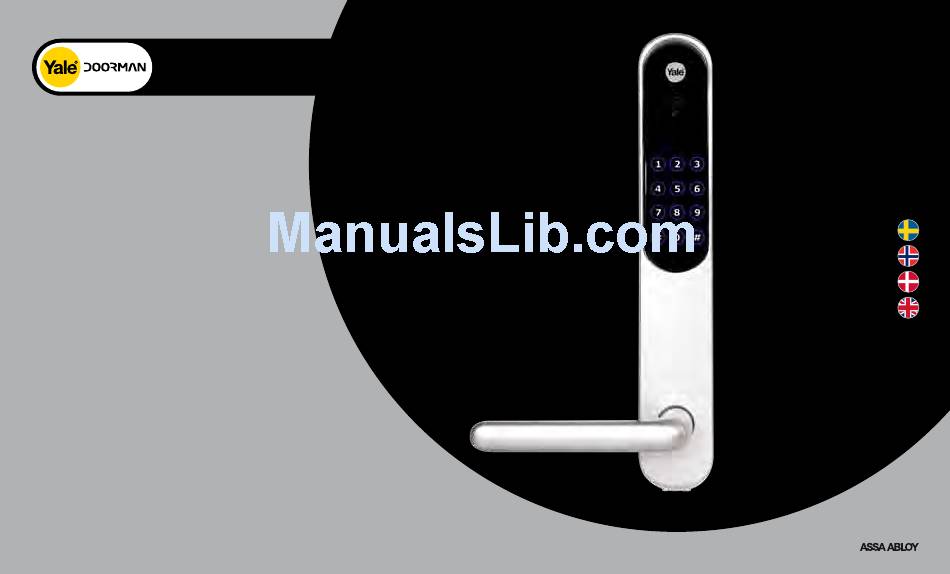

User Manual
An ASSA ABLOY Group brand
1

Advertisement

Table of Contents
loading

Related Manuals for Yale Doorman

Summary of Contents for Yale Doorman

  • Page 1 The world’s favourite lock ™ User Manual An ASSA ABLOY Group brand...
  • Page 2 Thank you for choosing Yale Doorman This user manual in combination with Quick Guide and Installation Manual assures you use the product in a safe and correct way as well as utilize it’s full potential.

  • Page 3: Table Of Contents

    Content Read this carefully before using Yale Doorman Important safety instructions Content in box Indications, larm and signals Emergency opening from outside with back up battery Emergency opening from inside with thumb turn Easy mode and Advanced mode Settings Settings in Easy mode – The lock is speaking to you during the programming Settings in Advanced mode –...

  • Page 4: Read This Carefully Before Using Yale Doorman

    Read this carefully before using Yale Doorman This product is design and manufactured for safe usage. Improper use can cause loss of proper, personal injury or product malfunction. Service must be done only by trained personell. This is necessary for example when product is damaged or software upgrade.

  • Page 5: Important Safety Instructions

    Important safety instructions Read these safety instruction to avoid accident, damage and inconvenience. • Never disassemble the product parts. This can cause electronic shock and product damage. • Do not use water or solvent such as gasoline of benzene since this can damage electronics and surface of product.

  • Page 6: Content In Box

    Content in box Escutcheon inside and outside Lock case Lock case cable Drill protection Batteries 3 key tags Strike Assembly kit standard door Assembly kit extreme door Manuals The world’s favourite lock The world’s favourite lock ™ ™ Installation Guide Quick Guide The world’s favourite lock ™...

  • Page 7: Indications, Larm And Signals

    Indications, larm and signals Yale Doorman has an built in voice guide in English, Swedish, Norwegian and Danish. This facilitates usage during registration of electronic keys, settings and special operations such as locking in secure mode. Light and sound indications on code pad when operating the product on outside.

  • Page 8: Emergency Opening From Outside With Back Up Battery

    Emergency opening from inside with back up battery with thumb turn If the batteries inspite of the Yale Doorman can be opened warning signals should be from inside without electronic drained one can attach a power from inside by turning...

  • Page 9: Easy Mode And Advanced Mode

    Easy mode and Advanced mode Yale Doorman is delivered with Easy mode pre set. One can also change this to Advanced mode by a hardware switch on the backside of the inside escutcheon. Easy mode and Advanced mode handles registration and removal of electronic keys in different ways.

  • Page 10: Settings

    (4 digits) a temporary code is added and valid for one day (about 24h). day (about 24h). 6 Automatic locking. When enabling automatic locking Yale Doorman 3 Automatic locking. When enabling automatic locking Yale will automatically lock after about 2 seconds when closing the door.

  • Page 11: Settings In Easy Mode - The Lock Is Speaking To You During The Programming

    Settings in Easy mode – The lock is speaking to you during the programming Select language Day and night code Automatic locking Sound Settings • Push # masterkode # • Push # mastercode # • Trykk # masterkode # • Push # masterkode # •...

  • Page 12: Important Information For Installation

    Important information for installation To check during installation To check after installation • Check that the thumb turn locks and unlocks properly and • Be careful when sliding the lock case into the hole in the door so that no cable is squeezed or cut by the lock case. check that you can turn the thumbturn to horizontal position in the opening direction.

  • Page 13: Product Defects

    Product defects Technical data If the product does not Maximum number of key tags is 20 on one lock. work there is a reset but- Each key tag can be registered on maxiumum 6 locks. ton between the battery Maximum number of remote controls are 5 per lock. back up poles on the bottom of the outside.

  • Page 14: Drawing Yale Doorman

    Drawing Yale Doorman 23,2...

  • Page 15: Form For Electronic Keys In Advanced Mode

    Position the lock Electronic keys Person Form for electronic Key tag 01 keys in Advanced Key tag 02 mode Key tag 03 Key tag 04 Key tag 05 Please use this form to keep Key tag 06 track of your electronic keys in Key tag 07 Advnaced mode.
  • Page 18 The world’s favourite lock YALE, with its unique global reach and range of products, is the world’s favorite lock – the preferred solution for securing your home, family and personal belongings. ASSA ABLOY is the global leader in door opening solutions, dedicated to satisfying end-user needs for security, safety and convenience.
