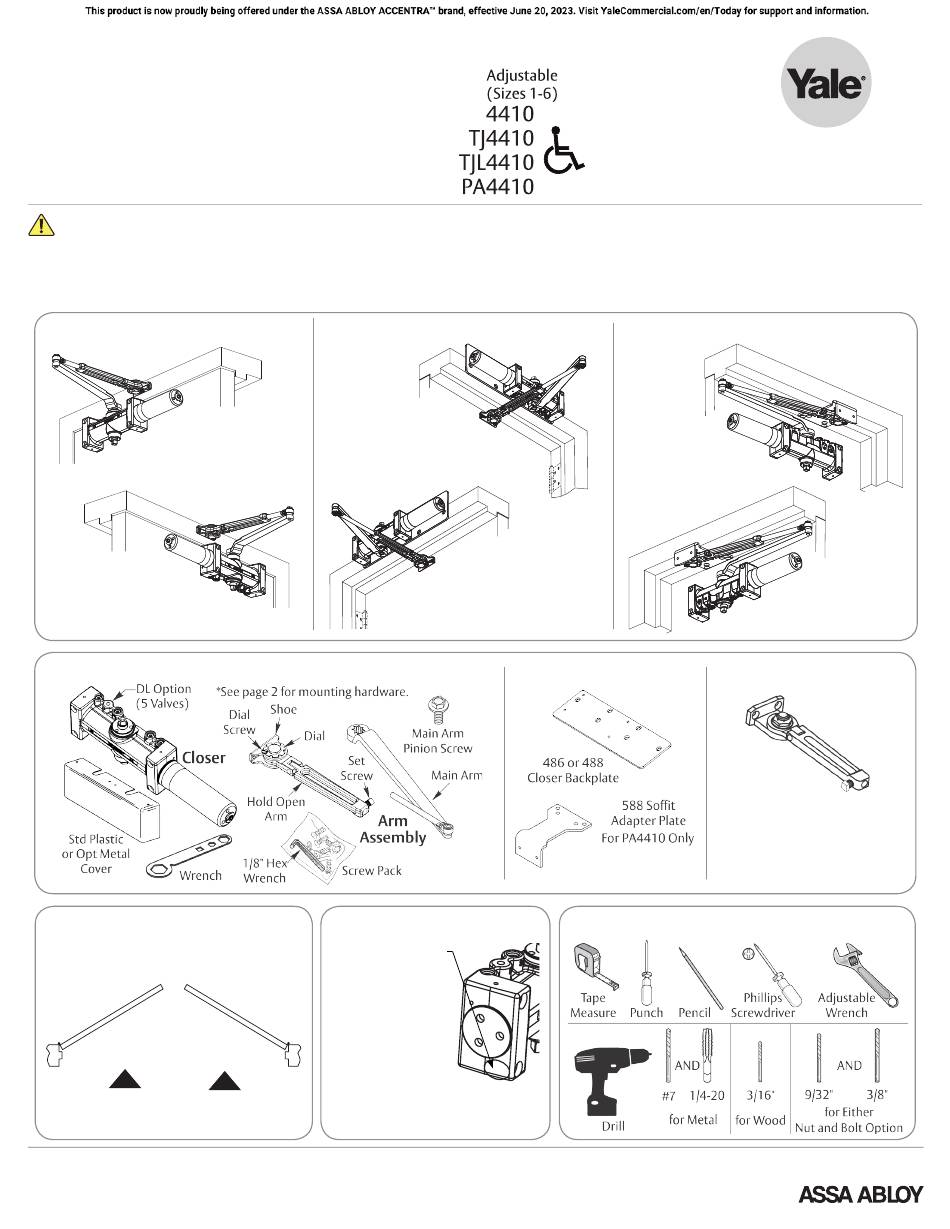

Yale 4410 Series Manual

4410
Non Handed Door Closer
Regular Arm
Top Jamb Mount
Parallel Arm
With or without DL suffix (delayed action)
With or without M suffix (metal cover)
WARNING
This product can expose you to lead which is known to the state of
California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65warnings.ca.gov.
Regular Arm
Right Hand Door - RH
Left Hand Reverse - LHR
Left Hand Door - LH
Right Hand Reverse - RHR
*Included Components
TO DETERMINE
HAND OF
To Determine Your Hand of Door:
YOUR DOOR:
Right Hand
Reverse
LEFT
HAND
DOOR
Copyright © 2019, ASSA ABLOY Access and Egress Hardware Group, Inc.
All rights reserved. Reproduction in whole or in part without the express written permission
of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
An ASSA ABLOY Group brand
Hold Open Arm Models
Right Hand Door - RH
Left Hand Reverse - LHR
To Identify Your Model:
Older models may
be stamped "1-6",
"1-4" or "2-6". They
Left Hand
can be replaced
Reverse
with a newer "1-6"
model which has
RIGHT
no stamp.
HAND
DOOR
Standard 4410 = 4 valves
Delayed Action 4410DL = 5 valves
Ce produit peut vous exposer au plomb qui, dans l'état de la Californie,
est reconnu pour causer le cancer, des anomalies congénitales ou d'autres
problèmes de reproduction. Pour plus d'informations, visitez:
www.P65warnings.ca.gov.
Top Jamb Mount
Left Hand Door - LH
Right Hand Reverse - RHR
Optional Plates
Tools Needed
Parallel Arm
Right Hand Door - RH
Left Hand Reverse - LHR
Left Hand Door - LH
Right Hand Reverse - RHR
Legacy Friction Hold Open Arm
Note: Legacy FHO arm has
installation orientation.
See 80-9300-0004-000 for details.
80-9344-3204-010 Rev 1 05/19
