8510 FDT2000 Rev2 inc scart

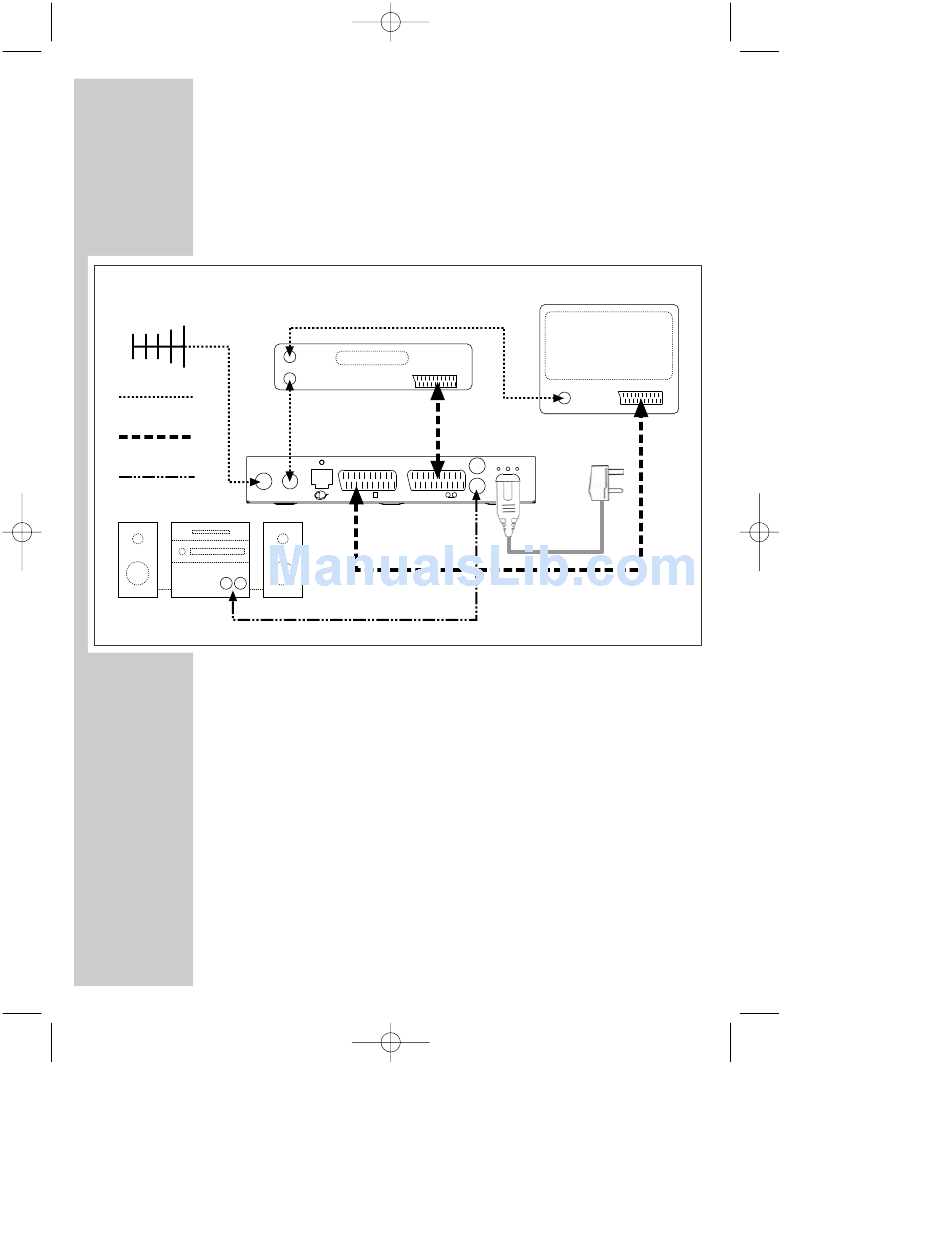

CONNECTIONS
How to connect the aerial, scart and co-axial cables
Caution : Always disconnect the receiver from the mains supply before
you connect it to any other equipment.
Aerial Leads
Scart Leads
Phono Leads
HI FI
AUX IN
L
1. Connect the cable of your TV aerial to the »RF IN« socket on the rear of the
receiver.
2. Connect scart and other cables as shown in the diagram above.
It is strongly recommended that the product be connected via scart
leads to your TV and VCR.
4
17/2/03 6:26 pm
VCR
Aerial OUT
Aerial IN
RECEIVER
RF LOOP
RF IN
TV
THROUGH
R
Page 4
TV
SCART
Aerial IN
L
R
MAINS
VCR
INPUT
Scart IN
