Summary of Contents for Ferguson FT-8200 HD

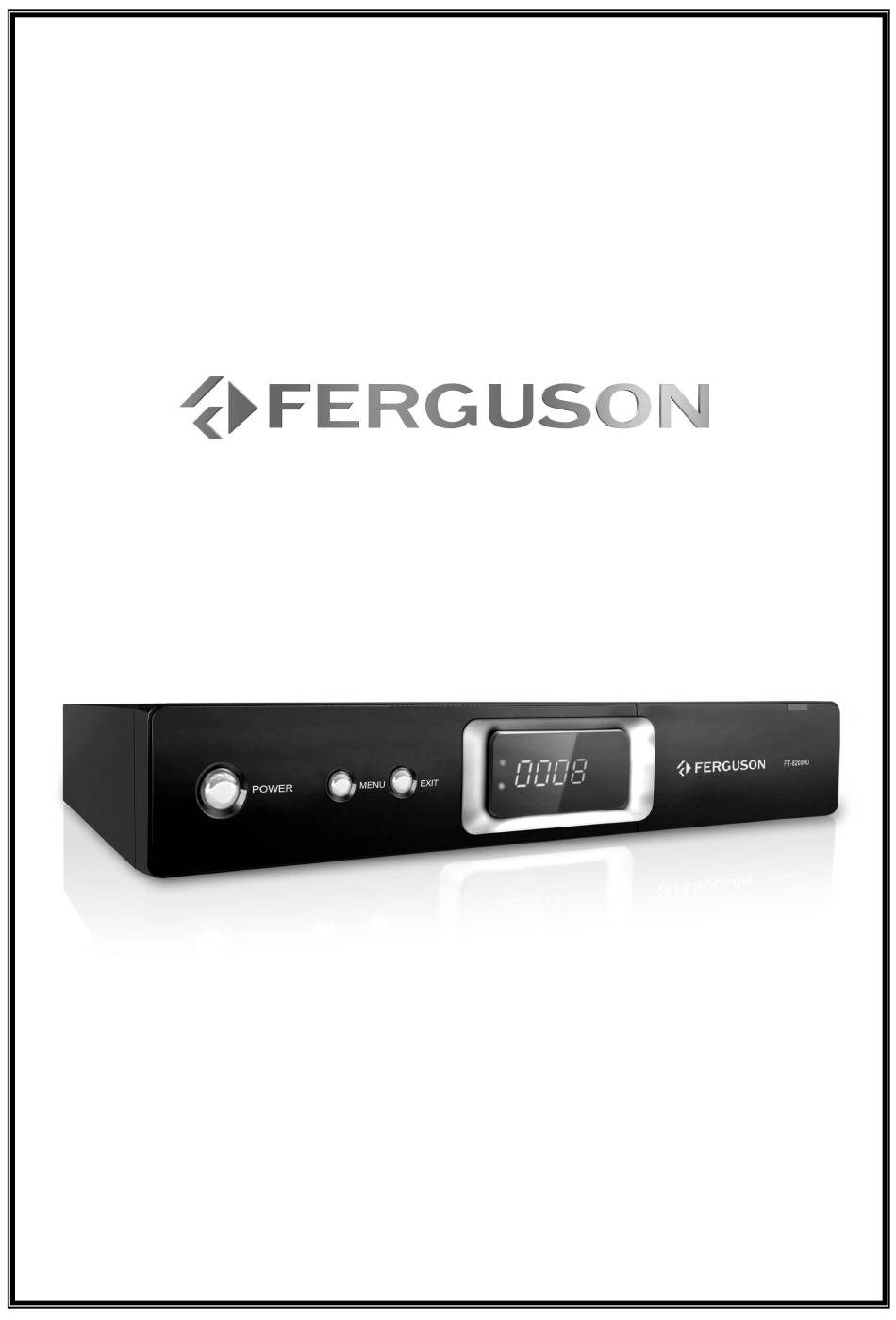

- Page 1 User manual FT-8200 HD English...
-
Page 2: Table Of Contents
SAFETY INSTRUCTIONS ....................3 SOFTWARE FOR DOWNLOADING..................3 USER MANUAL .......................3 SYMBOLS USED ON THE RECEIVER ..................4 GENERAL INFORMATION ....................5 1. Main Features .......................5 2. Unpacking......................5 3. General Operation of STB ..................5 INSTALLATION OF STB.....................6 1. Front Panel......................6 2. Rear Panel......................6 3. CI Module(CAM) and smart card ................7 REMOTE CONTROLLE .......................8 Quick Installation......................9 THE MAINMENU INFORMATION.................. -
Page 3: Safety Instructions
Telstar has used all the available means to ensure the latest information regarding its products. Ferguson does not give a warranty regarding the contents of this User Manual and waives any implied warranties regarding market value or fitness for specific purposes. The information contained herein provide guidelines allowing the operation and maintenance of the receiver. -
Page 4: Symbols Used On The Receiver
SYMBOLS USED ON THE RECEIVER The Digital Video Broadcasting logo. This logo tells you that this receiver is compliant with the DVB standards. The caution risk of electrical shock - do not open symbol This symbol tells you that you are not allowed to open the receiver. Only authorized (service) technicians are allowed to open the box. -
Page 5: General Information
GENERAL INFORMATION This digital terrestrial receiver is a highly cost-effective digital terrestrial receiver integrated. It provides big channels storage with fast searching. The receiver is definitely one of the best choices to deliver your digital life. 1. Main Features Fully conforms to MPEG4, MPEG2 and DVB-T standard. Using a CAM, it can decrypt the conditional access service. -
Page 6: Installation Of Stb

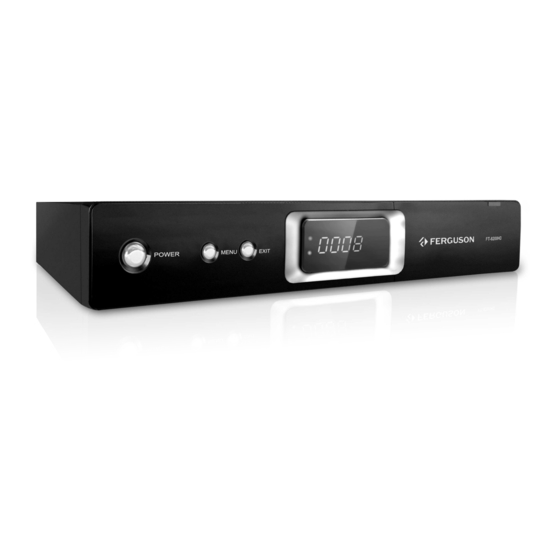

INSTALLATION OF STB 1. Front Panel 【POWER】Press to switch between ON and OFF modes. 【MENU】Display the main menu on TV 【EXIT】Return to the previous menu. 【OK】Confirm user’s selection or display the programs list on TV screen. 【VOL-】Left move key or increases volume 【VOL+】Right move key or decreases volume 【CH-】Move cursor or channel down 【CH+】Move cursor or channel up... -
Page 7: Ci Module(Cam) And Smart Card
3. CI Module(CAM) and smart card Inserting a CI Module (with Smart card) CI Module looks like a PC Card (called PCMCIA)for laptops. There are different kinds of CI Modules, suitable for different coding systems. 1.Turn off your set-top-box first. 2.Insert the Smart card into the Common Interface (CI) module. -
Page 8: Remote Controlle
REMOTE CONTROLLE Due to standardization fact most of Ferguson units is using the same remote control unit. That is why NOT all keys are being used by this STB model!! POWER Turns the Receiver ON/OFF. TV/RADIO Switches between TV and Radio modes. -
Page 9: Quick Installation
Quick Installation Step 1: Check the cable connections Prior to powering up the receiver, ensure that all cables are correctly connected. Ensure that the unit is connected to A/V equipment and the power socket. Step 2: Insert the CAM (with smart card) released by your service provider. Insert the CAM into the slot according to the arrow direction drawn. -
Page 10: The Mainmenu Information
THE MAINMENU INFORMATION After connecting the STB and switch on the power; the subject unit comes into work. If the signal is ready and there are programs saved in the unit, the TV will show the channel which when you turn off last time. -
Page 11: Delete All Programs
1.3 Delete All Programs This operation will irreversibly delete all programs from receiver. 1.4 Reset System Setting This operation removes any changes made by the user. The receiver will return to its factory settings. Upon completion of this operation receiver will automatically be rebooted. 1.5 Firmware Update Via USB Warning: Do not turn off the power during the update. -
Page 12: Subtitle Setting
2.3 Subtitle Setting User can choose below options of Subtitle control: Subtitle: Off, Normal or Hard of Hearing. Language choose: Primary language and Second language. You can press to choose the item, then to press<OK>to save settings. Press <MENU> to escape from current OSD menu. Press <EXIT>... -
Page 13: Osd Setting
2.6 OSD Setting User can choose below options of OSD set control: OSD language: select a preferred language available. Banner display: determines how long the info bar is displaying. transparency: allows you change level transparency. The default value is 10% 2.7 Other Setting RF Power: ON or OFF.( Antenna power supply ) When user uses the antenna which needs power supply,RF Power... -
Page 14: Program Guide
4. Program Guide It provides information of the current and next programs on different channels. The information is only available from the network to which the channel you are watching. Press < RED > key to switch between Program list and EPG list. The contents shown on the up-right windows and EPG list vary according to the selection in Program list. -
Page 15: Glossary
GLOSSARY Pay-TV television Premium Television refers subscription-based CA - Conditional Access - Encryption system television services, provided digital cable or used to secure content and grant access only to satellite, but also by digital terrestrial methods. subscribers. SCPC - Single channel per carrier - refers to CAM - conditional access module - is an using a single signal at a given frequency and electronic device, usually incorporating a slot...
