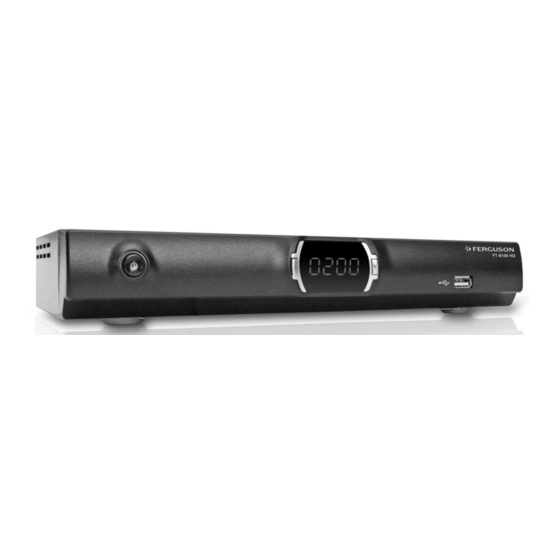

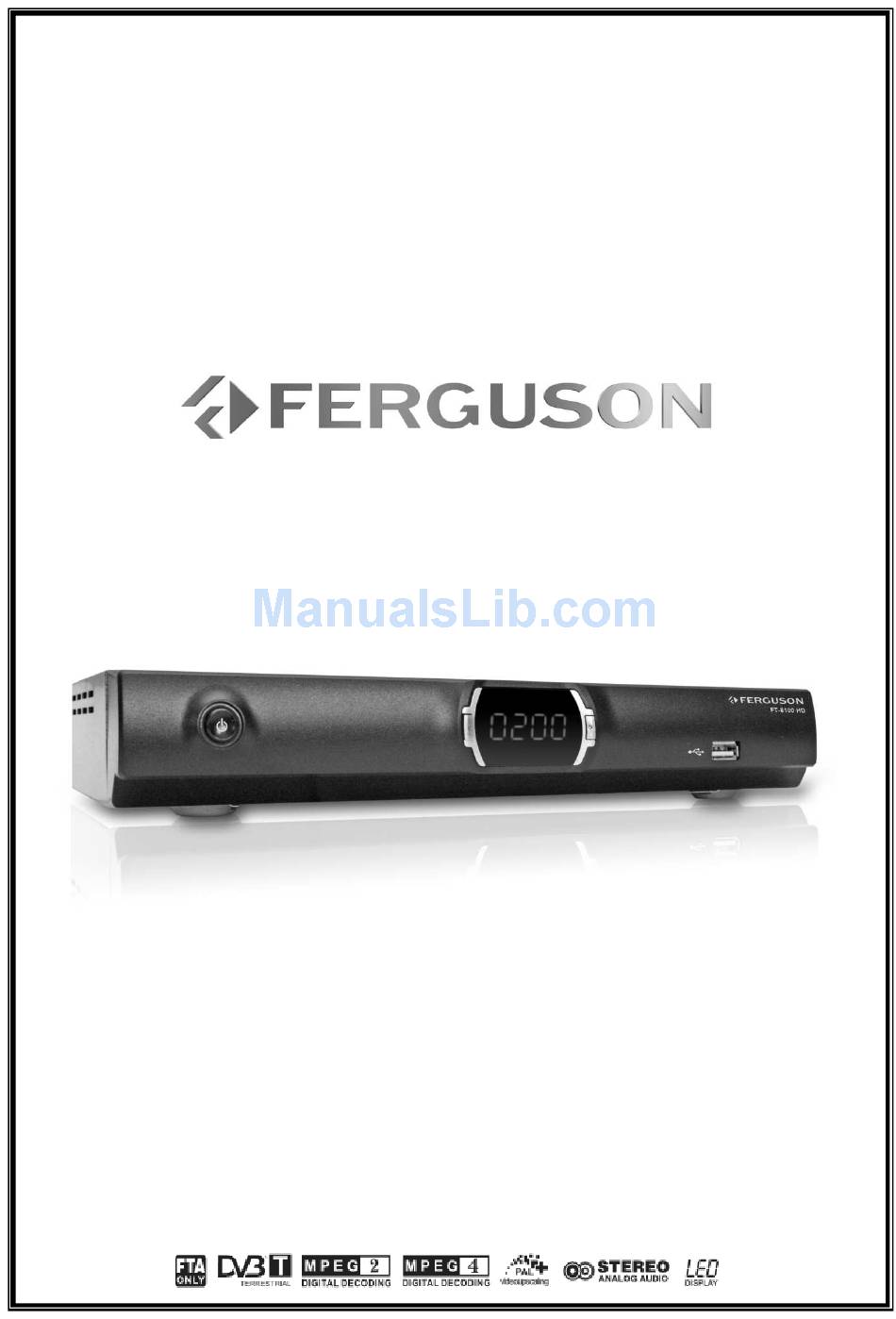

- Page 1 User manual FT-8100 HD English...
- Page 2 WARNING !!! On the USB Memory Function for FT-8100 HD model, user can make recording or playing function using by external USB devices such as USB Flash Memory Disk or external USB HDD(Hard Disk). However, below condit ion should be remarked before applying.
-
Page 3: Table Of Contents
SAFETY INST RUCTIONS ..................... 4 SOFTWARE FOR DOWNLOADING ..................4 USER MANUAL........................4 SYMBOLS USED ON THE RECEIVER ..................5 GENERAL INFORMATION ....................6 1. Main Features ......................6 2. Unpacking ......................6 3. General Operation of STB..................6 INSTALLATION OF STB....................... 7 1. -
Page 4: Safety Inst Ructions
Ferguson has used all the available means to ensure the latest information regarding its products. Ferguson does not give a warranty regarding the contents of this User Manual and waives any implied warranties regarding market value or fitness for specific purposes. The information contained herein prov ide guidelines allow ing the operation and maintenance of the receiver. -
Page 5: Symbols Used On The Receiver
SYMBOLS USED ON THE RECEIVER The Digital Video Broadcasting logo. This logo tells you that this receiver is compliant with the DVB standards. The caution risk of e lectrica l shoc k - do not open symbol This sy mbol tells you that you are not allowed to open the receiver. Only authorized (service) technicians are allowed to open the box. -
Page 6: General Information
GENERAL INF ORMATION This digital terrestrial receiver is a highly cost-effective digital terrestrial receiver integrated. It prov ides big channels storage with fast searching. The receiver is definitely one of the best choices to deliver your digital life. 1. Main Features •... -
Page 7: Installation Of Stb
INSTALLATION OF STB 1. Front Pa nel 【POWER】Press to switch between ON and OFF modes. 【CH-】Move cursor or channel down 【CH+】Move cursor or channel up 【DISPLAY SCREEN】Display the channel number and status. Power indicator. Signal indicator. 【USB】USB for update software 2. -
Page 8: Remote Controlle
REMOTE CONTROLLE Due to sta ndardization fact most of Ferguson units is using the same remote control unit. That is why NOT all keys a re be ing use d by this STB model!! POWER Turns the Receiver ON/OFF. TV/RADIO Switches between TV and Radio modes. -
Page 9: Connection Diagram
1. Connection Diagram The following f igure shows cable connections required for TV and other related electrical equipment. If you need any assistance for specific equipment connection, please contact your local dealer. 1.1 Connect to TV with HDMI cable (recommende d) 1. -
Page 10: Connect Scart Port
1.3 Connect SCART Port 1. Connect the antenna with LNB IN of the STB. 2. Connect to TV as following figure. 1.4 Connect Audio System 1. Connect the antenna with LNB IN of the STB. 2. Connect the SPDIF with Digital Theater Systems to enjoy higher quality sound. 3. -
Page 11: Quick Installation
Quic k Installation Step 1: Check the cable connections Prior to powering up the receiver, ensure that all cables are correctly connected. Ensure that the unit is connected to A/V equipment and the power socket. Step 2: Insert the CAM (with smart card) released by your service provider. Insert the CAM into the slot according to the arrow direction drawn. -
Page 12: The Mainmenu Information
THE MAINMENU INF ORMATION After connecting the STB and switch on the power; the subject unit comes into work. If the signal is ready and there are programs saved in the unit, the TV will show the channel which when you turn off last time. -
Page 13: Lcn
1.3 LC N The logical channel number (LCN), also known as virtual channel means a channel, which is different from the actual channel or frequency in which it is transmitted. Used for the automatic numbering of channels in accordance with a proposal for the prov ider. -
Page 14: Factory Reset
1.7 Factory Reset This operation removes any changes made by the user . The receiver will return to its factory settings. Upon completion of this operation receiver will automatically be rebooted. 2. Video Setting User can choose below options of video control: TV system: NTSC or PAL. -
Page 15: Auto Search
4.2 Auto Sea rch Scan all available channels that depends on the Nation Setting in the Install Guide. After searching well, new searched TV and radio programs will be added to the corresponding program list. 4.3 F irmwa re Update Via USB Warning: Do not turn off the power during the update. -
Page 16: Program Guide
6. Program Guide It provides information of the current and next programs on different channels. The information is only available from the network to which the channel you are watching. Press < EPG > key to switch between Program list and EPG list. The contents shown on the up-right windows and EPG list vary according to the selection in Program list. -
Page 17: Specifications
