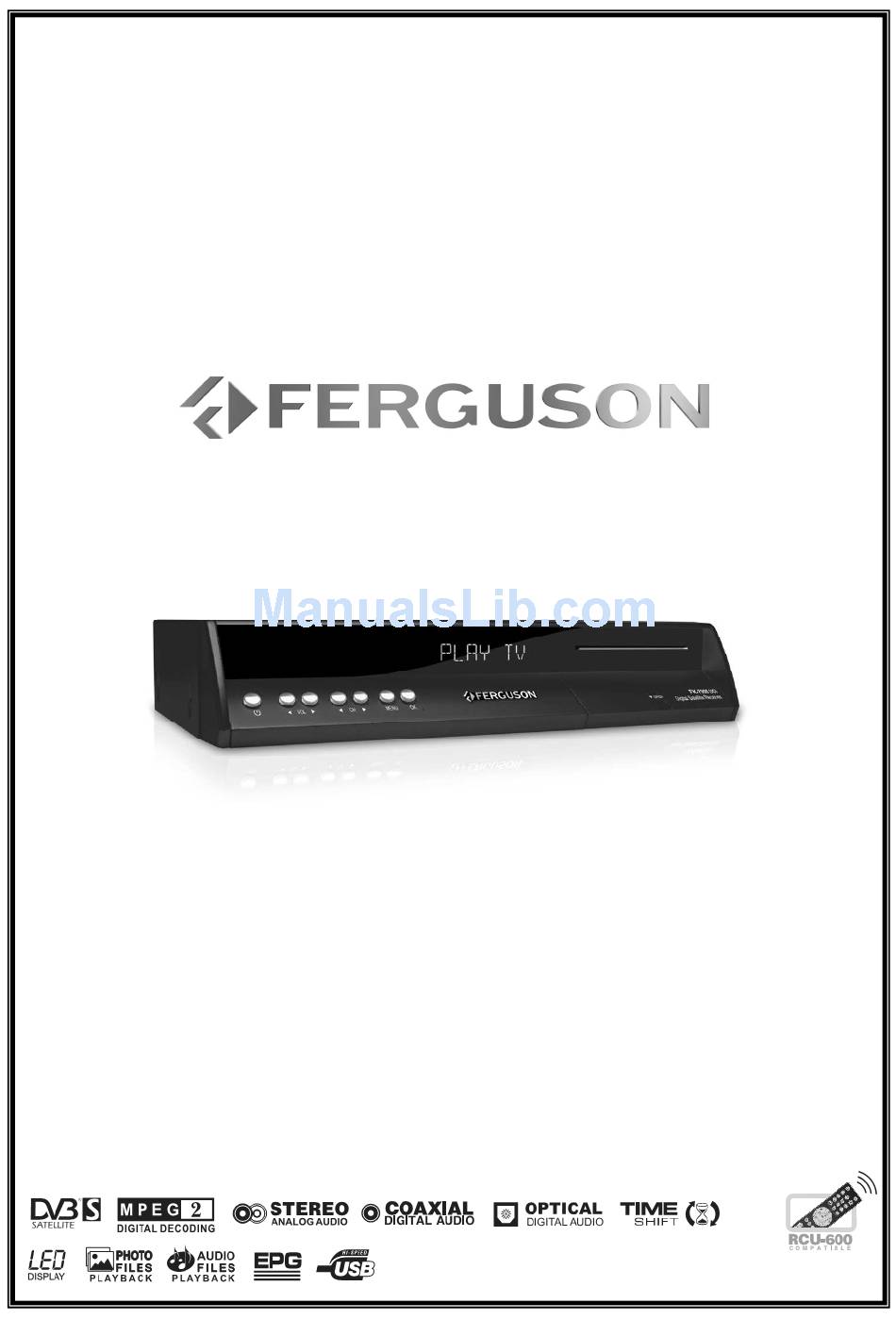

Page 1: User Manual
User manual FK-Series English... - Page 2 WARNING !!! On the USB Memory Function for FK-x900 series model, user can make recording or playing function using by external USB devices such as USB Flash Memory Disk or external USB HDD(Hard Disk). However, below condition should be remarked before applying. REMEMBER: 1.
-
Page 3: Table Of Contents
SAFETY INSTRUCTIONS........................4 SOFTWARE FOR DOWNLOADING ......................4 USER MANUAL ..........................4 SYMBOLS USED ON THE RECEIVER ..................... 5 GENERAL INFORMATION........................6 1. Main Features ........................6 2. Unpacking ..........................6 3. General Operation of STB......................6 4. Remote Control Unit RCU-500....................7 5. -
Page 4: Safety Instructions
Telstar has used all the available means to ensure the latest information regarding its products. Ferguson does not give a warranty regarding the contents of this User Manual and waives any implied warranties regarding market value or fitness for specific purposes. The information contained herein provide guidelines allowing the operation and maintenance of the receiver. -
Page 5: Symbols Used On The Receiver
SYMBOLS USED ON THE RECEIVER The Digital Video Broadcasting logo. This logo tells you that this receiver is compliant with the DVB standards. The caution risk of electrical shock - do not open symbol This symbol tells you that you are not allowed to open the receiver. Only authorized (service) technicians are allowed to open the box. -
Page 6: General Information
GENERAL INFORMATION This digital satellite receiver is a highly cost-effective digital satellite receiver integrated. It provides big channels storage with fast searching. The receiver is definitely one of the best choices to deliver your digital life. 1. Main Features USB PVR function – recording on USB memory Digital Audio Stream through optical S/PDIF Component (YPbPr) output Advanced Electronic Program Guide (EPG) -
Page 7: Remote Control Unit Rcu-500
4. Remote Control Unit RCU-500 Due to standardization fact most of Ferguson units is using the same remote control unit RCU-500. That is why NOT all keys are being used by this STB model!! POWER Turns the Receiver ON/OFF. MUTE Selects the sound ON/OFF. -
Page 8: Front Panel
5. Front Panel POWER : Turns the receiver ON/OFF : Changes the channels on the screen and moves the cursor up/down in the Menu : Increases/Decreases the volume levels or changes the setting in the Menu. : Shows the Channel List on the screen and use to make selections in the Menu. MENU : Shows the Main Menu on the screen FK-6900 CR... -
Page 9: Rear Panel
6. Rear Panel LNB IN: Connect to satellite antenna (IF input from LNB to digital tuner) LOOP OUT: Connect to another receiver (IF loop through output from digital tuner) Connect to TV using SCART cable VCR: Connect to VCR using SCART cable. COMPONENT (YPbPr): Provides a component video output to TV or other equipments. -
Page 10: Connection Diagram
8. Connection Diagram The following figure shows cable connections required for TV and other related electrical equipment. If you need any assistance for specific equipment connection, please contact your local dealer. 8.1 Connect to TV with HDMI cable 576p (applicable only for FK-7900 UCI) 1. -
Page 11: Connect Scart Port
8.3 Connect SCART Port 1. Connect the antenna with LNB IN of the STB. 2. Connect to TV as following figure. 8.4 Connect Audio System 1. Connect the antenna with LNB IN of the STB. 2. Connect the SPDIF or OPTICAL with Digital Theater Systems to enjoy higher quality sound. 3. -
Page 12: Connect Usb Port
8.5 Connect USB Port 1. The receiver supports any hard disk placed in a housing with its own power. The only condition is that assumption on the disk one primary partition and reformat it in FAT32. 2. We recommend that you keep backing up data on a personal computer. A large number of audio files can slow down the work of the receiver (slow loading files). -
Page 13: Connect To An Other Stb
8.7 Connect to an other STB 1. Connect to an STB as following figure. -
Page 14: Setting Motorized Satellite Dish
USALS, connect the output of USALS to LNB IN on rear panel of Ferguson receiver. The motor is what actually moves the antenna between the various satellite positions and is installed in between the antenna mast and the antenna mount. It is designed such that the axis of rotation is aligned with the North Star. -
Page 15: First Steps
FIRST STEPS 1. Insert the plugs of the receiver’s and the auxiliary equipments in the power socket and switch them 2. Select the AV channel on the TV set. 3. The receiver is delivered with pre-programmed TV channels and can be used immediately. To see if there are any new channels, then activate the channel search. -
Page 16: The Menu Information
THE MENU INFORMATION Press MENU key on the RCU to display the following menu on the non-menu mode. The menu consist of 6 sub-menus such as the following: 1. Installation 2. User Preference 3. Utility 4. Channel List Edit 5. System Setting 6. -
Page 17: Edit, Add New Transponder
1.4.1 DiSEqC1.2 Satellite: Make a choice from the pre-programmed satellites. Transponder: Select the desired TP under the current satellite. Limit Setup: Select among Enable, Disable, East limit and West limit. Movement : To move the antenna until it is turned into the desired direction. -
Page 18: Single Search
1.6 Single Search The function is used to search channels in one satellite, which has been selected. Press red key to enter the search window. First select search mode by using arrow keys, and press OK to start search. 1.7 Multi Search The function is used to search channels from several satellites at the same time. -
Page 19: Parental Control
2.1 Parental Control The STB provides an active parental lock function, allowing you to block specific menu settings by means of a four-digit security code. Accessing the Parental Control menu is controlled by a current password. The default value is 0000. If necessary, you can change it later. Highlight the item you want to operate and press keys to select ON or OFF. -
Page 20: Delete Channel
4.2 Delete Channel To delete a service: 1. Select the channel you want to delete and press GREEN key to confirm. 2. After pressing GREEN key, a “scissors” mark appears on the right side of the selected service name. That means this service is going to be deleted. -
Page 21: Save/Restore
4.6 Save/Restore This option allows you to save or restore the channel list. receiver > USB: This feature allows you to save the current list of channels to file. USB > receiver: This feature restores the saved file with a list of channels. -
Page 22: System Information
5.3 System Information This menu displays some information of the receiver. 5.4 Factory Default Enter the menu with four-digit number password (by default “0000”), then click OK to delete all data and restart your receiver. NOTE: On selecting factory default you will lose all of data, channel list and information, which was previously installed! 6. -
Page 23: Usb/Pvr Key
The Time Shifting mode enables the user to "pause and control live TV". From the moment the receiver Ferguson is in Time Shifting mode, it will continuously record the source from satellite into its buffer. The buffer is created automatically on the external USB memory. -
Page 24: Epg
7.4 EPG The receiver provides EPG function for you to get access to the TV Guide (or Radio Guide if you are listening to radio channel) that will show the titles and other information of the current and next programs on different channel. -
Page 25: Quick Find
7.7 Quick Find After pressing BULE key, the Quick Find window will be displayed. Select the first letter of the channel name which you want to find at the alphabet, the relevant channels will be display in the channel list. You can use letters corresponding to numerical key and type channel name the same way as SMS. -
Page 26: Trouble Shooting
In worry about customer's satisfaction, in case of any problems, we ask you always before dispatch device to check on our internet side: www.ferguson-digital.eu if the newer version of software is. Due to conditions of guarantee the actualization of software does not rank to service repairs. -
Page 27: Glossary
GLOSSARY CA - Conditional Access - Encryption system Pay-TV television Premium used to secure content and grant access only to Television refers subscription-based subscribers. television services, provided digital cable or satellite, but also by digital terrestrial methods. CAM - conditional access module - is an electronic device, usually incorporating a slot SCPC - Single channel per carrier - refers to for a smart card, which equips a set-top box... -
Page 28: Specification
SPECIFICATION TUNER 950 ~ 2150 MHz Input Frequency 950 ~ 2150 MHz Loop Out Frequency Input Level –65 ~ –25 dBm Input Impedance 75Ω 13V/18V/OFF, Imax = 400mA LNB Supply QPSK Demodulation Type 0.35 Roll Off Factor 1/2, 2/3, 3/4, 5/6, 7/8, Automatic 204, 188, t = 8 Reed Solomon 2.0 ~ <...
