CREE LIGHTING CPY Series Manual page 2

4
Threaded Hub
5
Junction Box
Air Craft
Cable
6
2 of 3
Alignment Hole
Cable
Hole
Threaded
Hub
Insert
Mounting
Screws

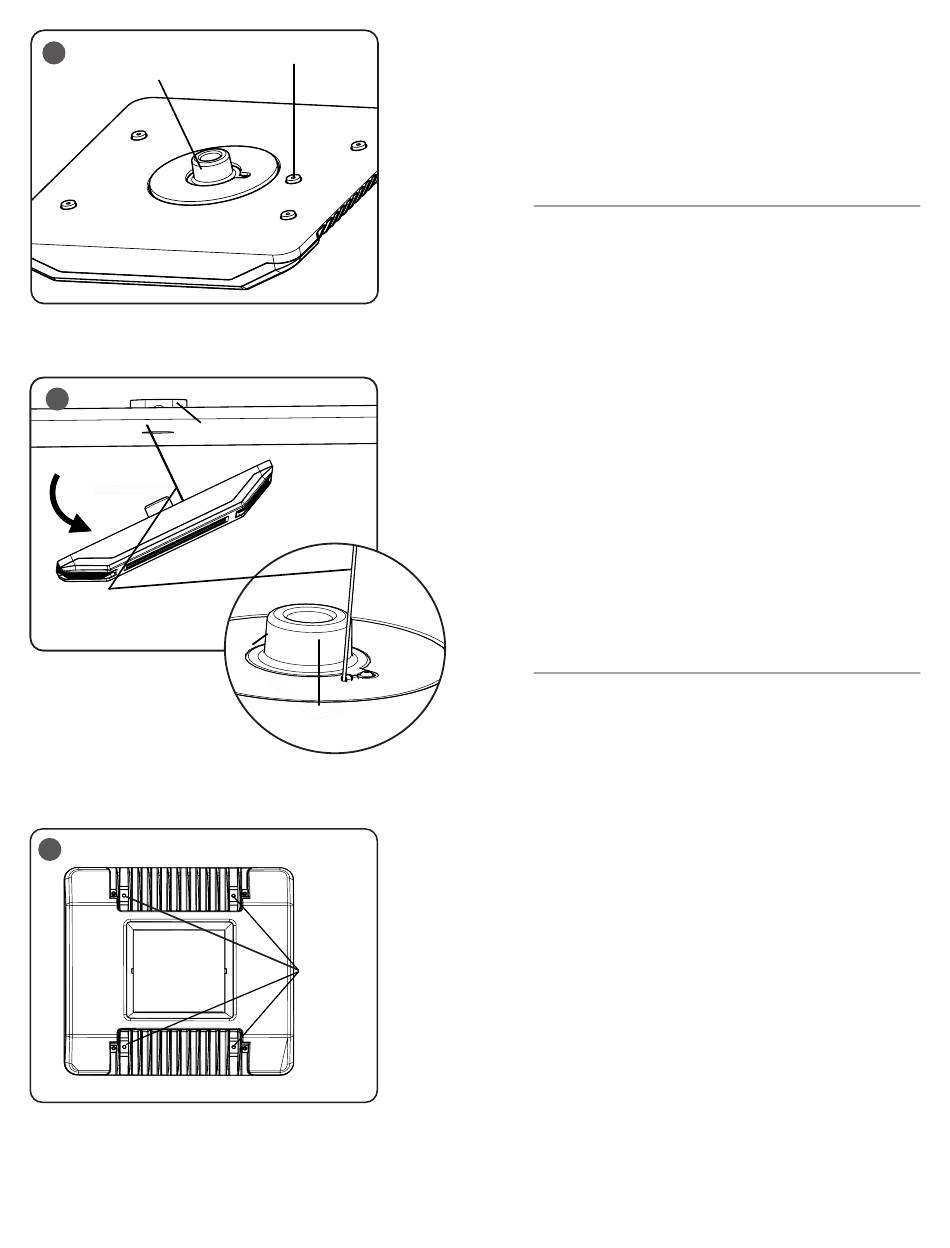

STEP 4:
Bring luminaire to canopy and insert threaded hub into the 2.0"
Stem Hole that was cut in Step 2. Rotate luminaire until alignment
screw seats into the 0.325" Alignment Hole that was cut in Step 3.
See Figure 4.
STEP 5:
Continue to Step 2 in "Direct Mount - Canopy Applications"
section.
DIRECT MOUNT OVER JUNCTION BOX
NOTE:
For use with customer supplied junction box. Junction box
must be 4" square or octagon.
STEP 1:
Attach Air Craft Cable, provided in the hardware bag, using
supplied #8 pan head screw to luminaire near the threaded hub
Figure 5.
as shown in
STEP 2:
Attach other end of the Air Craft Cable to the customer supplied
junction box using supplied #8 pan head screw. Then carefully let
the fixture hang down for wiring. See
STEP 3:
Make wiring connections into junction box per "Electrical
Connections" section.
STEP 4:
To mount luminaire to ceiling, feed the threaded hub into the
junction box, making sure no wires are pinched and luminaire is
flushed with ceiling.
STEP 5:
Insert and tighten (4) supplied sheet metal screws to metal
ceiling. If ceiling isn't metal use appropriate customer supplied
Figure 6.
hardware. See
BLUETOOTH TECHNOLOGY ENABLED MULTI-LEVEL
®
SENSOR (OPTIONAL)
The 8' to 20' sensor lens comes installed on the sensor on these
luminaires. A 20' to 40' sensor lens and aisle shroud is included in
the hardware bag. To change the lens, unscrew the existing lens,
remove the shroud from the replacement lens and screw the new
lens back on to the sensor. If aisle lighting is required, the shroud
should be added to the appropriate lens.
For Sensor information please visit the Leviton website, www.
Leviton.com and search on ZLDxZ-xxx/OFDxZ-xxx.
Configuration is made using the Leviton Smart Sensor App from
a smartphone or other Bluetooth
The Smart Sensor App can be downloaded from either Goggle
Play or Apple Store.
Figure 5.
enabled Android or iOS device.
®
CI391X01R2_D
