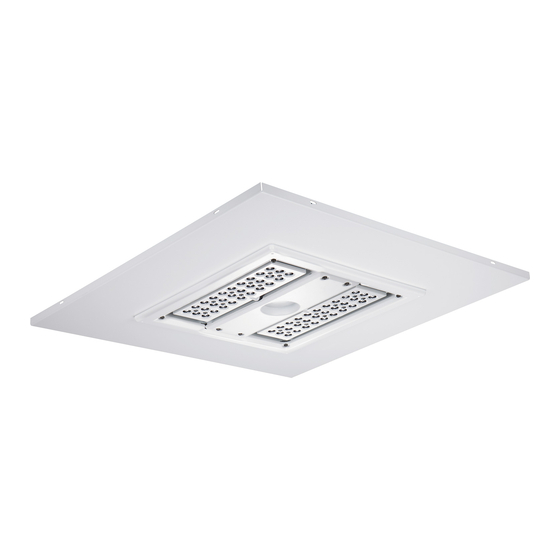

CREE LIGHTING 304 Series Disassembly Instructions

Models :
304 Mnt 0, R, Y Light Sources
codes
LYD# XA-Q#
LE#
LXD#
Disassembly Instructions
Light Source (LS)
For End User (EU)
For Control Authority (CA)
N° DOC: DI022RLER0 Rev: 00
Power Supply
codes
PH#
X-30X-#
Warning: Before opening the appliance, remove voltage from the mains line.
5
Tools:
17.1
17.2
17.3
17.4
18
Includes: Mounting 0, R and Y

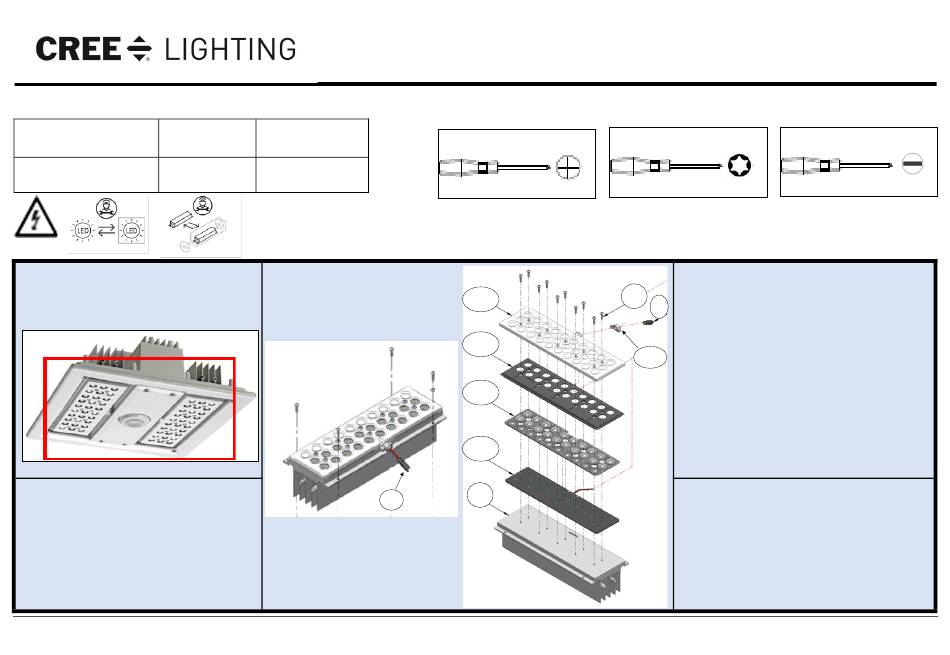

DISASSEMBLY INSTRUCTIONS
LS-EU
I.Follow points "a-b" of paragraph PS-EU
II.Unscrew screws 19 to remove optical pac-
19
kage 17 from heatsink 18
5
III.Replace all damaged optical package 17
with a new one
IV.Screw back screws 19 to attach the new
optical package to the heatsink 18, with a
20
torque of 2.7 Nm
V.Reconnect the socket to the plug of the
connectors 5 on the LED bar cables
LS-CA
1.Follow points "I-II" of paragraph LS-EU
2.Remove gasket 20 from cover 17.1
3.Remove components 17.2 and 17.3 to re-
move the LED bar 17.4
Latest release date: 19/11/2021
304 Series
