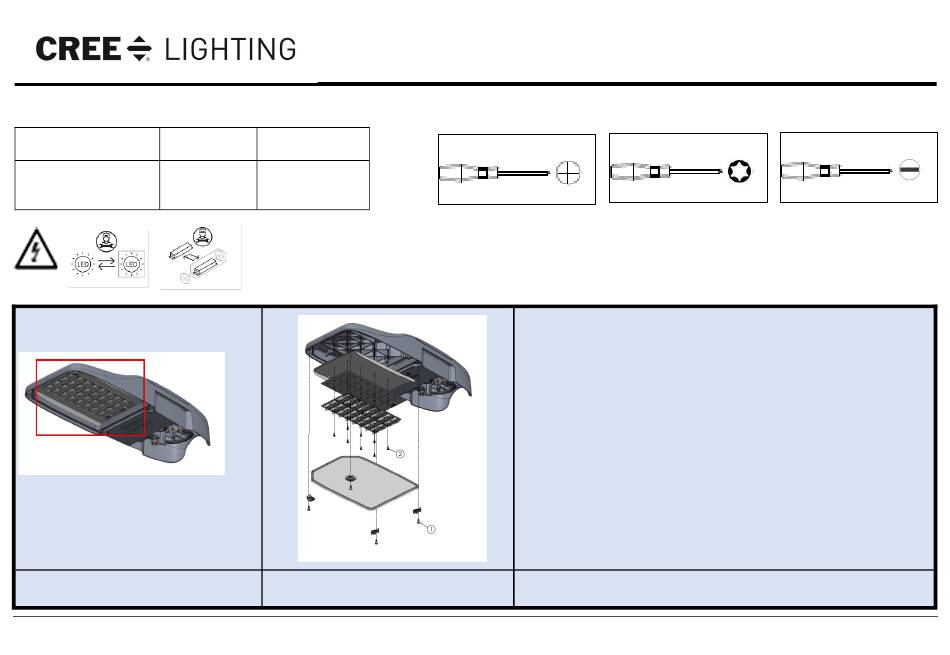

CREE LIGHTING StreetMaster Series Disassembly Instructions

Advertisement

Quick Links

Codes :
StreetMaster Series
Light Source
Codes
PCB###
SPSA-###
SPMA-###
Disassembly Instructions
Light Source (LS)
By End User (EU)
By supervisory authority (CA)
N° DOC: DI186RLER0
Rev: 00
Driver LED Codes
TRI###
TCI###
INV###
Warnings: Before opening the luminaire, switch off power supply
Maintenance must be performed by a trained technician authorized by CREE Lighting Europe or directly by a technical ope-
rator at the production site .
If any part of the product is damaged during maintenance, contact CREE Lighting Europe.
Replace damaged parts only with original spare parts specified by CREE Lighting Europe.
TOOLS
LS-EU
1.Unscrew the screws 1, thus remove the clips and glass.
2. Gently pressing on the PCB connector button disconnect the wires from
the contact.
3.Unscrew the screws 2 of the optics
4.Remove the optics the LS light source and the aluminum recuperator.
5. Replace the aluminum recuperator , replace the damaged LSs and as-
semble the whole package with its optics using screws 2 to a torque of
0.5 Nm.
6. Reconnect the LS power cables.
7. Replace the glass, making sure not to press or damage the cables and
the deposited gasket.
8. Use the Clips and associated screws to a torque of 2.5 Nm to close the
optical compartment .
LS-CA
Follow steps 1 -2- 3- 4 of the instructions under LS-EU.
StreetMaster Series
Includes: StreetMaster Small and Medium Luminaires
DISASSEMBLY INSTRUCTIONS
Latest Release Date: 12/04/2024
