Models:
CPY Flat lens
Light Source
codes
CPY drop lens
XCC#
LE174X#
Disassembly Instructions
Light Source (LS)
For end User (EU)
For Control Authority (CA)
N° DOC: DI039RLER0 Rev: 00
Power Supply
codes
PH#
Warning: Before opening the appliance, remove voltage from the mains line

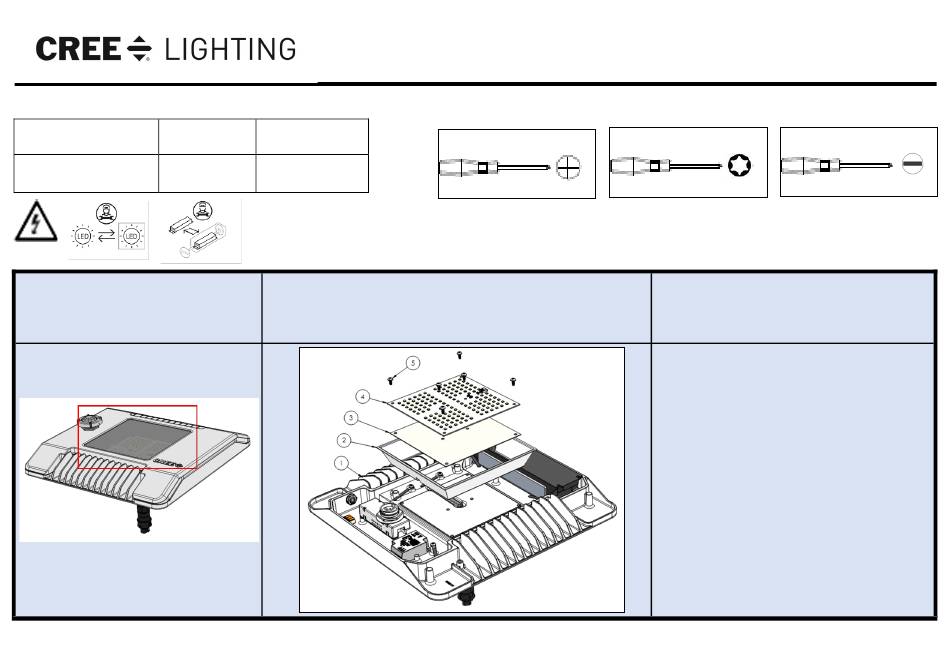

Fig.1
Tools:
CPY Series
LED Retrofit Recessed
Includes: XCC Series
DISASSEMBLY INSTRUCTIONS
LS-EU
1.LED bars are not replaceable by the end user
by construction; only a technical operator at the
production site can replace these bars
LS-CA
1.Follow points A - B of paragraph PS-CA
2.Unscrew screws 5 that fix LED bars 4 on hou-
sing 1 via thermal pad 3 and frame 2
3.Remove LED bars 4 without damaging the
thermal pad 3
Latest release date: 09/11/2021
Advertisement
Related Manuals for CREE LIGHTING CPY Series
Summary of Contents for CREE LIGHTING CPY Series
- Page 1 CPY Series LED Retrofit Recessed Includes: XCC Series DISASSEMBLY INSTRUCTIONS Models: Tools: CPY Flat lens Light Source Power Supply codes codes CPY drop lens XCC# LE174X# Warning: Before opening the appliance, remove voltage from the mains line Disassembly Instructions LS-EU Light Source (LS) 1.LED bars are not replaceable by the end user...
- Page 2 Disassembly Instructions PS-EU Power Supply (PS) a.The power supply is not replaceable by the end user by For End User (EU) construction; only a technical operator at the production site can replace the components For Control Authority (CA) PS-CA Fig.2 A.Access the wiring compartment by unscrewing the four screws 3 on cover 2 of the device (Fig.2) B.Disconnect the cables connected to driver 6 on its termi-...
- Page 3 For more information on available collection facilities, contact your local waste collection service or the shop where you bought this appliance. © 2021 Cree Lighting, A company of IDEAL INDUSTRIES. All rights reserved. For informational purposes only. Content is subject to change. See www.creelighting.com/warranty for warranty and specifications. Cree® and the Cree logo are registered trademarks of Cree, Inc.
