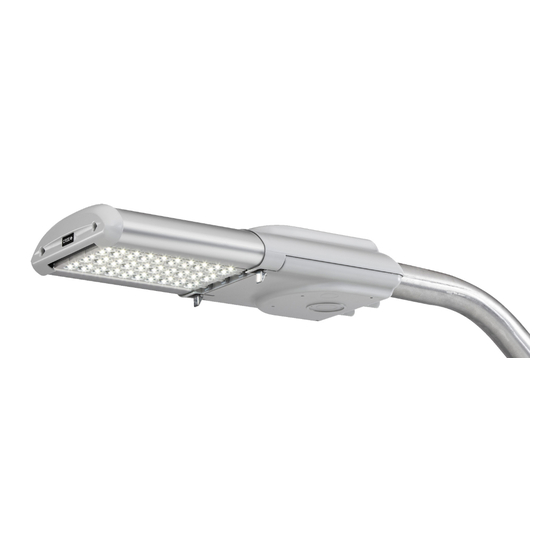

CREE LIGHTING LEDway Series Disassembly Instructions

Models :
LEDway Road Light Sources
codes
LEDway Multi
LEDway Tunnel
XA-Q#
LYD#
LXD#
Disassembly Instructions
Light Source (LS)
For End User (EU)
For Control Authority (CA)
N° DOC: DI114RLER0 Rev: 00
Power supply
codes
PH#
Warning: Before opening the appliance, remove voltage from the mains line.
4
1
3
3
2
Tools:
1.1 5
4
1.2
1.3
1.4
LEDway Series
Includes: LEDway Road, LEDway Multi, LEDway Tunnel

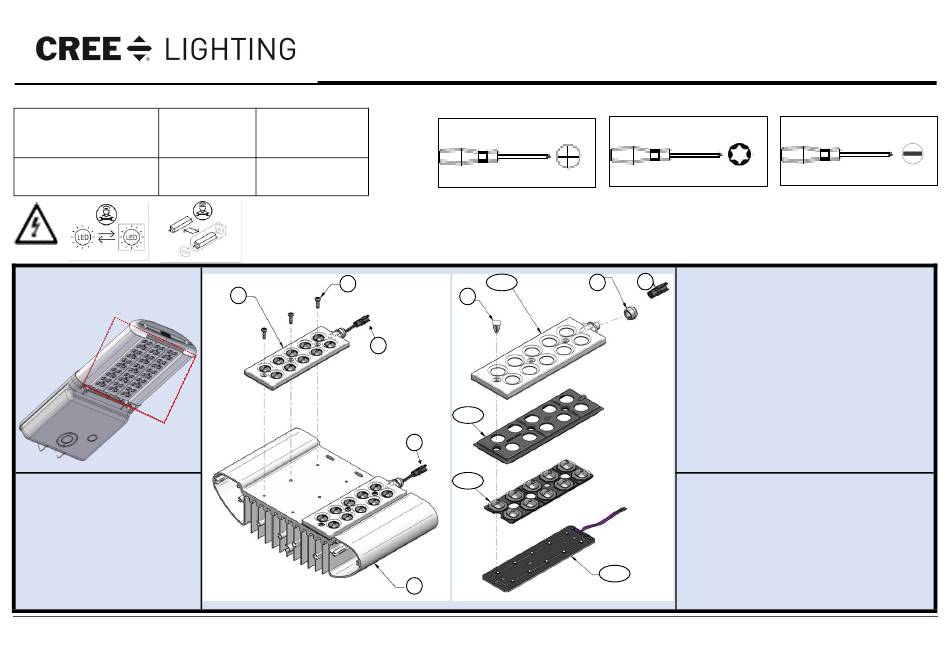

DISASSEMBLY INSTRUCTIONS
LS-EU
3
I.Follow points "a-b" of paragraph PS-EU
II.Unscrew screws 4 and remove optical
packets 1 from heatsink 2
III.Replace damaged optical packages 1
with new optical packages
IV.Screw back 4 with a torque of 2.7 Nm
V.Reconnect connectors 3
VI.Close the device by closing the appro-
priate clips 6
LS-CA
1.Follow points I - II of paragraph LS-EU
2.Remove gasket 5 from cover 1.1
3.Remove components 1.2 and 1.3 to remo-
ve the LED bar 1.4
Latest release date: 19/11/2021
