Front Panel; 1900 / 2000 Appliance Front Panel - Check Point QUANTUM SPARK 1900 Getting Started Manual

Front Panel

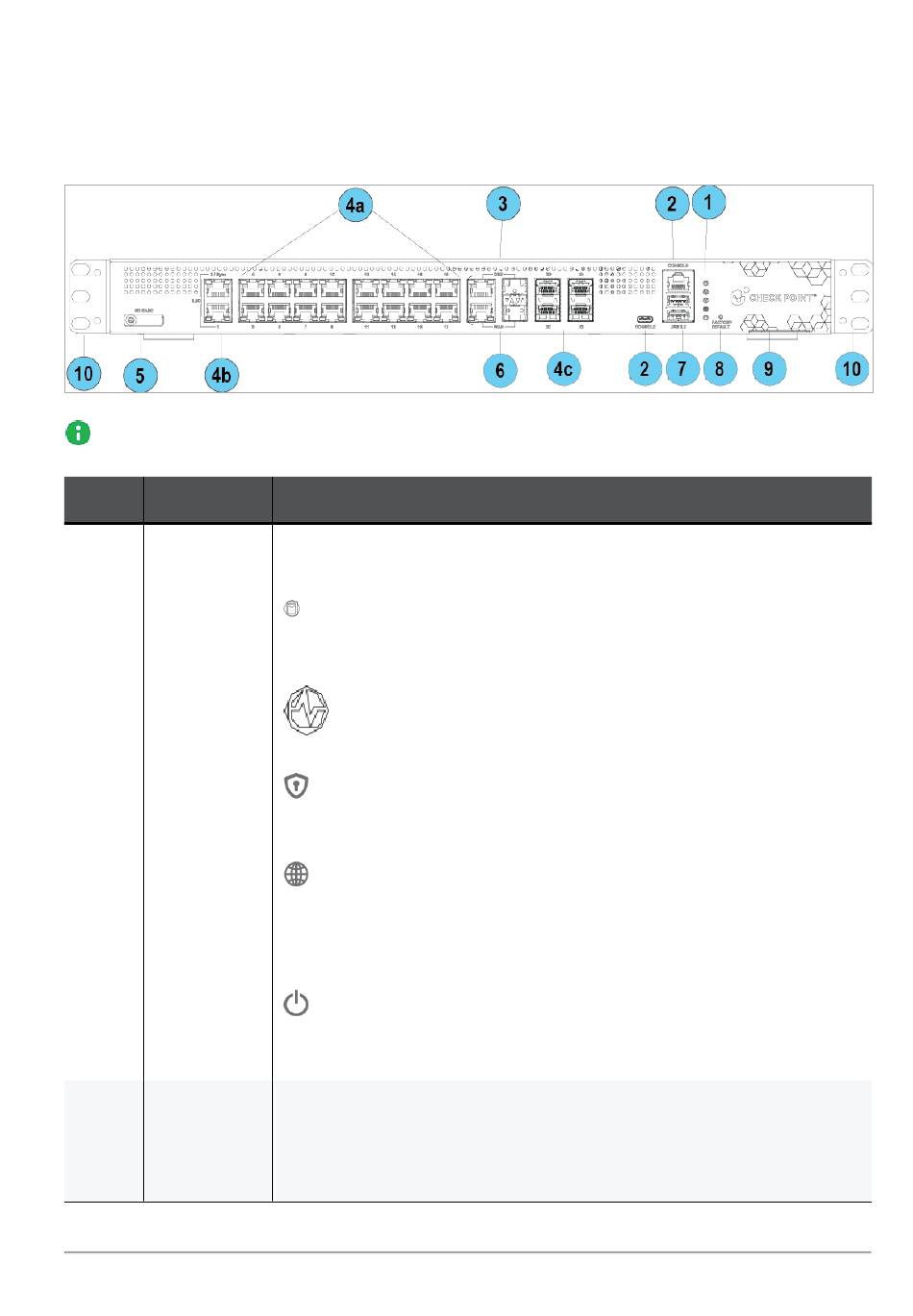

1900 / 2000 Appliance Front Panel

Note - There is only one set of LEDs. These LEDs show different colors depending on
what activity is occurring.
Key Item
1 LEDs
2 Console
Description
From top to bottom:
n Storage memory - SSD storage memory. Bi-color
blue/red displays SSD status.
No SSD access - Blue Off, Red Off
l
SSD failure - Blue Off, Red On
l
n Power redundancy - Shows the status of the two
internal PSUs. Single red LED.
The two Power Supplies are active - Off
l
Failure in one of the Power Supplies - On
l
n Management - See Management LEDs below.
n Internet
No internet connection - Off
l
Connecting to the internet - Blinking blue
l
Connected - Blue
l
Connection failure - Blinking red
l
n Power/Status
Normal operation - Solid blue
l
Boot in progress or installing firmware - Blinking
l
blue
Error/Alert - Red
l
There are two console ports for the serial console cable: USB Type-
C and RJ45.
USB Type-C has priority when both are connected.
Baud rate: 115200.
